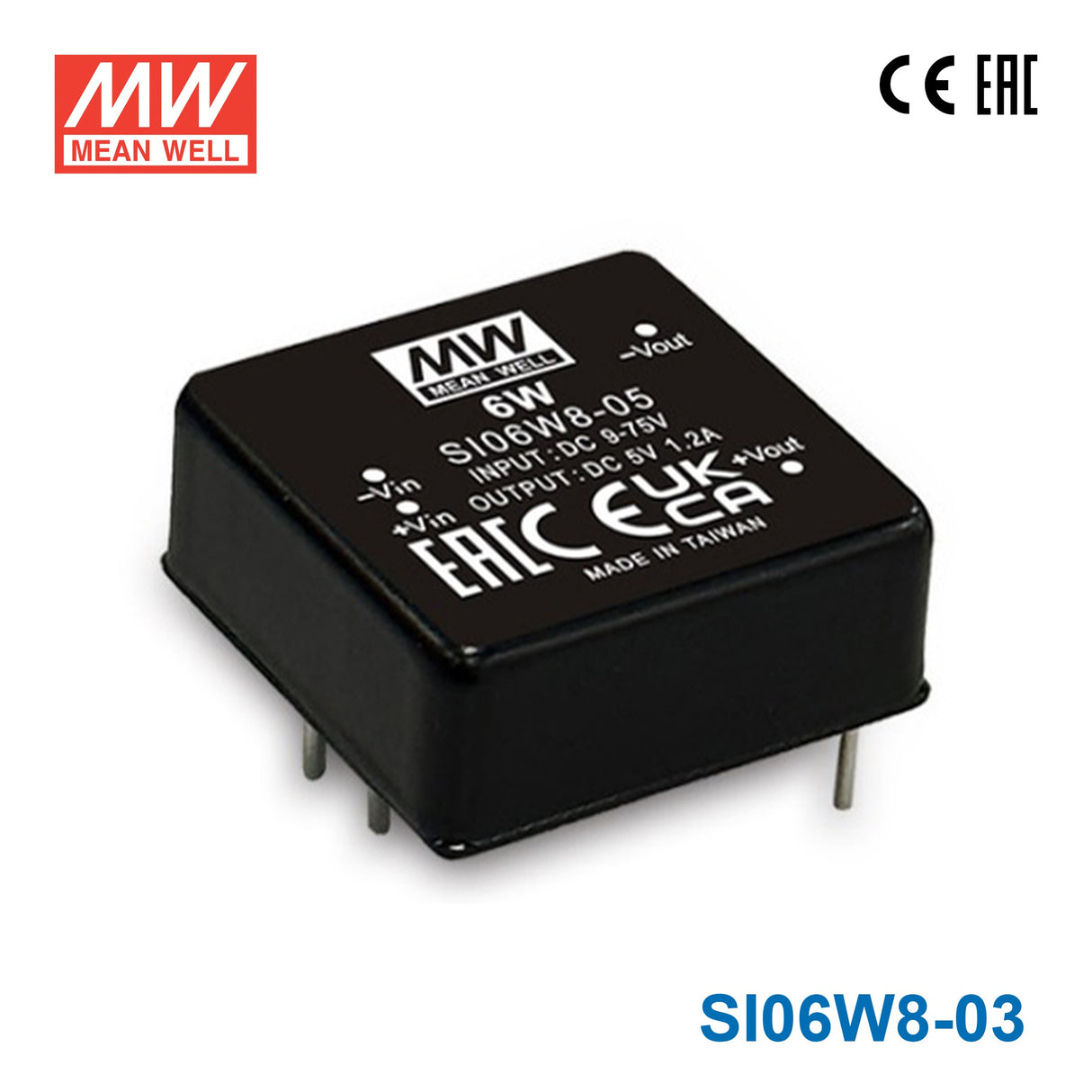

Mean Well SI06W8-03 8:1 Ultra-Wide Input DC-DC Regulated Converter, Single Output 6W 3.3V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SI06W8-03 8:1 Ultra-Wide Input DC-DC Regulated Converter,...
The SI06W8 is a 6W Mean Well power converter (input range: 9~75Vdc, operating temperature: -40~+90℃).
Key Features
- ✓ Input voltage range: 9~75Vdc
- ✓ 3KVDC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+90℃
- ✓ Protections: Short circuit / Overload / Over voltage / Under voltage
- ✓ Remote ON/OFF control
- ✓ Safety approvals: EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSI06W8 Series
-
Power Rating6 Watt
-
Output Voltage3.3 Volt
-
Rated Current0.00 Ampere
-
Input Voltage9V~75V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length1 in
-
Width1 in
-
Height0.4 in
-
Weight0.04 lb
::specification::
Frequently Asked Questions
What is the Mean Well SI06W8-03 designed for?
The SI06W8-03 is a regulated DC-DC converter intended for applications that need a stable 3.3V DC output from a very wide DC input range. Its 6W power rating and compact 1 inch by 1 inch DIP package make it relevant for space-constrained industrial and embedded power designs.
What makes the SI06W8-03 different from standard DC-DC converters?
This model stands out for its 8:1 ultra-wide input range, which gives it more flexibility than converters built for narrower input windows. It also combines 3KVDC input-to-output isolation, no minimum load requirement, and protection features in a compact industry-standard package.
What output does the Mean Well SI06W8-03 provide?
The SI06W8-03 provides a single regulated 3.3V output with a 6W power rating. It is designed as a single-output converter for systems that require low-voltage DC power with regulation.
Can the SI06W8-03 be used in harsh temperature conditions?
Yes. Mean Well specifies an operating temperature range of -40°C to +90°C for this model, which supports use in demanding industrial environments. That range makes it better suited to temperature-variable applications than many general-purpose converters.
What protection and reliability features are included in the SI06W8-03?
This converter includes protection for short circuit, overload, over temperature, over voltage, and input under voltage. It also offers up to 86% efficiency, 3KVDC I/O isolation, and a 3-year warranty, which helps support reliability in long-term use.
