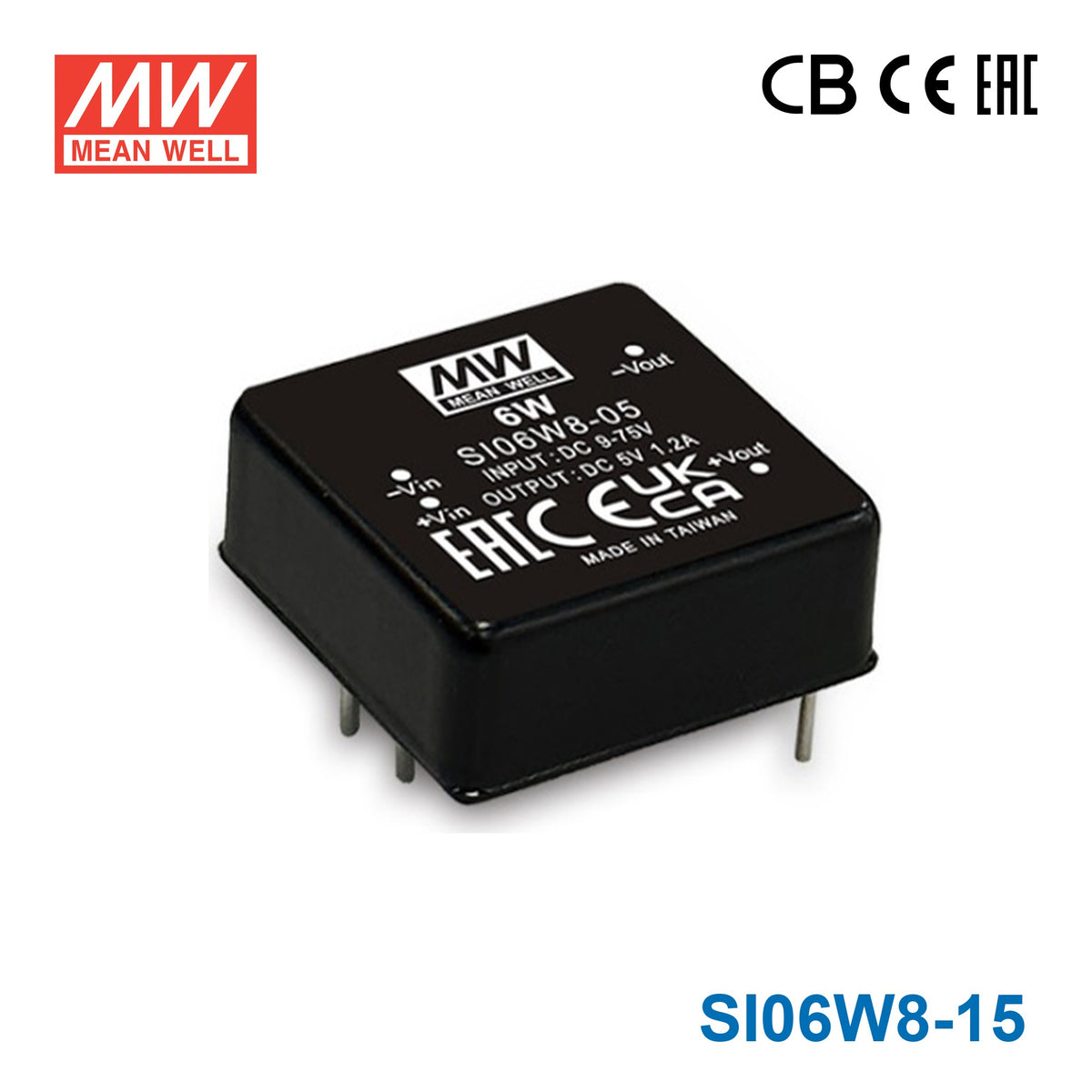

Mean Well SI06W8-15 8:1 Ultra-Wide Input DC-DC Regulated Converter, Single Output 6W 15V 400mA

Name: Mean Well SI06W8-15 8:1 Ultra-Wide Input DC-DC Regulated Converter, Single Output 6W 15V 400mA
Brand: Mean Well
SKU: SI06W8-15
Price: 11.87 USD
Availability: InStock

SKU SI06W8-15

$11.87 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

SI06W8-15 is the 15V output model of this series: rated power 6W, typical efficiency 86%. Type Blank: Non-Remote control (Standard model).

SI06W8 and DI06W8 series are 6W isolated and regulated module type DC-DC converter with DIP 1"x1" package. It features international standard pins, a high efficiency up to 86%, wide working temperature range -40~+90℃, 3KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class A without additional components, continuous-mode short circuit, overload, Input under voltage protection etc. The models account input voltage 9~75V 8:1 ultra-wide input range, and various output voltage, 3.3V/5V/9V/12V/15V/24V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.

Features

DIP 1"x1" package with industry standard pinout
8:1 ultra-wide input range
Operating temperature range -40 ~ +90℃
No minimum load required
Comply to BS EN/EN55032 radiated Class A without additional components
High efficiency up to 86%
Protections: Short circuit (Continuous) / Overload / Over voltage / Input under voltage
3KVDC I/O isolation
Remote ON/OFF control (optional)
3 years warranty

Specifications

SI06W8-15Specifications from the official datasheet (2024-08-02 edition)

INPUT

VOLTAGE RANGE: 9 ~ 75Vdc
INPUT VOLTAGE (RANGE): Normal 12V,24V,36V,48V,72V (9 ~ 75V)
INPUT CURRENT NO LOAD: 8mA
INPUT CURRENT FULL LOAD: 294mA
SURGE VOLTAGE (100ms max.): 100Vdc
FILTER: Capacitor network
PROTECTION: Fuse recommended. 2A Slow-Blow Type

OUTPUT

OUTPUT VOLTAGE: 15V
OUTPUT CURRENT: 0~400mA
VOLTAGE ACCURACY: ±2%
RATED POWER: 6W
RIPPLE & NOISE^Note.2: 100mVp-p
LINE REGULATION^Note.3: ±0.2% (±0.5% for 3.3Vo)
LOAD REGULATION^Note.4: ±0.5%
SWITCHING FREQUENCY (Typ.): 300KHz (PWM)
EFFICIENCY (TYP.): 86%
CAPACITOR LOAD (MAX.)^{* For each output}: 220μF

PROTECTION

SHORT CIRCUIT: Protection type : Continuous, automatic recovery
OVERLOAD: 110 ~ 230% rated output power Protection type : Recovers automatically after fault condition is removed
OVER VOLTAGE: Protection type : Clamp by TVS diode
UNDER VOLTAGE LOCKOUT Start-up voltage: 8.8V
UNDER VOLTAGE LOCKOUT Shutdown voltage: 8.5V

FUNCTION

REMOTE CONTROL (OPTIONAL): Power ON: RC ~ -Vin > 2.5Vdc ~ 6Vdc or open circuit Power OFF: RC ~ -Vin <1Vdc or short

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +90℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +105℃ max.
WORKING HUMIDITY: 5% ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -55 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.05% / ℃ (0 ~ 71℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 3sec./260℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note.5)

SAFETY STANDARDS: EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVDC
ISOLATION RESISTANCE: I/P-O/P:1000M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 1000pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) N/A
Radiated BS EN/EN55032(CISPR32) Class A without external components Class B with external components
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 contact ±4KV
Radiated Susceptibility BS EN/EN61000-4-3 3V/m
EFT/Burest BS EN/EN61000-4-4 ±0.5KV
Surge BS EN/EN61000-4-5 Line-Line±0.5KV
Conducted BS EN/EN61000-4-6 3Vrms
Magnetic field immunity BS EN/EN61000-4-8 1A/m

OTHERS

MTBF: >400Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 25.4*25.4*10.2mm (1*1*0.401 inch)
CASE MATERIAL: Black coated copper with non-conductive base
PACKING: 20g; 10pcs/per tube, 600pcs/60 tube/per carton

MODEL ENCODING

S: Single output
D: Dual output
Blank (this model): Non-Remote control (Standard model)
R: Built-in Remote control (Optional model)

Test conditions and notes5

1.All parameters are specified at normal input(24Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 0% to 100% rated load.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)
