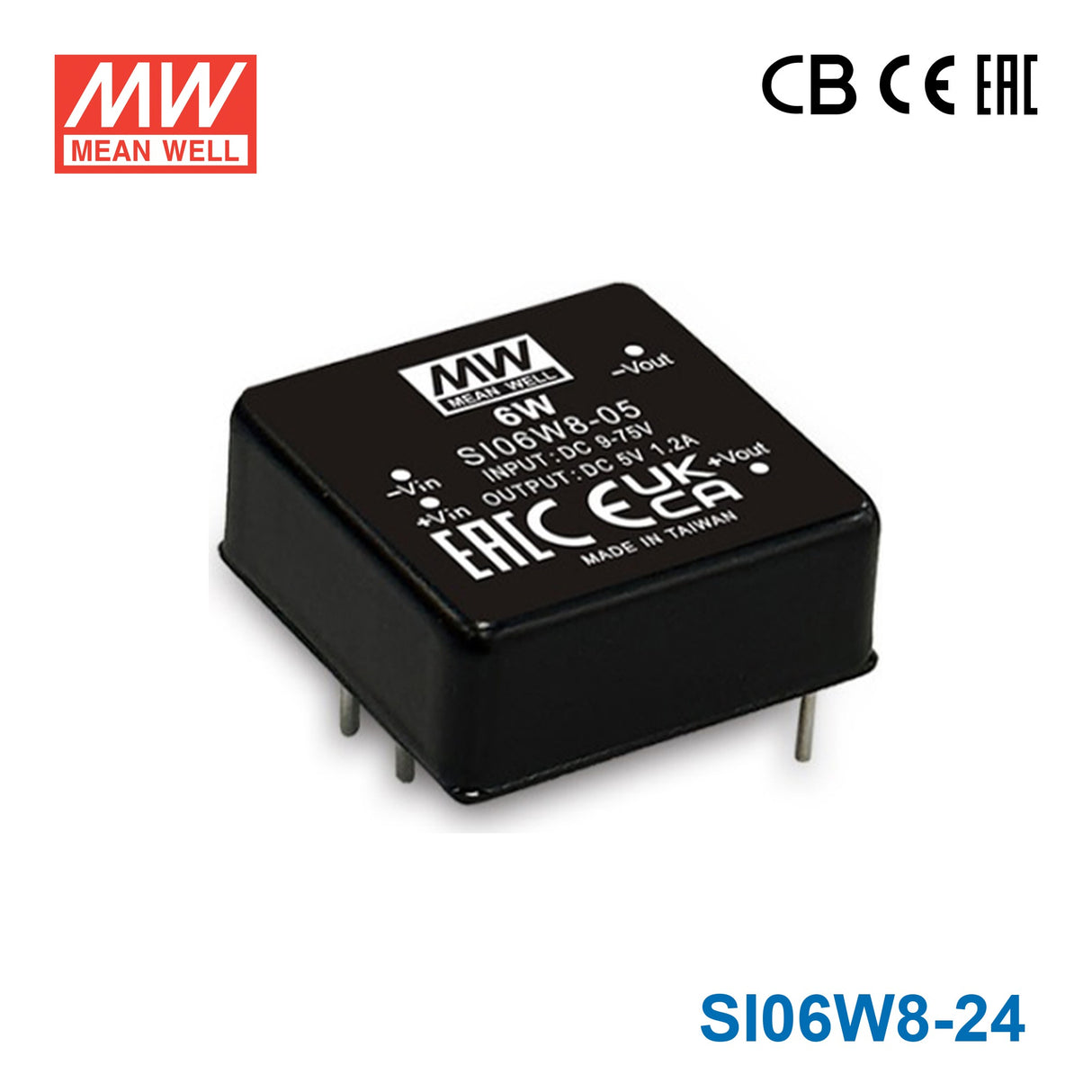

Mean Well SI06W8-03 8:1 Ultra-Wide Input DC-DC Regulated Converter,...
The SI06W8 is a 6W Mean Well power converter (input range: 9~75Vdc, operating temperature: -40~+90℃).
Key Features
- ✓ Input voltage range: 9~75Vdc
- ✓ 3KVDC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+90℃
- ✓ Protections: Short circuit / Overload / Over voltage / Under voltage
- ✓ Remote ON/OFF control
- ✓ Safety approvals: EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSI06W8 Series
-
Power Rating6 Watt
-
Output Voltage3.3 Volt
-
Rated Current0.00 Ampere
-
Input Voltage9V~75V
-
No of Output1
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length1 in
-
Width1 in
-
Height0.4 in
-
Weight0.04 lb
::specification::
Frequently Asked Questions
What is the Mean Well SI06W8-03 designed for?
The Mean Well SI06W8-03 is a regulated DC-DC converter intended for applications that need a stable 3.3V DC output from a very wide DC input range. Its compact 1 inch by 1 inch DIP package makes it suitable for space-constrained embedded and industrial power designs.
What output does this model provide?
This model provides a single regulated 3.3V output with a 6W power rating. It is intended for low-power DC conversion where voltage regulation and isolation are important product requirements.
What makes the SI06W8-03 different from standard DC-DC converters?
A key differentiator is its 8:1 ultra-wide input range, which gives it more flexibility than converters with narrower input windows. It also includes 3KVDC input-to-output isolation and does not require a minimum load, which helps it stand out in demanding power-conversion applications.
Is this DC-DC converter suitable for harsh temperature environments?
Yes. The SI06W8-03 is rated for operation from -40°C to +90°C, making it appropriate for challenging industrial and embedded environments. That wide operating range supports use in applications exposed to both low and high ambient temperatures.
What protection features are included in the SI06W8-03?
This model includes protection for short circuit, overload, over temperature, over voltage, and input under voltage. These built-in protections help support reliable operation in systems where input conditions or load behavior may vary.
Does the SI06W8-03 support systems that need EMC-conscious power components?
The product is specified to comply with BS EN/EN55032 radiated Class A without additional components. That makes it a relevant option for designs where emissions performance is an important consideration during component selection.
