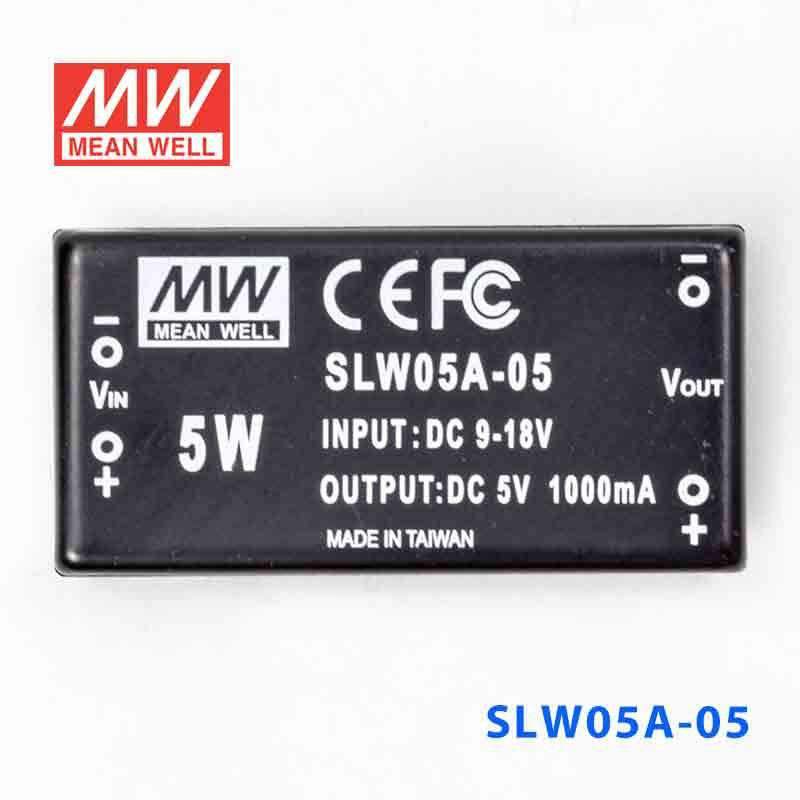

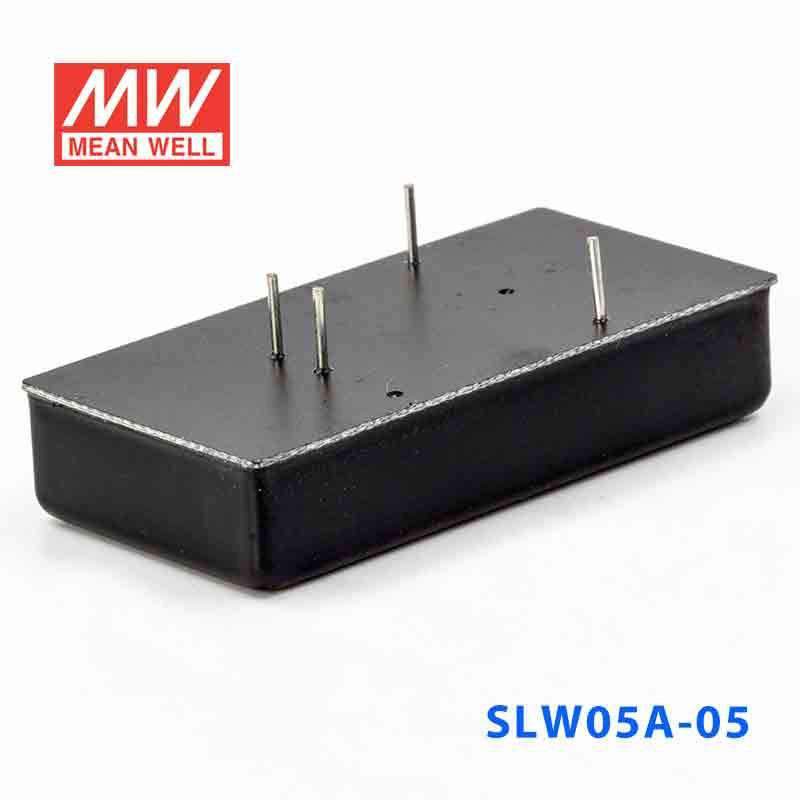

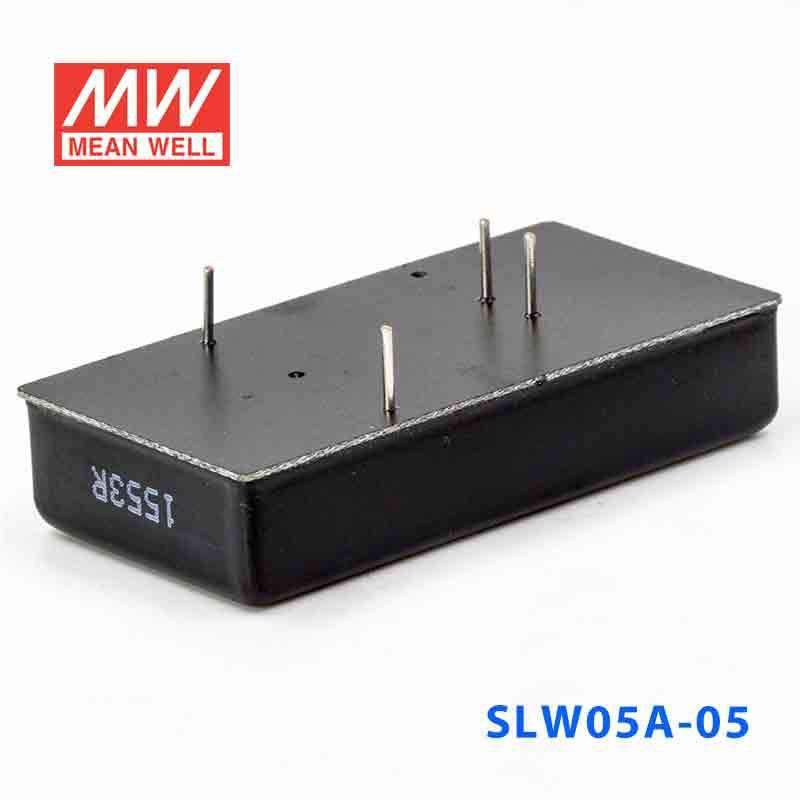

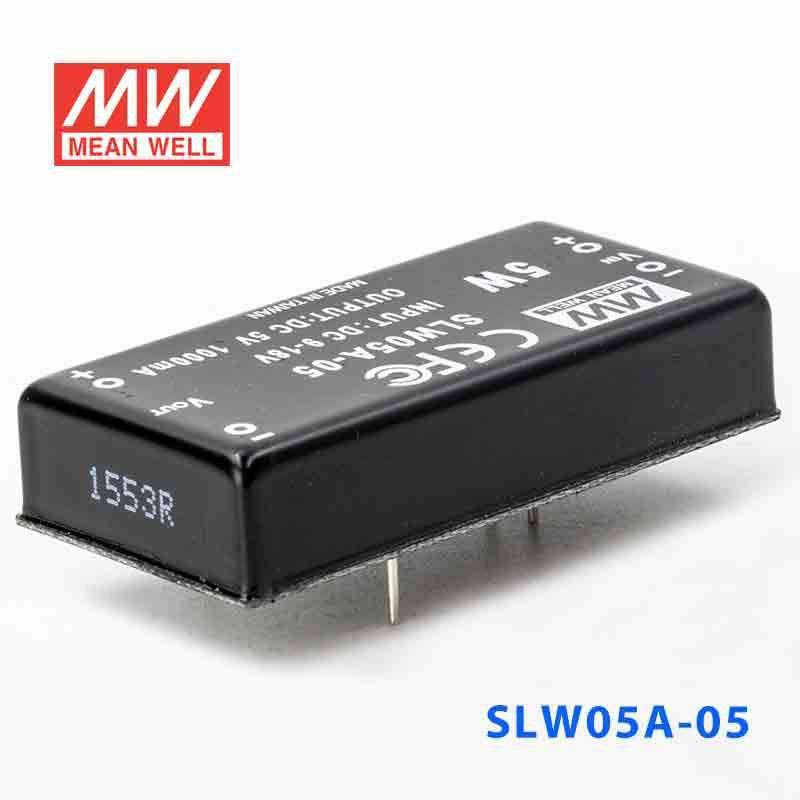

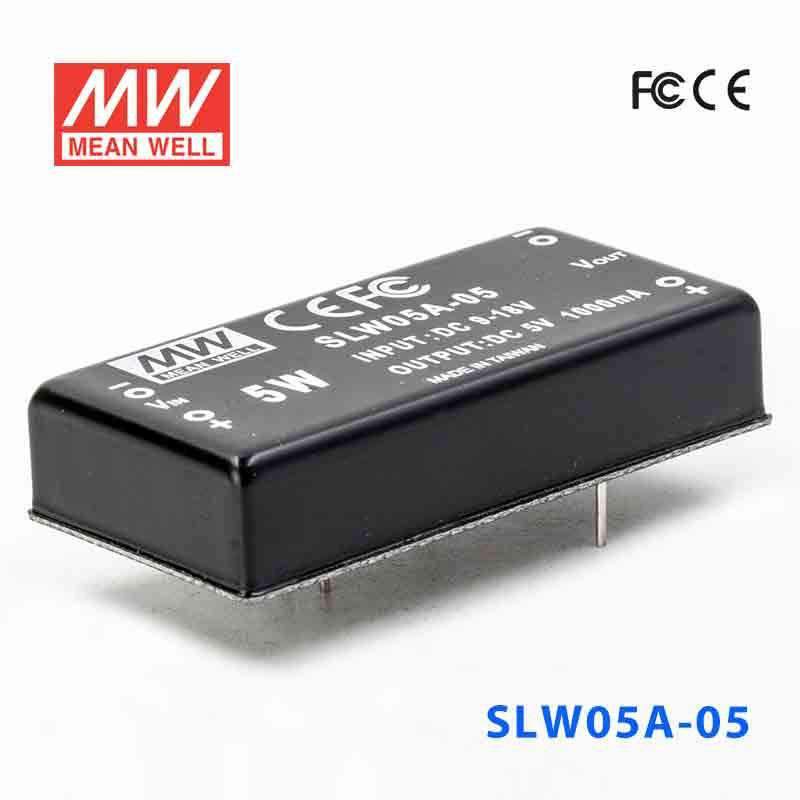

Mean Well SLW05A-05 DC-DC Converter - 5W - 9~18V in 5V out
The SLW05A is a 5W Mean Well power converter (operating temperature: -25~+71℃).
Key Features
- ✓ 1KVDC reinforced I/O isolation
- ✓ Wide operating temperature: -25~+71℃
- ✓ Protections: Short circuit
- ✓ Safety approvals: ℃ ℃ , 10 ~ 95% RH ℃ (0 ~ 50 -25 ~ +105 ± 0.03% / 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSLW Series
-
Power Rating5 Watt
-
Output Voltage5 Volt
-
Rated Current1 Ampere
-
Input Voltage9V~18V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length2 in
-
Width1 in
-
Height0.44 in
-
Weight0.07 lb
::specification::
Frequently Asked Questions
Can I use the SLW05A-05 for a 5V microcontroller or logic circuit in industrial equipment?
Yes, this model is designed for constant-voltage 5V output up to 5W. It accepts 9-18VAC input and provides a listed 1000A output current, which suits low-power 5V logic, controller, or monitoring circuits within that input range.
Is the SLW05A-05 appropriate for low-power automation modules that need 5V from a 9-18VAC source?
Yes, if the module needs a regulated 5V output and stays within the converter's 5W rating. Its 9-18VAC full-range input makes it relevant for small automation or control loads powered from that AC window.
Can this converter be used in embedded systems where a little more output power than 3W is needed?
It provides 5W, which is higher than a 3W converter while still maintaining constant-voltage 5V output. The 50.8 × 25.4 × 11.27 mm body is larger than ultra-compact modules, so it fits applications where that footprint is acceptable.
Is the SLW05A-05 suitable for colder or warmer indoor environments?
The operating temperature range is -25°C to +71°C, which covers a broad range of indoor industrial conditions. No IP rating is listed, so the specs do not establish outdoor exposure resistance.
How does the SLW05A-05 compare with the other SLW05A output options?
The SLW05A series models shown here all have a 5W rating and 9-18VAC input range, but they differ by output. The SLW05A-05 is 5V with a listed 1000A output current, the SLW05A-09 is 9V with 556A, the SLW05A-12 is 12V with 417A, and the SLW05A-15 is 15V with 333A.
