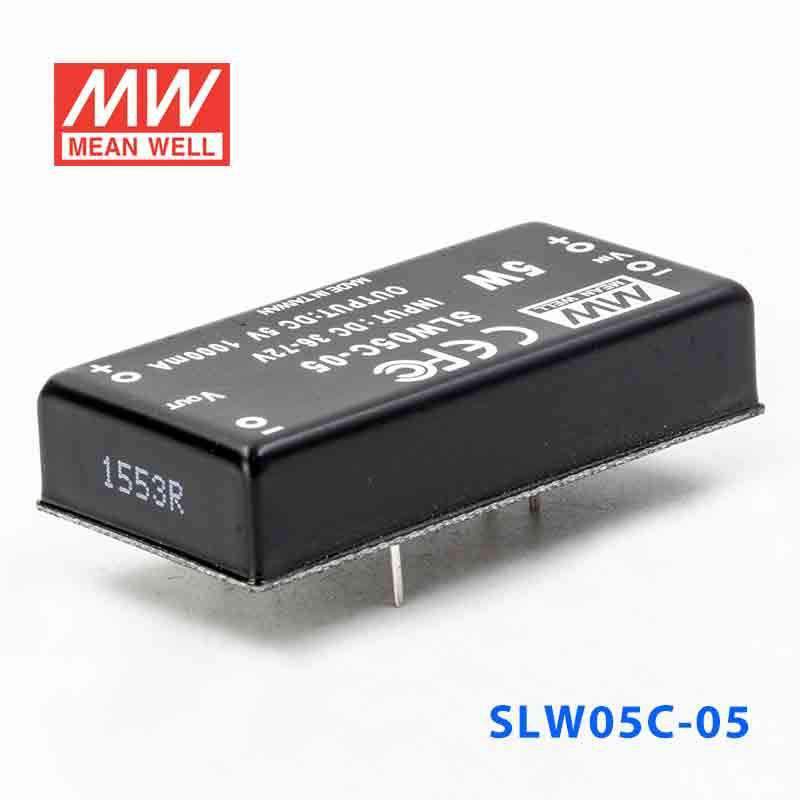

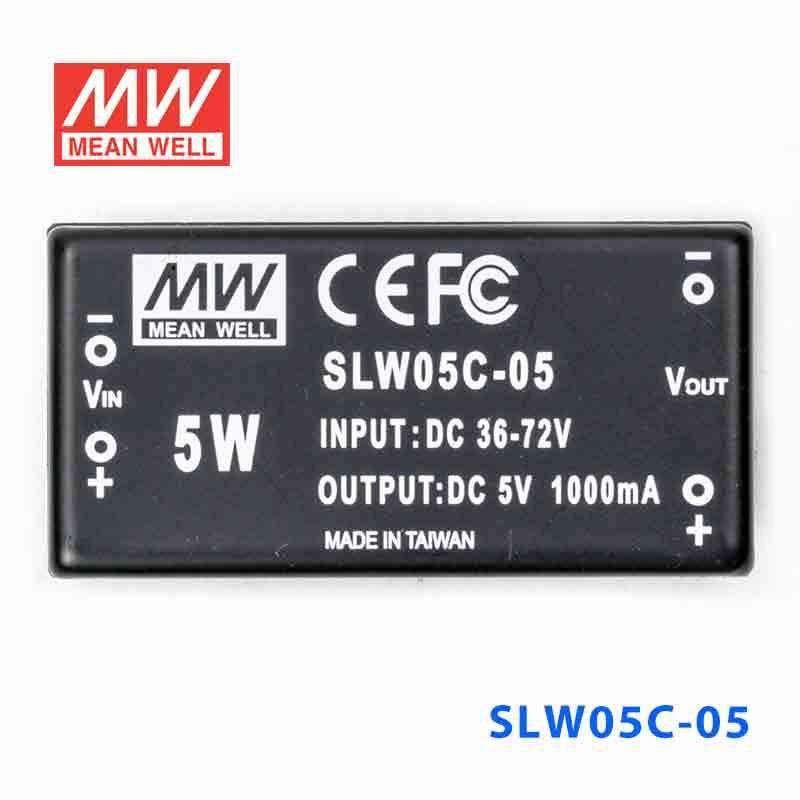

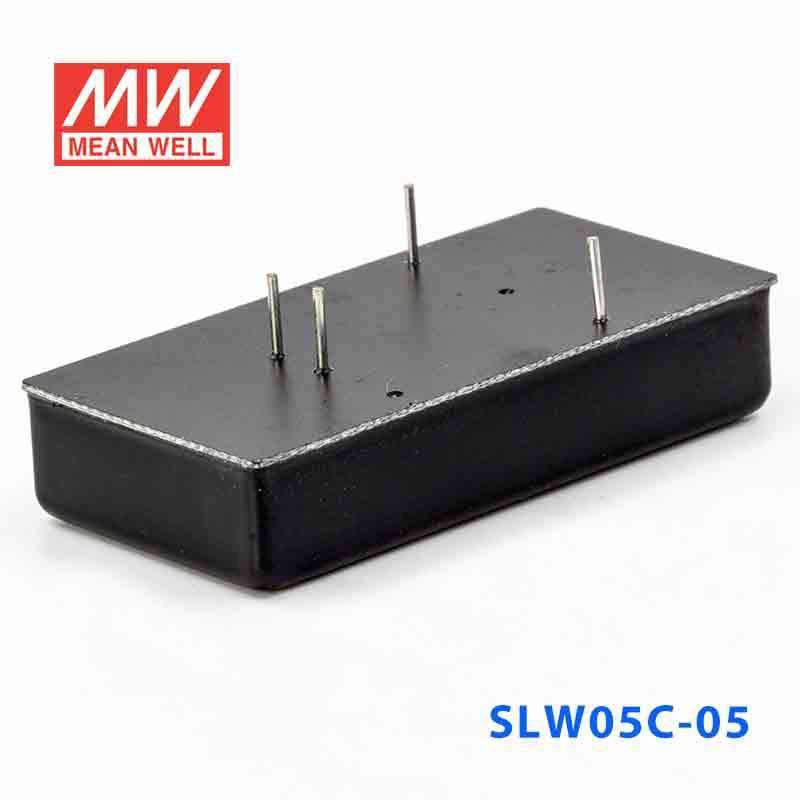

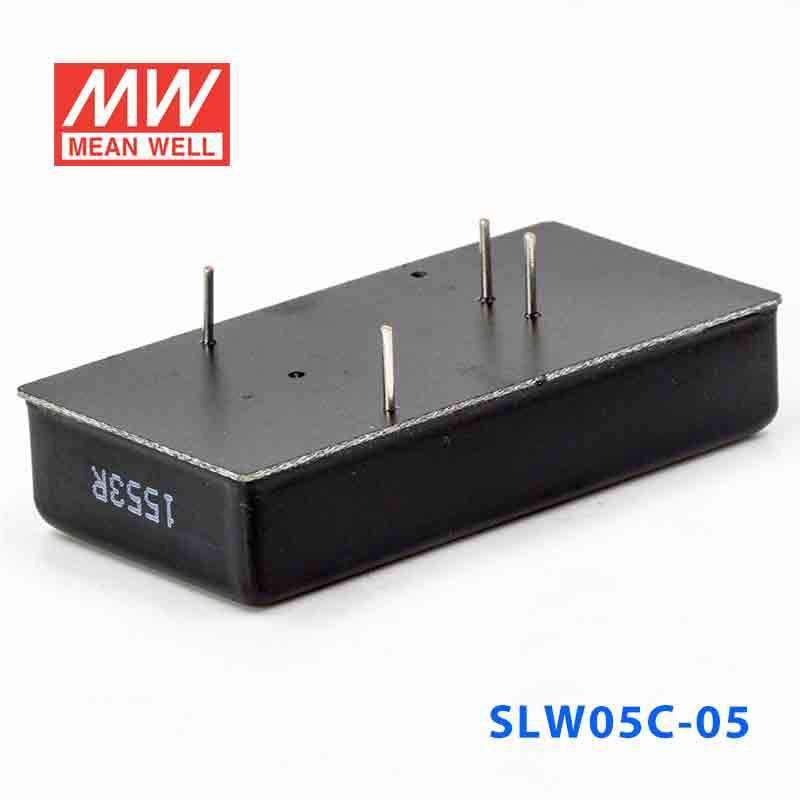

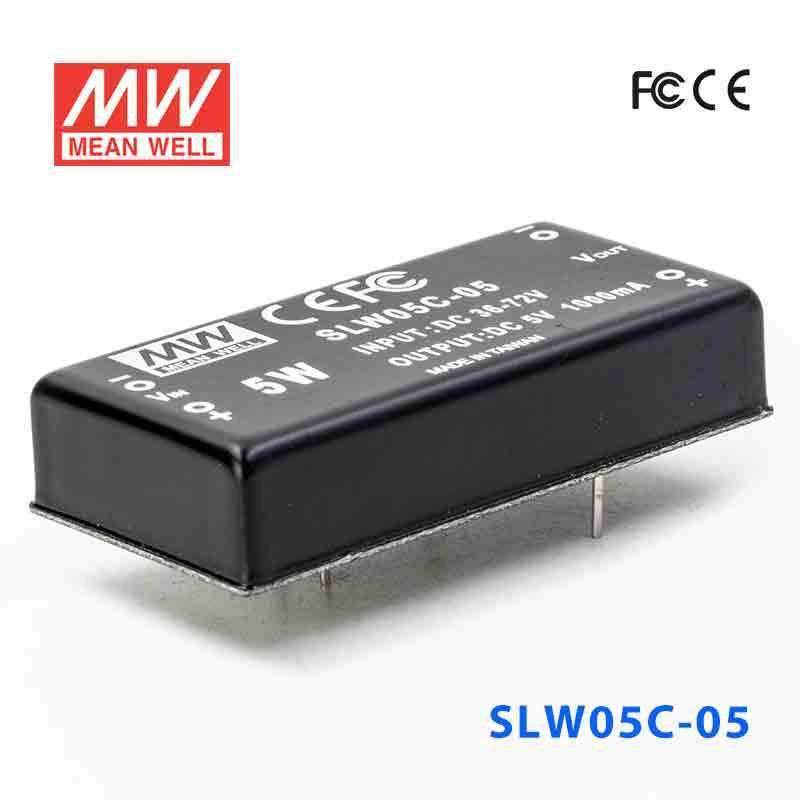

Mean Well SLW05C-05 DC-DC Converter - 5W - 36~72V in 5V out

$14.00 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

2:1 wide input range
4:1 wide input range (option)
1000VDC I/O isolation
3000VDC I/O isolation (option)
Built-in EMI filter
Protection: Short circuit / Overload
Cooling by free air convection
Six-sided shield metal case
100% full load burn-in test
Low cost, high reliability
2 years warranty

General Specification

Voltage set point accuracy ±2% (max.)
Line regulation ±0.2% (max.)
Load regulation ±0.5% (max.)@10~100% load
Overload protection 160%~250%, auto-recovery
Efficiency 85% (typical)
Short circuit protection Continuous, auto-recovery
I/O isolation voltage 1000VDC (min.)
I/O isolation resistance 100MQ(min.)@500VDC
Working temperature -25~+71°C (refer to output derating curve)
Storage temperature -25°C to +105°C
EMC Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Temp. Coefficient ±0.03% / °C (max.)
Dimension (LxWxH) (mm) 2""x 1""x 0.44""
Case material Six-sided shield metal case

Specifications

  • Brand
    Mean Well
  • Series
    SLW Series
  • Power Rating
    5 Watt
  • Output Voltage
    5 Volt
  • Rated Current
    1 Ampere
  • Input Voltage
    36V~72V
  • No of Output
    1
  • Dimming Control
    None
  • Standards Met
    CE,EMC,FCC
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -25°C~71°C
  • Warranty
    2 Year
  • Length
    2 in
  • Width
    1 in
  • Height
    0.44 in
  • Weight
    0.07 lb
