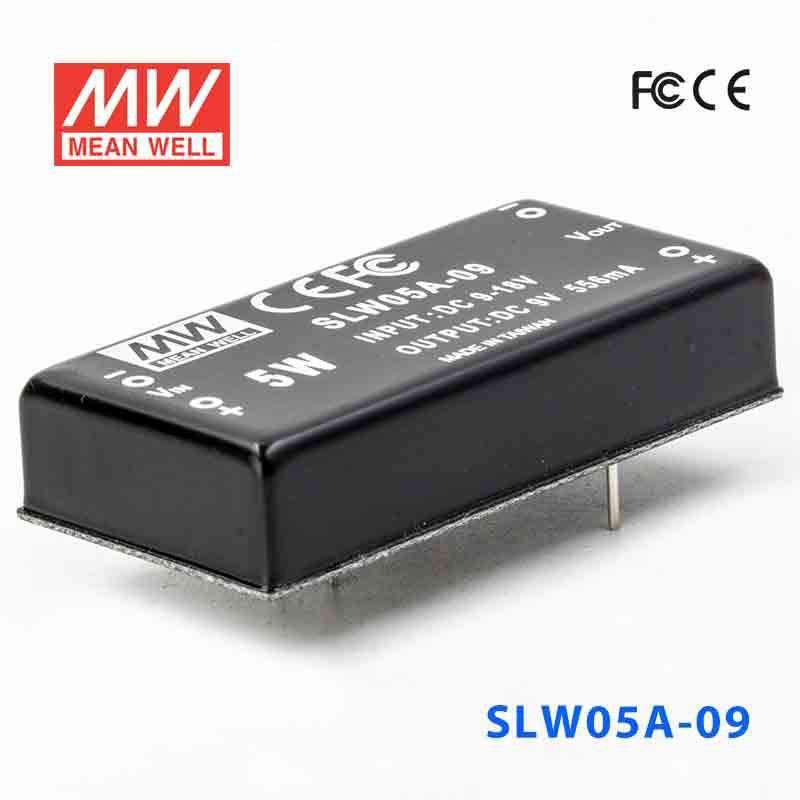

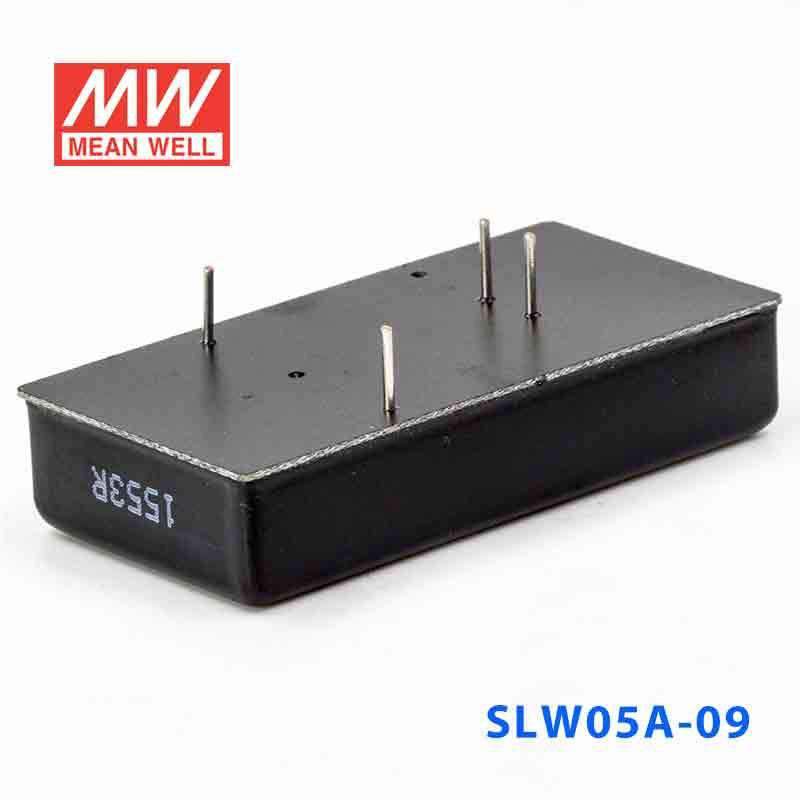

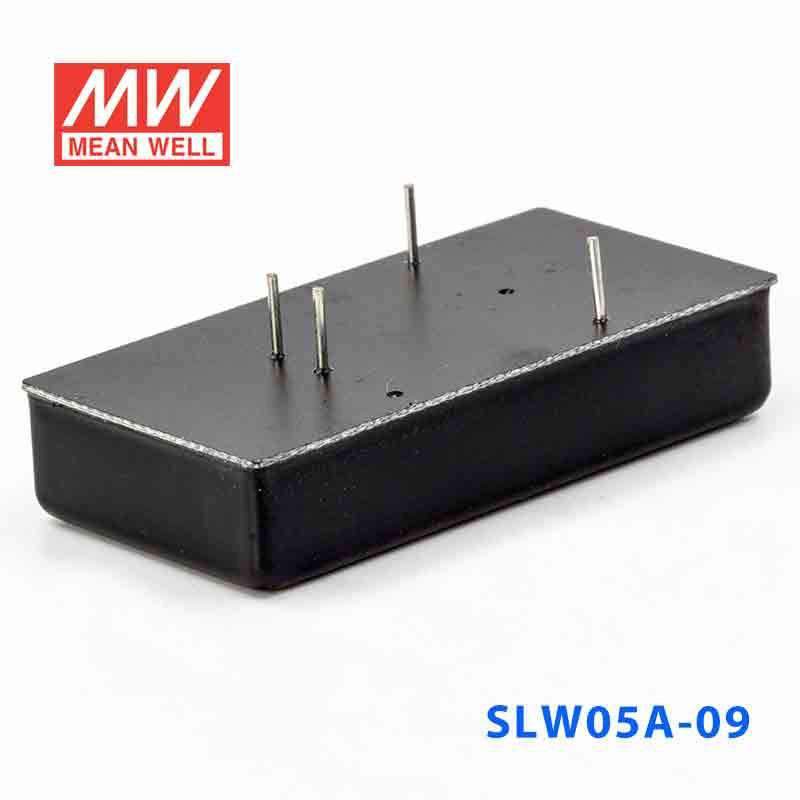

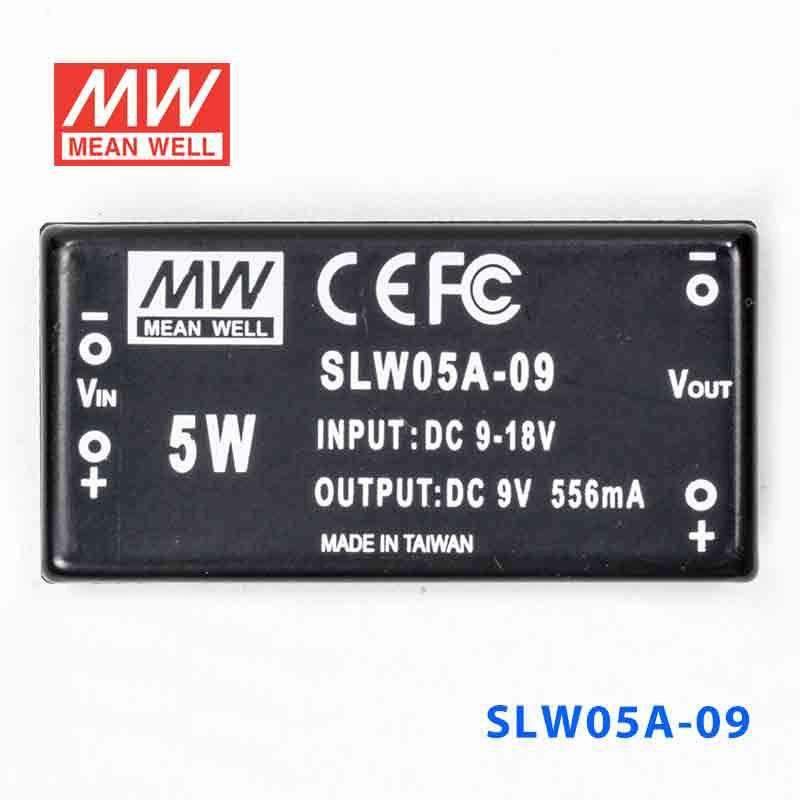

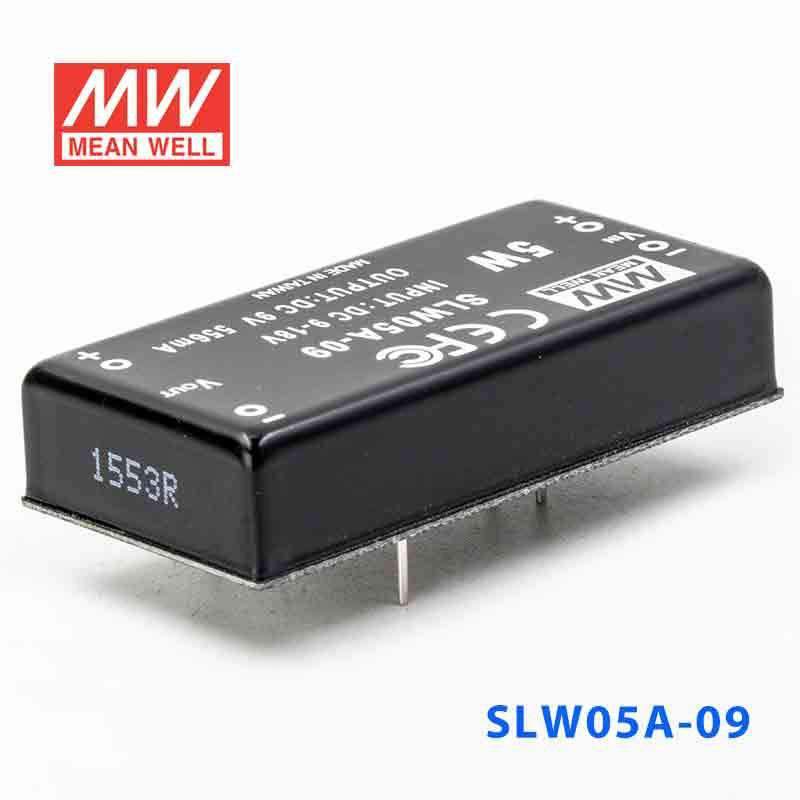

Mean Well SLW05A-09 DC-DC Converter - 5W - 9~18V in 9V out
The SLW05A is a 5W Mean Well power converter (operating temperature: -25~+71℃).
Key Features
- ✓ 1KVDC reinforced I/O isolation
- ✓ Wide operating temperature: -25~+71℃
- ✓ Protections: Short circuit
- ✓ Safety approvals: ℃ ℃ , 10 ~ 95% RH ℃ (0 ~ 50 -25 ~ +105 ± 0.03% / 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSLW Series
-
Power Rating5 Watt
-
Output Voltage9 Volt
-
Rated Current0.55 Ampere
-
Input Voltage9V~18V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length2 in
-
Width1 in
-
Height0.44 in
-
Weight0.07 lb
::specification::
Frequently Asked Questions
Can I use the SLW05A-09 in a small industrial control circuit that needs 9V?
Yes, this model is a 5W constant-voltage DC-DC converter with a 9V output. It fits low-power industrial control or monitoring circuits when the available input falls within 9-18VAC.
Is the SLW05A-09 suitable for embedded monitoring hardware with a 9V rail?
It can be used for embedded hardware that requires a regulated 9V output and stays within the 5W power limit. The constant-voltage output is appropriate for electronics designed specifically for 9V operation.
Can this converter support a compact automation accessory that runs on 9V?
Yes, it is intended for low-power 9V loads in compact automation or industrial electronics. Its 50.8 × 25.4 × 11.27 mm size and 0.032 kg weight also make it easier to place in space-constrained assemblies.
Is the SLW05A-09 suitable for outdoor use?
No IP rating is listed for this model, so the specs do not support direct outdoor exposure. The stated operating temperature is -25°C to +71°C, so it is better suited to protected indoor equipment or an enclosed housing within that temperature range.
How does the SLW05A-09 compare with other SLW05A models?
Within the SLW05A series, all listed models are 5W units. The sibling outputs are SLW05A-05 at 5V and 1000A, SLW05A-09 at 9V and 556A, SLW05A-12 at 12V and 417A, and SLW05A-15 at 15V and 333A.
