Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

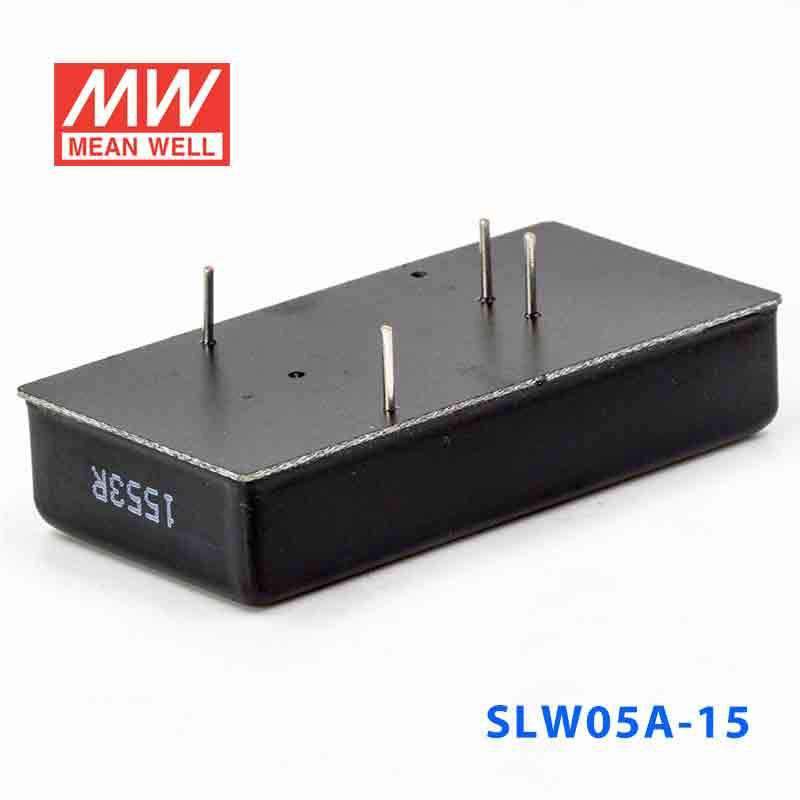

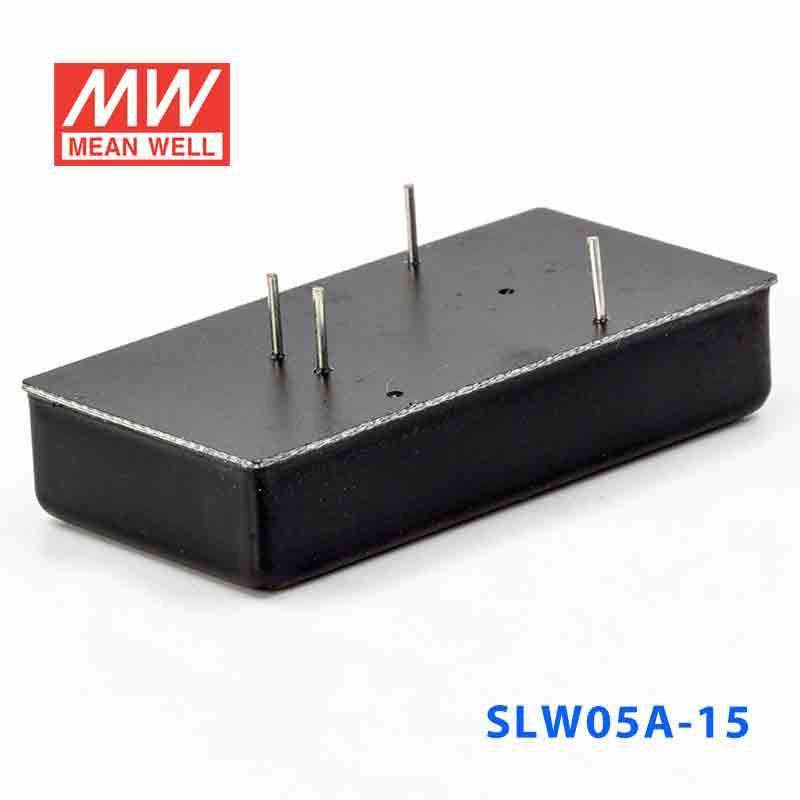

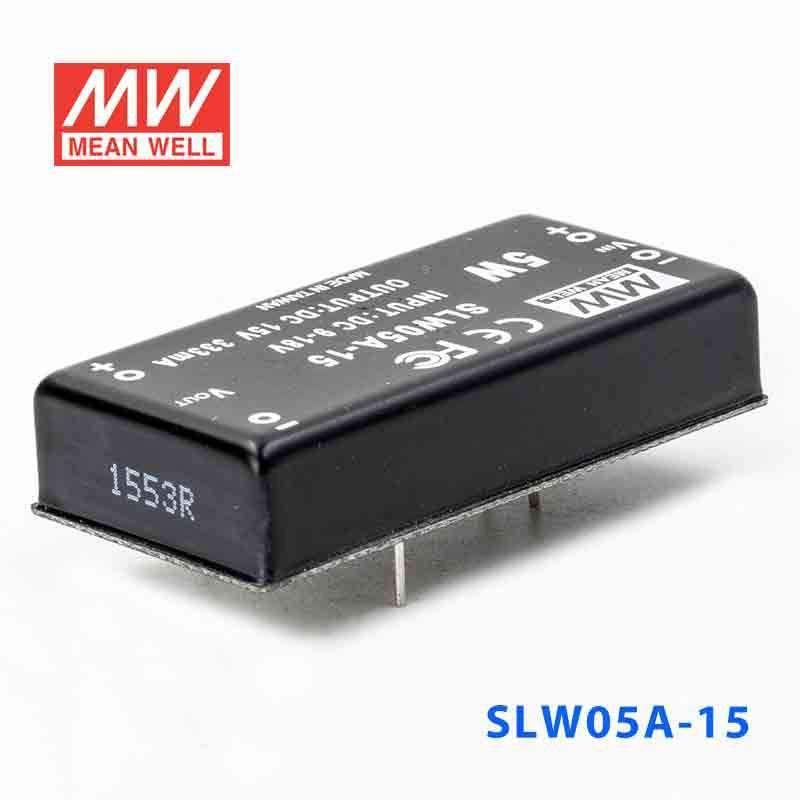

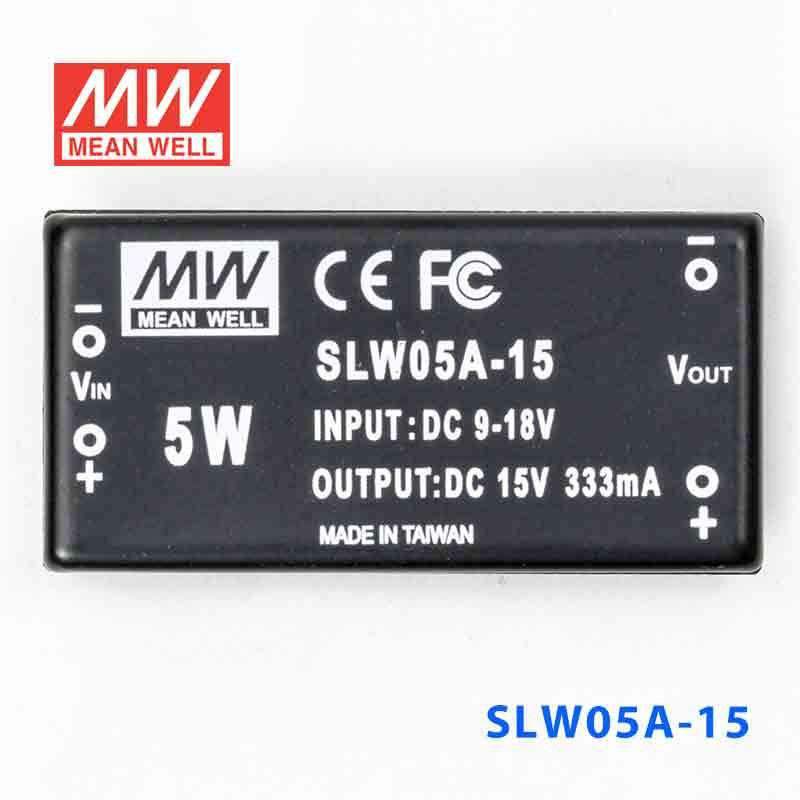

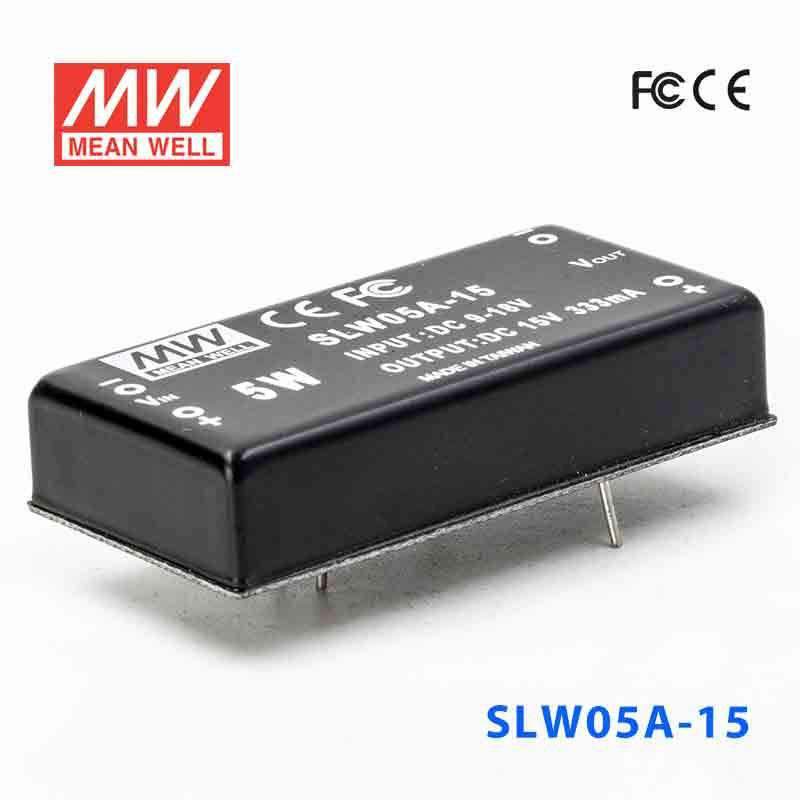

Mean Well SLW05A-15 DC-DC Converter - 5W - 9~18V in 15V out
The SLW05A is a 5W Mean Well power converter (operating temperature: -25~+71℃).
Key Features
- ✓ 1KVDC reinforced I/O isolation
- ✓ Wide operating temperature: -25~+71℃
- ✓ Protections: Short circuit
- ✓ Safety approvals: ℃ ℃ , 10 ~ 95% RH ℃ (0 ~ 50 -25 ~ +105 ± 0.03% / 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSLW Series
-
Power Rating5 Watt
-
Output Voltage15 Volt
-
Rated Current0.33 Ampere
-
Input Voltage9V~18V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length2 in
-
Width1 in
-
Height0.44 in
-
Weight0.07 lb
::specification::
Frequently Asked Questions
Can I use the SLW05A-15 for low-power analog or instrumentation circuits that need 15V?
Yes, this model provides a constant 15V output and is rated for 5W. That makes it a practical option for low-power analog, instrumentation, or signal-conditioning electronics designed around a 15V rail.
Is the SLW05A-15 suitable for legacy industrial electronics that run on 15V?
It can be used with older or specialized industrial electronics that require a fixed 15V supply, provided the load remains within 5W. The input available to the converter must be within 9-18VAC.
Can this converter power a compact test or calibration module with a 15V requirement?
Yes, it is suited to compact low-power electronics that need a regulated 15V output rather than a higher-power supply. The small 50.8 × 25.4 × 11.27 mm form factor and 0.032 kg weight can help in tighter equipment layouts.
Is the SLW05A-15 meant for indoor or outdoor conditions?
The operating temperature range is -25°C to +71°C, but no IP rating is specified. Based on the published specs, it is better treated as a converter for protected indoor equipment or enclosed assemblies rather than exposed outdoor locations.
How does the SLW05A-15 compare with the rest of the SLW05A series?
All listed SLW05A variants are 5W converters, but the output combinations differ. The series includes 5V and 1000A on SLW05A-05, 9V and 556A on SLW05A-09, 12V and 417A on SLW05A-12, and 15V and 333A on SLW05A-15.
