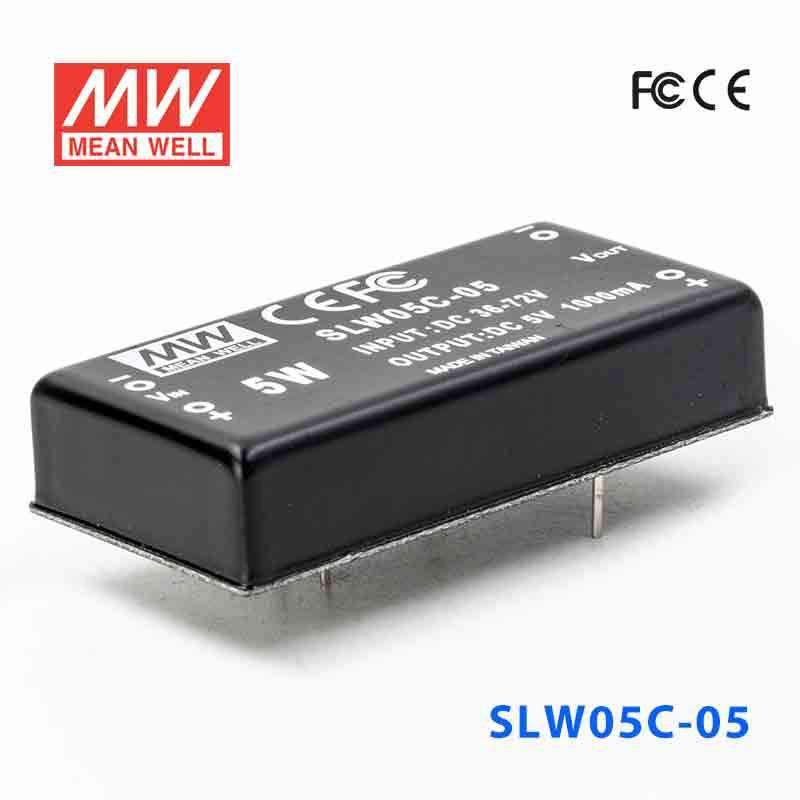

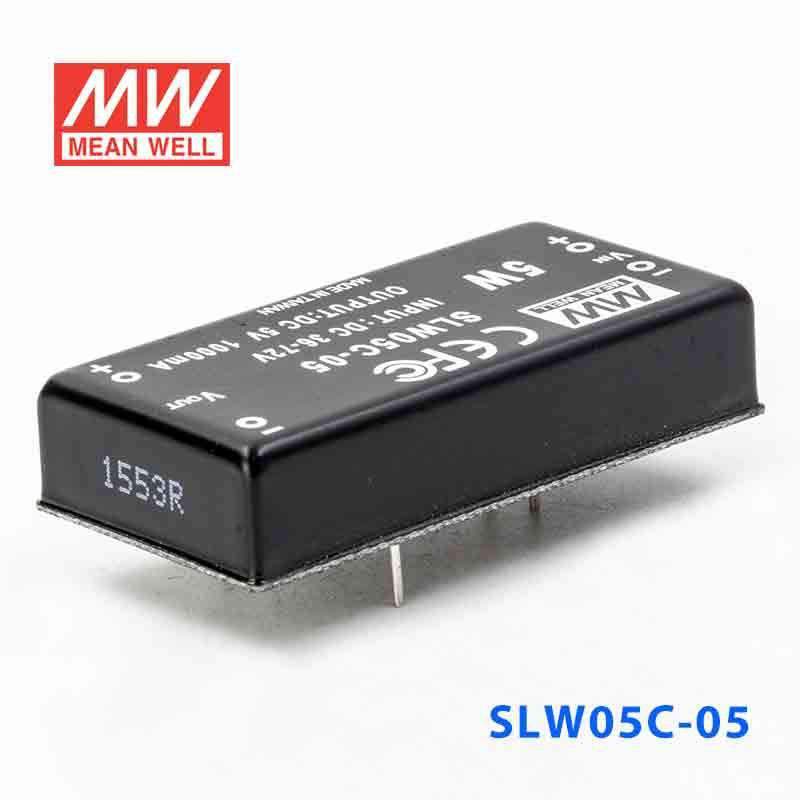

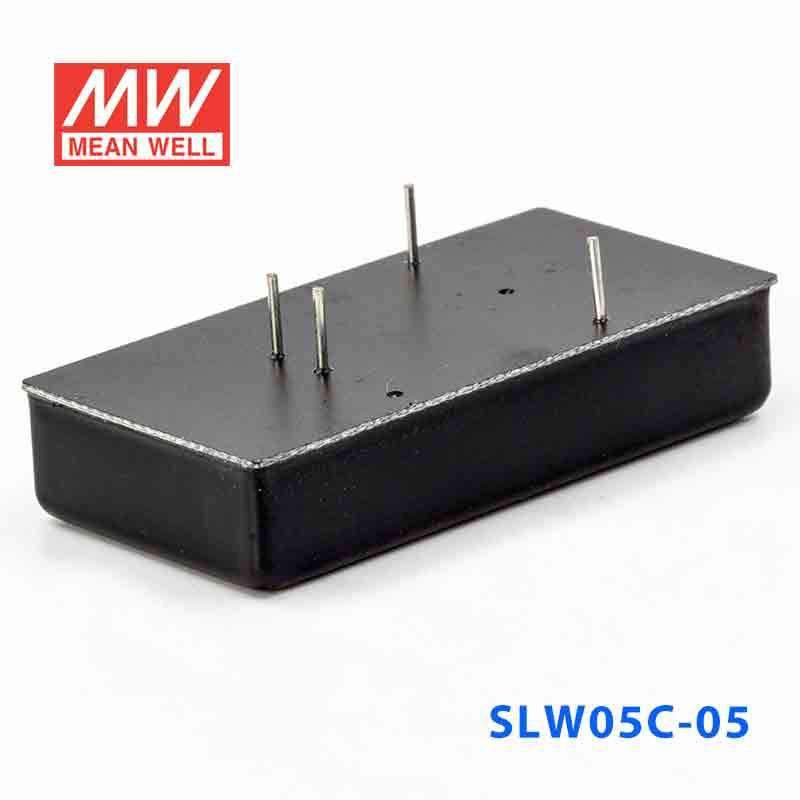

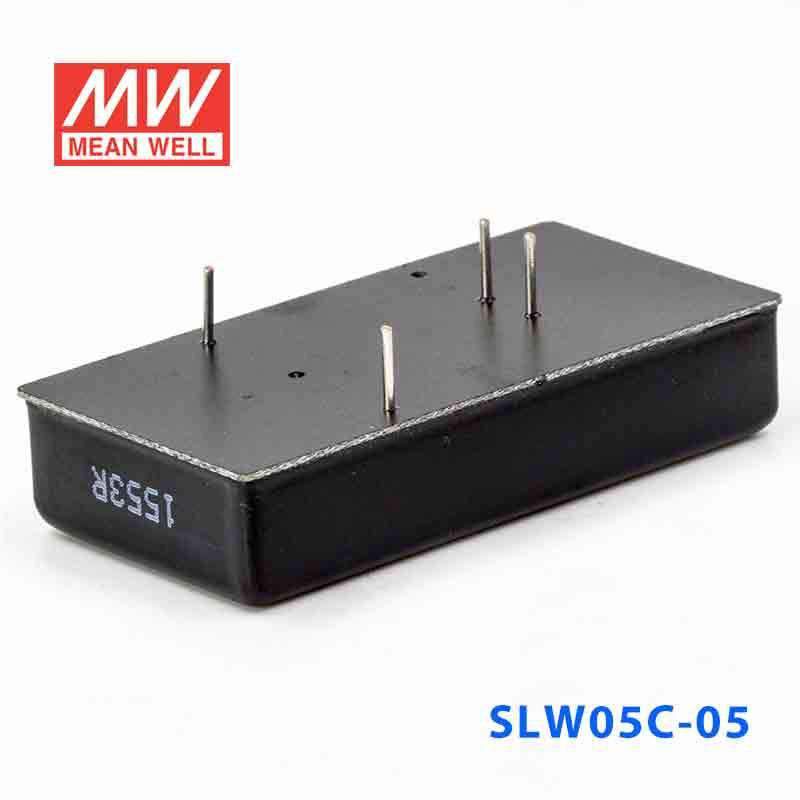

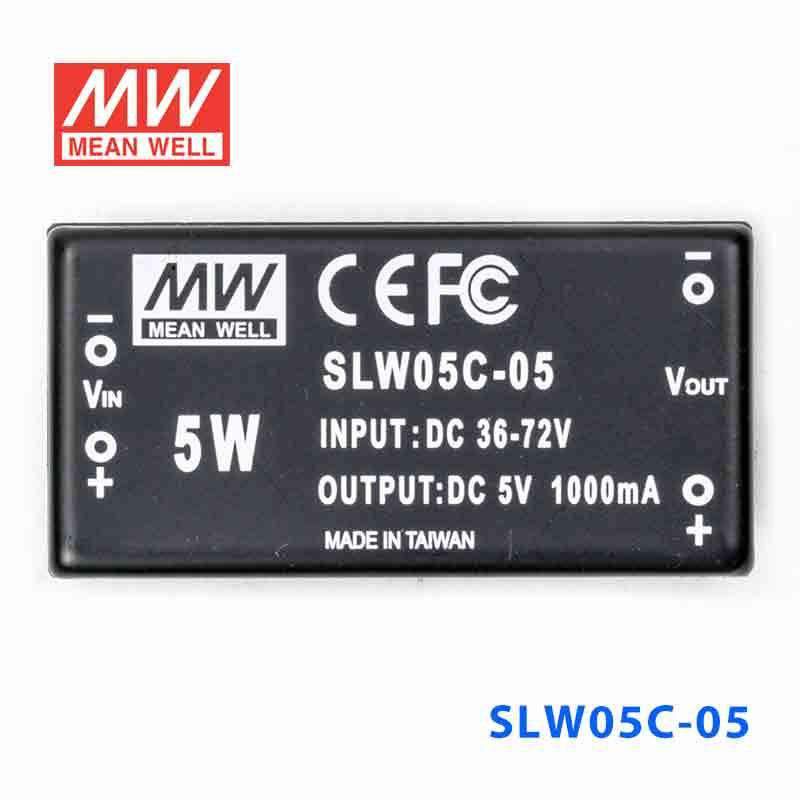

Mean Well SLW05C-05 DC-DC Converter - 5W - 36~72V in 5V out
The SLW05C is a 5W Mean Well power converter (operating temperature: -25~+71℃).
Key Features
- ✓ 1KVDC reinforced I/O isolation
- ✓ Wide operating temperature: -25~+71℃
- ✓ Protections: Short circuit
- ✓ Safety approvals: ℃ ℃ , 10 ~ 95% RH ℃ (0 ~ 50 -25 ~ +105 ± 0.03% / 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSLW Series
-
Power Rating5 Watt
-
Output Voltage5 Volt
-
Rated Current1 Ampere
-
Input Voltage36V~72V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length2 in
-
Width1 in
-
Height0.44 in
-
Weight0.07 lb
::specification::
Frequently Asked Questions
Can I use the SLW05C-05 to derive 5V for embedded electronics from a 36-72VAC source?
Yes, this model is built for a constant 5V output when the input is within 36-72VAC. It is rated at 5W and 1000A output current, which makes it relevant for low-power embedded or control electronics matched to those values.
Is the SLW05C-05 a good fit for industrial monitoring or controller logic that runs on 5V?
It can fit controller logic, monitoring circuits, or other 5V electronics when the available source is 36-72VAC. The converter is constant voltage and packaged in a 50.8 × 25.4 × 11.27 mm form factor for compact installations inside equipment.
Can this 5V converter be used in higher-voltage automation systems that only need a small regulated rail?
That is the intended type of use case, provided the upstream source is in the 36-72VAC range and the downstream load stays within 5W. It is suited to small regulated 5V subcircuits rather than larger power sections.
How does the SLW05C-05 compare with the other SLW05C models?
Within the SLW05C series, SLW05C-05 is 5W, 5V, 1000A; SLW05C-09 is 5W, 9V, 556A; SLW05C-12 is 5W, 12V, 417A; and SLW05C-15 is 5W, 15V, 333A. All share 36-72VAC input, constant-voltage operation, 50.8 × 25.4 × 11.27 mm dimensions, 0.032 kg weight, and a -25°C to +71°C operating range.
Can the SLW05C-05 be used in outdoor equipment?
The temperature specification is -25°C to +71°C, so that part of the environment should stay within the published range. No IP rating is provided in the specs, so outdoor exposure should only be considered if the enclosure handles moisture and dust protection.
