Mean Well SHP-10K-380 10KW High Efficiency Power Supply 380V Out 26.3A
Notify me when it's back in stock
Your order will be processed within 24 hours

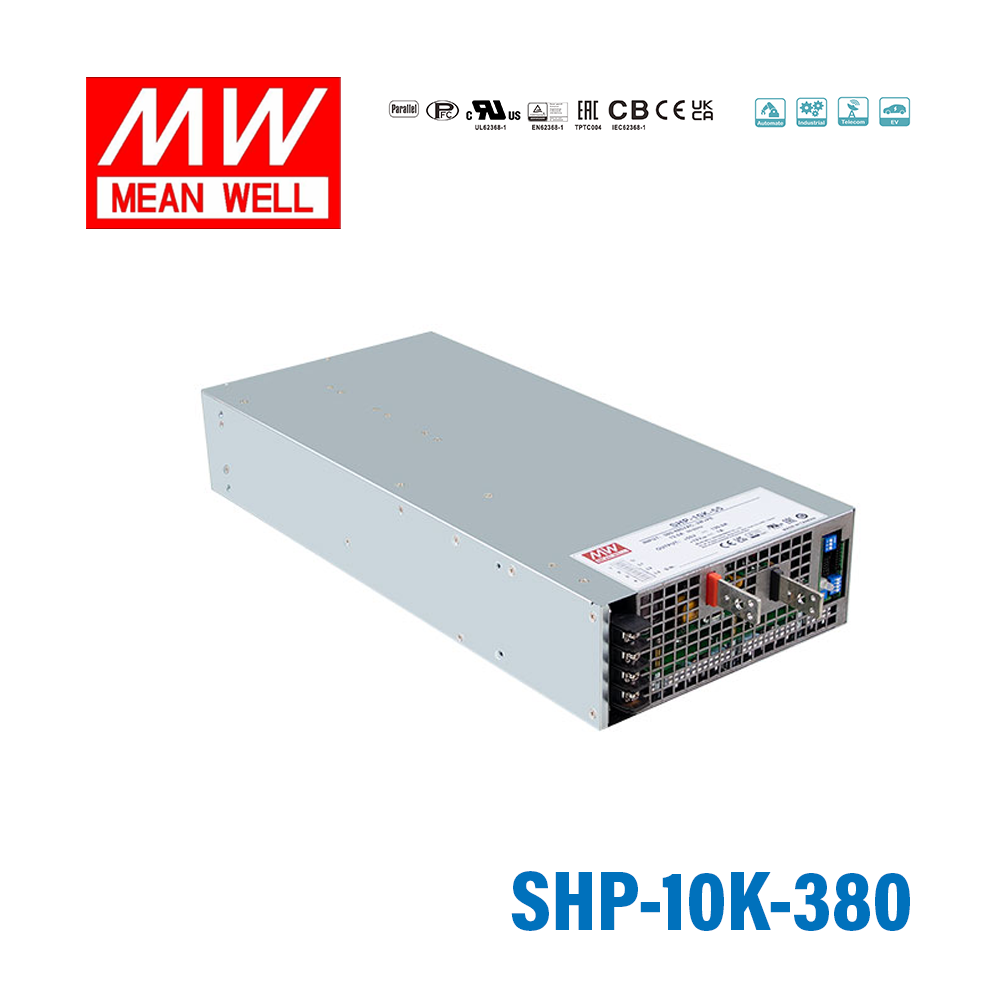

Mean Well SHP-10K-380 10KW High Efficiency Power Supply 380V Out 26.3A
The Mean Well SHP-10K-380 is a 10,000W high-efficiency digital power supply delivering 380V DC at up to 26.3A. Digital control gives tight regulation and full monitoring, and efficiency above 96% keeps heat and running cost down at this power level.
It runs from a three-phase 340~530VAC supply with a power factor above 0.98 at full load, operates from -30°C to 70°C and carries CB, CE, EAC and EN approvals, and includes constant-current limiting, over-voltage and over-temperature protection. Backed by a 5-year warranty.
Key Features
- ✓3ψ 3-wire / △ or Y 340~530VAC or 3ψ 4-wire / Y 340-530VAC
- ✓High efficiency up to 97%
- ✓Water / forced air cooling selectable
- ✓Built-in CANBus/Optional PMBus/MODBus-RTU/RS-485 protocol
- ✓Output voltage and constant current level programmable
- ✓Active current sharing up to 4 units (40KW)
- ✓Built-in remote ON-OFF control / Auxiliary power / Alarm signal
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature / Fan fail
- ✓5 years warranty
-
BrandMean Well
-
SeriesMean Well SHP Series
-
Power Rating10000 Watt
-
Output Voltage380 Volt
-
Rated Current26.3 Ampere
-
Input Voltage340V~530V
-
No of Output1
-
Standards MetCB,CE,EAC,EN
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length18.11 in
-
Width8.31 in
-
Height3.29 in
-
Weight26.24 lb
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other SHP-10K Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well SHP-10K-55 7000W High Efficiency Power Supply 55V Out 131A | 7200W | 55V | 131A | Indoor | $2,791.00 | View |
| Mean Well SHP-10K-230 10KW High Efficiency Power Supply 230V Out 43.5A | 10000W | 230V | 43.5A | Indoor | $2,791.00 | View |
| Mean Well SHP-10K-115 10KW High Efficiency Power Supply 115V Out 87A | 10000W | 115V | 87A | Indoor | $2,791.00 | View |
