Mean Well SHP-10K-230 10KW High Efficiency Power Supply 230V Out 43.5A

Name: Mean Well SHP-10K-230 10KW High Efficiency Power Supply 230V Out 43.5A
Brand: Mean Well
SKU: SHP-10K-230
Price: 2791.0 USD
Availability: InStock

Three phasehigh efficiency up to 97%active current sharing up to 4 units(240KW)

SKU SHP-10K-230

$2,791.00 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

SHP-10K-230 is the model of this series: typical efficiency 96.5%. Type Blank: CANBus.

SHP-10K-HV is a 10KW high efficiency AC/DC power supply. This series operates for the wide range three phase AC input neutral is not needed, and offers the models with DC outputs (55V/115V/230V/380V) that mostly demanded by various industries. Two types of cooling methods, forced air and water cooling, that can be working at ambient temperature up to 70℃. Moreover, SHP-10K-HV provides vast design flexibility by equipping various built-in functions such as output programming, active current sharing, remote ON-OFF control, auxiliary power, and communication protocols, that will not only satisfy maker demand, but also enhance automation purpose.

Features

3ψ 3-wire / △ or Y 340~530VAC or 3ψ 4-wire / Y 340~530VAC
High efficiency up to 97%
Water / forced air cooling selectable
Built-in CANBus/Optional PMBus/MODBus-RTU/RS-485 protocol
Output voltage and constant current level programmable
Active current sharing up to 4 units(40KW)
Built-in remote ON-OFF control / Auxiliary power / Alarm signal
Protections: Short circuit / Overload / Over voltage / Over temperature / Fan fail
5 years warranty

Specifications

SHP-10K-230Specifications from the official datasheet (2026-08-13 edition)

OUTPUT

DC VOLTAGE (factory default): 230V
CURRENT (factory default): 43.5A
CURRENT RANGE: 0 ~ 46.3A
RATED POWER (max.): 10000W
FULL POWER VOLTAGE RANGE: 216 ~ 260V
RIPPLE & NOISE (max.)^Note.2: 1Vp-p
VOLTAGE ADJ. RANGE: 170 ~ 260V
VOLTAGE ADJ. RANGE: Can be adjusted via built-in potentiometer
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 3000ms, 100ms at full load
HOLD UP TIME (Typ.): 25ms / 400VAC at 75% load 20ms / 400VAC at full load

INPUT

VOLTAGE RANGE^Note.5: 3ψ 3-wire or 3ψ 4-wire / 340 ~ 530VAC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): ≧0.98/400VAC/480VAC at full load
EFFICIENCY (Typ.)^Note.6: 96.5%
AC CURRENT (Typ.): 15.7A/400VAC 13A/480VAC
INRUSH CURRENT (Typ.): 40A/400VAC 65A/480VAC
LEAKAGE CURRENT: <6.5mA peak / 530VAC

PROTECTION

OVER LOAD: 100 ~ 105% of rated current Protection type : Constant current limiting, unit will shutdown after 5 sec. re-power on to recover
OVER VOLTAGE: 273 ~ 312V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

CURRENT SHARING: Up to 4 units. Please refer to the Function Manual
OUTPUT VOLTAGE PROGRAMMABLE: Adjustment of output voltage is allowable between 50 ~ 120% of nominal output voltage. Please refer to the PV curve Function Manual

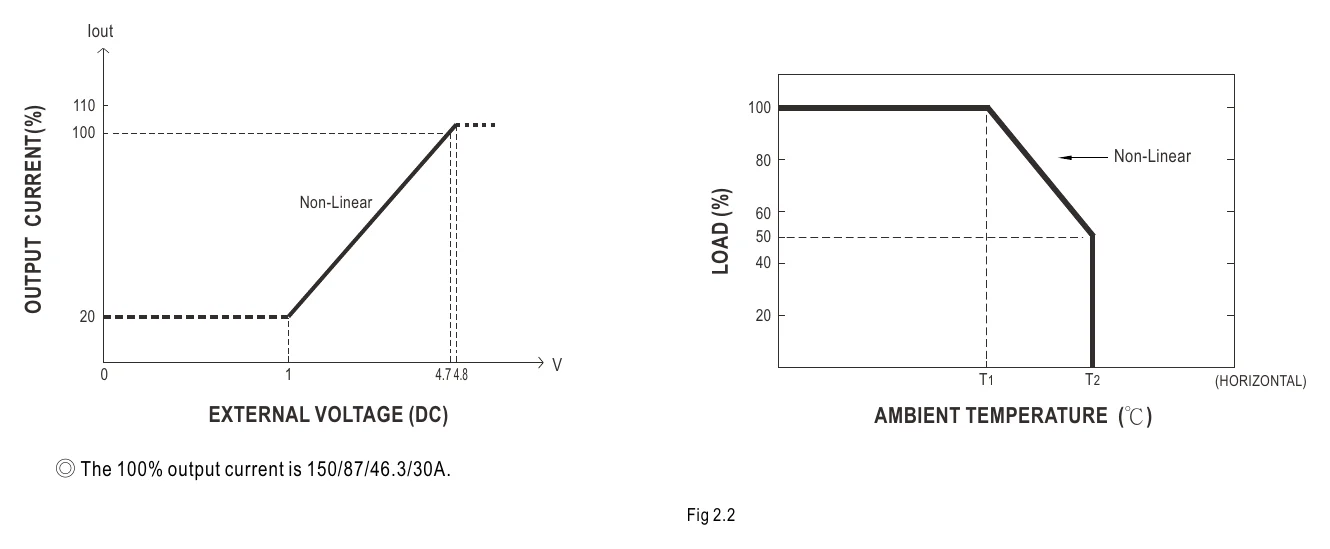

CONSTANT CURRENT LEVEL PROGRAMMABLE: Adjustment of constant current level is allowable between 20 ~ 100% of rated current. Please refer to the PC curve Function Manual
AUXILIARY POWER(AUX): 12V@1A tolerance±5%, ripple 150mVp-p
REMOTE ON-OFF CONTROL: Please refer to the Function Manual.

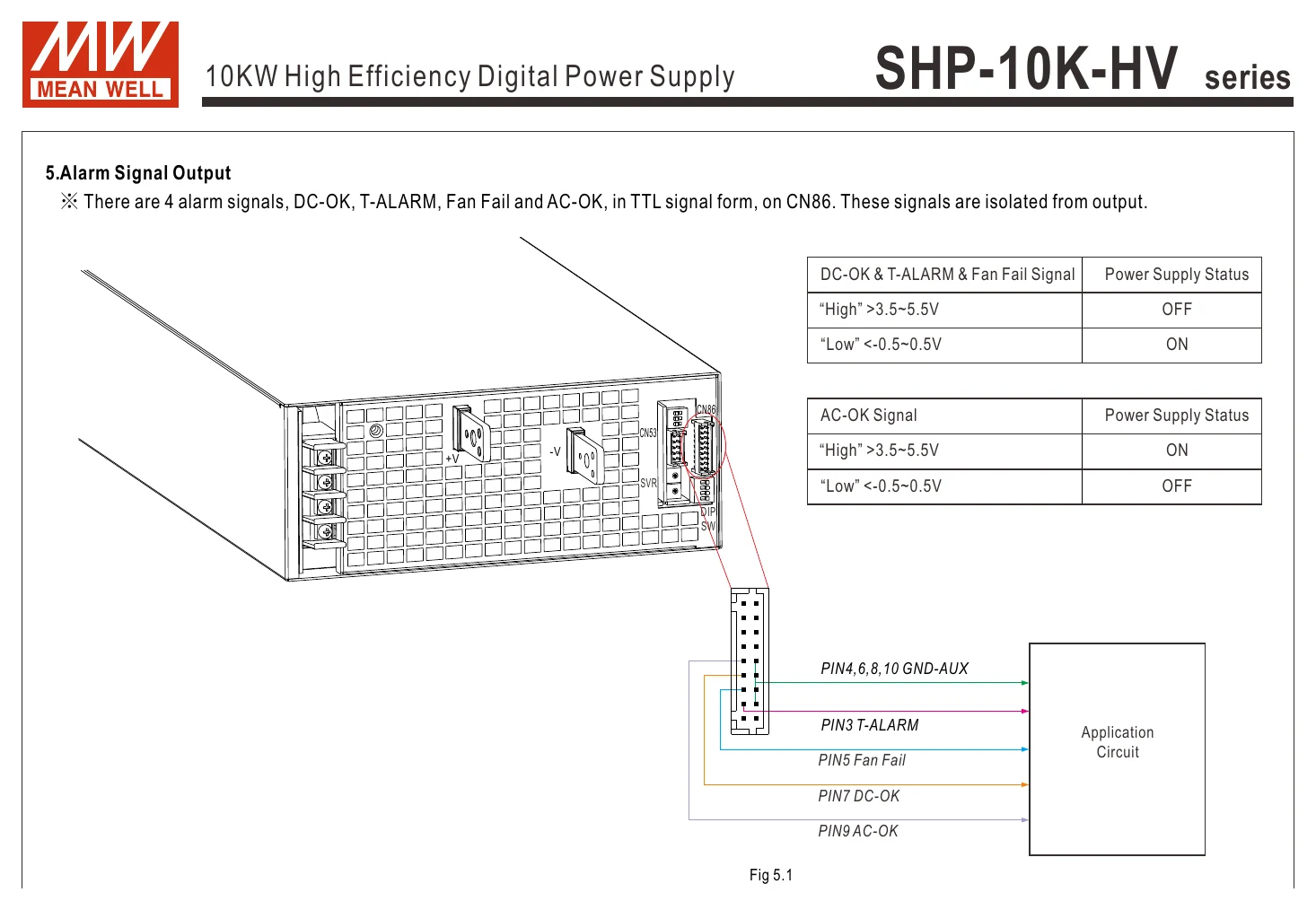

ALARM SIGNAL OUTPUT: AC-OK, DC-OK, Fan Fail. Please refer to the Function Manual.
DC-OK SIGNAL: The TTL signal output, PSU turn on = -0.5 ~ 0.5V ; PSU turn off = 3.5 ~ 5.5V. Please refer to the Function Manual

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 7)

SAFETY STANDARDS: UL62368-1, CAN/CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE^Note.4: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC
ISOLATION RESISTANCE^Note.4: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 (CISPR32) / EN55011 (CISPR11) Class A
Radiated BS EN/EN55032 (CISPR32) / EN55011 (CISPR11) Class A
Harmonic Current BS EN/EN61000-3-2
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: EN55024 , EN61204-3, EN61000-6-2

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 3
EFT / Burst BS EN/EN61000-4-4 Level 3
Surge BS EN/EN61000-4-5 Level 4, 4KV/Line-Earth; Level 3, 2KV/Line-Line
Conducted BS EN/EN61000-4-6 Level 3
Magnetic Field BS EN/EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 281.2K hrs min. Telcordia SR-332 (Bellcore) ; 28K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: SHP-10K: 460*211*83.5mm (L*W*H) SHP-10K-L: 460*216*83.5mm (L*W*H)
PACKING: SHP-10K: 11.55Kg; 1pcs/12.55Kg/1.29CUFT SHP-10K-L: 10.15Kg; 1pcs/11.15Kg/1.12CUFT

MODEL ENCODING

Blank (this model): CANBus
PM: PMBus
MOD: MODBus-RTU/RS-485

Test conditions and notes10

1. All parameters NOT specially mentioned are measured at 400VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance :includes set up tolerance, line regulation and load regulation.
4. During withstand voltage and isolation resistance testing, the screw "A" shall be temporarily removed, and shall be installed back after the testing.
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
6. The efficiency is measured at 480VAC input.
7. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 600mm*900mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. If use PV signal to adjust Vo, under certain operations conditions, ripple noise of Vo might slightly go over rating defined in this specification.
10. Under light load condition, output voltage ripple will exceed specification. The behavior can be minimized by increasing the load.

Technical drawings

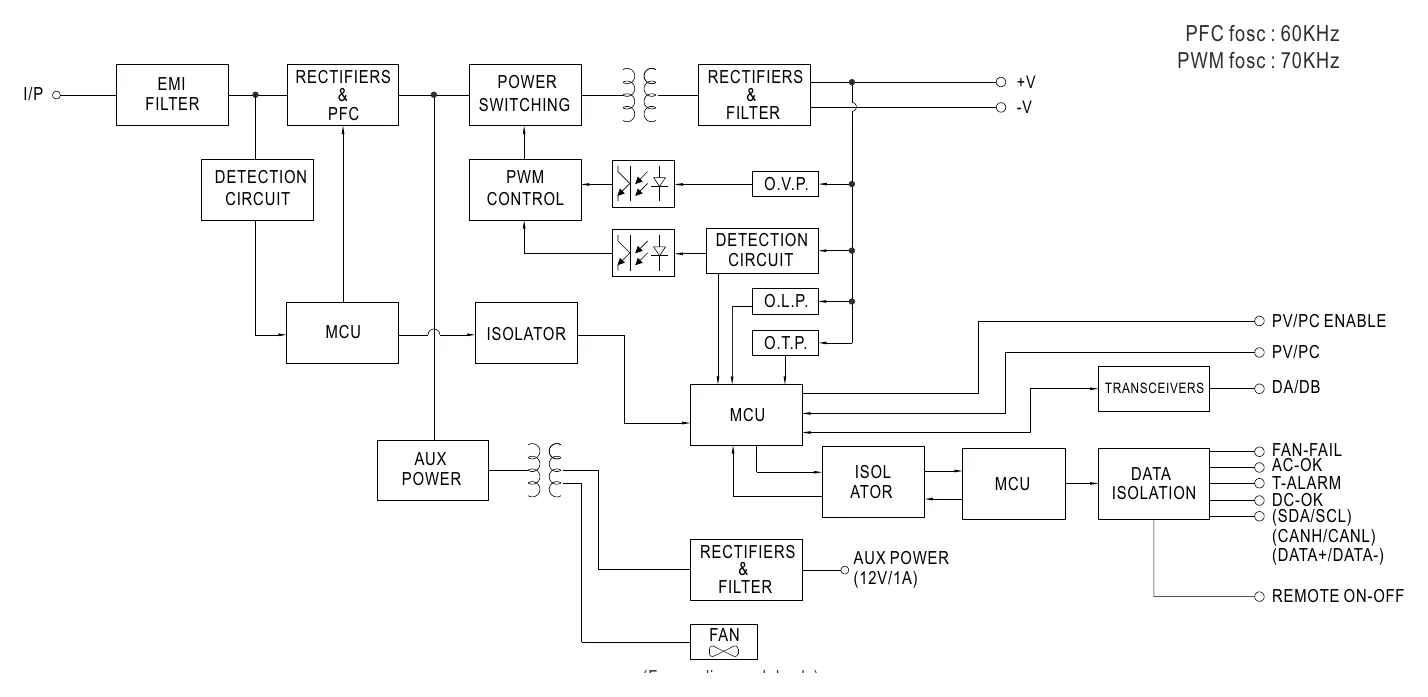

SHP-10K-230 BLOCK DIAGRAM — BLOCK DIAGRAM

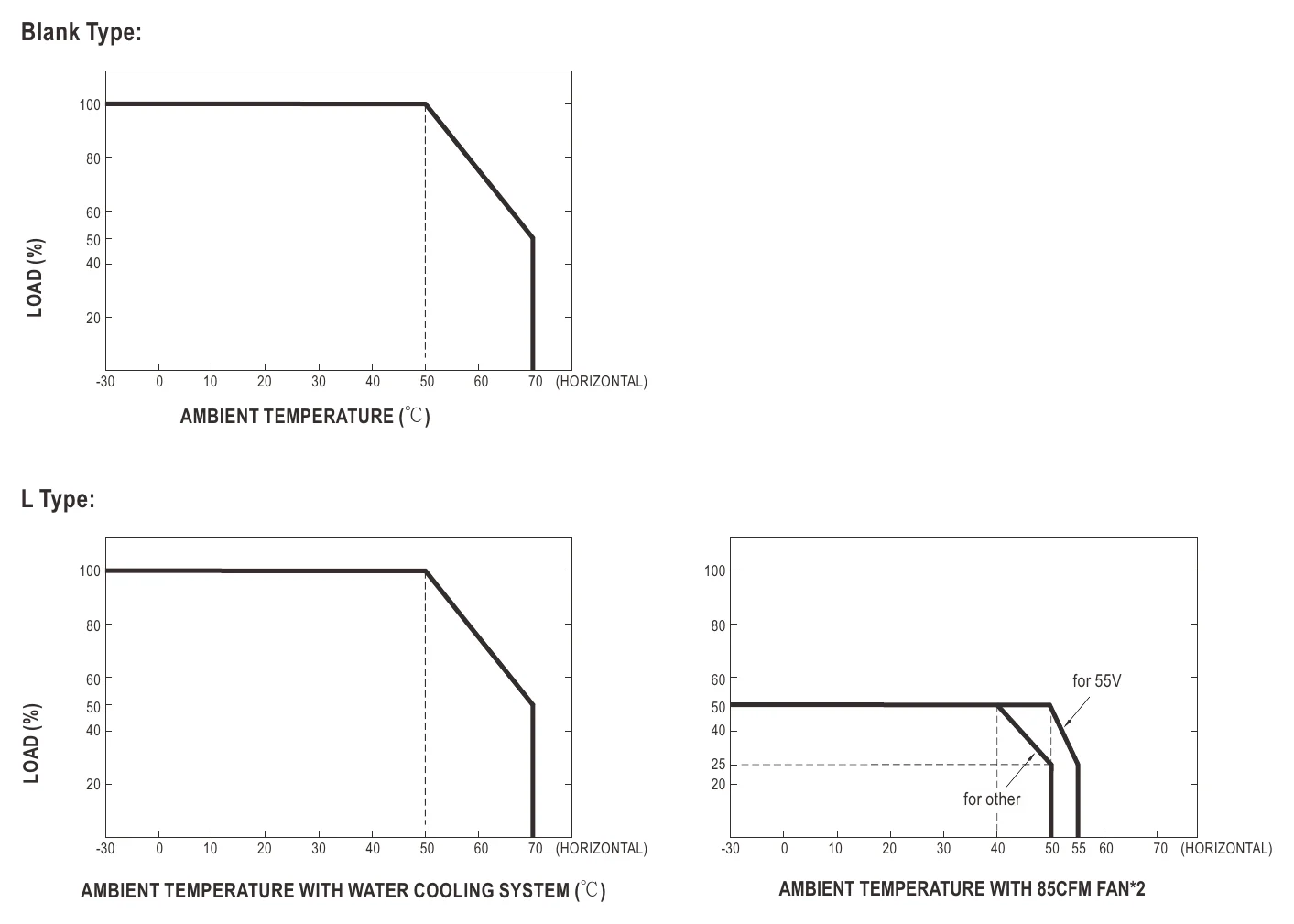

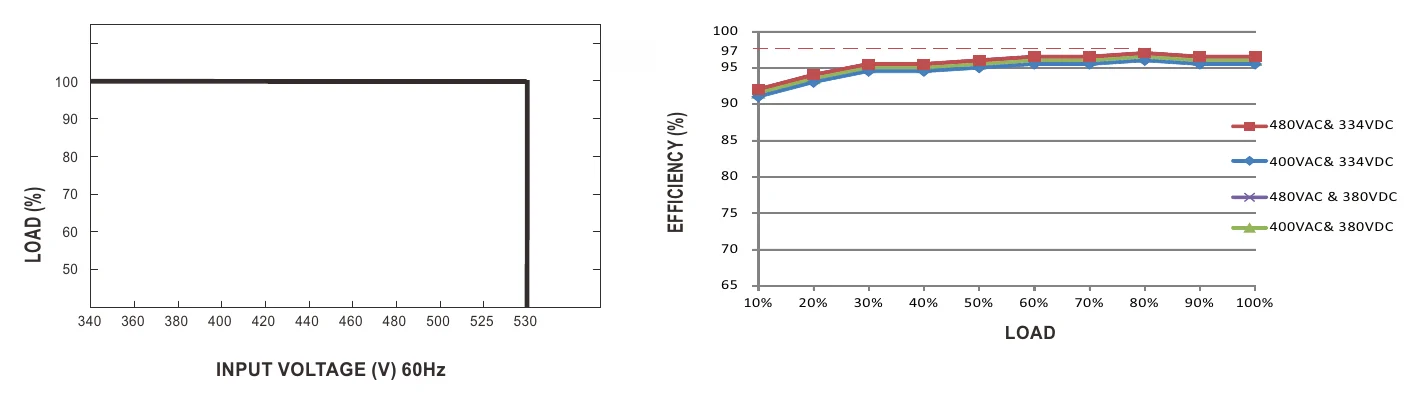

SHP-10K-230 DERATING CURVE — DERATING CURVE

SHP-10K-230 STATIC CHARACTERISTICS — STATIC CHARACTERISTICS

SHP-10K-230 Function Manual — Function Manual

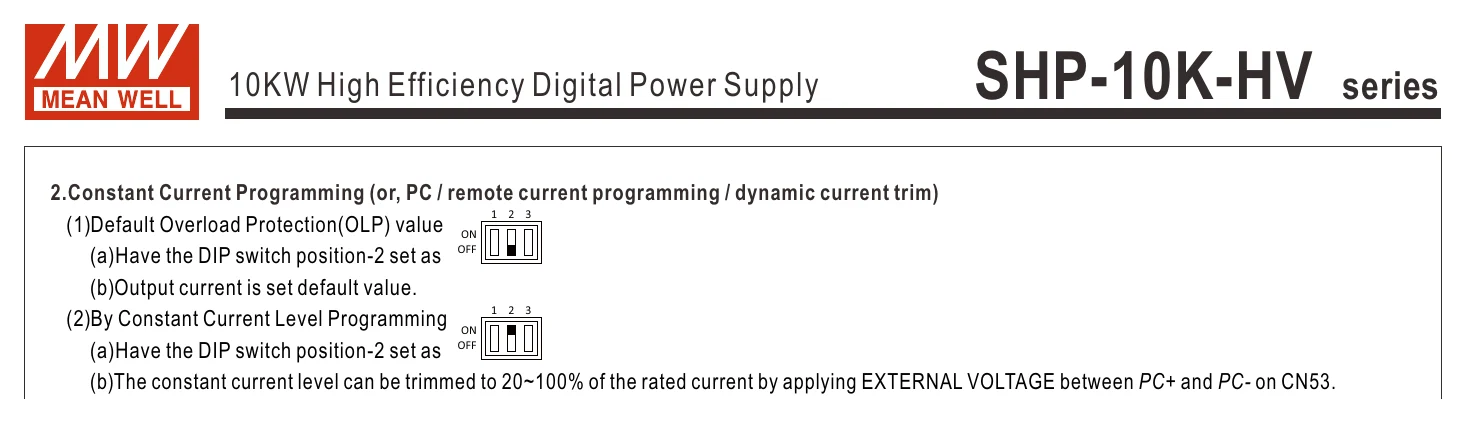

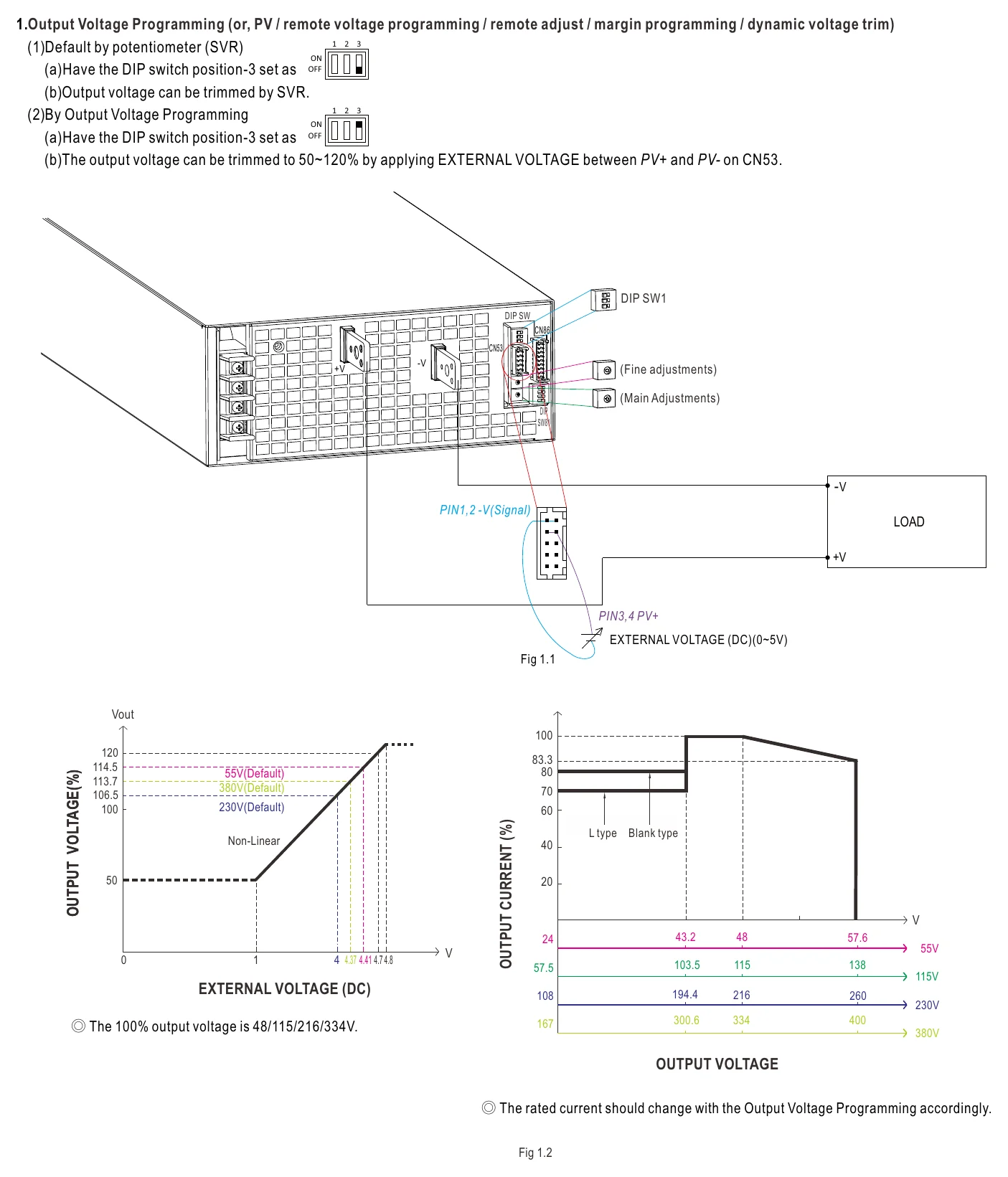

SHP-10K-230 SHP-10K-HV series — SHP-10K-HV series

SHP-10K-230 SHP-10K-HV series (2) — SHP-10K-HV series (2)

SHP-10K-230 OUTPUTCURRENT(%) — OUTPUTCURRENT(%)

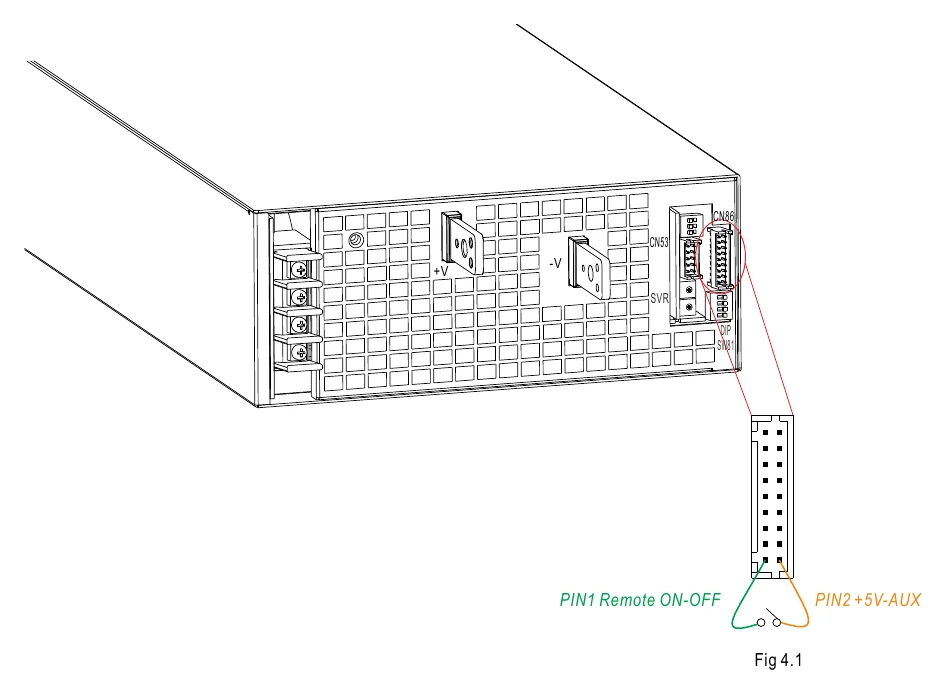

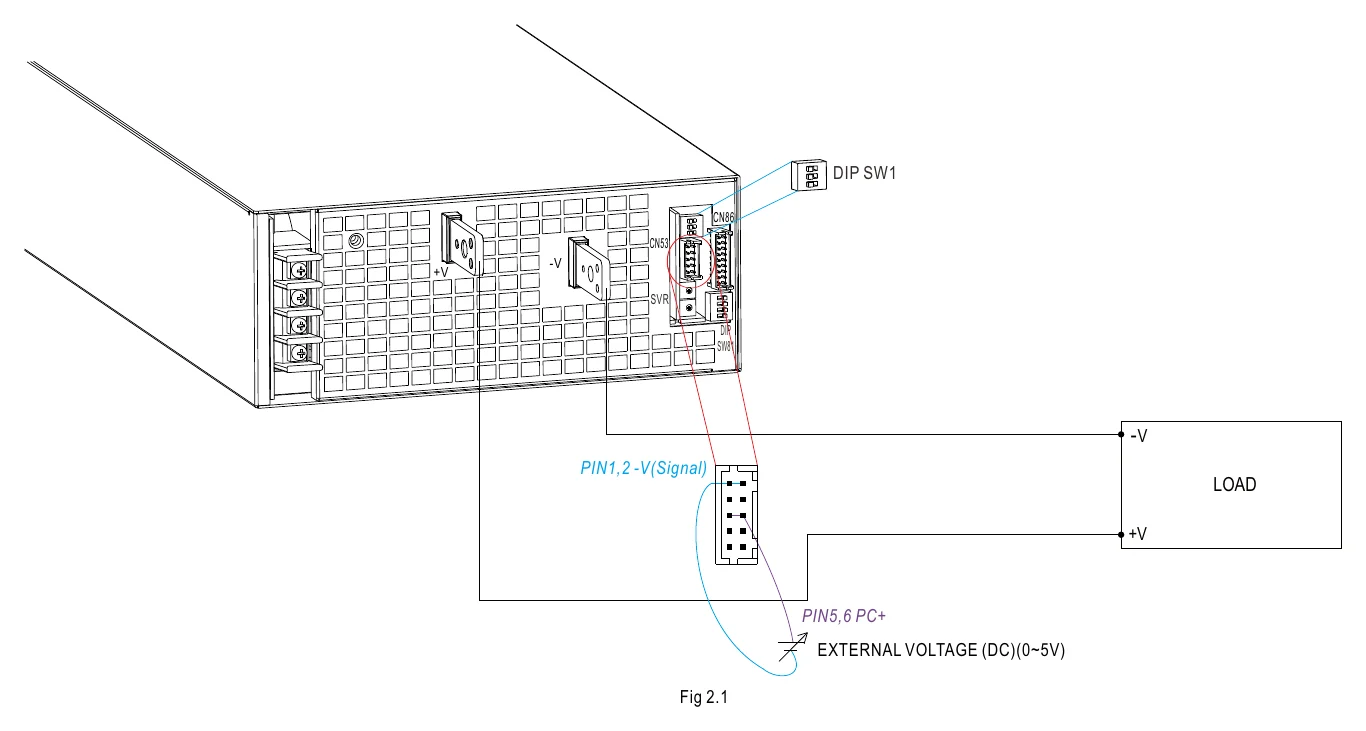

SHP-10K-230 4.Remote ON-OFF Control — 4.Remote ON-OFF Control

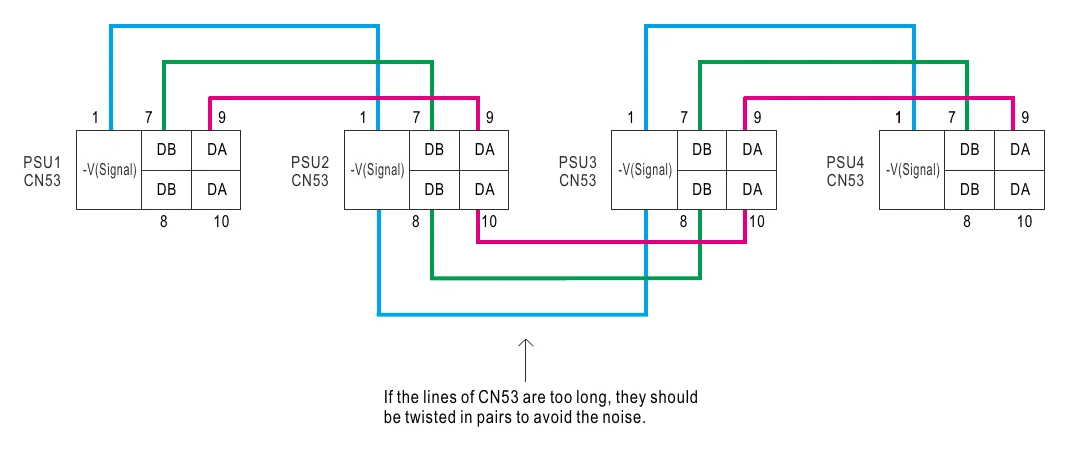

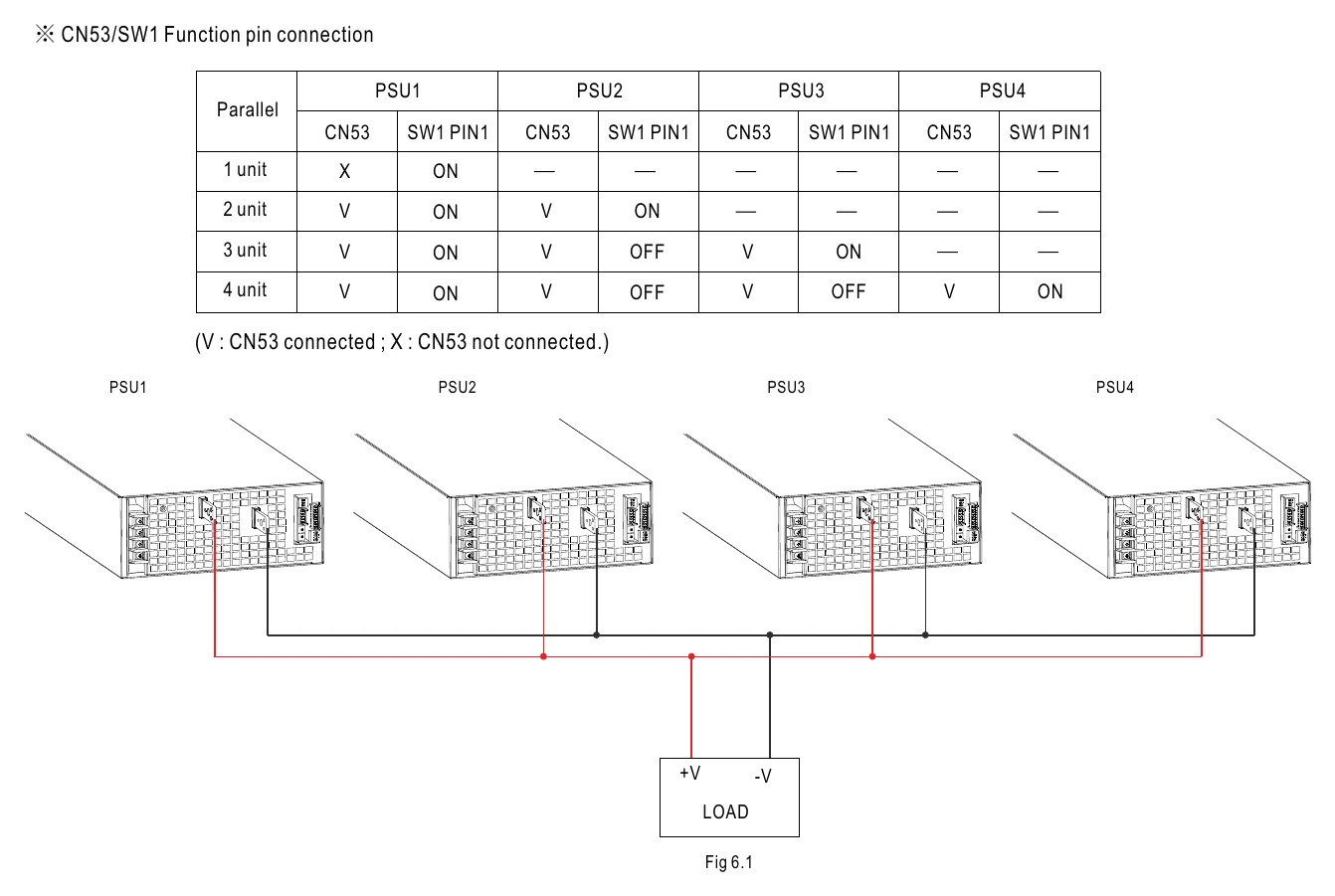

SHP-10K-230 ※ CN53/SW1 Function pin connection — ※ CN53/SW1 Function pin connection

SHP-10K-230 ※ CN53/SW1 Function pin connection (2) — ※ CN53/SW1 Function pin connection (2)

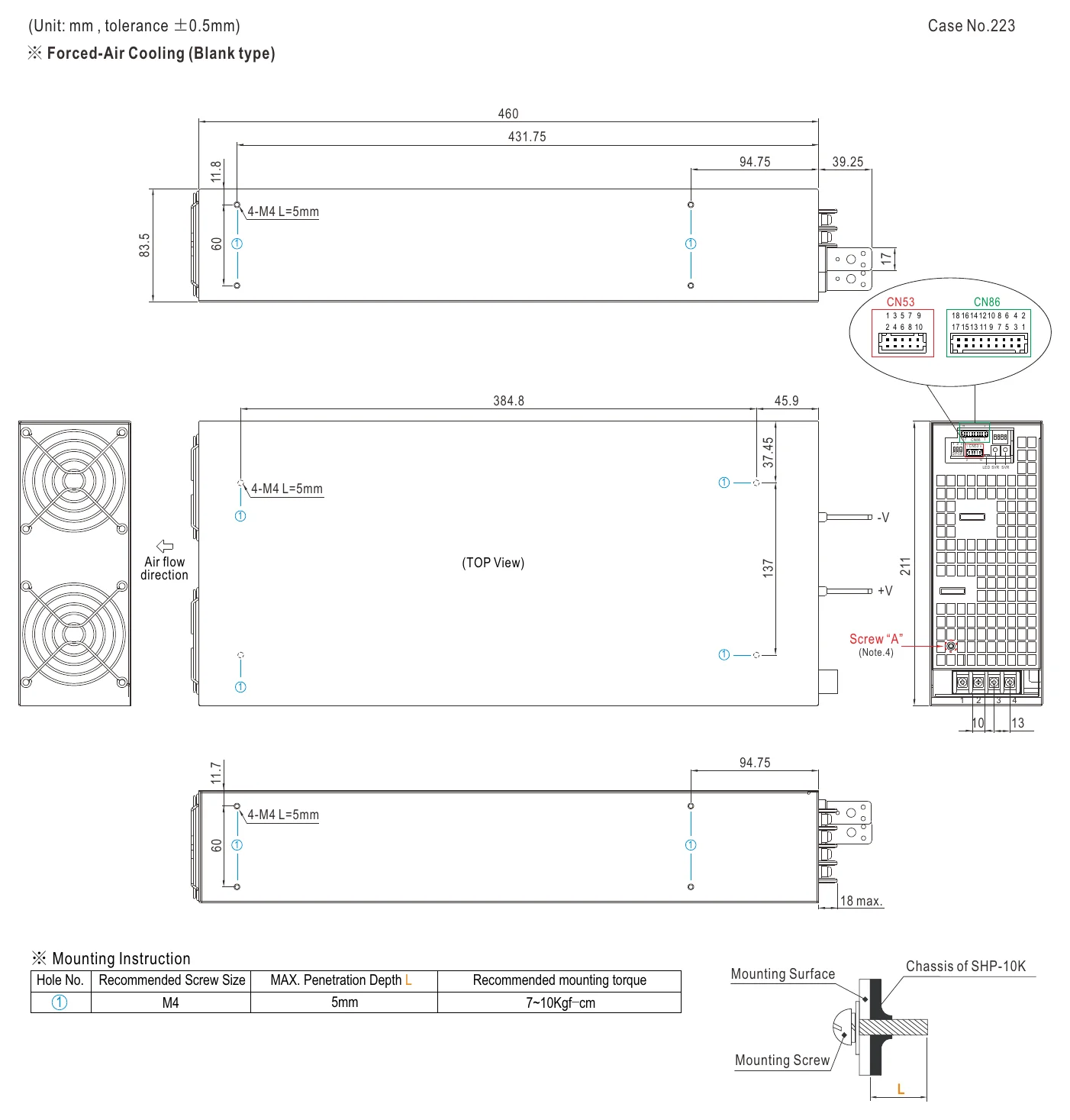

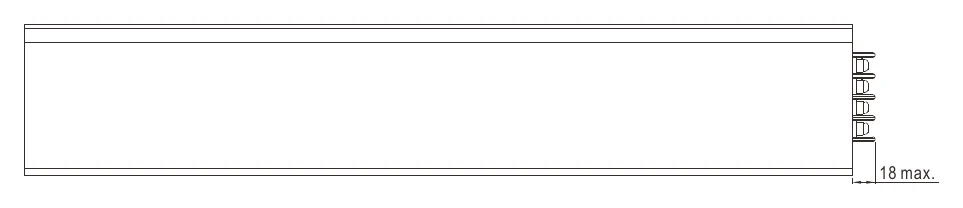

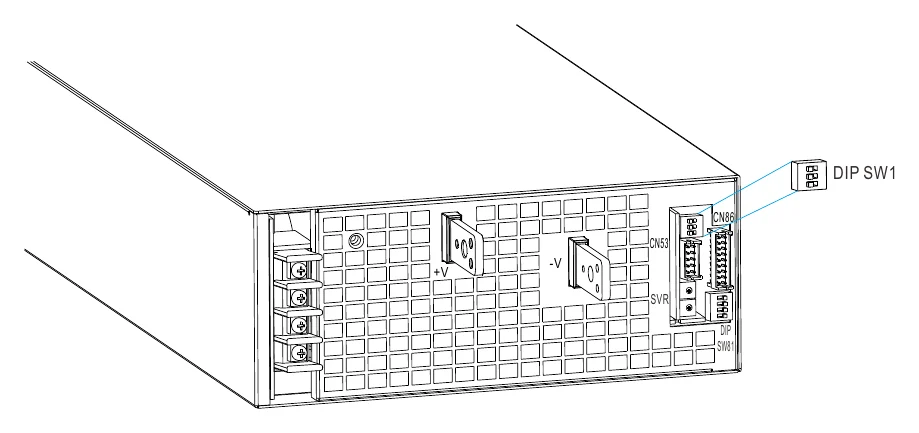

SHP-10K-230 Mechanical Specification — Mechanical Specification

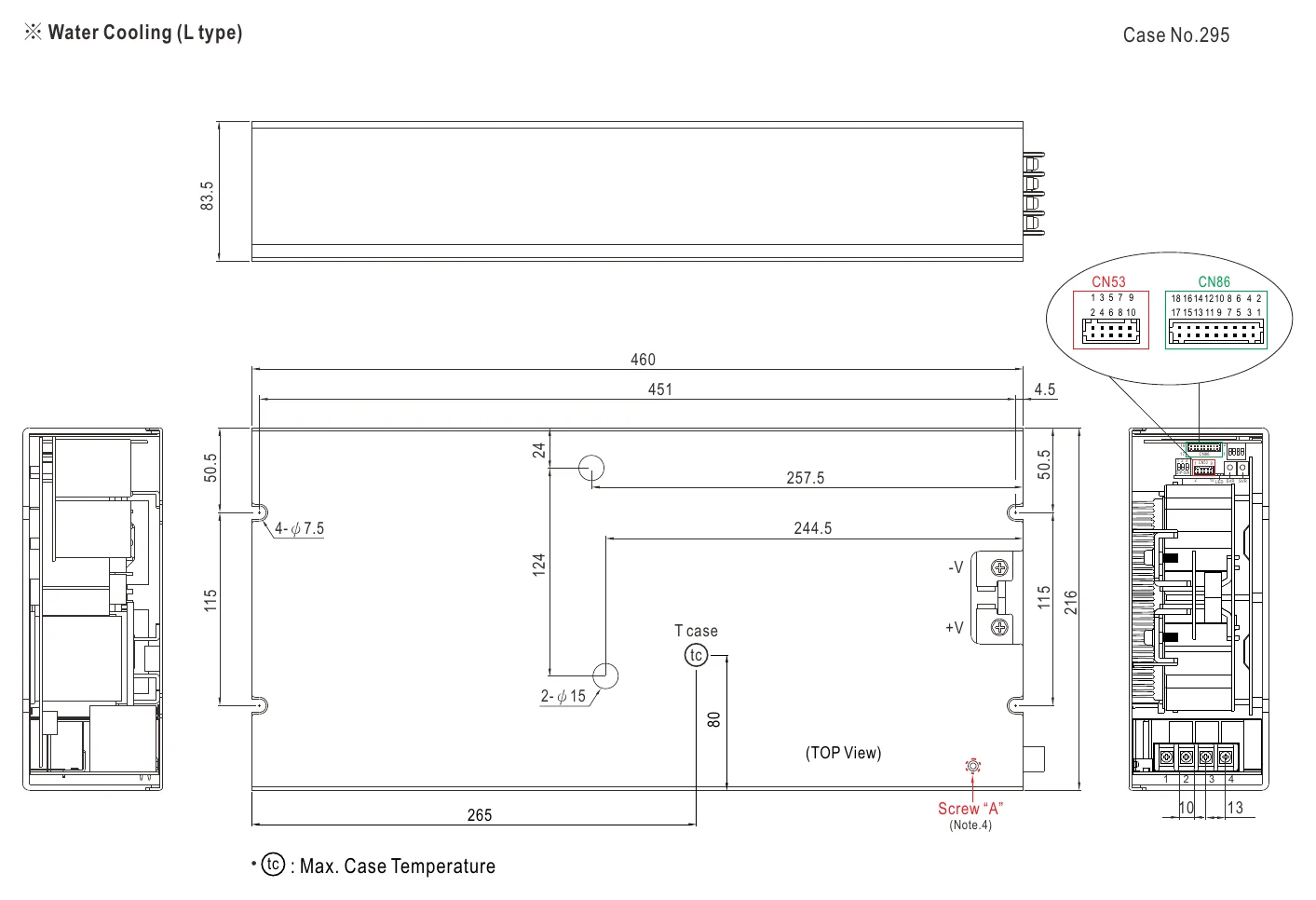

SHP-10K-230 ※ Water Cooling (L type) — ※ Water Cooling (L type)

SHP-10K-230 ※ Water Cooling (L type) (2) — ※ Water Cooling (L type) (2)
