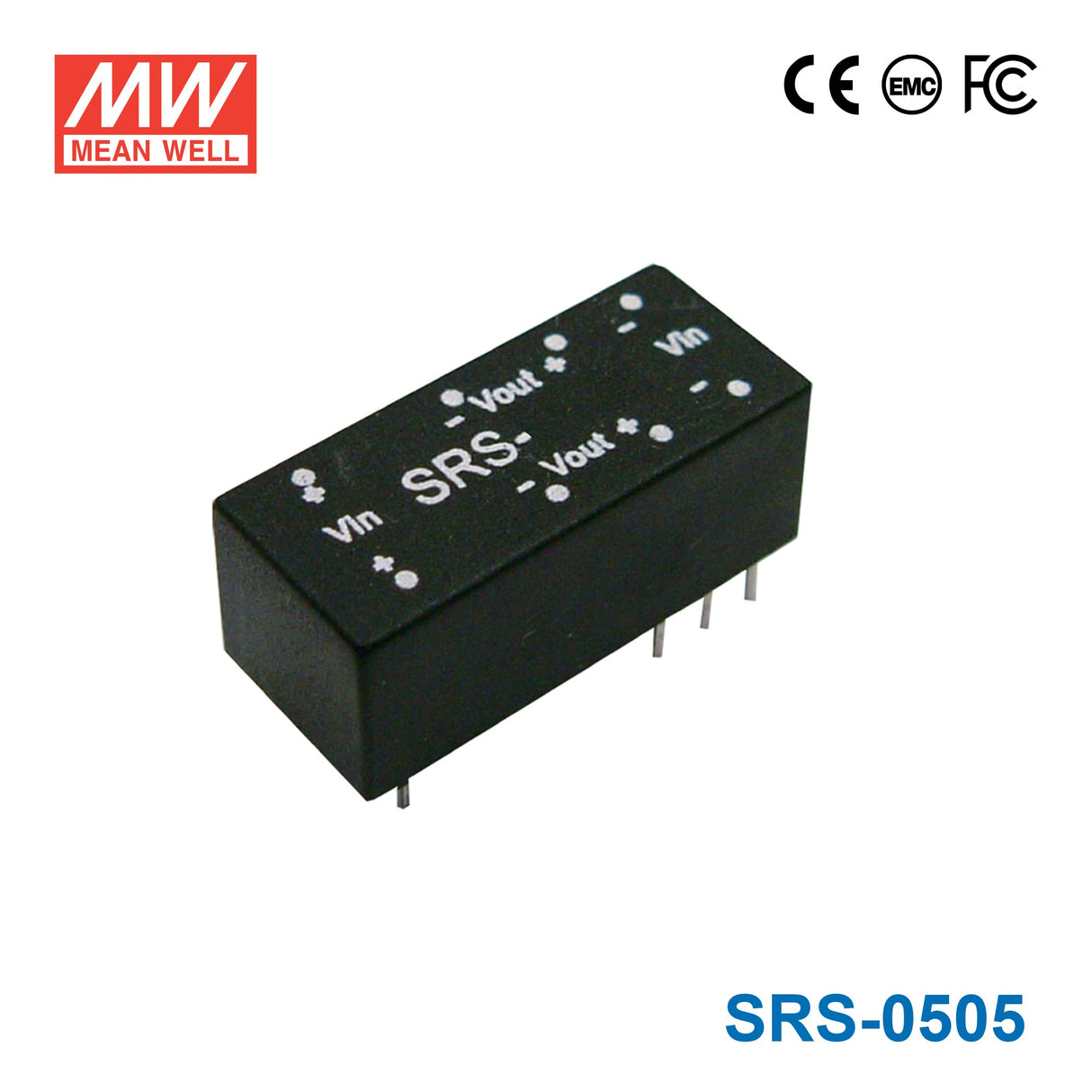

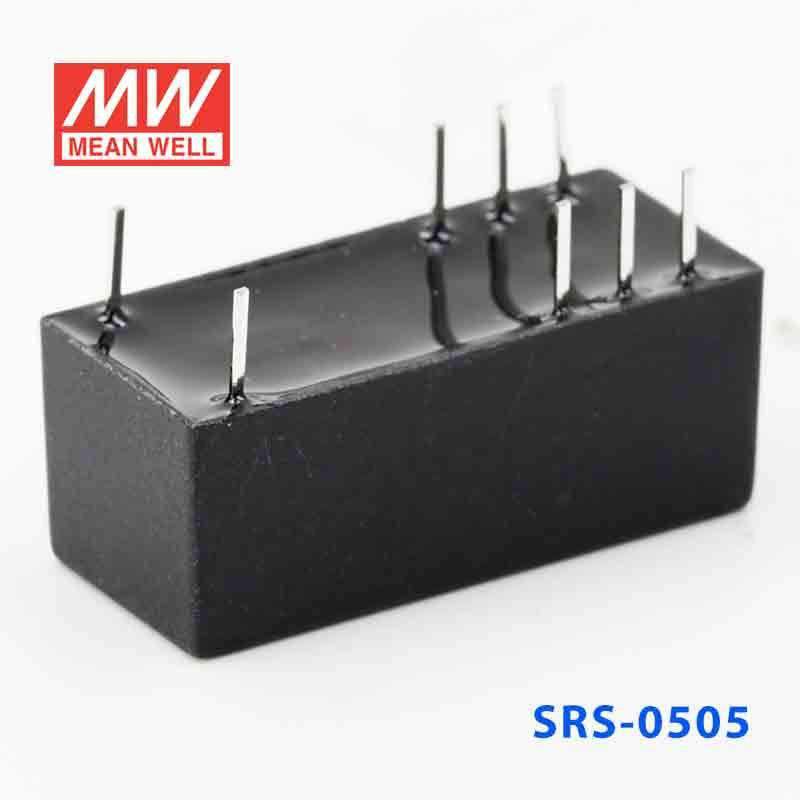

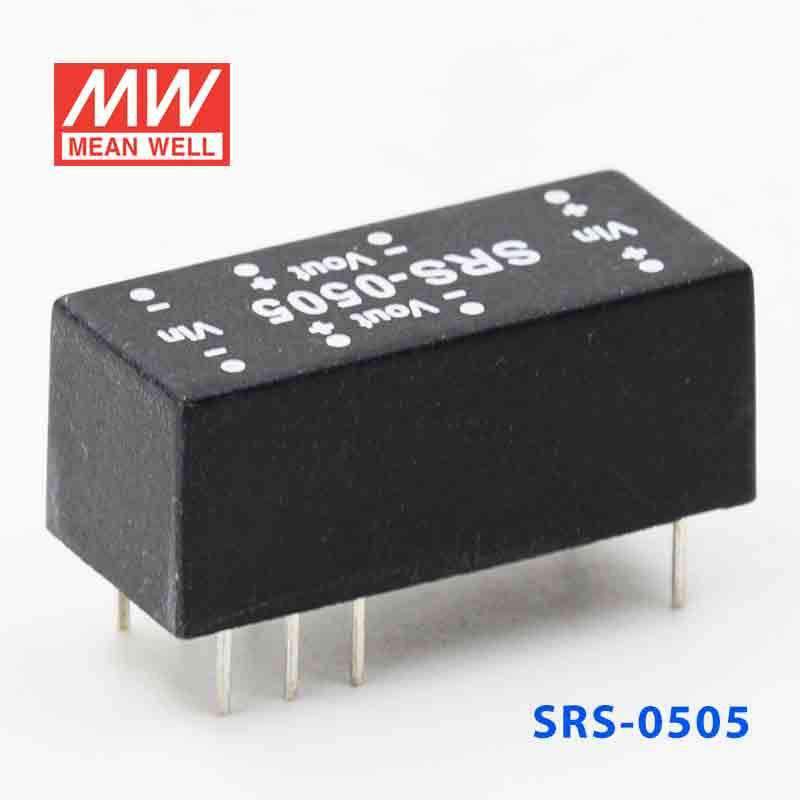

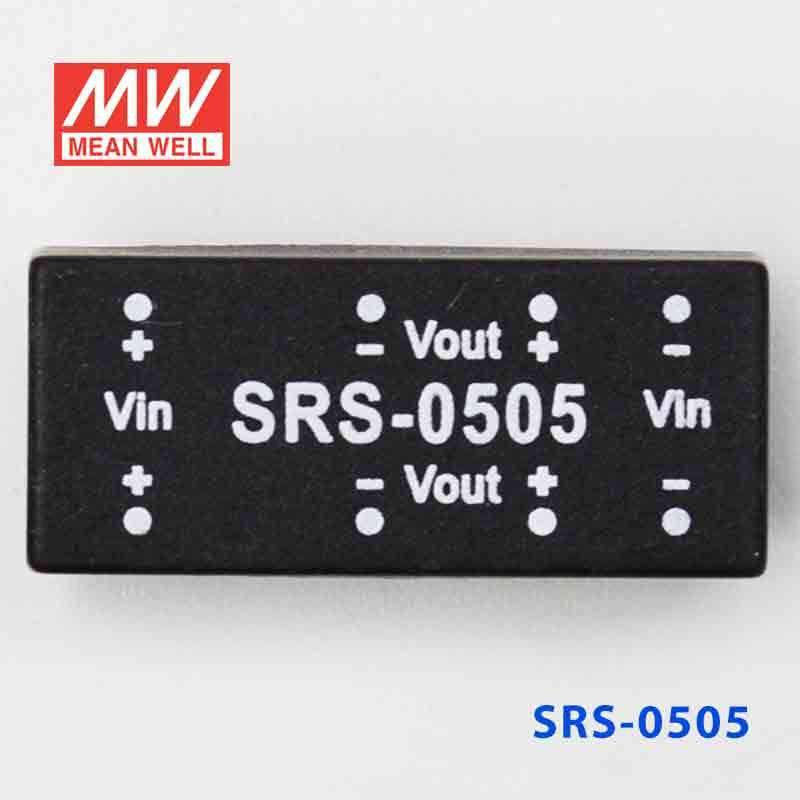

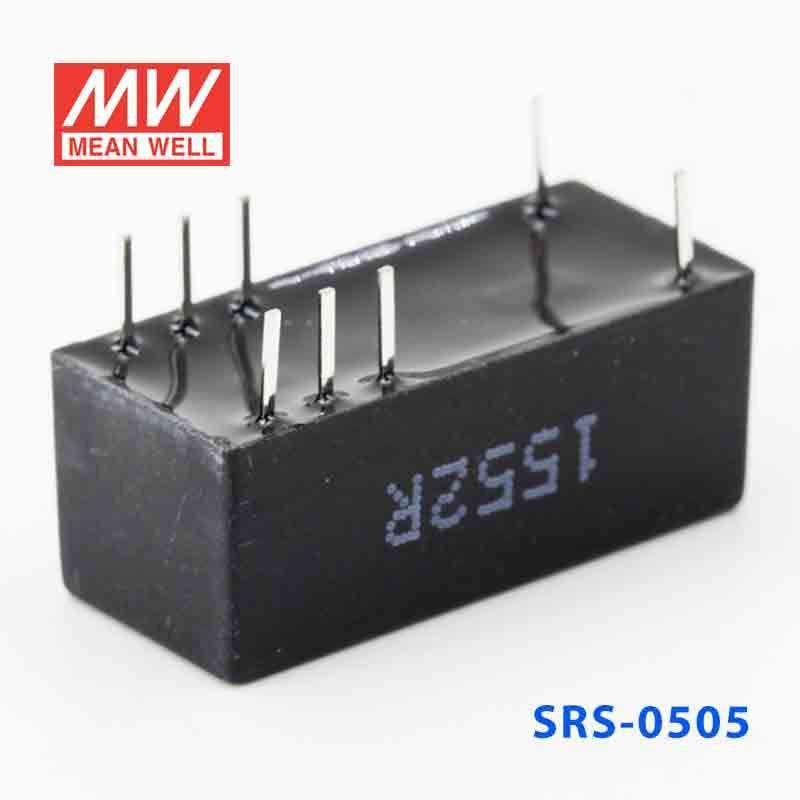

Mean Well SRS-0505 DC-DC Converter - 0.5W - 4.5~5.5V in 5V out
The SRS is a 0.5W Mean Well power converter.
Key Features
- ✓ 1KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE ISOLATION CAPACITANCE EMC EMISSION EMC IMMUNITY MTBF DIMENSION WEIGHT -25 ~ +105 ± 0.03% / ℃ ℃ , 10 ~ 95% RH ℃ ) (0 ~ 50 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSRS Series
-
Power Rating0.5 Watt
-
Output Voltage5 Volt
-
Rated Current0.1 Ampere
-
Input Voltage4.5V~5.5V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length0.89 in
-
Width0.39 in
-
Height0.33 in
-
Weight0.01 lb
::specification::
Frequently Asked Questions
Can I use the SRS-0505 for a small 5V embedded control circuit?
Yes, this converter is intended for constant-voltage 5V output, but its total power is only 0.5W. That makes it more suitable for very small embedded or control-side loads than for anything with meaningful power demand.
Is the SRS-0505 suitable for powering a low-power 5V monitoring or sensing board?
It can be used for compact 5V monitoring or sensing circuits when the load fits within the 0.5W rating. The very small 22.6 × 9.9 × 8.4 mm package is also useful where board space is limited.
Can this converter run a 5V interface or signal-conditioning stage in industrial electronics?
Yes, for low-power 5V interface functions it can be appropriate because it provides constant-voltage 5V output in a compact package. The 0.5W rating means it is for light auxiliary electronics rather than larger 5V devices.
Is the SRS-0505 a fit for compact automation modules where space matters?
It is well suited to space-constrained designs because the package is only 22.6 × 9.9 × 8.4 mm and weighs 0.0031 kg. The tradeoff is that the converter is limited to 0.5W output.
Can the SRS-0505 be used in outdoor or harsh environments?
The operating temperature range is -25°C to +71°C, but no IP rating is listed in the supplied specs. That means it should be evaluated as a board-level part whose environmental suitability depends on the enclosure used around it.
