Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

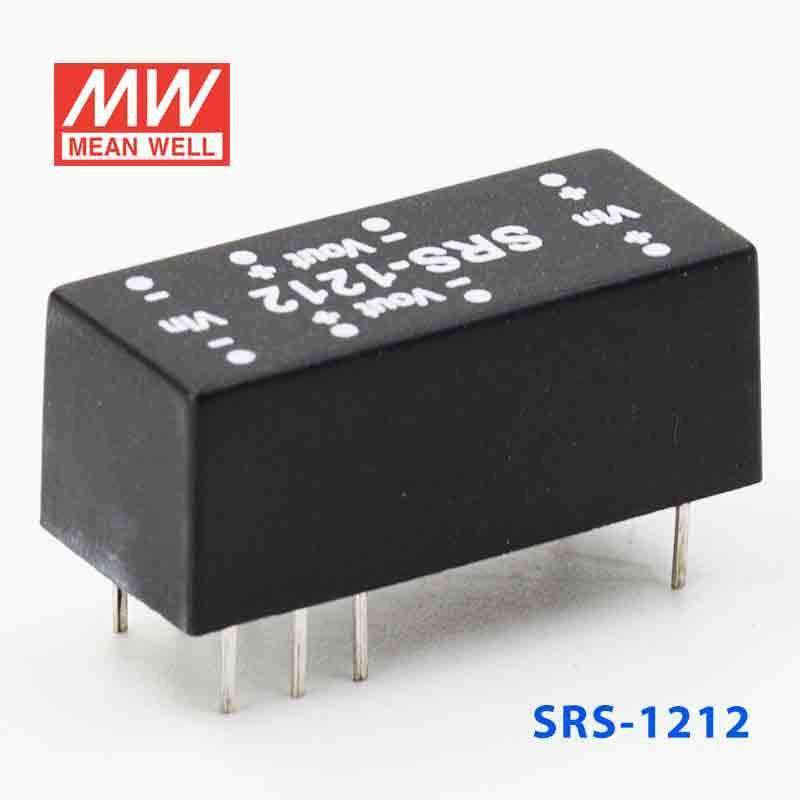

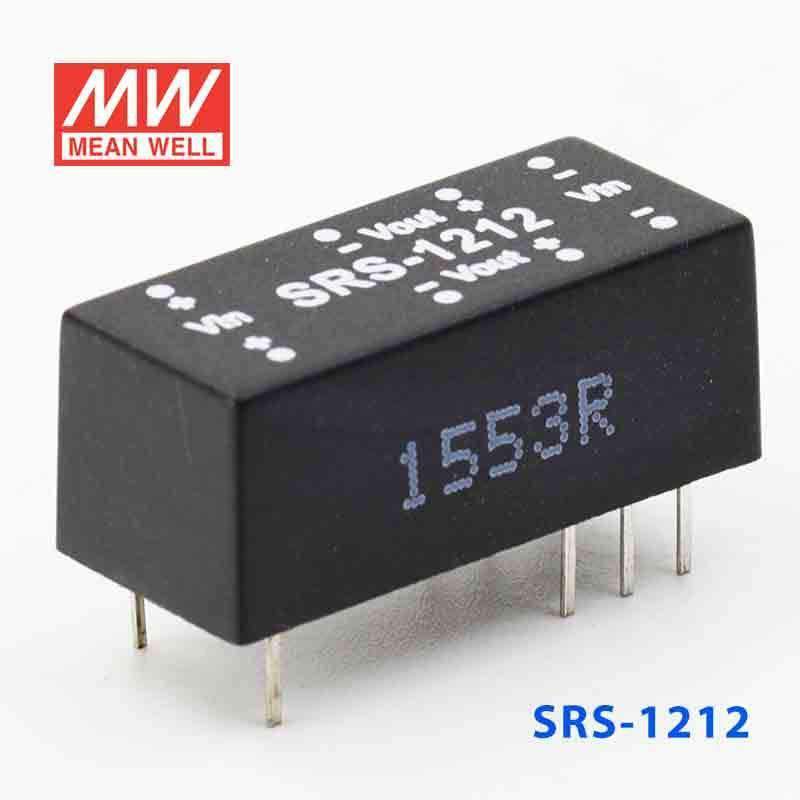

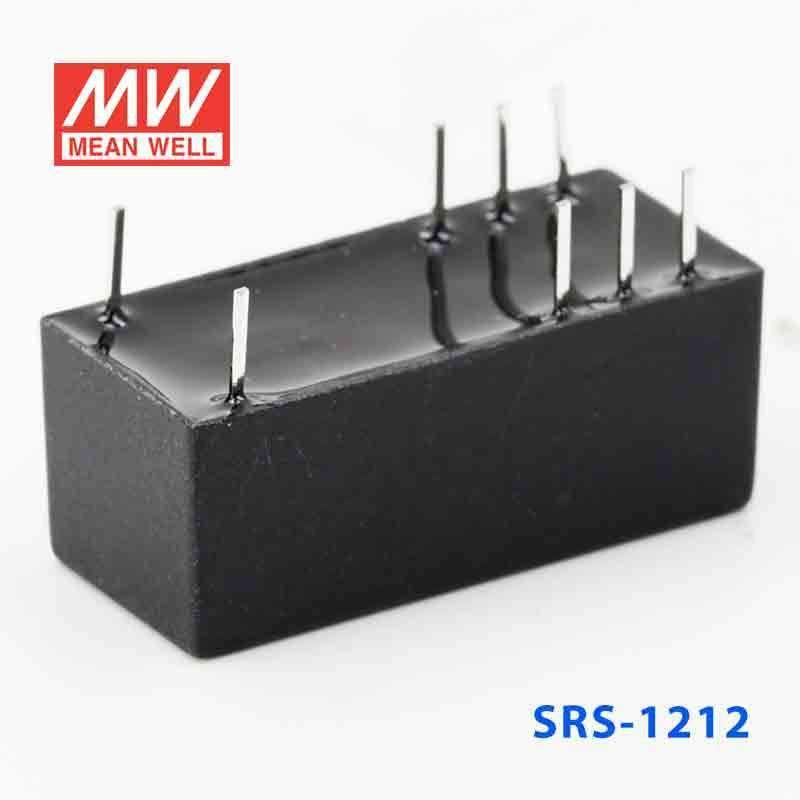

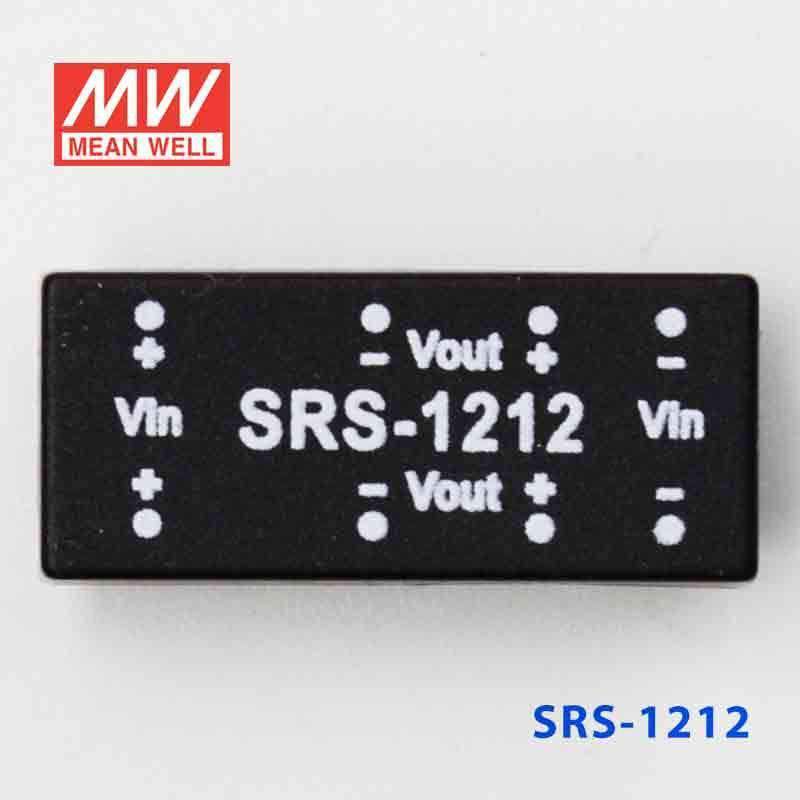

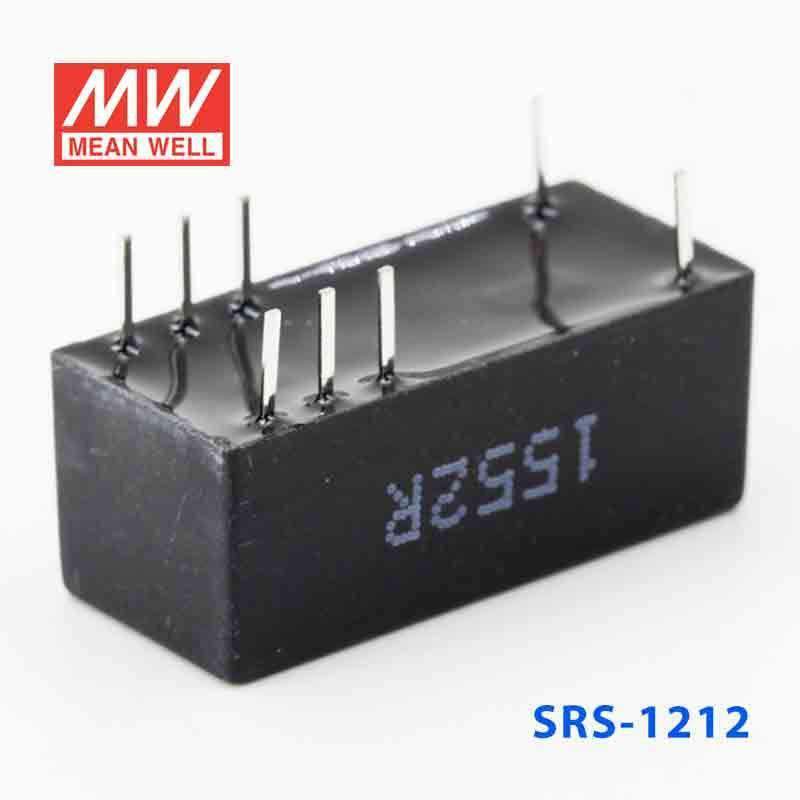

Mean Well SRS-1212 DC-DC Converter - 0.5W - 10.8~13.2V in 12V out
$5.18 USD
Unit price /
Unavailable
Description
Description
Features
| 1000VDC I/O isolation |
| Internal SMD technology |
| Built-in EMI filter |
| Protection: Short circuit |
| Cooling by free air convection |
| Non-conductive plastic case |
| Dual in line package |
| 100% full load burn-in test |
| Low cost, high reliability |
| 2 years warranty |
General Specification
| Voltage set point accuracy | ±2% (typical) |
| Line regulation | ±1% (max.) |
| Load regulation | ±1% (max.)@10~100% load |
| Input reflected ripple | 120mVp-p |
| Efficiency | 60% (typical) |
| Short circuit protection | Continuous, auto-recovery |
| Switching frequency | 50kHz (min.) |
| I/O isolation voltage | 1000VDC (min.) |
| I/O isolation resistance | 100MQ(min.)@500DC |
| Isolation capacitance | 80pF (max.) |
| Working temperature | -25°C to +60°C (no derating), +71°C@80% load |
| Storage temperature | -25°C to +105°C |
| Temp. Coefficient | ±0.03% / °C (max.) |
| Case material | non-conductive plastic |
| Dimension (LxWxH) (mm) | 0.89""x 0.39""x 0.33"" |
Specifications
Specifications
-
BrandMean Well
-
SeriesSRS Series
-
Power Rating0.5 Watt
-
Output Voltage12 Volt
-
Rated Current0.04 Ampere
-
Input Voltage10.8V~13.2V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length0.89 in
-
Width0.39 in
-
Height0.33 in
-
Weight0.01 lb
