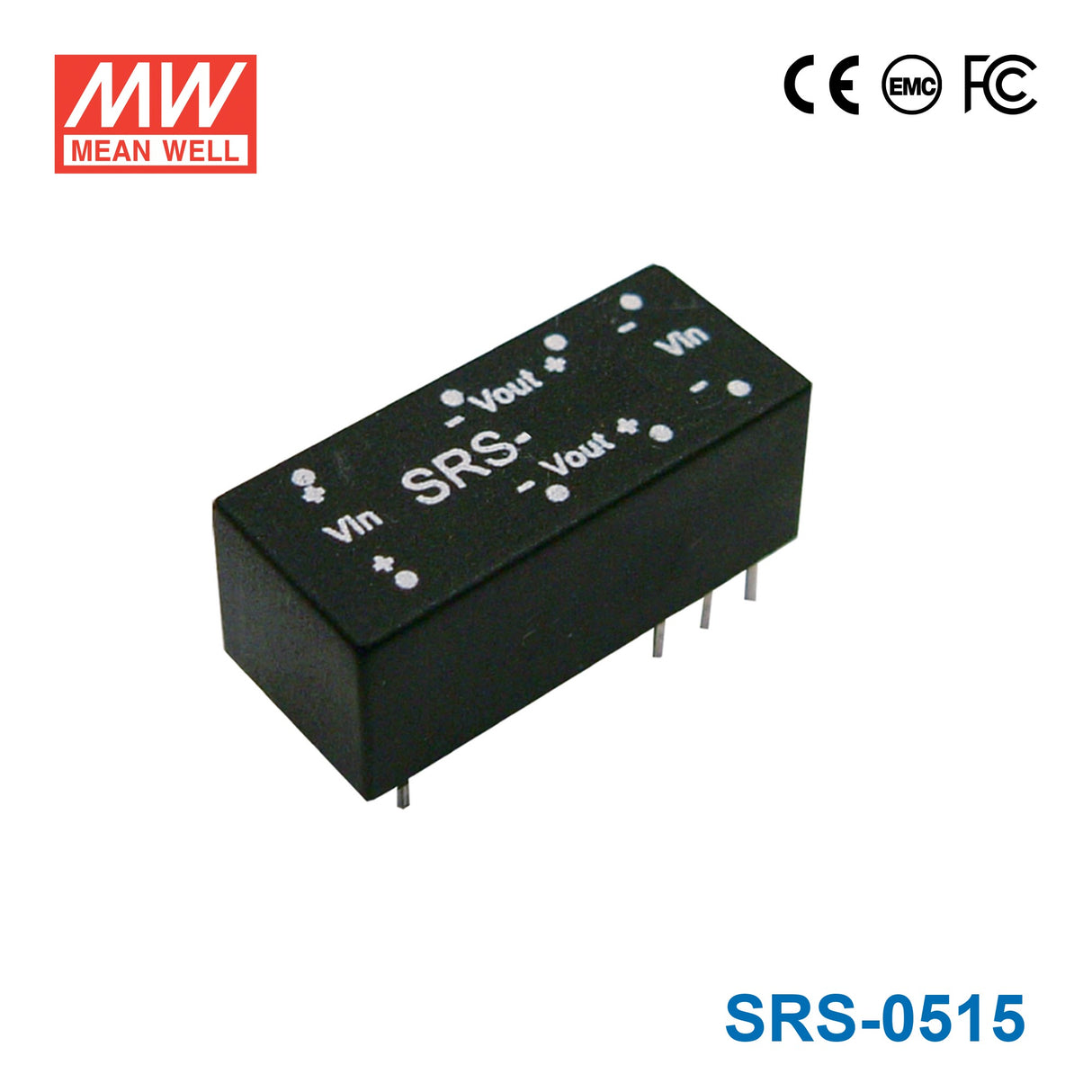

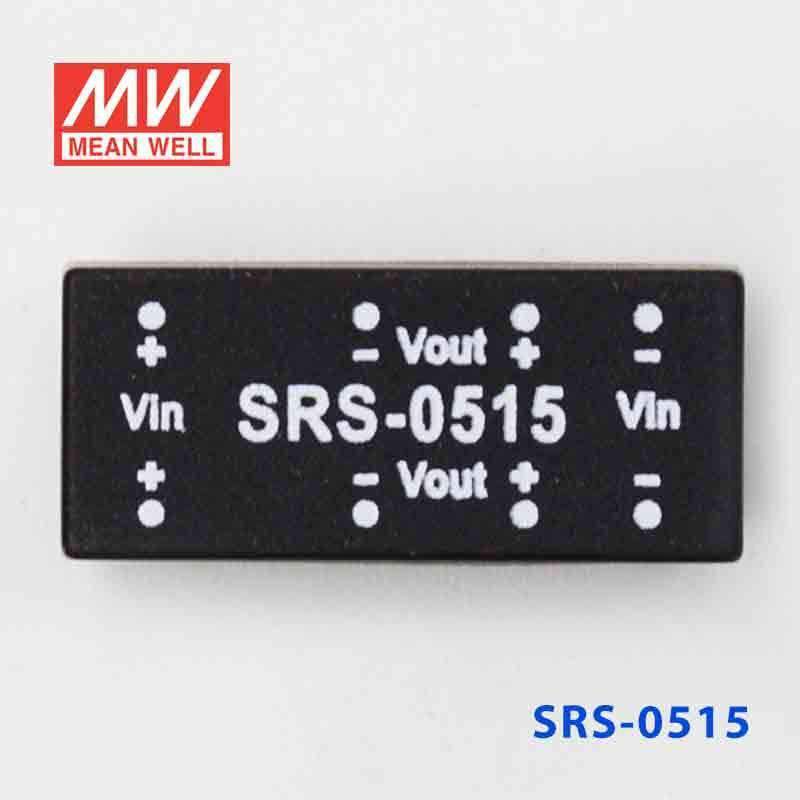

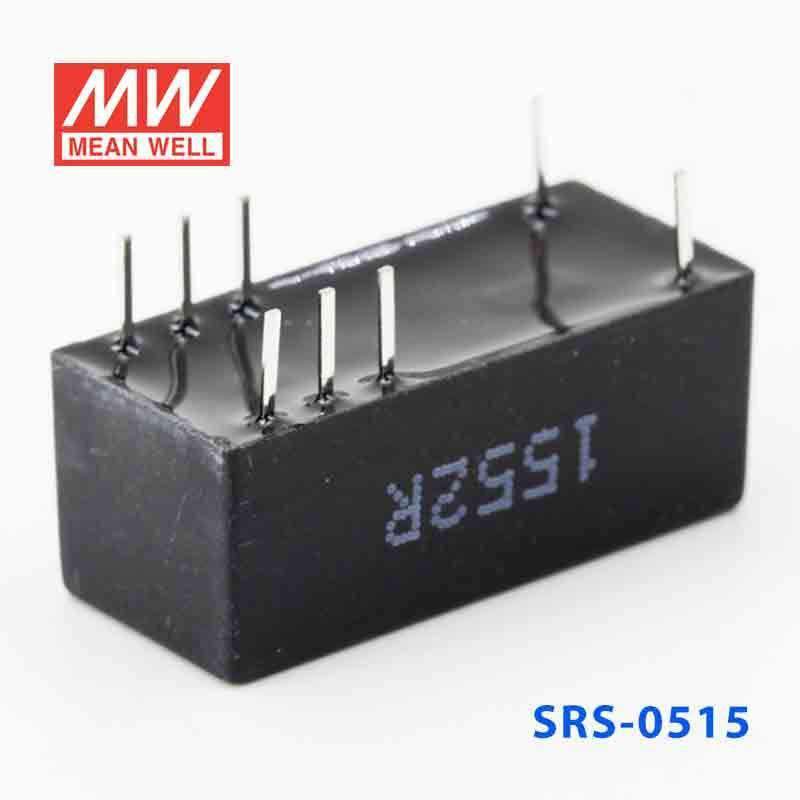

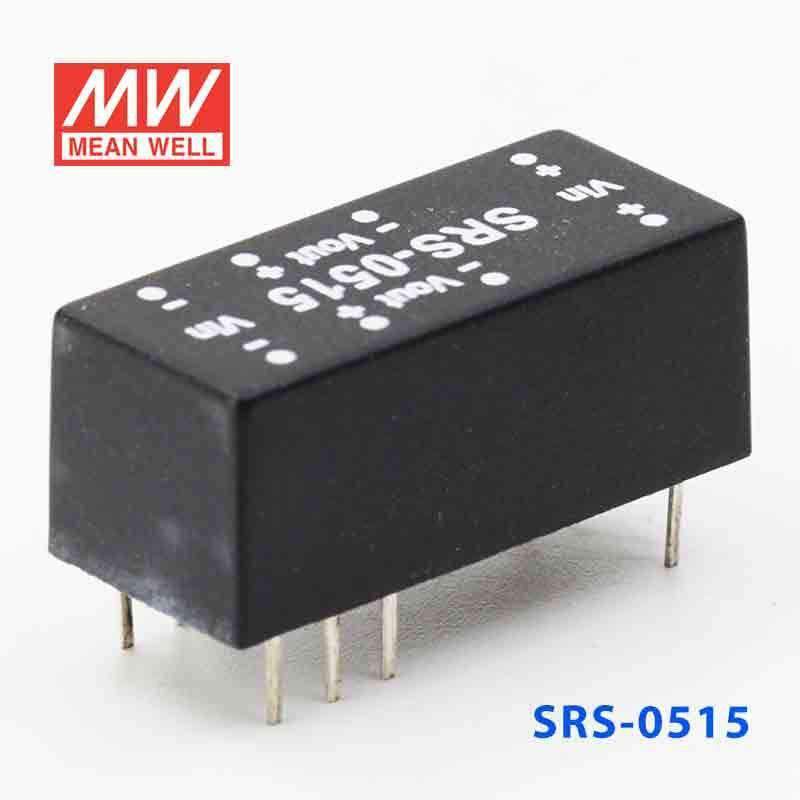

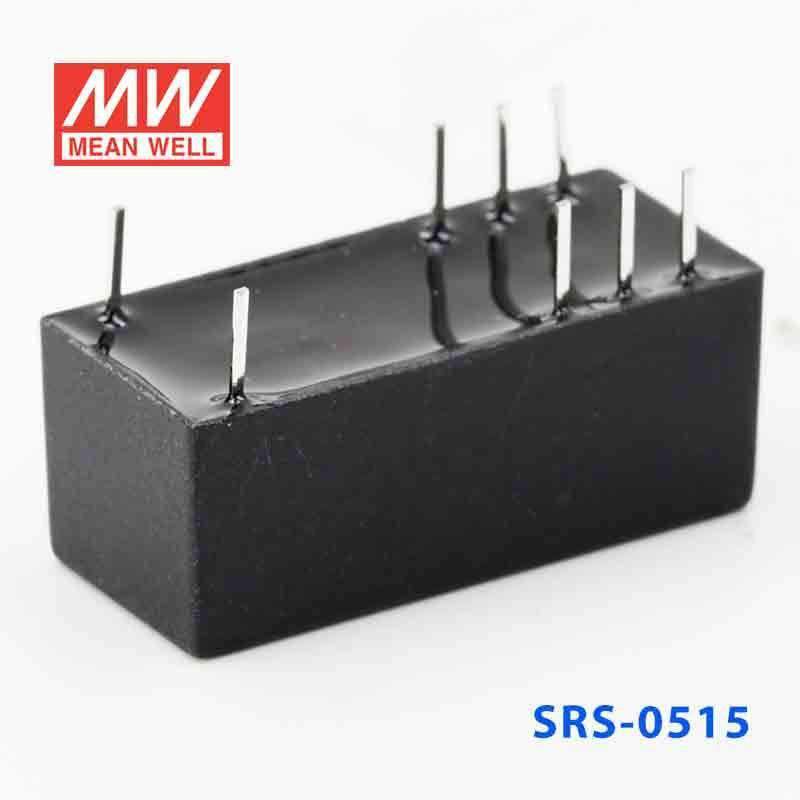

Mean Well SRS-0515 DC-DC Converter - 0.5W - 4.5~5.5V in 15V out
The SRS is a 0.5W Mean Well power converter.
Key Features
- ✓ 1KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE ISOLATION CAPACITANCE EMC EMISSION EMC IMMUNITY MTBF DIMENSION WEIGHT -25 ~ +105 ± 0.03% / ℃ ℃ , 10 ~ 95% RH ℃ ) (0 ~ 50 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSRS Series
-
Power Rating0.5 Watt
-
Output Voltage15 Volt
-
Rated Current0.03 Ampere
-
Input Voltage4.5V~5.5V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length0.89 in
-
Width0.39 in
-
Height0.33 in
-
Weight0.01 lb
::specification::
Frequently Asked Questions
Can I use the SRS-0515 to create a small 15V rail for embedded analog circuitry from a 4.5~5.5V source?
Yes, it is designed for constant-voltage conversion from 4.5~5.5V input to 15V output. With a 0.5W power rating and 0.03A output current, it is suited to very light analog, sensing, or control support rails rather than larger 15V loads.
Is the SRS-0515 a fit for low-power industrial signal or monitoring electronics that need 15V?
It can be a fit when the 15V side stays within 0.03A and the total output stays within 0.5W. That makes it more appropriate for auxiliary industrial electronics and low-demand monitoring circuits than for heavier field devices.
Can the SRS-0515 be used in compact automation boards where space is limited?
The package is only 22.6 × 9.9 × 8.4 mm and weighs 0.0031 kg, so it is aimed at small board-level designs. It works best where a compact 15V constant-voltage rail is needed from a 4.5~5.5V input window.
Is the SRS-0515 suitable for outdoor cabinets or washdown areas?
The operating temperature range is -25°C to +71°C, but no IP rating is listed in the provided specs. That generally points to protected indoor equipment or enclosed assemblies instead of exposed outdoor or washdown environments.
What are the main differences between the SRS-0515 and the other SRS siblings?
All listed siblings are 0.5W models, but they are split across 5V, 9V, 12V, and 15V outputs. The sibling list shows 5V models SRS-0505, SRS-1205, SRS-2405, and SRS-4805 with listed 100A; 9V models SRS-0509, SRS-1209, SRS-2409, and SRS-4809 at 0.06A; 12V models SRS-0512, SRS-1212, SRS-2412, and SRS-4812 at 0.04A; and 15V models SRS-0515, SRS-1215, SRS-2415, and SRS-4815 at 0.03A.
