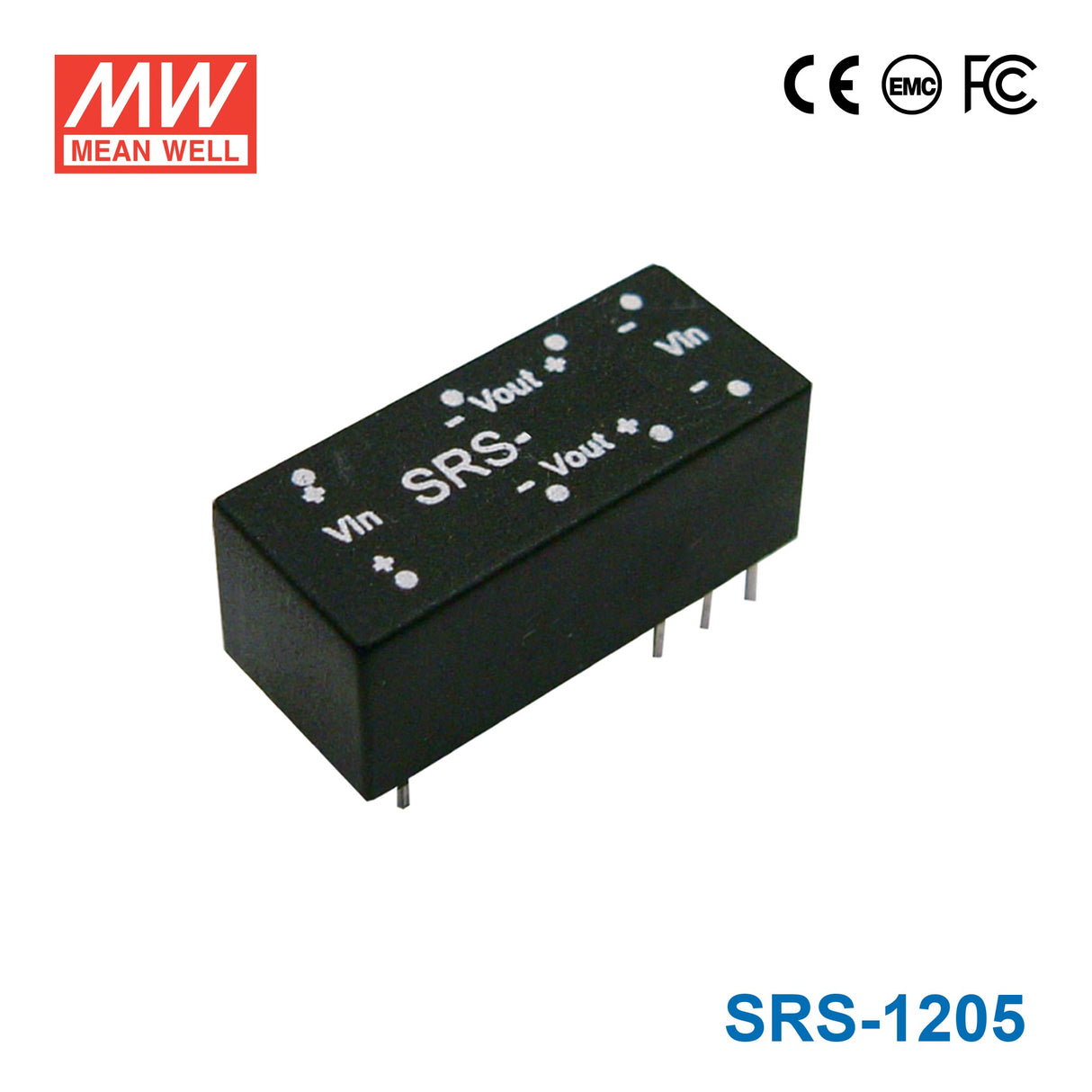

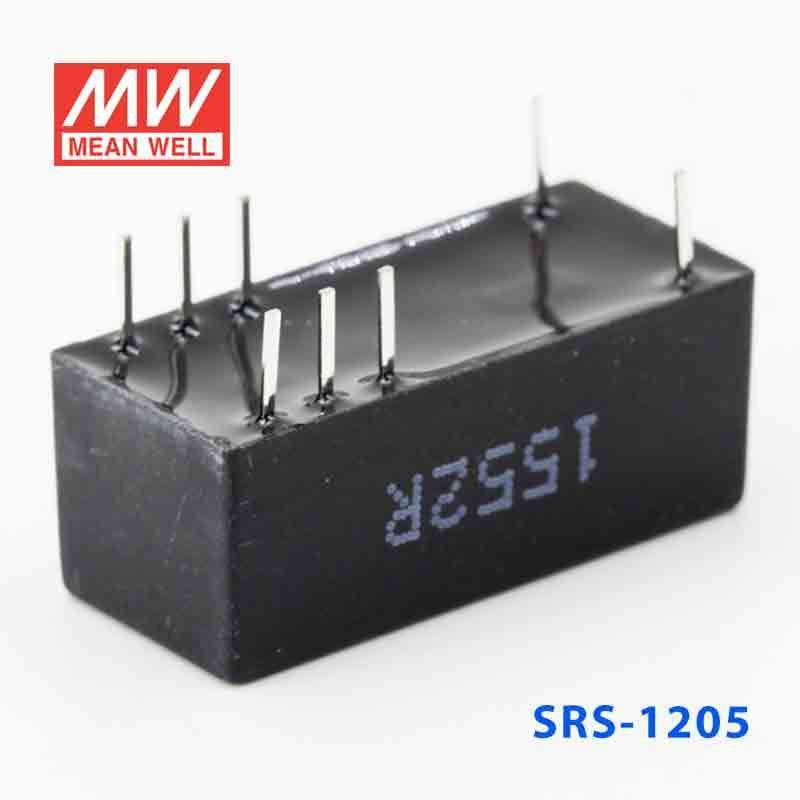

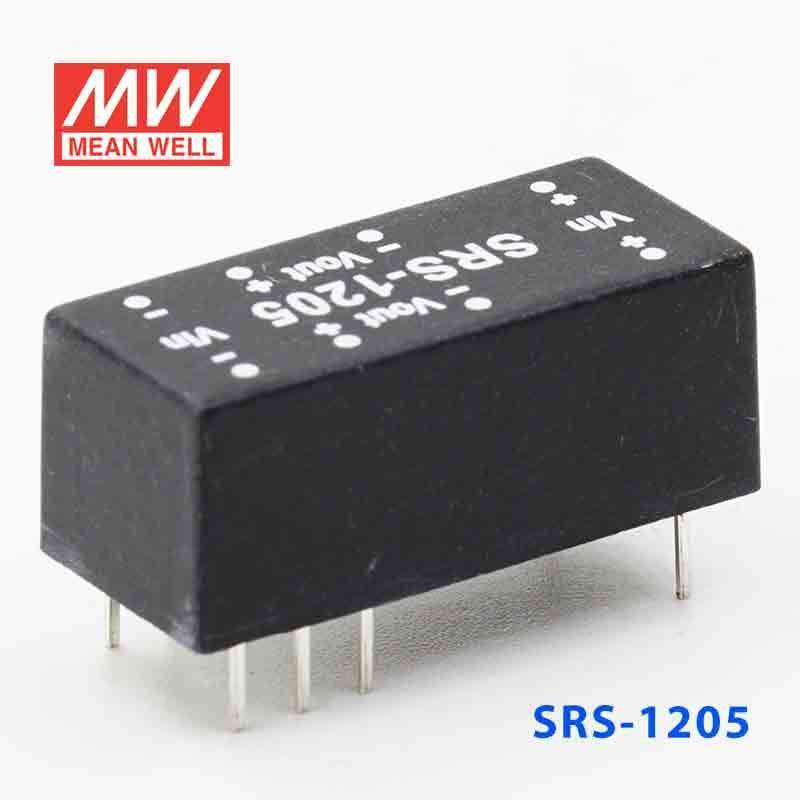

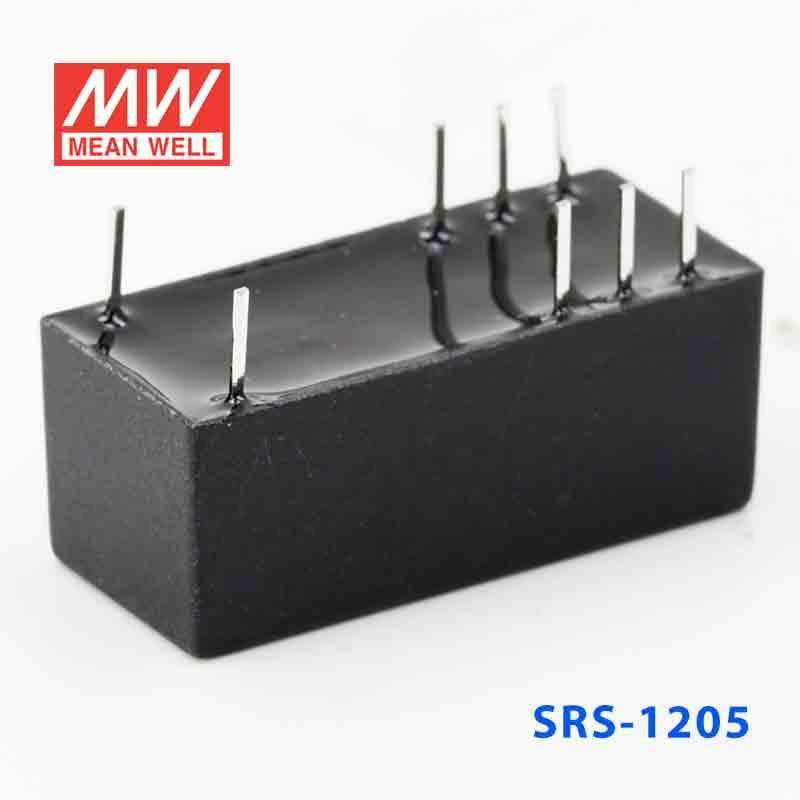

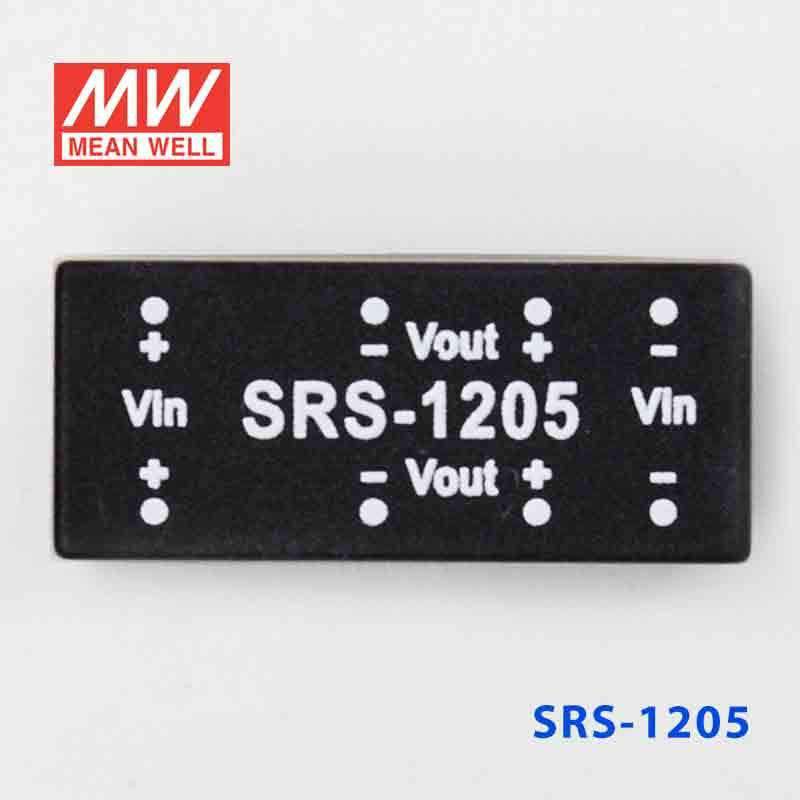

Mean Well SRS-1205 DC-DC Converter - 0.5W - 10.8~13.2V in 5V out
The SRS is a 0.5W Mean Well power converter.
Key Features
- ✓ 1KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE ISOLATION CAPACITANCE EMC EMISSION EMC IMMUNITY MTBF DIMENSION WEIGHT -25 ~ +105 ± 0.03% / ℃ ℃ , 10 ~ 95% RH ℃ ) (0 ~ 50 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSRS Series
-
Power Rating0.5 Watt
-
Output Voltage5 Volt
-
Rated Current0.1 Ampere
-
Input Voltage10.8V~13.2V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length0.89 in
-
Width0.39 in
-
Height0.33 in
-
Weight0.01 lb
::specification::
Frequently Asked Questions
Can I use the SRS-1205 to derive a 5V rail from a 10.8~13.2V source in an industrial controller?
Yes, this version is intended for 10.8~13.2V input and provides a constant 5V output. The product is rated at 0.5W, so it fits low-power controller support functions rather than higher-demand 5V subsystems.
Is the SRS-1205 suitable for small embedded or automation interface boards that run from a 12V-class input?
It is appropriate where the input stays within 10.8~13.2V and the load matches its 0.5W rating. The listed output spec is 5V with 100A, so buyers should compare that published figure directly against their required load profile.
Can the SRS-1205 be used in dense electronic assemblies where size matters?
Its 22.6 × 9.9 × 8.4 mm dimensions and 0.0031 kg weight make it a compact option for board-level integration. That footprint suits small auxiliary power functions inside embedded, IT, or automation hardware built around a 10.8~13.2V input range.
Can the SRS-1205 be used outside a protected enclosure?
The specified operating temperature range is -25°C to +71°C, but there is no IP rating in the provided data. Based on those published specs, it is better treated as a protected indoor component rather than an exposed outdoor one.
How does the SRS-1205 differ from other SRS family voltage options?
The SRS family shown here keeps the same 0.5W power class but changes output voltage and listed output current by model. The sibling list includes 5V models SRS-0505, SRS-1205, SRS-2405, and SRS-4805 with listed 100A; 9V models SRS-0509, SRS-1209, SRS-2409, and SRS-4809 at 0.06A; 12V models SRS-0512, SRS-1212, SRS-2412, and SRS-4812 at 0.04A; and 15V models SRS-0515, SRS-1215, SRS-2415, and SRS-4815 at 0.03A.
