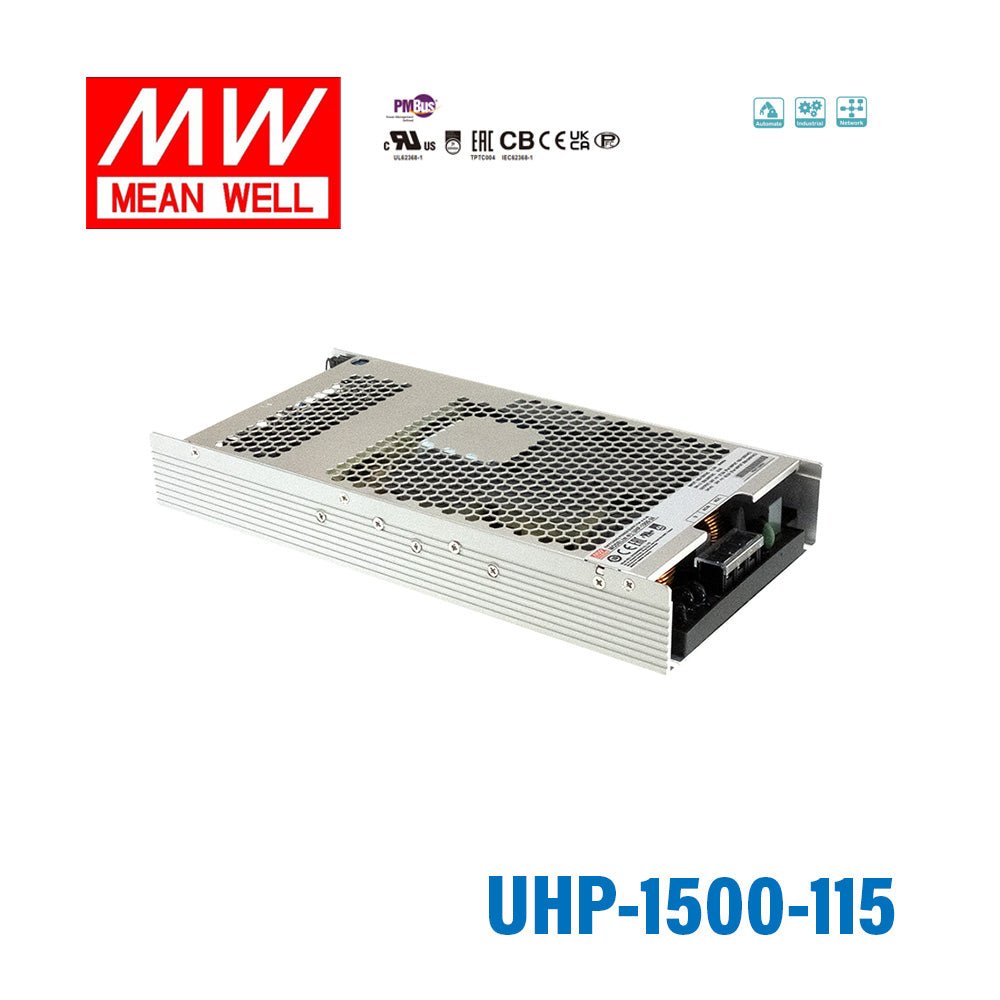

Mean Well UHP-1500-115 Power Supply 1500W 115V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well UHP-1500-115 Power Supply 1500W 115V
Features:⦁ High voltage output (115/230/380V)⦁ Fanless and conduction-cooled design⦁ Slim and 1U Low profile (41mm)⦁ Built-in active PFC function⦁ DC 12V/0.4A auxiliary power⦁ Output voltage and constant current level programmable (PV/PC)⦁ Protections: Short circuit / Over load / Over voltage / Over temperature⦁ Built-in remote ON-OFF control and DC OK signal⦁ Operating altitude up to 2000 meter (E type Note.6, Blank/PM/CAN type Note.7)⦁ LED indicator for power on⦁ Optional PMBus or CANBus protocol⦁ 5 years warrantyGeneral SpecificationAC Input Voltage Range90 - 264VAC 250 - 370VDCAC Inrush Current (max.)Cold start 60A/230VACOverload Protection105-125% rated output powerProtection type: Constant current limiting, unit will shutdown after 2-5 sec, re-power on to recover.Short CircuitConstant current limiting, unit will shutdown after 2-5 sec, re-power on to recover.Over-voltage Protection(428 - 460V)Protection type:vShut down O/P voltage,re-power on to recoverOver TemperatureProtection type: Shut down O/P voltage, recovers automatically after temperature goes downWithstand VoltageOVC Ⅲ I/P-O/P:6KVDC I/P-FG:4KVDC O/P-FG:4KVDCWorking Temperature-30 - +70℃ (Refer to “Derating Curve")Safety StandardsUL62368-1,TUV BS EN/EN62368-1, EAC TP TC 004 approvedDimension (LxWxH)290x140x41mm
-
BrandMean Well
-
SeriesUHP Series
-
Power Rating1500.75 Watt
-
Output Voltage115 Volt
-
Rated Current13.05 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length11.42 in
-
Width5.51 in
-
Height1.61 in
-
Weight5.53 lb
::specification::
Frequently Asked Questions
What are the main electrical ratings of the Mean Well UHP-1500-115?
The UHP-1500-115 is a 1500W enclosed AC/DC power supply with a 115V DC output. It is rated for 13.05A output current and includes built-in active PFC. This makes it a high-power option for applications that need regulated high-voltage DC from a compact chassis.
What makes the UHP-1500-115 different from many other 1500W power supplies?
This model combines 1500W output with a slim 1U low-profile housing that is only 41mm high. It also uses a fanless, conduction-cooled design rather than relying on forced-air cooling. That combination can be useful where space is limited and lower acoustic noise is preferred.
What kinds of applications is the UHP-1500-115 typically suited for?
The UHP-1500-115 is designed for professional and industrial use cases that need a high-voltage 115V DC power source at substantial power levels. Its enclosed form factor, high output capacity, and remote control features make it a practical fit for OEM equipment and integrated power systems. Buyers should confirm that their equipment requires a 115V DC output model specifically.
Can this power supply be used in demanding temperature conditions?
Yes, the specified operating temperature range is -30°C to 70°C. That wide range makes the UHP-1500-115 better suited than many standard indoor-only supplies for harsher commercial or industrial environments. Actual system performance still depends on the surrounding enclosure and thermal conditions.
Does the UHP-1500-115 support remote control or status monitoring?
Yes, this model includes built-in remote ON-OFF control and a DC OK signal. It also provides a 12V/0.4A auxiliary power output and supports programmable output voltage and constant current level (PV/PC). These features can help when the supply is used as part of a larger managed system.
What protection and reliability features are included on this model?
The UHP-1500-115 includes protection for short circuit, overload, overvoltage, and overtemperature conditions. It also carries a 5-year warranty from Mean Well. For buyers comparing long-life industrial power supplies, those built-in protections and warranty terms are meaningful differentiators.
