Mean Well UHP-1500-380E Power Supply 1500W 380V Economic Model 3.95A
Notify me when it's back in stock
Your order will be processed within 24 hours

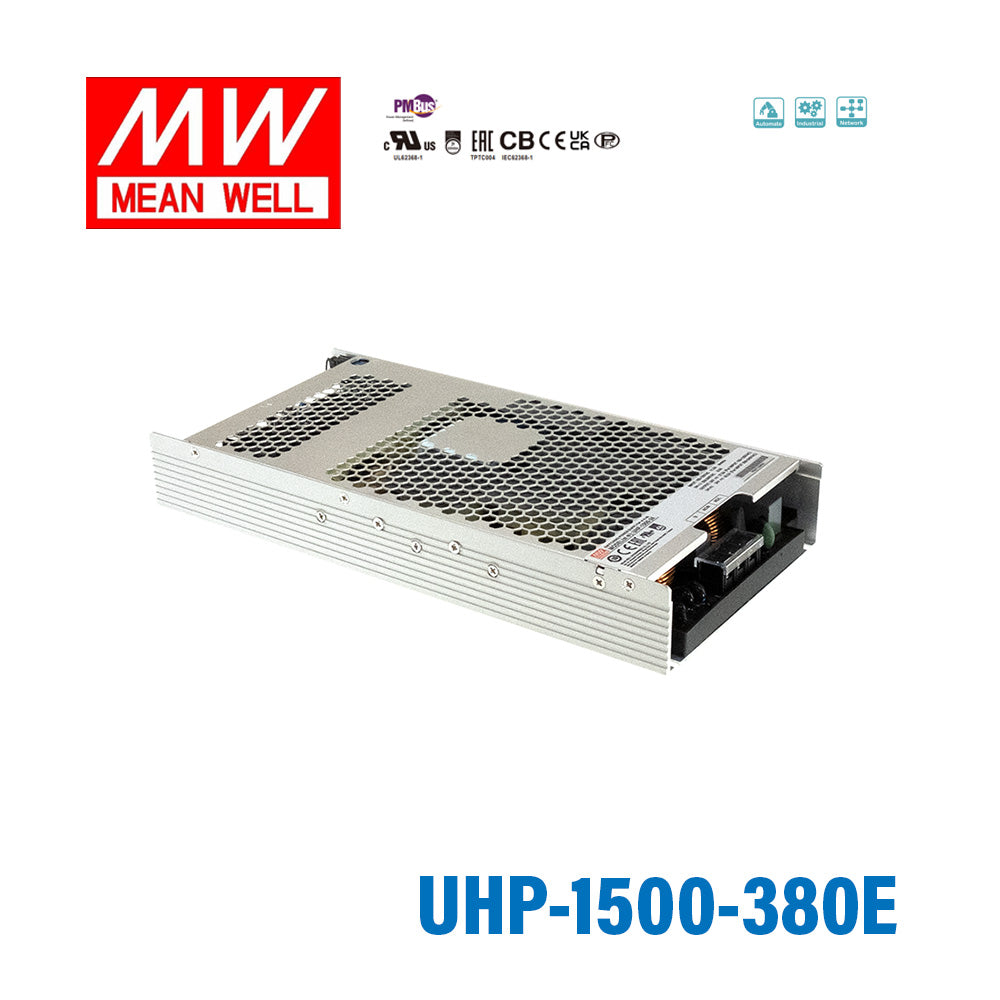

Mean Well UHP-1500-380E Power Supply 1500W 380V Economic Model 3.95A
The UHP-1500-380E is a 1501W Mean Well AC-DC LED driver (input: 90~264VAC, output: 380V, operating temperature: -30~+70°C).
Key Features
- ✓ Input voltage: 90~264VAC
- ✓ Output voltage (max): 380V
- ✓ Rated output current: 3.95A
- ✓ Operating temperature: -30~+70°C
- ✓ Safety certifications: CB, CE, EAC, UL
- ✓ 5 year warranty
-
BrandMean Well
-
SeriesUHP Series
-
Power Rating1501 Watt
-
Output Voltage380 Volt
-
Rated Current3.95 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length11.42 in
-
Width5.51 in
-
Height1.61 in
-
Weight5.53 lb
::specification::
Frequently Asked Questions
What are the main electrical specifications of the Mean Well UHP-1500-380E?
The UHP-1500-380E is a 1500W enclosed AC-DC power supply with a 380V DC output. It is rated for 3.95A output current and is part of Mean Well's slim, low-profile UHP series.
What makes the UHP-1500-380E different from standard enclosed power supplies?
This model combines high 380V output with a fanless, conduction-cooled design in a 41mm low-profile 1U form factor. It is positioned as an economic model while still including active PFC, remote ON-OFF control, and DC OK signal support.
Is the UHP-1500-380E suitable for space-constrained equipment?
Yes. Its slim 41mm profile makes it a strong fit for low-profile industrial or OEM equipment where internal space is limited. The fanless design also helps in applications where reduced airflow dependence is preferred.
What operating temperature range does this power supply support?
The UHP-1500-380E is specified for operation from -30°C to 70°C. This wide range makes it suitable for demanding industrial environments, provided the overall system design stays within the product's rated conditions.
Does this model include control and monitoring features for integrated systems?
Yes. The UHP-1500-380E includes built-in remote ON-OFF control and a DC OK signal, which can be useful in monitored or centrally controlled equipment. It also supports programmable output voltage and constant current level adjustment through PV/PC functionality.
What protection features are included in the UHP-1500-380E?
This model includes protection for short circuit, overload, overvoltage, and overtemperature conditions. These built-in protections help support reliability in high-power applications using this 1500W supply.
What warranty is offered for the Mean Well UHP-1500-380E?
The UHP-1500-380E carries a 5-year warranty. That warranty period aligns with its positioning as a durable industrial-grade power supply for long-term use.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other UHP-1500 Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well UHP-1500-380 Power Supply 1500W 380V 4.5A | 1500W | 380V | 4.5A | Indoor | $362.13 | View |
| Mean Well UHP-1500-230 Power Supply 1500W 230V 6.95A | 1500W | 230V | 6.95A | Indoor | $362.13 | View |
| Mean Well UHP-1500-115 Power Supply 1500W 115V 13.05A | 1500.75W | 115V | 13.05A | Indoor | $362.13 | View |
