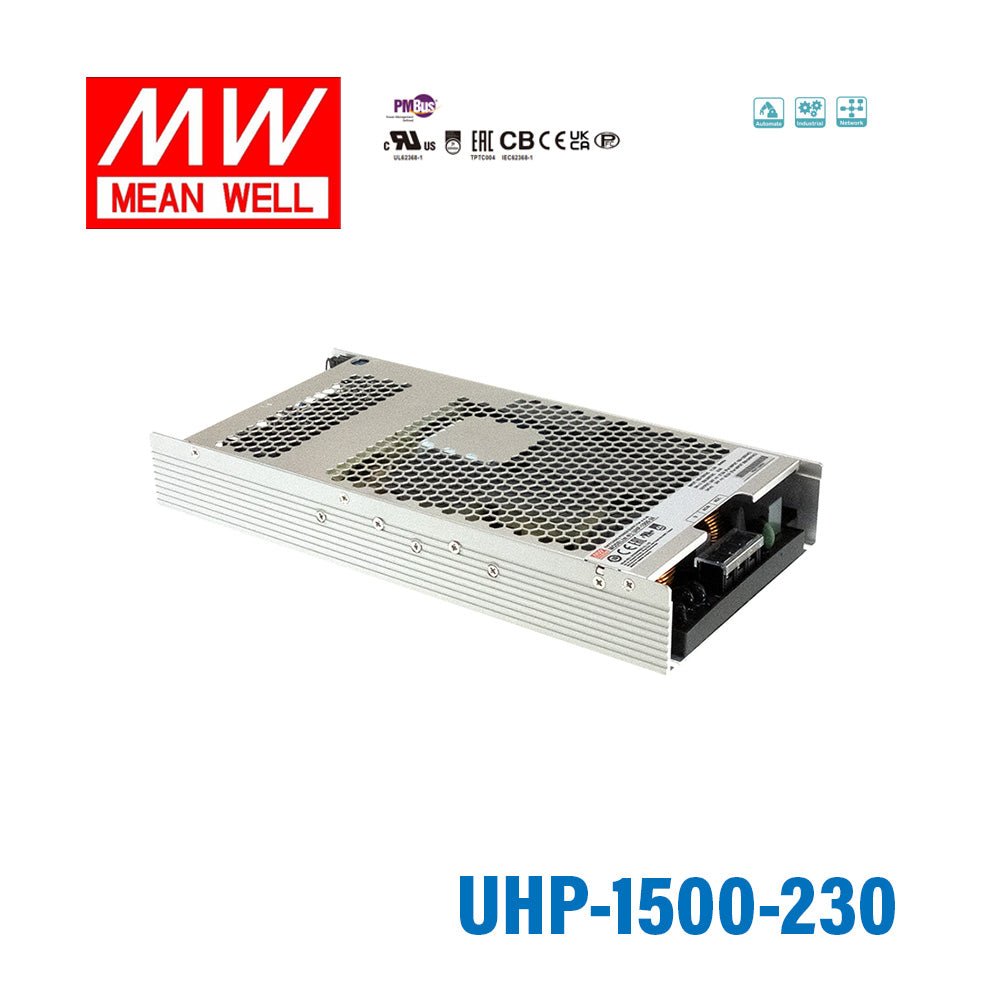

Mean Well UHP-1500-230 Power Supply 1500W 230V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well UHP-1500-230 Power Supply 1500W 230V
Features:⦁ High voltage output (115/230/380V)⦁ Fanless and conduction-cooled design⦁ Slim and 1U Low profile (41mm)⦁ Built-in active PFC function⦁ DC 12V/0.4A auxiliary power⦁ Output voltage and constant current level programmable (PV/PC)⦁ Protections: Short circuit / Over load / Over voltage / Over temperature⦁ Built-in remote ON-OFF control and DC OK signal⦁ Operating altitude up to 2000 meter (E type Note.6, Blank/PM/CAN type Note.7)⦁ LED indicator for power on⦁ Optional PMBus or CANBus protocol⦁ 5 years warrantyGeneral SpecificationAC Input Voltage Range90 - 264VAC 250 - 370VDCAC Inrush Current (max.)Cold start 60A/230VACOverload Protection105-125% rated output powerProtection type: Constant current limiting, unit will shutdown after 2-5 sec, re-power on to recover.Short CircuitConstant current limiting, unit will shutdown after 2-5 sec, re-power on to recover.Over-voltage Protection(428 - 460V)Protection type:vShut down O/P voltage,re-power on to recoverOver TemperatureProtection type: Shut down O/P voltage, recovers automatically after temperature goes downWithstand VoltageOVC Ⅲ I/P-O/P:6KVDC I/P-FG:4KVDC O/P-FG:4KVDCWorking Temperature-30 - +70℃ (Refer to “Derating Curve")Safety StandardsUL62368-1,TUV BS EN/EN62368-1, EAC TP TC 004 approvedDimension (LxWxH)290x140x41mm
-
BrandMean Well
-
SeriesUHP Series
-
Power Rating1500 Watt
-
Output Voltage230 Volt
-
Rated Current6.95 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length11.42 in
-
Width5.51 in
-
Height1.61 in
-
Weight5.53 lb
::specification::
Frequently Asked Questions
What is the Mean Well UHP-1500-230 designed for?
The UHP-1500-230 is a 1500W enclosed AC-DC power supply built for applications that need a regulated 230V DC output. Its slim 1U low-profile design and fanless conduction-cooled construction make it suitable for space-constrained industrial or equipment-integrated environments.
What are the key output specifications of the UHP-1500-230?
This model provides a 230V DC output with a 1500W power rating and a rated current of 6.95A. It is part of Mean Well's high-voltage UHP-1500 series, which is intended for applications requiring higher DC output voltage than standard low-voltage power supplies.
How is the UHP-1500-230 cooled?
The UHP-1500-230 uses a fanless, conduction-cooled design. This can be useful in applications where lower acoustic noise, reduced dust intake, or simpler thermal management is preferred compared with fan-cooled power supplies.
What protection features are included in the UHP-1500-230?
Mean Well lists short circuit, overload, over voltage, and over temperature protections for this model. These built-in protections help support safer operation in demanding equipment environments and add resilience against common fault conditions.
Can the UHP-1500-230 be used in harsh temperature conditions?
This model is rated for operation from -30°C to 70°C. That wide temperature range makes it better suited to industrial and enclosed equipment use than power supplies intended only for narrow indoor ambient conditions.
Does the UHP-1500-230 support remote control or monitoring-related functions?
Yes. The UHP-1500-230 includes built-in remote ON-OFF control and a DC OK signal, and its listed features also include remote capability. Mean Well also specifies programmable output voltage and constant current level (PV/PC) for applications that need more control flexibility.
What warranty comes with the Mean Well UHP-1500-230?
The UHP-1500-230 has a 5-year warranty. For B2B buyers, that longer warranty period can be an important factor when evaluating lifecycle cost and long-term equipment support.
