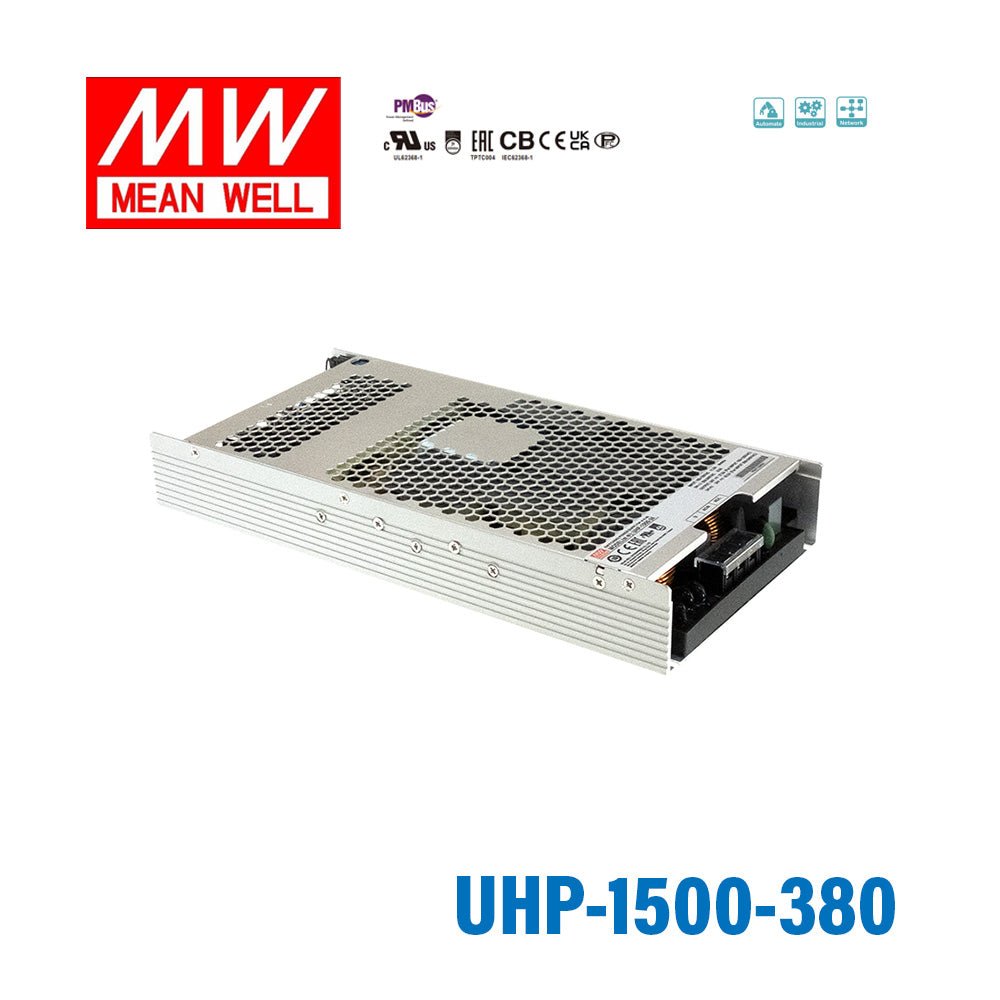

Mean Well UHP-1500-380 Power Supply 1500W 380V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well UHP-1500-380 Power Supply 1500W 380V
Features:⦁ High voltage output (115/230/380V)⦁ Fanless and conduction-cooled design⦁ Slim and 1U Low profile (41mm)⦁ Built-in active PFC function⦁ DC 12V/0.4A auxiliary power⦁ Output voltage and constant current level programmable (PV/PC)⦁ Protections: Short circuit / Over load / Over voltage / Over temperature⦁ Built-in remote ON-OFF control and DC OK signal⦁ Operating altitude up to 2000 meter (E type Note.6, Blank/PM/CAN type Note.7)⦁ LED indicator for power on⦁ Optional PMBus or CANBus protocol⦁ 5 years warrantyGeneral SpecificationAC Input Voltage Range90 - 264VAC 250 - 370VDCAC Inrush Current (max.)Cold start 60A/230VACOverload Protection105-125% rated output powerProtection type: Constant current limiting, unit will shutdown after 2-5 sec, re-power on to recover.Short CircuitConstant current limiting, unit will shutdown after 2-5 sec, re-power on to recover.Over-voltage Protection(428 - 460V)Protection type:vShut down O/P voltage,re-power on to recoverOver TemperatureProtection type: Shut down O/P voltage, recovers automatically after temperature goes downWithstand VoltageOVC Ⅲ I/P-O/P:6KVDC I/P-FG:4KVDC O/P-FG:4KVDCWorking Temperature-30 - +70℃ (Refer to “Derating Curve")Safety StandardsUL62368-1,TUV BS EN/EN62368-1, EAC TP TC 004 approvedDimension (LxWxH)290x140x41mm
-
BrandMean Well
-
SeriesUHP Series
-
Power Rating1500 Watt
-
Output Voltage380 Volt
-
Rated Current4.5 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length11.42 in
-
Width5.51 in
-
Height1.61 in
-
Weight5.53 lb
::specification::
Frequently Asked Questions
What are the main output specifications of the Mean Well UHP-1500-380?
The UHP-1500-380 is a 1500W enclosed AC-DC power supply with a 380V output. Its rated output current is 4.5A, making it a high-voltage option for applications that need substantial DC power from a slim form factor.
What makes the UHP-1500-380 different from standard enclosed power supplies?
This model stands out for its 380V high-voltage output, fanless conduction-cooled design, and slim 1U low-profile 41mm height. It is aimed at buyers who need high power density without adding fan noise or extra cooling maintenance.
Is the UHP-1500-380 a good choice for space-constrained equipment?
Yes. The unit uses a slim 1U low-profile design at 41mm, which helps in applications where vertical space is limited. That makes it easier to specify for compact industrial or enclosure-based systems that still need 1500W output capacity.
Can this power supply be used in noise-sensitive or dust-sensitive environments?
Its fanless, conduction-cooled design makes it well suited for environments where reduced acoustic noise and lower airflow-related dust intake are important. This design can be preferable in enclosed equipment or applications where fan maintenance is a concern.
What protection and control features are included on the UHP-1500-380?
This model includes protection for short circuit, overload, overvoltage, and overtemperature conditions. It also provides remote ON-OFF control, a DC OK signal, and programmable output voltage and constant current level through PV/PC functionality.
What operating environment and warranty should buyers expect for this model?
The UHP-1500-380 is rated for operation from -30°C to 70°C and for altitude up to 2000 meters under the listed conditions. Mean Well also specifies a 5-year warranty for this model, which is useful for long-life commercial and industrial purchasing decisions.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other UHP-1500 Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well UHP-1500-380E Power Supply 1500W 380V Economic Model | 1501W | 380V | 3.95A | Indoor | $362.13 | View |
| Mean Well UHP-1500-230 Power Supply 1500W 230V | 1500W | 230V | 6.95A | Indoor | $362.13 | View |
| Mean Well UHP-1500-115 Power Supply 1500W 115V | 1500.75W | 115V | 13.05A | Indoor | $362.13 | View |
