Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

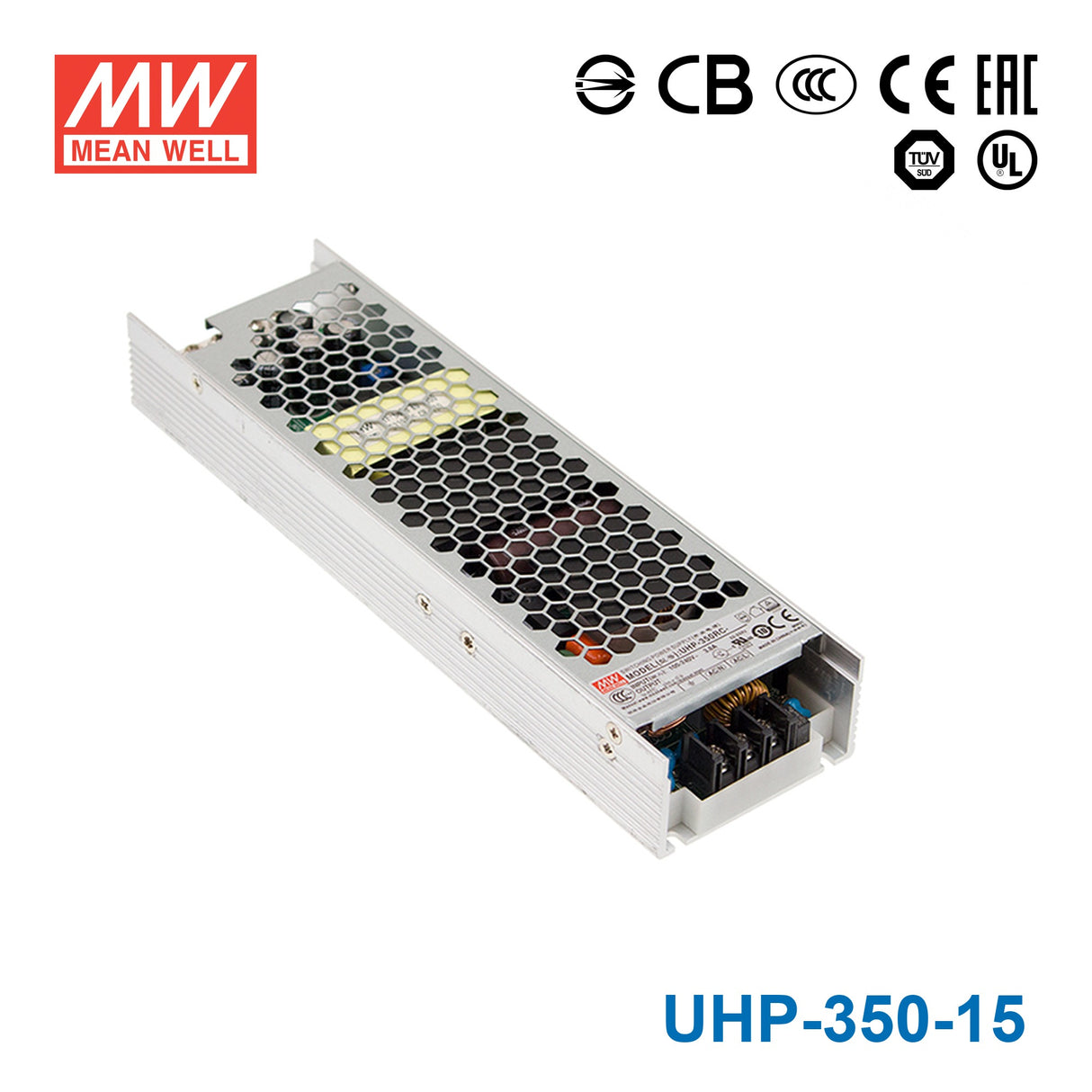

Mean Well UHP-350-15 Power Supply 351W 15V
The UHP-350 is a 350W Mean Well DIN rail power converter with a 220mm profile (input range: 90~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ 220mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY MTBF 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes UL 62368-1,TUV EN62368-1,EN60335-1,CCC GB4943,BSMI CNS14336-1,EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesUHP Series
-
Power Rating351 Watt
-
Output Voltage15 Volt
-
Rated Current23.4 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length8.66 in
-
Width2.44 in
-
Height1.22 in
-
Weight1.5 lb
::specification::
Frequently Asked Questions
Can I use the UHP-350-15 for a 15V industrial control or embedded system?
Yes, it is a constant-voltage 15V power supply rated for 351W and 23.4A. That fits 15V industrial electronics, embedded assemblies, and specialized control equipment designed around a 15V DC rail.
Is the UHP-350-15 suitable for 15V test equipment or instrumentation cabinets?
It can be suitable where the equipment requires 15V constant-voltage input and the total load stays within 351W and 23.4A. The slim 220.0 × 62.0 × 31.0 mm form factor also supports integration in instrumentation cabinets with limited space.
Can this model be used in automation equipment that needs a 15V DC bus?
Yes, for systems designed around 15V DC, this supply provides a constant-voltage output with up to 23.4A available. Its fanless design can also be useful in enclosed automation hardware where lower mechanical complexity is preferred.
Can the UHP-350-15 handle demanding temperature conditions?
The specified operating temperature range is -30°C to +70°C, which supports use in both low and high ambient conditions within that range. No IP rating is shown, so the specs do not establish outdoor or sealed-enclosure performance on their own.
What other UHP-350 models are closest to the UHP-350-15?
The listed UHP-350 versions are 198W 3.3V 60A, 252W 4.2V 60A, 300W 5V 60A, 350.4W 12V 29.2A, 351W 15V 23.4A, 350.4W 24V 14.6A, 351W 36V 9.75A, and 350.4W 48V 7.3A. Compared with those siblings, the UHP-350-15 keeps the same general power class while providing a 15V output tier.
