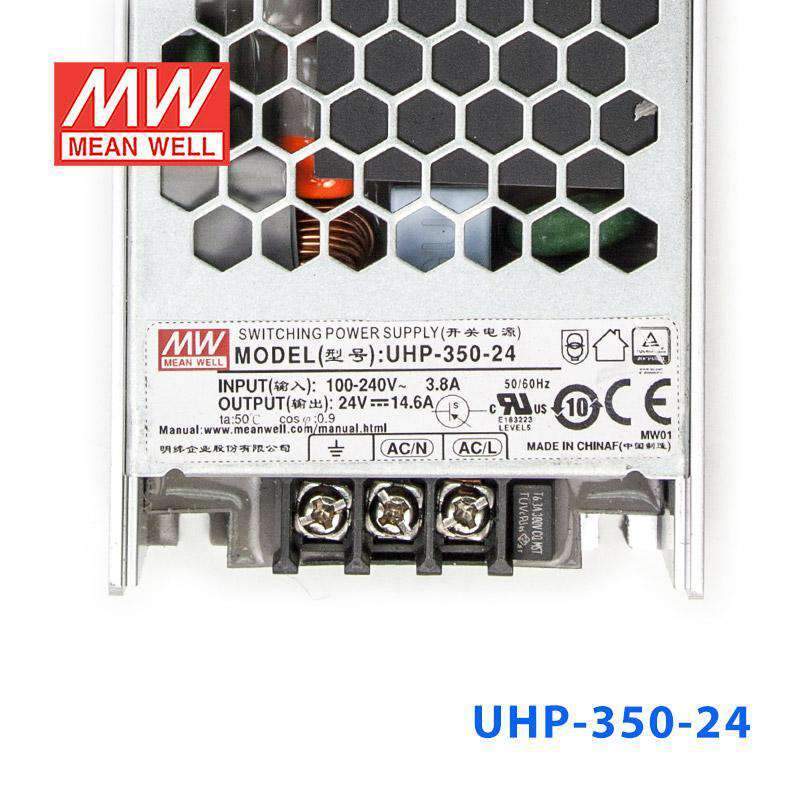

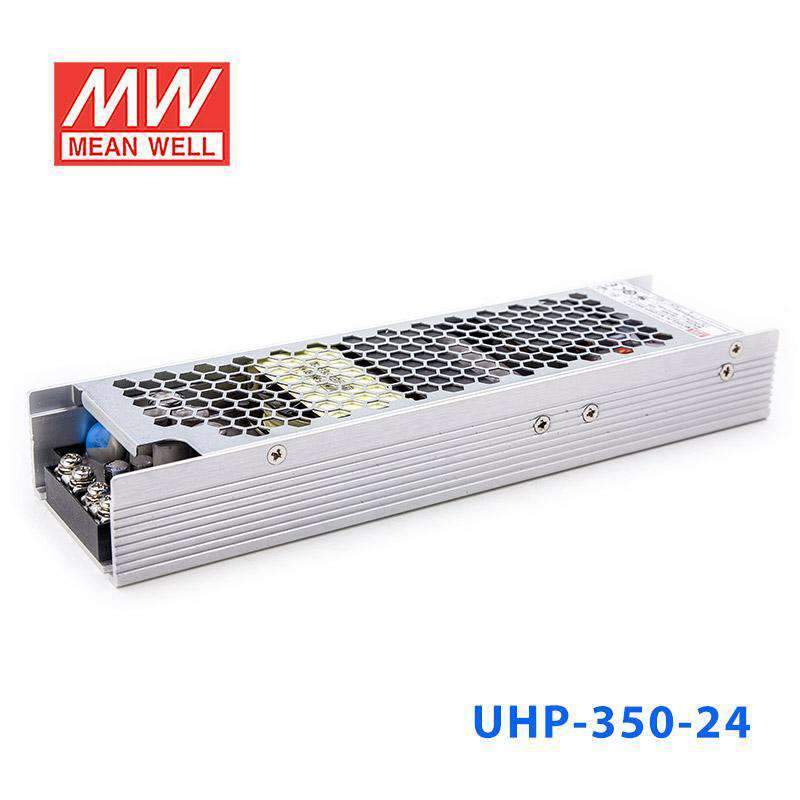

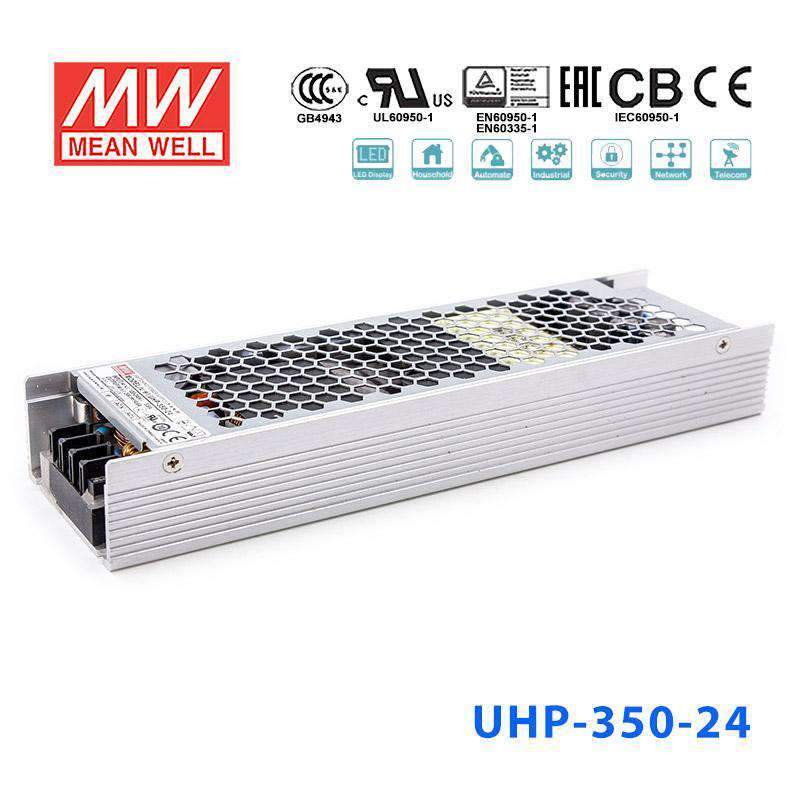

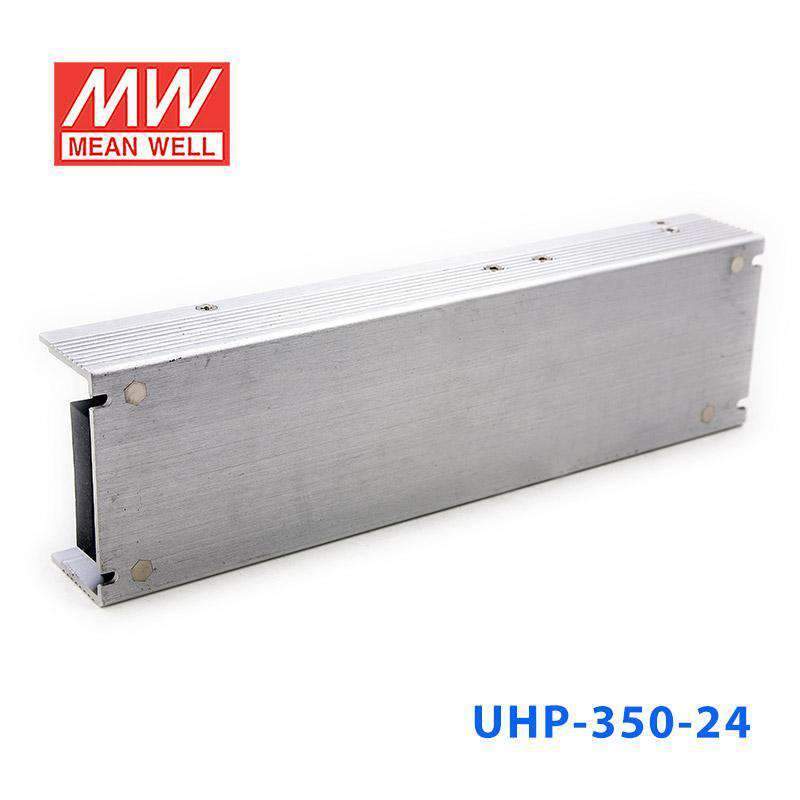

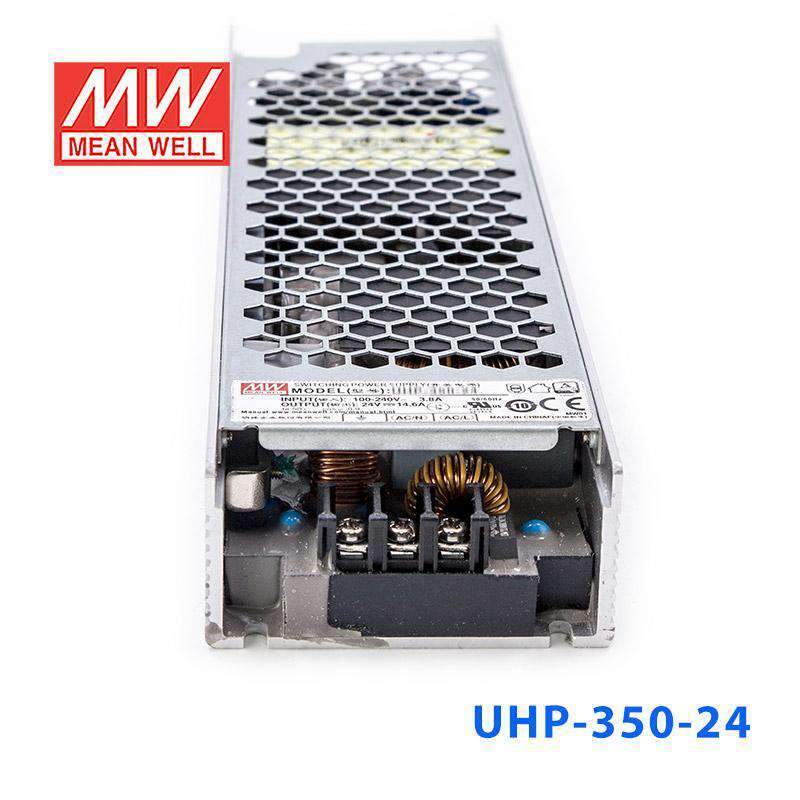

Mean Well UHP-350-24 Power Supply 350.4W 24V
The UHP-350 is a 350W Mean Well DIN rail power converter with a 220mm profile (input range: 90~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ 220mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY MTBF 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes UL 62368-1,TUV EN62368-1,EN60335-1,CCC GB4943,BSMI CNS14336-1,EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesUHP Series
-
Power Rating350.4 Watt
-
Output Voltage24 Volt
-
Rated Current14.6 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length8.66 in
-
Width2.44 in
-
Height1.22 in
-
Weight1.5 lb
::specification::
Frequently Asked Questions
Can I use the UHP-350-24 for a 24V PLC, sensor, or industrial automation system?
Yes, this constant-voltage model delivers 24V at up to 14.6A, with 350.4W total output. That makes it a practical fit for 24V PLC systems, sensors, and general industrial automation equipment built for 24V DC.
Is the UHP-350-24 suitable for 24V control cabinets and machine control hardware?
It can be suitable for 24V control cabinets where the total DC load remains within 350.4W and 14.6A. The 220.0 × 62.0 × 31.0 mm low-profile body is also helpful where panel space is limited.
Can this model power 24V embedded systems or industrial I/O equipment?
Yes, the 24V constant-voltage output aligns with many embedded and industrial I/O systems that use a 24V DC bus. With 14.6A available, it sits above smaller 24V supplies while keeping the same slim, fanless UHP housing style.
Is the UHP-350-24 meant for outdoor environments?
The unit is specified for operation from -30°C to +70°C, but the provided specs do not include an IP rating. That means the temperature range is defined, while outdoor exposure resistance is not.
How does the UHP-350-24 compare with the other UHP-350 voltage options?
The listed UHP-350 models are 198W 3.3V 60A, 252W 4.2V 60A, 300W 5V 60A, 350.4W 12V 29.2A, 351W 15V 23.4A, 350.4W 24V 14.6A, 351W 36V 9.75A, and 350.4W 48V 7.3A. The UHP-350-24 sits in the same slim, fanless family, with the selection point mainly being the required output voltage and current.
