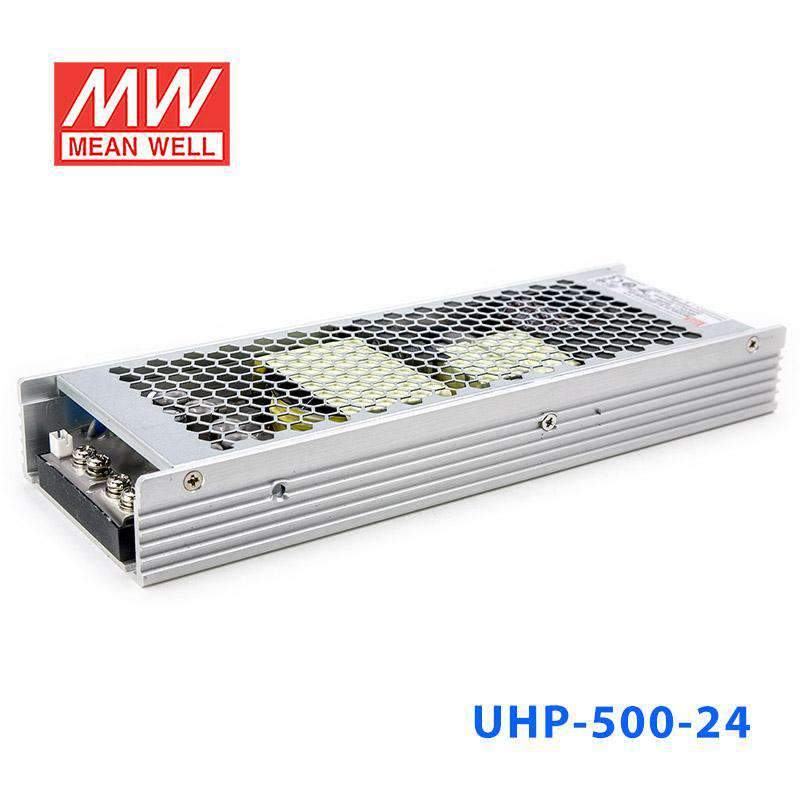

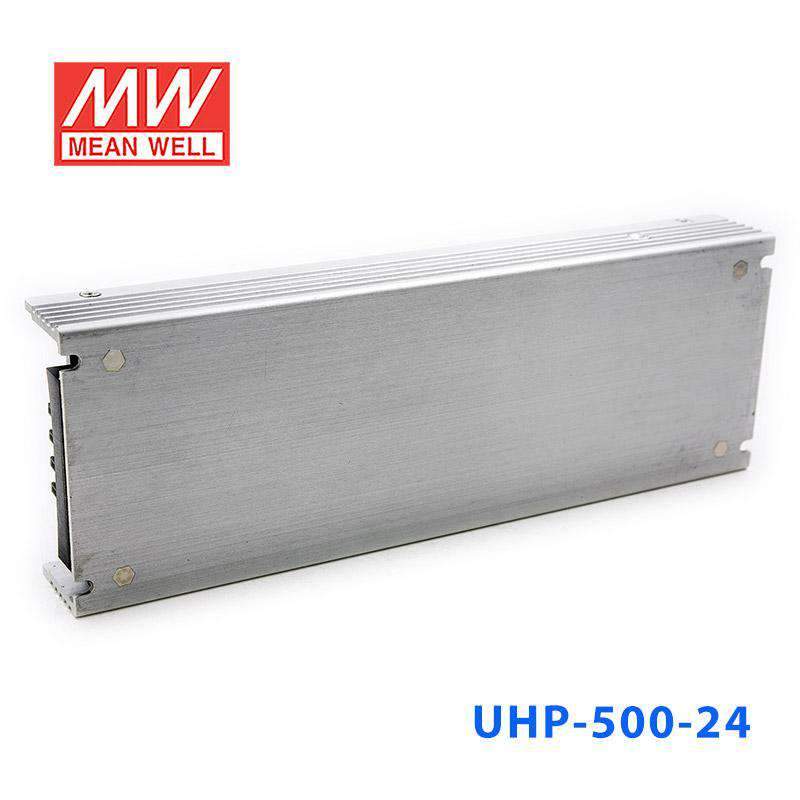

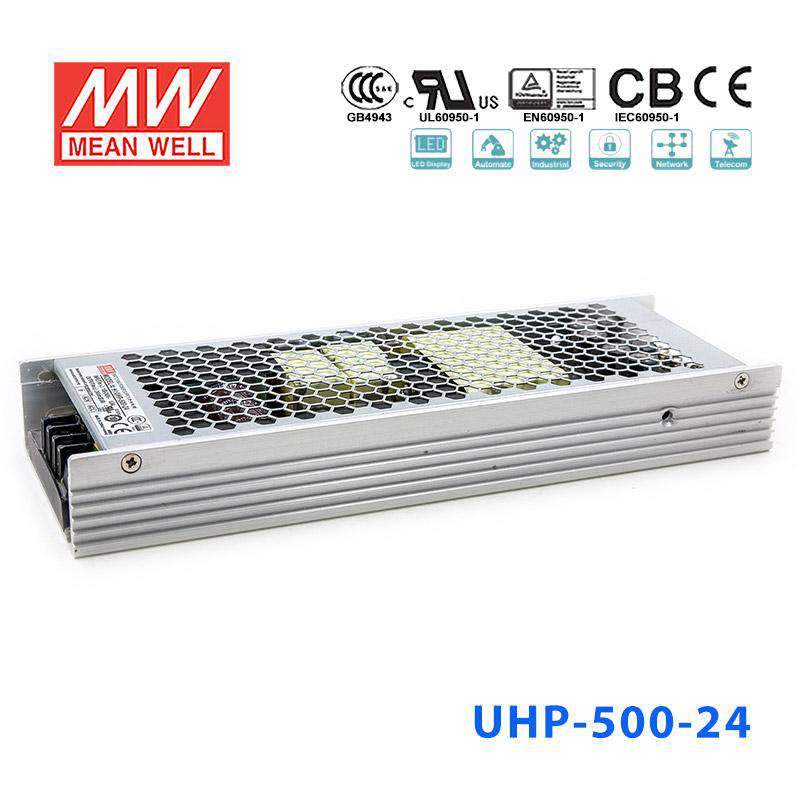

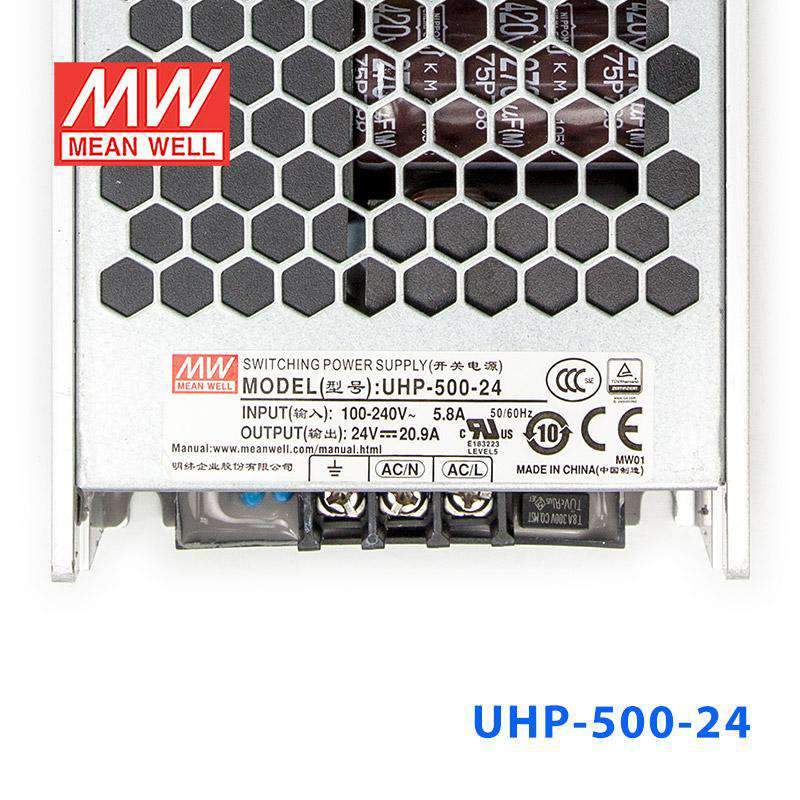

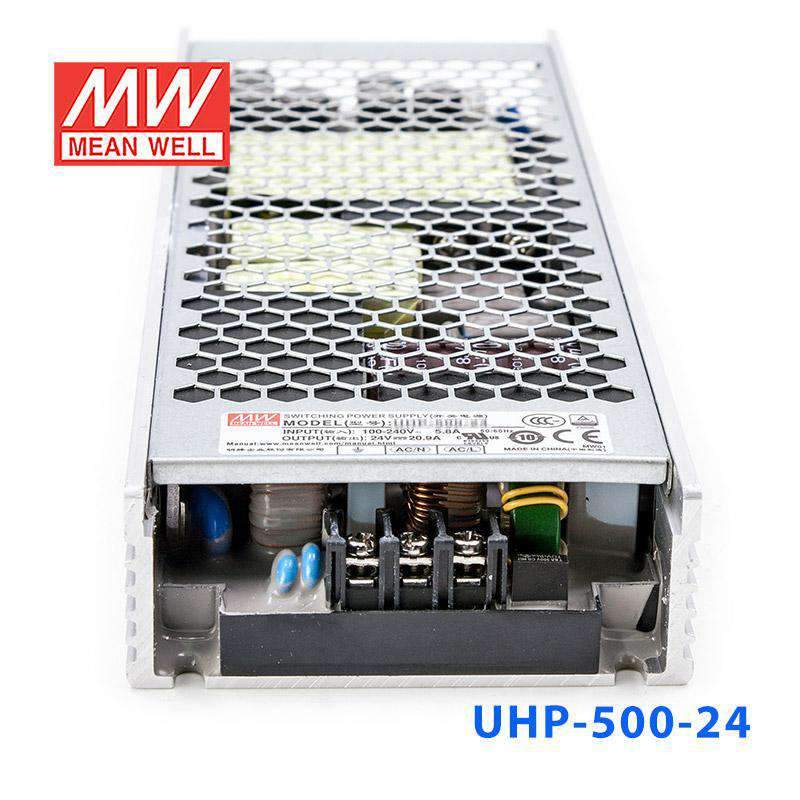

Mean Well UHP-500-24 Power Supply 501.6W 24V
The UHP-500 is a 500W Mean Well DIN rail power converter with a 232mm profile (input range: 90~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ 232mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Safety approvals: WITHSTAND VOLTAGE 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes UL 62368-1,TUV EN62368-1,EN60335-1, CCC GB4943, BSMI CNS14336-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesUHP Series
-
Power Rating501.6 Watt
-
Output Voltage24 Volt
-
Rated Current20.9 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length9.13 in
-
Width3.19 in
-
Height1.22 in
-
Weight2 lb
::specification::
Frequently Asked Questions
Can I use the UHP-500-24 for a 24V industrial control panel with multiple PLC and I/O loads?
Yes, this model is a 24V constant voltage power supply rated for 501.6W and 20.9A. That makes it suitable for 24VDC industrial control panels where the combined load stays within those output limits.
Is this power supply a fit for 24V machine automation devices such as HMIs, sensors, and control hardware?
It can be a fit for 24V automation hardware because it provides a constant 24V output. With up to 20.9A and 501.6W available, it is intended for systems that need a higher-capacity 24VDC source from a 90-264VAC input.
Can the UHP-500-24 be used for a 24V embedded or industrial test bench?
Yes, it is suited to 24V embedded and industrial bench applications that require a regulated constant voltage supply. Its 24V output, 20.9A current rating, and fanless design make it appropriate where a slim 232.0 × 81.0 × 31.0 mm supply is preferred.
Would this work for a 24V LED or signage power system that needs a higher wattage supply?
It can be used where the lighting or signage system requires a constant 24V supply and the total demand remains within 501.6W or 20.9A. Buyers should match the load to the supply's 24V constant voltage output rather than treating it as a constant current unit.
Is the UHP-500-24 suitable for outdoor or washdown environments?
The listed specs show an operating temperature range of -30°C to +70°C, but they do not list an IP rating. That means the temperature range supports broad indoor operating conditions, while outdoor or washdown suitability is not established by the provided specs alone.
How does the UHP-500-24 compare with other UHP-500 voltage options?
In the UHP-500 group shown here, the listed models are 500.4W at 12V and 41.7A, 501W at 15V and 33.4A, 501.6W at 24V and 20.9A, 500.4W at 36V and 13.9A, 501.6W at 48V and 10.45A, 400W at 5V and 80A, and 336W at 4.2V and 80A. The main difference is the output voltage and corresponding current rating, while this unit is the 24V, 501.6W, 20.9A version.
