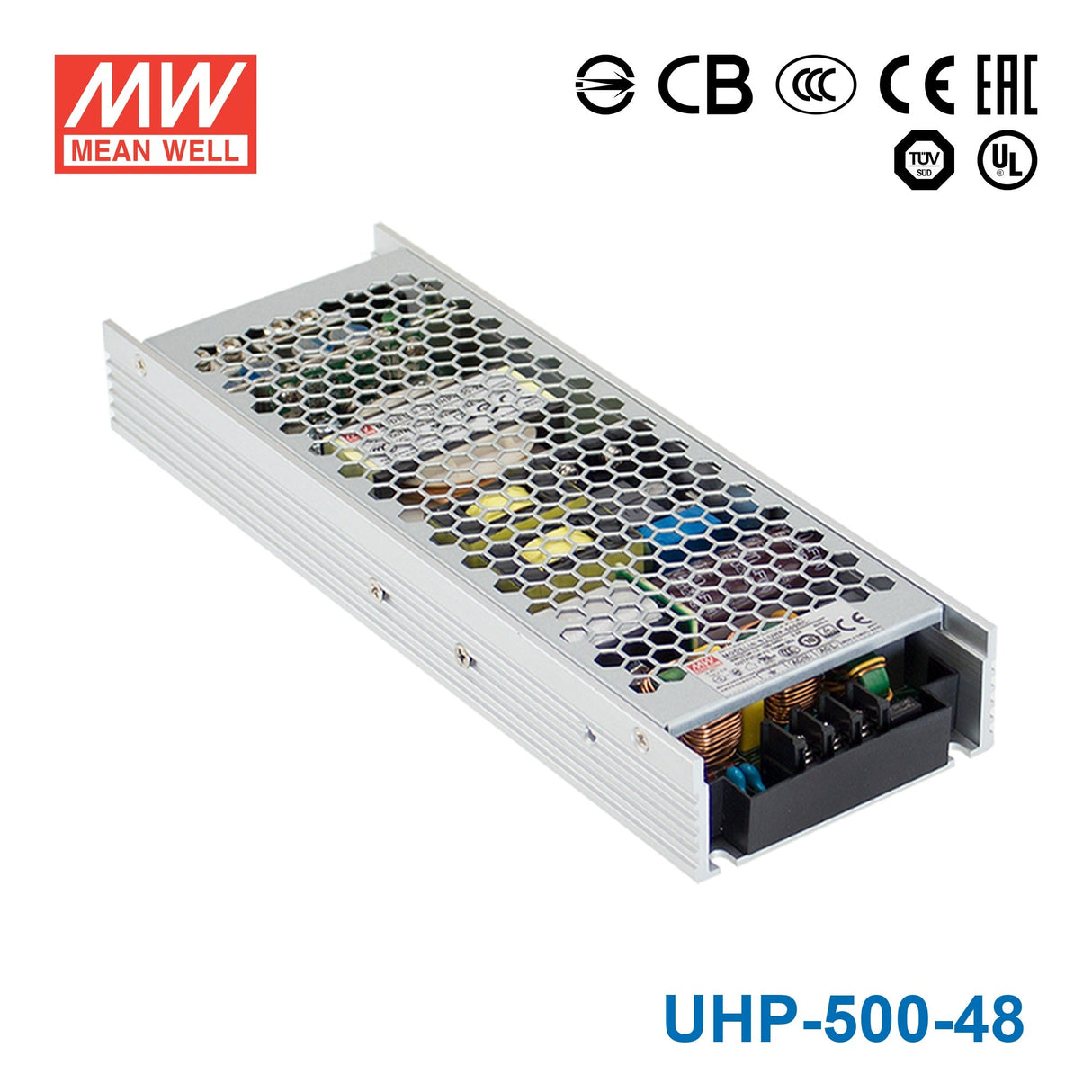

Mean Well UHP-500-48 Power Supply 501.6W 48V
The UHP-500 is a 500W Mean Well DIN rail power converter with a 232mm profile (input range: 90~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ 232mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Safety approvals: WITHSTAND VOLTAGE 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes UL 62368-1,TUV EN62368-1,EN60335-1, CCC GB4943, BSMI CNS14336-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesUHP Series
-
Power Rating501.6 Watt
-
Output Voltage48 Volt
-
Rated Current10.45 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length9.13 in
-
Width3.19 in
-
Height1.22 in
-
Weight2 lb
::specification::
Frequently Asked Questions
Can I use the UHP-500-48 for 48V industrial control or automation equipment?
Yes, if the equipment requires a constant 48VDC input. This supply is rated for 501.6W and 10.45A, so it is intended for 48V automation and control loads within that output range.
Is this power supply suitable for a 48V telecom-style or industrial networking DC bus?
It can be suitable for 48VDC equipment that expects constant voltage input. With 48V output, 10.45A current capacity, and a 90-264VAC input range, it fits higher-power 48V bus applications that stay within 501.6W.
Would the UHP-500-48 work for 48V motion, control, or test systems?
Yes, for systems designed around a constant 48V source. Its 501.6W power rating and 10.45A output make it a fit for 48V industrial benches, controls, and similar electronics that need more capacity than lower-power 48V models.
Can this be used for a 48V LED or display power application?
It can be used when the load is built for constant 48VDC operation and the total demand does not exceed 501.6W or 10.45A. As a constant voltage supply, it is meant for 48V systems rather than constant current lighting applications.
Is the UHP-500-48 okay for indoor enclosures with wide temperature swings?
The specified operating range is -30°C to +70°C, which supports broad indoor temperature conditions. The listed data does not include an IP rating, so exposure to rain, spray, or washdown is not confirmed by the provided specs.
How does the 48V version differ from the other UHP-500 models?
The listed UHP-500 options are 500.4W at 12V and 41.7A, 501W at 15V and 33.4A, 501.6W at 24V and 20.9A, 500.4W at 36V and 13.9A, 501.6W at 48V and 10.45A, 400W at 5V and 80A, and 336W at 4.2V and 80A. This unit is the 48V model, with a lower current rating than the lower-voltage versions because it keeps the output in the 501.6W class.
