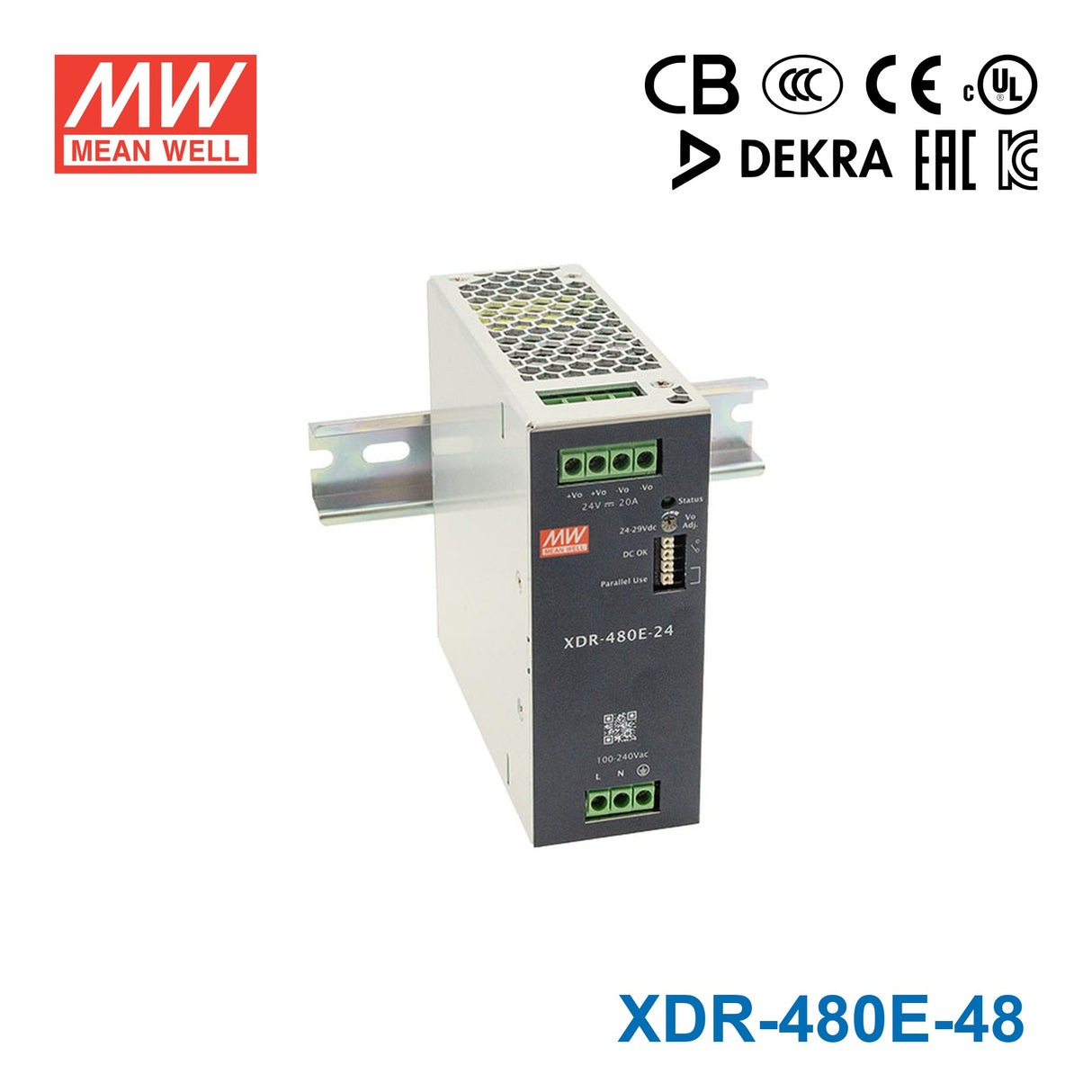

Mean Well XDR-480E-48 Economical Ultra Slim Din Rail Power Supply 4...
Key Features
- ✓85~264Vac input range
- ✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010)
- ✓48mm slim width
- ✓High efficiency up to 96% and no-load power dissipation<1.2W
- ✓Built-in constant current limiting circuit
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Fanless design, cooling by free air convection
- ✓Overvoltage category III (OVC III)
- ✓-40°~+70°C wide range operation temperature (>+50°C derating)
- ✓Operating altitude up to 5000 meters
- ✓Built-in DC OK relay contact
- ✓Can be installed on DIN rail TS-35/7.5 or 15
- ✓3 years warranty
-
BrandMean Well
-
SeriesMean Well XDR Series
-
Power Rating480 Watt
-
Output Voltage48 Volt
-
Rated Current10 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,KC
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length4.92 in
-
Width1.89 in
-
Height4.93 in
-
Weight1.96 lb
::specification::
Frequently Asked Questions
What is the output rating of the Mean Well XDR-480E-48?
The XDR-480E-48 is rated for 480W output power. It provides a 48V DC output with a rated current of 10A.
Is the XDR-480E-48 suitable for compact control cabinets?
Yes, this model is designed as an ultra slim DIN rail power supply with a 48mm width. That makes it a strong fit for space-constrained industrial panels and control cabinets where width is limited.
What input voltage range does the XDR-480E-48 support?
The XDR-480E-48 supports an 85~264Vac input range. This wide input range helps make it suitable for use across many AC mains environments.
What operating temperature range does this power supply support?
This model is specified for operation from -40°C to +70°C. Operation above +50°C requires derating, based on the provided product description.
Does the XDR-480E-48 use a fan?
No, the XDR-480E-48 has a fanless design. It is cooled by free air convection, which can be useful in applications where reducing moving parts is preferred.
What protection features are included with the XDR-480E-48?
The listed protections include short circuit, overload, over voltage, and over temperature protection. It also includes a built-in constant current limiting circuit.
How efficient is the XDR-480E-48?
The XDR-480E-48 is specified with efficiency up to 96%. Its no-load power dissipation is listed as less than 1.2W.
What certifications or application fields are listed for this model?
The product description lists global certificates across multiple fields, including ITE 62368-1, Industrial 61558-1/-2-16, and 61010. This makes the XDR-480E-48 relevant for buyers comparing DIN rail supplies across industrial and ITE requirements.
