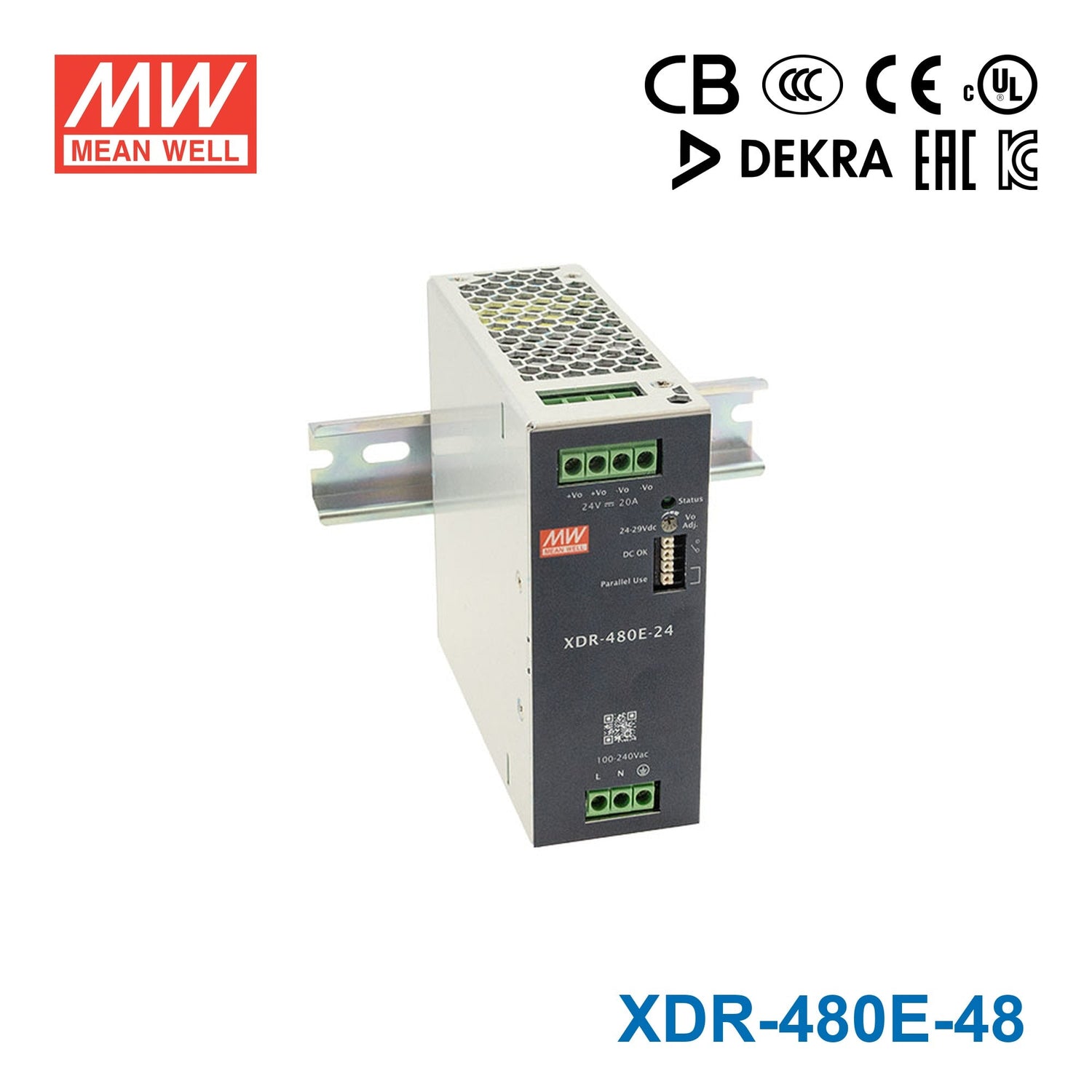

Mean Well XDR-480E-48 Economical Ultra Slim Din Rail Power Supply 4...
Overview
XDR-480E-48 is the 48V output model of this series: rated current 10A, rated power 480W, typical efficiency 96%.
The XDR-480E series is a 480W AC/DC economical ultra slim industrial DIN rail power. Key features of this series include a narrow 48mm casing, optimizing system installation space, and an ultra-wide input range of 85~264Vac suitable for global use. It boasts a maximum efficiency of 96% and a low standby power consumption <1.2W for energy savings and carbon reduction. It has built-in constant current, fanless design, a wide operating temperature range of -40 to +70℃ (up to +50℃ at full load); OVCⅢ compliance; parallel function capability up to 1920W; built-in DC OK signal. With comprehensive protection functions, complete safety certifications, and a 3-years warranty, the XDR-480E series is a compact, high-performance, and highly reliable DIN rail power supply.
Features
- 85~264Vac input with PFC
- Global certificates in multi-fields (ITE 62368-1, Industrial 61558-1/-2-16, 61010)
- 48mm slim width
- High efficiency up to 96% and no load power dissiaption<1.2W
- Built-in constant current limiting circuit
- Current sharing up to 1920W (3+1) for parallel use
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Fanless design, cooling by free air convection
- Over voltage category Ⅲ (OVC Ⅲ)
- -40~+70℃ wide range operation temperature (>+50℃ derating)
- Operating altitude up to 5000 meters
- Built-in DC OK relay contact
- Can be installed on DIN rail TS-35/7.5 or 15
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 48V
- RATED CURRENT
- 10A
- CURRENT RANGE
- 0 ~ 10A
- RATED POWER
- 480W
- RIPPLE & NOISE (max.)Note.2
- 150mVp-p
- VOLTAGE ADJ. RANGE
- 48 ~ 55V
- VOLTAGE TOLERANCENote.3
- ±1.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±1.0%
- SETUP, RISE TIME
- 1500ms, 150ms/230Vac 3000ms, 150ms/115Vac at full load
- HOLD UP TIME (Typ.)
- 15ms/230Vac 15ms/115Vac at full load
INPUT
- AC VOLTAGE RANGE
- 85 ~ 264Vac
- DC VOLTAGE RANGE
- 120 ~ 370Vdc
- NO LOAD POWER CONSUMPTION (Typ.)
- 1.2W @115Vac & 230Vac
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWDR FACTOR (Typ.)
- PF>0.95/230Vac PF>0.98/115Vac at full load
- EFFICIENCY (Typ.)
- 96%
- AC CURRENT (Typ.)
- 6A/115Vac 3A/230Vac
- INRUSH CURRENT (Typ.)
- COLD START 15A/115Vac 30A/230Vac
- LEAKAGE CURRENT
- <1mA / 240Vac
PROTECTION
- OVERLOAD
- 105~130% rated output power Hiccup mode when output voltage <30%, recovers automatically after fault condition is removed Constant current limiting without shutdown within 30%~100% rated output voltage, recovers automatically after fault condition is removed
- OVER VOLTAGE
- Max. 63V Protection type : Hiccup mode, recovers automatically after fault condition is removed.
- OVER TEMPERATURE
- Protection type : Shut down o/p voltage,recovers automatically after temperature goes down
FUNCTION
- PARALLEL (Droop Mode)
- Up to 1920W Max (3+1) units;Please refer to Function Manual for more details
- DC OK RELAY CONTACT
- Relay Contact Ratings (max.):30Vdc/1A, 30Vac/0.5A resistive load
ENVIRONMENT
- WORKING TEMP.
- -40 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85 ℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.03% /℃ (0 ~ 50℃)
- VIBRATION
- Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
SAFETY & EMC
- SAFETY STANDARDSNote.6&7&8
- CB IEC 62368-1, IEC 61558-1/2-16, IEC 61010-1/-2-201 ; TUV BS EN/EN 62368-1, BS EN /EN 61558-1/-2-16, BS EN/EN 61010-1/-2-201 ; UL UL/CUL 61010-1/-2-201 ; CCC GB4943.1 ; BSMI CNS15598-1 ; EAC TPTC004 approved ; KC/BIS KC 62368-1 and BIS IS 13252 (Part 1) certified, No stock ,contact sales by request
- OVER VOLTAGE CATEGORYNote.4
- IEC/EN 61558-1/-2-16 (OVC Ⅲ, altitude up to 2000m ) ; IEC/EN/UL 61010-1/-2-201 (OVC Ⅱ, altitude up to 5000m ) ; IEC/EN 62368-1 (OVC Ⅱ, altitude up to 5000m )
- SAFETY EXTRA-LOW VOLTAGE(SELV)
- IEC/EN 61558-2-16 (SELV ) ; IEC/EN 62368-1 (SELV / ES1 )
- WITHSTAND VOLTAGE
- I/P-O/P: 4KVac I/P-FG: 2KVac O/P-FG: 1.5KVac O/P-DC OK: 0.5KVac
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500Vdc/25 ℃/ 70%RH
- EMC EMISSION
-
Parameter Standard Test Level Conducted BS EN/EN55032 (CISPR32) / BS EN/EN61204-3 / CNS15936 / KS C 9832 Class B Radiated BS EN/EN55032 (CISPR32) / BS EN/EN61204-3 / CNS15936 / KS C 9832 Class B Harmonic Current BS EN/EN61000-3-2 Class A Voltage Flicker BS EN/EN61000-3-3 - EMC IMMUNITY
-
BS EN/EN55035 , BS EN/EN61204-3, BS EN/EN61000-6-2(BS EN/EN50082-2), KS C 9835
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact; criteria A Radiated BS EN/EN61000-4-3 Level 3, 10V/m; criteria A EFT / Burst BS EN/EN61000-4-4 Level 3, 2KV; criteria A Surge BS EN/EN61000-4-5 Level 4, 2KV/Line-Line ;Level 4, 4KV/Line-Line-Chassis ;criteria A Conducted BS EN/EN61000-4-6 Level 3, 10V; criteria A Magnetic Field BS EN/EN61000-4-8 Level 4, 30A/m; criteria A
OTHERS
- MTBF
- 1482.0K hrs min. Telcordia SR-332 (Bellcore) ; 258.3K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 48*125.2*125mm (W*H*D)
- PACKING
- 890g; 12pcs/13Kg/1.16CUFT
Test conditions and notes8
- 1. All parameters NOT specially mentioned are measured at 230Vac input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 5. Installation clearances : 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power. In case the adjacent device is a heat source, 15mm clearance is recommended.
- 6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 7. The Regulatory Compliance Mark (RCM) is applied on a voluntary basis. The equipment meets the relevant IEC or AS/NZS standards, or AS/NZS 3820 where applicable. The use of the RCM mark complies with AS/NZS 4417.1.
- 8. Some factory or model may not have the BIS logo, please contact your MEAN WELL sales for more information.
Technical drawings
Typical applications
- Industrial control system
- Semiconductor fabrication equipment
- Factory automation
- Electro-mechanical apparatus
- Battery charger
Downloads
Datasheet1
FAQ
What is the output rating of the Mean Well XDR-480E-48?
The XDR-480E-48 is rated for 480W output power. It provides a 48V DC output with a rated current of 10A.
Is the XDR-480E-48 suitable for compact control cabinets?
Yes, this model is designed as an ultra slim DIN rail power supply with a 48mm width. That makes it a strong fit for space-constrained industrial panels and control cabinets where width is limited.
What input voltage range does the XDR-480E-48 support?
The XDR-480E-48 supports an 85~264Vac input range. This wide input range helps make it suitable for use across many AC mains environments.
What operating temperature range does this power supply support?
This model is specified for operation from -40°C to +70°C. Operation above +50°C requires derating, based on the provided product description.
Does the XDR-480E-48 use a fan?
No, the XDR-480E-48 has a fanless design. It is cooled by free air convection, which can be useful in applications where reducing moving parts is preferred.
What protection features are included with the XDR-480E-48?
The listed protections include short circuit, overload, over voltage, and over temperature protection. It also includes a built-in constant current limiting circuit.
How efficient is the XDR-480E-48?
The XDR-480E-48 is specified with efficiency up to 96%. Its no-load power consumption is listed as 1.2W.
What certifications or application fields are listed for this model?
The product description lists global certificates across multiple fields, including ITE 62368-1, Industrial 61558-1/-2-16, and 61010. This makes the XDR-480E-48 relevant for buyers comparing DIN rail supplies across industrial and ITE requirements.
