Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

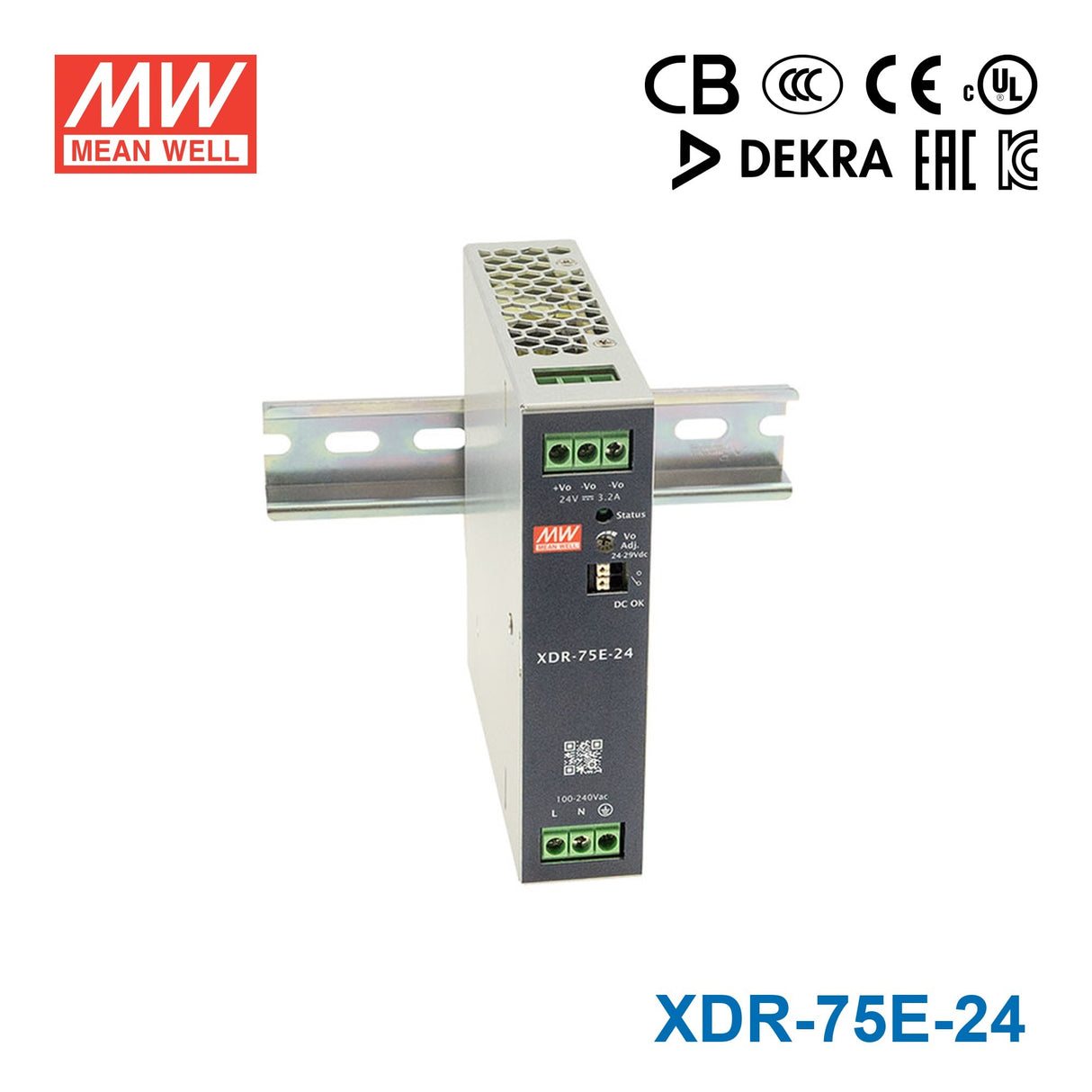

Mean Well XDR-75E-24 Economical Ultra Slim Din Rail Power Supply 76...
Key Features
- ✓85~264Vac input range
- ✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010)
- ✓30mm slim width(30mm slim width)
- ✓High efficiency up to 91% and no-load power dissipation<1W
- ✓Built-in [constant current limiting circuit](constant current limiting circuit)
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Fanless design, cooling by free air convection
- ✓Overvoltage category III (OVC III)
- ✓-40°~+70°C wide range operation temperature (>+50°C derating)
- ✓Operating altitude up to 5000 meters
- ✓Built-in DC OK relay contact
- ✓Can be installed on DIN rail TS-35/7.5 or 15
- ✓3 years warranty
-
BrandMean Well
-
SeriesMean Well XDR Series
-
Power Rating76.8 Watt
-
Output Voltage24 Volt
-
Rated Current3.2 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,KC
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length4.57 in
-
Width1.18 in
-
Height4.93 in
-
Weight0.88 lb
::specification::
Frequently Asked Questions
What is the output rating of the Mean Well XDR-75E-24?
The XDR-75E-24 is rated for 76.8W output power. It provides 24V output at 3.2A rated current, making it suitable for 24V DC power requirements within that load range.
Is the XDR-75E-24 suitable for compact DIN rail panels?
Yes. This model is described as an economical ultra slim DIN rail power supply with a 30mm slim width, which helps when panel space is limited.
What input voltage range does the XDR-75E-24 support?
The XDR-75E-24 supports an 85-264Vac input range. This wide AC input range makes it useful for systems that need compatibility across common global AC supply environments.
What operating temperature range is specified for the XDR-75E-24?
This model is specified for operation from -40°C to 70°C. That broad temperature range supports use in demanding industrial or equipment environments where ambient conditions can vary.
Does the XDR-75E-24 use a fan?
No. The XDR-75E-24 has a fanless design and is cooled by free air convection, which can reduce moving-part maintenance concerns in suitable applications.
What protections are listed for the XDR-75E-24?
The listed protections are short circuit, overload, over voltage, and over temperature protection. It also includes a built-in constant current limiting circuit.
What certifications or standards are listed for this power supply?
The product description lists global certificates across multiple fields, including ITE 62368-1, Industrial 61558-1/-2-16, and 61010. It also lists Overvoltage Category III, commonly shown as OVC III.
How efficient is the Mean Well XDR-75E-24?
The XDR-75E-24 is specified with efficiency up to 91%. The description also lists no-load power dissipation below 1W.
