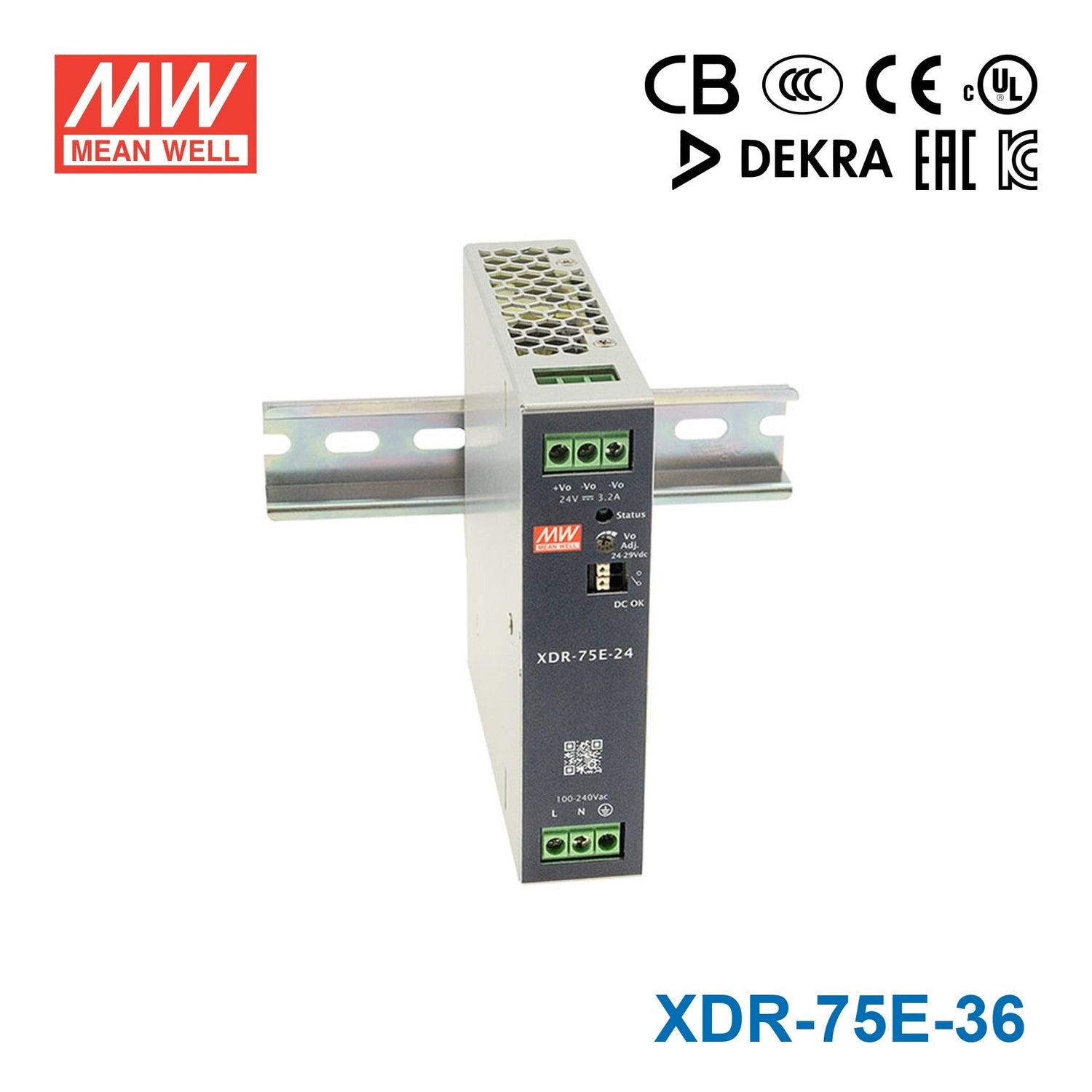

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well XDR-75E-36 Economical Ultra Slim Din Rail Power Supply 75.6W 36V 2.1A

Name: Mean Well XDR-75E-36 Economical Ultra Slim Din Rail Power Supply 75.6W 36V 2.1A
Brand: Mean Well
SKU: XDR-75E-36
Price: 25.17 USD
Availability: InStock

30mm widthhigh efficiencyeconomical model

SKU XDR-75E-36

$25.17 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

XDR-75E-36 is the 36V output model of this series: rated current 2.1A, rated power 75.6W, typical efficiency 91%.

The XDR-75E series is a 75W AC/DC economical ultra slim industrial DIN rail power. Key features of this series include a narrow 30mm casing, optimizing system installation space, and an ultra-wide input range of 85~264Vac suitable for global use. It boasts a maximum efficiency of 91% and a low standby power consumption <1W for energy savings and carbon reduction. It has built-in constant current, fanless design, a wide operating temperature range of -40 to +70℃ (up to +50℃ at full load); OVCIⅢ compliance; built-in DC OK signal. With comprehensive protection functions, complete safety certifications, and a 3-years warranty, the XDR-75E series is a compact, high-performance, and highly reliable DIN rail power supply.

Features

85~ 264Vac input range
Global certificates in multi-fields (ITE 62368-1,Industrial 61558-1/-2-16,61010)
30mm slim width
High efficiency up to 91% and no load power dissipation<1W
Built-in constant current limiting circuit
Protections: Short circuit / Overload / Over voltage / Over temperature
Fanless design, cooling by free air convection
Over voltage category Ⅲ (OVC Ⅲ)
-40~ +70℃ wide range operation temperature (>+50℃ derating)
Operating altitude up to 5000 meters
Built-in DC OK relay contact
Can be installed on DIN rail TS-35/7.5 or 15
3 years warranty

Specifications

XDR-75E-36Specifications from the official datasheet (2026-04-10 edition)

OUTPUT

DC VOLTAGE: 36V
RATED CURRENT: 2.1A
CURRENT RANGE: 0 ~ 2.1A
RATED POWER: 75.6W
RIPPLE & NOISE (max.)^Note.2: 120mVp-p
VOLTAGE ADJ. RANGE: 36 ~ 42V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 1200ms, 60ms/230Vac 2500ms, 60ms/115Vac at full load
HOLD UP TIME (Typ.): 16ms/230Vac 10ms/115Vac at full load

INPUT

AC VOLTAGE RANGE: 85 ~ 264Vac
DC VOLTAGE RANGE: 120 ~ 370Vdc
NO LOAD POWER CONSUMPTION (Typ.): 0.8W @115Vac 0.9W @230Vac
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 91%
AC CURRENT (Typ.): 1.4A/115Vac 0.8A/230Vac
INRUSH CURRENT (Typ.): COLD START 18A/115Vac 35A/230Vac
LEAKAGE CURRENT: <1mA / 240Vac

PROTECTION

OVERLOAD: 105-130% rated output power, constant current limiting without shutdown, recovers automatically after fault condition is removed
OVER VOLTAGE: 43 ~ 50V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Protection type : Hiccup mode, recovers automatically after fault condition is removed

FUNCTION

DC OK RELAY CONTACT: Relay Contact Ratings (max.):30Vdc/1A, 30Vac/0.5A resistive load

ENVIRONMENT

WORKING TEMP.: -40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85 ℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03% /℃ (0 ~ 50℃)
VIBRATION: Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6

SAFETY & EMC

SAFETY STANDARDS^Note.6&7&8: CB IEC 62368-1, IEC 61558-1/2-16, IEC 61010-1/-2-201 ; TUV BS EN/EN 62368-1, BS EN /EN 61558-1/-2-16, BS EN/EN 61010-1/-2-201 ; UL UL/CUL 61010-1/-2-201 ; CCC GB4943.1 ; BSMI CNS15598-1 ; EAC TPTC004 approved ; KC/BIS KC 62368-1 and BIS IS 13252 (Part 1) certified, No stock ,contact sales by request
OVER VOLTAGE CATEGORY^Note.4: IEC/EN 61558-1/-2-16 (OVC Ⅲ, altitude up to 2000m ) ; IEC/EN/UL 61010-1/-2-201 (OVC Ⅱ, altitude up to 5000m ) ; IEC/EN 62368-1 (OVC Ⅱ, altitude up to 5000m )
SAFETY EXTRA-LOW VOLTAGE(SELV): IEC/EN 61558-2-16 (SELV ) ; IEC/EN 62368-1 (SELV / ES1 )
WITHSTAND VOLTAGE: I/P-O/P: 4KVac I/P-FG: 2KVac O/P-FG: 1.5KVac O/P-DC OK: 0.5KVac
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500Vdc/25 ℃/ 70%RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 (CISPR32) / BS EN/EN61204-3 / CNS15936 / KS C 9832 Class B
Radiated BS EN/EN55032 (CISPR32) / BS EN/EN61204-3 / CNS15936 / KS C 9832 Class B
Harmonic Current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55035 , BS EN/EN61204-3, BS EN/EN61000-6-2(BS EN/EN50082-2), KS C 9835

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact; criteria A
Radiated BS EN/EN61000-4-3 Level 3, 10V/m; criteria A
EFT / Burst BS EN/EN61000-4-4 Level 3, 2KV; criteria A
Surge BS EN/EN61000-4-5 Level 4, 2KV/Line-Line ;Level 4, 4KV/Line-Line-Chassis ;criteria A
Conducted BS EN/EN61000-4-6 Level 3, 10V; criteria A
Magnetic Field BS EN/EN61000-4-8 Level 4, 30A/m; criteria A

Parameter	Standard	Test Level
Conducted	BS EN/EN55032 (CISPR32) / BS EN/EN61204-3 / CNS15936 / KS C 9832	Class B
Radiated	BS EN/EN55032 (CISPR32) / BS EN/EN61204-3 / CNS15936 / KS C 9832	Class B
Harmonic Current	BS EN/EN61000-3-2	Class A
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact; criteria A
Radiated	BS EN/EN61000-4-3	Level 3, 10V/m; criteria A
EFT / Burst	BS EN/EN61000-4-4	Level 3, 2KV; criteria A
Surge	BS EN/EN61000-4-5	Level 4, 2KV/Line-Line ;Level 4, 4KV/Line-Line-Chassis ;criteria A
Conducted	BS EN/EN61000-4-6	Level 3, 10V; criteria A
Magnetic Field	BS EN/EN61000-4-8	Level 4, 30A/m; criteria A

OTHERS

MTBF: 2425.7K hrs min. Telcordia SR-332 (Bellcore) ; 533.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 30*125.2*116mm (W*H*D)
PACKING: 465g; 24pcs/12.15Kg/1.16CUFT

Test conditions and notes8

1. All parameters NOT specially mentioned are measured at 230Vac input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
5. Installation clearances : 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power. In case the adjacent device is a heat source, 15mm clearance is recommended.
6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
7. The Regulatory Compliance Mark (RCM) is applied on a voluntary basis. The equipment meets the relevant IEC or AS/NZS standards, or AS/NZS 3820 where applicable. The use of the RCM mark complies with AS/NZS 4417.1.
8. Some factory or model may not have the BIS logo, please contact your MEAN WELL sales for more information.

Technical drawings

XDR-75E-36 Block Diagram — Block Diagram

XDR-75E-36 Function Manual — Function Manual

XDR-75E-36 Mechanical Specification — Mechanical Specification

XDR-75E-36 Installation Instruction — Installation Instruction

Typical applications

Industrial control system
Semiconductor fabrication equipment
Factory automation
Electro-mechanical apparatus
Battery charger

Downloads

Datasheet1

XDR-75E-36 datasheetXDR-75E-spec.pdf · 2026-04-10 edition PDF Download

FAQ

What is the output rating of the Mean Well XDR-75E-36?

The XDR-75E-36 is rated for 75.6 W output power. It provides a 36 V DC output with a rated current of 2.1 A.

What applications is the XDR-75E-36 commonly suited for?

This model is suited for industrial and B2B power applications that require a compact 36 V DC DIN rail power supply. Its ultra slim 30 mm width makes it useful where panel space is limited.

How wide is the XDR-75E-36?

The XDR-75E-36 has a slim 30 mm width. This is one of its key differentiators for compact DIN rail power supply layouts.

What input voltage range does the XDR-75E-36 support?

The XDR-75E-36 supports an 85 to 264 Vac input range. This broad AC input range helps make it suitable for use across many commercial and industrial power systems.

What operating temperature range is specified for this power supply?

The XDR-75E-36 is specified for operation from -40 °C to 70 °C. That wide temperature range supports use in demanding industrial environments when applied within the product's rated conditions.

What protection features are listed for the XDR-75E-36?

The XDR-75E-36 lists protection against overload, over voltage, and over temperature conditions. It also includes a built-in constant current limiting circuit.

Does the XDR-75E-36 use a fan?

No, the XDR-75E-36 uses a fanless design. Cooling is by free air convection, which helps reduce moving parts in the power supply.

What warranty period applies to the XDR-75E-36?

The XDR-75E-36 is listed with a 3 year warranty period. This applies specifically to the model information provided for this product.
