Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

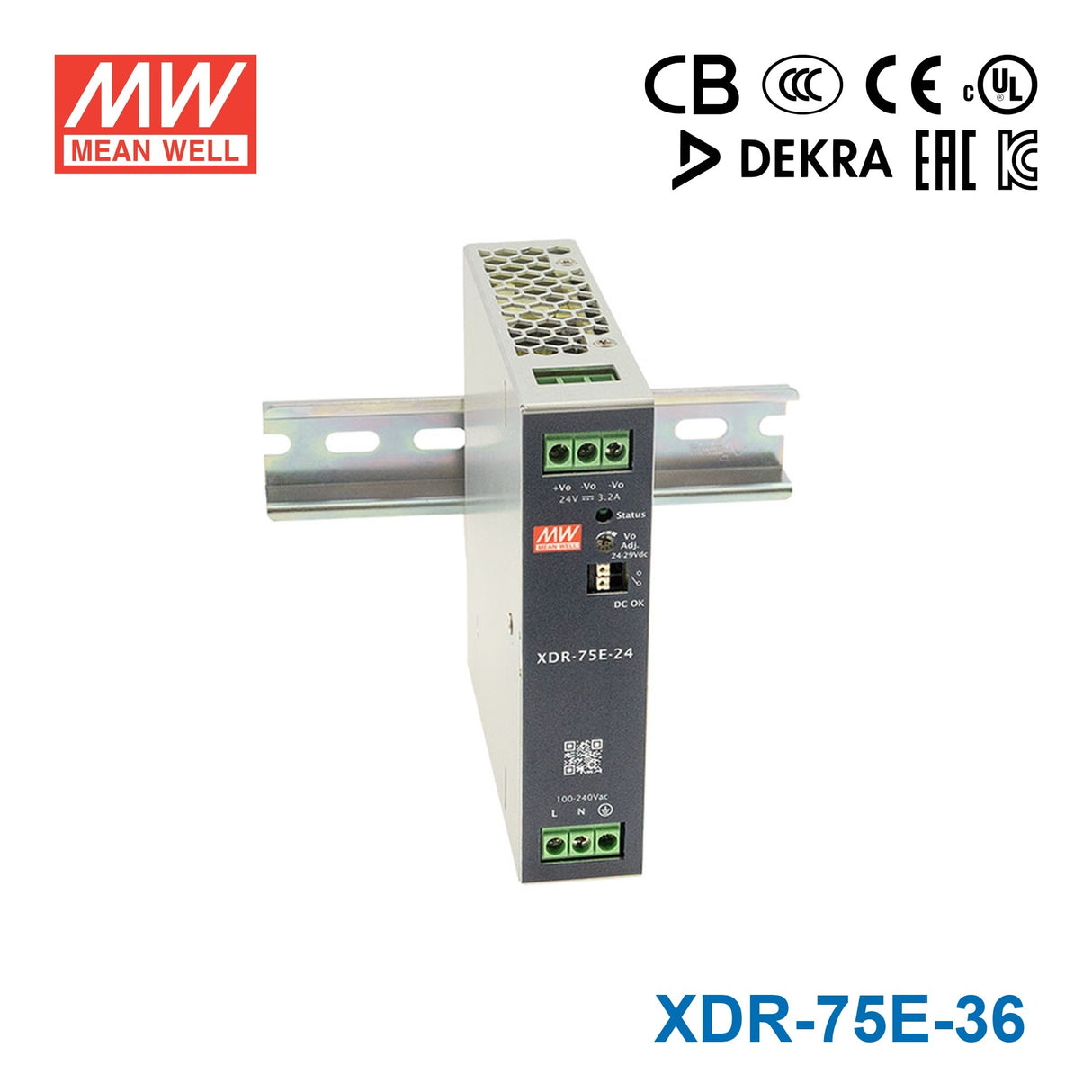

Mean Well XDR-75E-36 Economical Ultra Slim Din Rail Power Supply 75...
Key Features
- ✓85~264Vac input range
- ✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010)
- ✓30mm slim width(30mm slim width)
- ✓High efficiency up to 91% and no-load power dissipation<1W
- ✓Built-in [constant current limiting circuit](constant current limiting circuit)
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Fanless design, cooling by free air convection
- ✓Overvoltage category III (OVC III)
- ✓-40°~+70°C wide range operation temperature (>+50°C derating)
- ✓Operating altitude up to 5000 meters
- ✓Built-in DC OK relay contact
- ✓Can be installed on DIN rail TS-35/7.5 or 15
- ✓3 years warranty
-
BrandMean Well
-
SeriesMean Well XDR Series
-
Power Rating75.6 Watt
-
Output Voltage36 Volt
-
Rated Current2.1 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,KC
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length4.57 in
-
Width1.18 in
-
Height4.93 in
-
Weight0.88 lb
::specification::
Frequently Asked Questions
What is the output rating of the Mean Well XDR-75E-36?
The XDR-75E-36 is rated for 75.6 W output power. It provides a 36 V DC output with a rated current of 2.1 A.
What applications is the XDR-75E-36 commonly suited for?
This model is suited for industrial and B2B power applications that require a compact 36 V DC DIN rail power supply. Its ultra slim 30 mm width makes it useful where panel space is limited.
How wide is the XDR-75E-36?
The XDR-75E-36 has a slim 30 mm width. This is one of its key differentiators for compact DIN rail power supply layouts.
What input voltage range does the XDR-75E-36 support?
The XDR-75E-36 supports an 85 to 264 Vac input range. This broad AC input range helps make it suitable for use across many commercial and industrial power systems.
What operating temperature range is specified for this power supply?
The XDR-75E-36 is specified for operation from -40 °C to 70 °C. That wide temperature range supports use in demanding industrial environments when applied within the product's rated conditions.
What protection features are listed for the XDR-75E-36?
This model lists protection against short circuit, overload, over voltage, and over temperature conditions. It also includes a built-in constant current limiting circuit.
Does the XDR-75E-36 use a fan?
No, the XDR-75E-36 uses a fanless design. Cooling is by free air convection, which helps reduce moving parts in the power supply.
What warranty period applies to the XDR-75E-36?
The XDR-75E-36 is listed with a 3 year warranty period. This applies specifically to the model information provided for this product.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other XDR-75E Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well XDR-75E-12 Economical Ultra Slim Din Rail Power Supply 75.6W 12V | 75.6W | 12V | 6.3A | Indoor | $25.17 | View |
| Mean Well XDR-75E-24 Economical Ultra Slim Din Rail Power Supply 76.8W 24V | 76.8W | 24V | 3.2A | Indoor | $25.17 | View |
| Mean Well XDR-75E-48 Economical Ultra Slim Din Rail Power Supply 76.8W 48V | 76.8W | 48V | 1.6A | Indoor | $25.17 | View |
