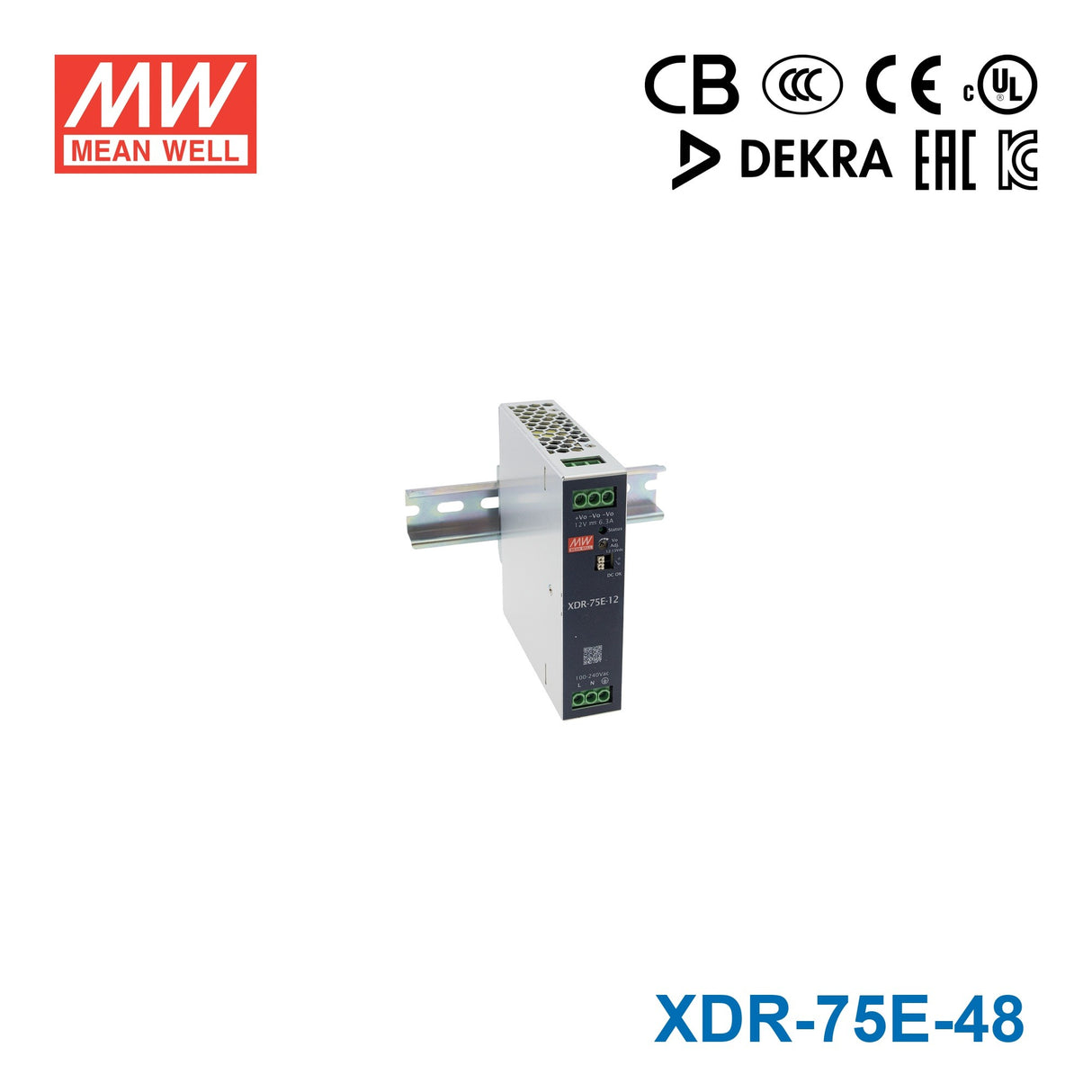

Mean Well XDR-75E-48 Economical Ultra Slim Din Rail Power Supply 76...
Key Features
- ✓85~264Vac input range
- ✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010)
- ✓30mm slim width(30mm slim width)
- ✓High efficiency up to 91% and no-load power dissipation<1W
- ✓Built-in [constant current limiting circuit](constant current limiting circuit)
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Fanless design, cooling by free air convection
- ✓Overvoltage category III (OVC III)
- ✓-40°~+70°C wide range operation temperature (>+50°C derating)
- ✓Operating altitude up to 5000 meters
- ✓Built-in DC OK relay contact
- ✓Can be installed on DIN rail TS-35/7.5 or 15
- ✓3 years warranty
-
BrandMean Well
-
SeriesMean Well XDR Series
-
Power Rating76.8 Watt
-
Output Voltage48 Volt
-
Rated Current1.6 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,KC
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length4.57 in
-
Width1.18 in
-
Height4.93 in
-
Weight0.88 lb
::specification::
Frequently Asked Questions
What are the main output specifications of the Mean Well XDR-75E-48?
The Mean Well XDR-75E-48 is rated for 76.8W output power with a 48V DC output. Its rated output current is 1.6A, making it suitable for 48V loads within that power range.
What type of applications is the XDR-75E-48 typically used for?
This model is a DIN rail power supply intended for industrial, commercial, and control-panel style power applications that require a regulated 48V DC supply. Its slim 30mm width is useful where panel space is limited.
Can the XDR-75E-48 be used with global AC input power?
Yes. The XDR-75E-48 supports an 85-264Vac input range, which makes it suitable for many global AC power environments when used within the product's ratings.
What operating temperature range does the XDR-75E-48 support?
The XDR-75E-48 is specified for operation from -40°C to 70°C. It uses a fanless design with cooling by free air convection.
What protections are included with the Mean Well XDR-75E-48?
This model includes protections for short circuit, overload, over voltage, and over temperature conditions. It also has a built-in constant current limiting circuit.
Why choose the XDR-75E-48 over a wider DIN rail power supply?
The XDR-75E-48 has an ultra-slim 30mm width, which can help conserve DIN rail space in compact enclosures. It still provides 76.8W of 48V DC output power with efficiency up to 91%.
What certifications are listed for the XDR-75E-48?
The listed certificates cover multiple fields, including ITE 62368-1, Industrial 61558-1/-2-16, and 61010. This supports use in applications where those certification categories are relevant.
What warranty period applies to the XDR-75E-48?
The XDR-75E-48 has a listed warranty period of 3 years. The product weight is specified as 0.4 kg.
