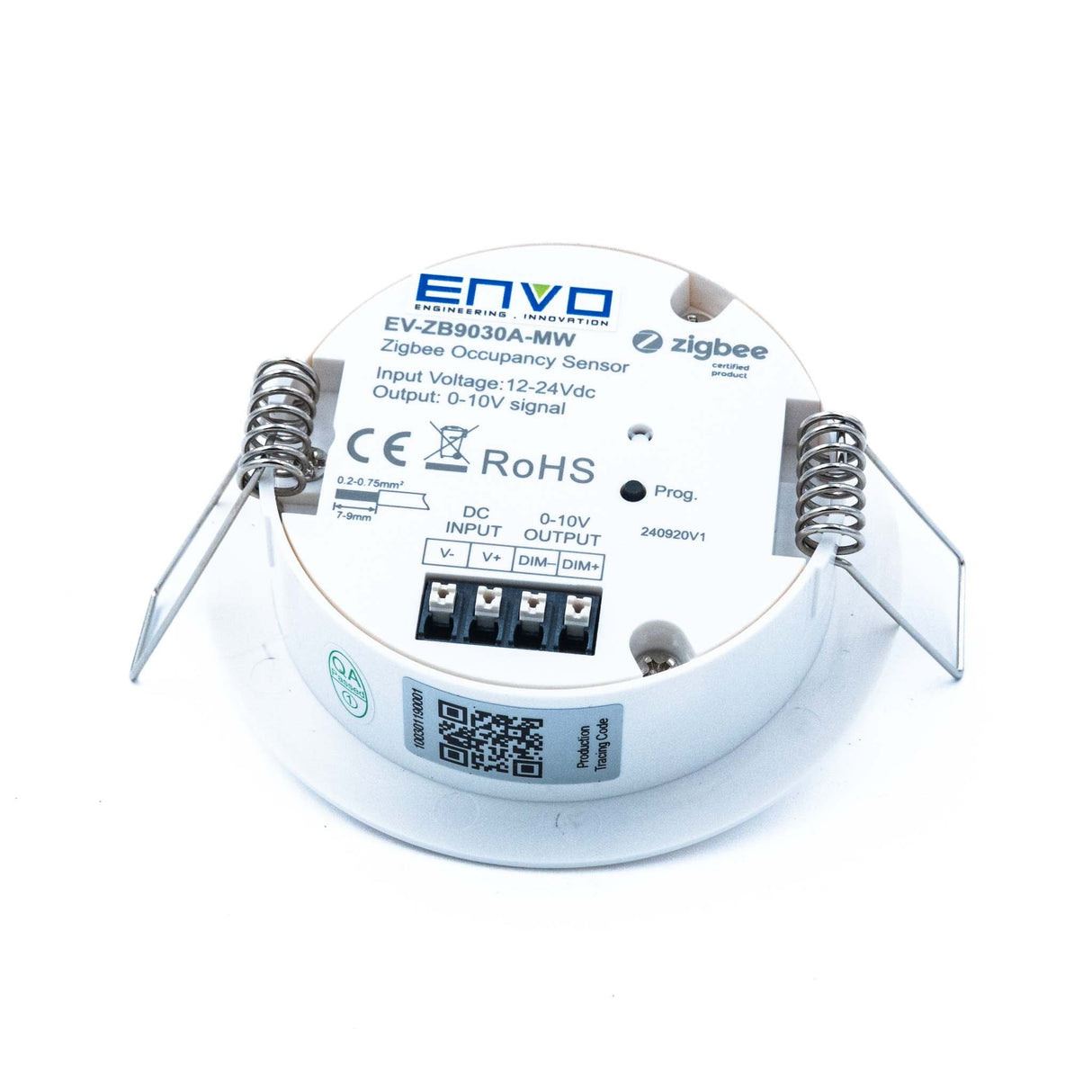

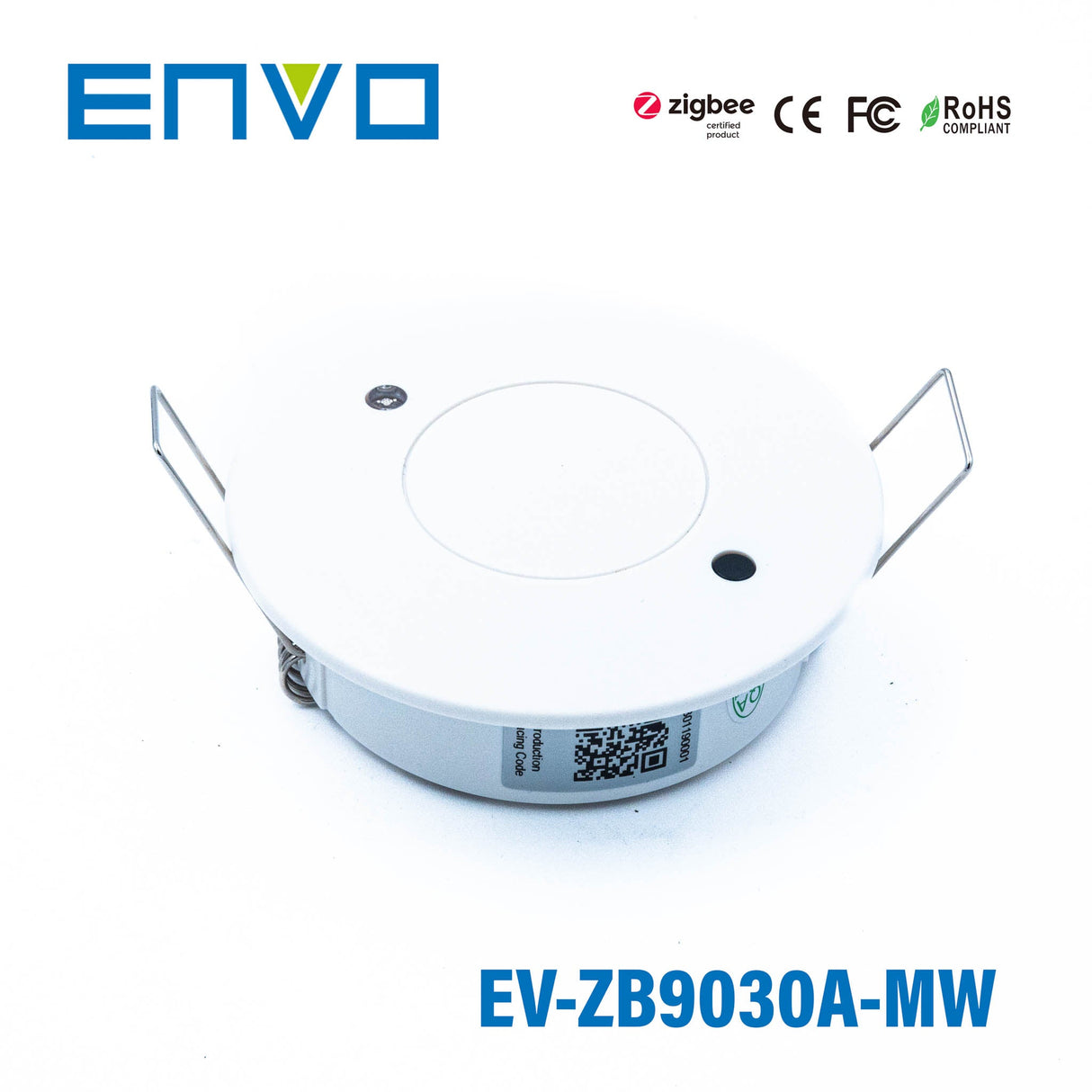

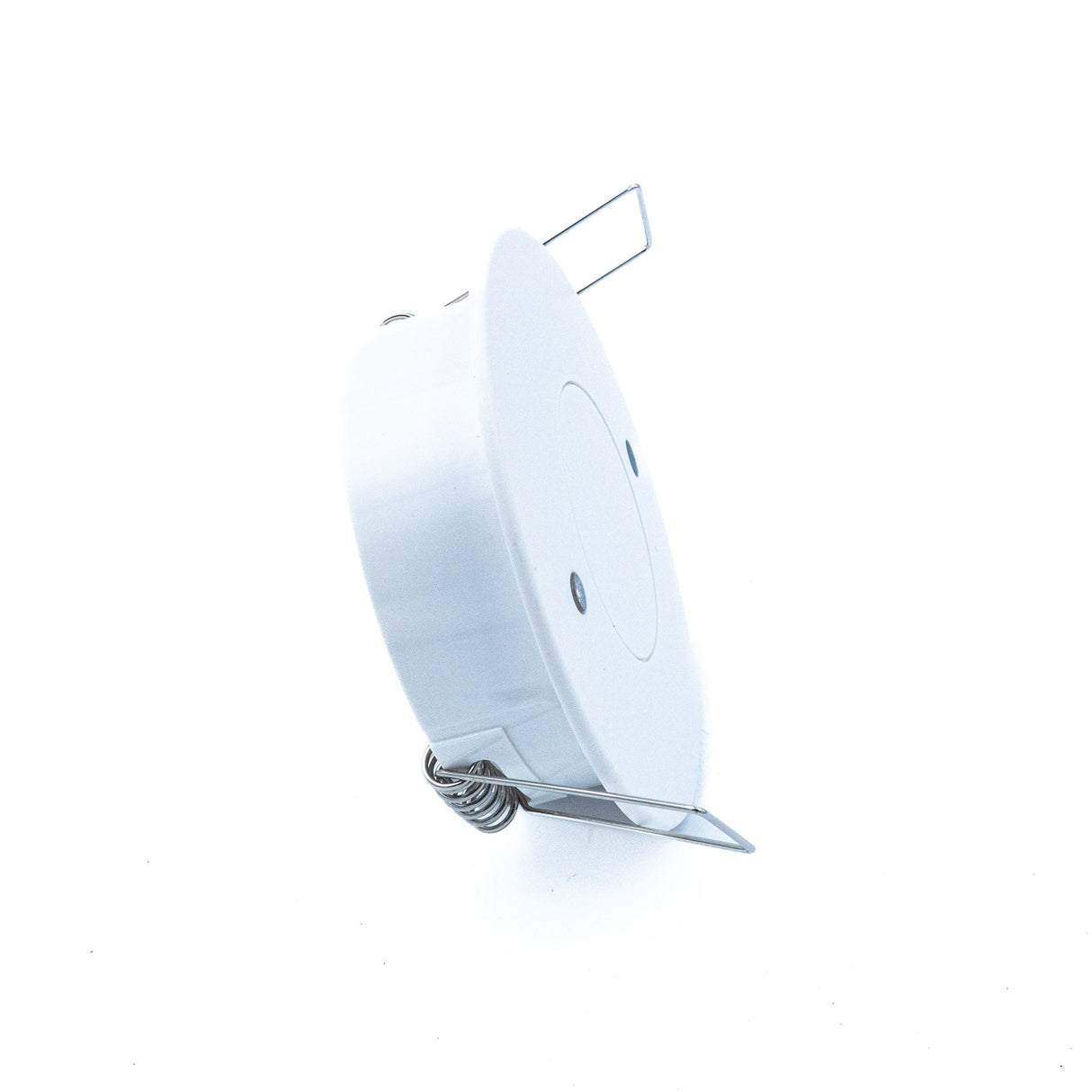

ENVO ZigBee Ceiling Mounted Microwave Sensor, 0-10V Dimming
Features:
- Zigbee 3.0 compliant
- Microwave motion detection, dual antennas, long detection range
- Daylight harvesting
- Works with 0-10V dim-to-off LED drivers
- Autonomous sensor-based control
- OTA firmware upgrade
- Ceiling recessed installation
- Can be use for indoor applications
- Cost-effective solution for energy savings
- Energy code compliance
- Robust mesh network
- Compatible with universal Zigbee platforms that support sensor
General Specification
Zigbee Protocol
Zigbee 3.0
Input Voltage
12/24 VDC
Current Consumption
< 30mA (when dimming method = sink)
Dimming Output
4mA (sink) / 20mA (source)
Status Indicators
Red (motion detection)
Radio Frequency
2.4 GHz
Wireless Range
100 feet (30m) Line of Sight
Radio Certification
FCC/IC, CE
Dimension (LxWxH)
Φ83xH21mm
-
BrandEnvo
-
Operating Temperature0°C~40°C
-
Warranty5 Year
-
Length3.27 in
-
Width3.27 in
-
Height0.83 in
::specification::
Frequently Asked Questions
What is the ENVO ZigBee Ceiling Mounted Microwave Sensor, 0-10V Dimming used for?
This sensor is designed for indoor lighting control in commercial or professional settings where motion sensing and dimming are needed. It combines microwave motion detection, daylight harvesting, and autonomous sensor-based control to help reduce energy use while supporting code-compliant lighting strategies.
What lighting control method does this sensor support?
This model is built to work with 0-10V dim-to-off LED drivers. Its dimming output is rated at 4mA in sink mode and 20mA in source mode, making it suitable for low-voltage dimming control applications that use that standard.
Does this sensor use ZigBee, and what version does it support?
Yes. The EV-ZB9030A-MW is Zigbee 3.0 compliant, which helps it fit into Zigbee-based smart lighting and sensor ecosystems that support this type of device. It also supports OTA firmware upgrades and benefits from a robust mesh network architecture.
How does this model detect occupancy?
This sensor uses microwave motion detection and includes dual antennas for longer detection coverage. It also has a red status indicator that shows motion detection activity.
Is this sensor suitable for indoor environments?
Yes, this model is intended for indoor applications. Its stated operating temperature range is 0°C to 40°C, which makes it appropriate for typical conditioned interior spaces.
What power input does the EV-ZB9030A-MW require?
The sensor operates on 12/24 VDC input voltage. Its current consumption is listed as less than 30mA when the dimming method is set to sink.
How does this model compare with a basic standalone motion sensor?
Compared with a basic motion-only sensor, this model adds Zigbee 3.0 wireless capability, daylight harvesting, and support for 0-10V dim-to-off LED drivers. That makes it a better fit for smart commercial lighting control where energy savings, automation, and platform compatibility matter.
