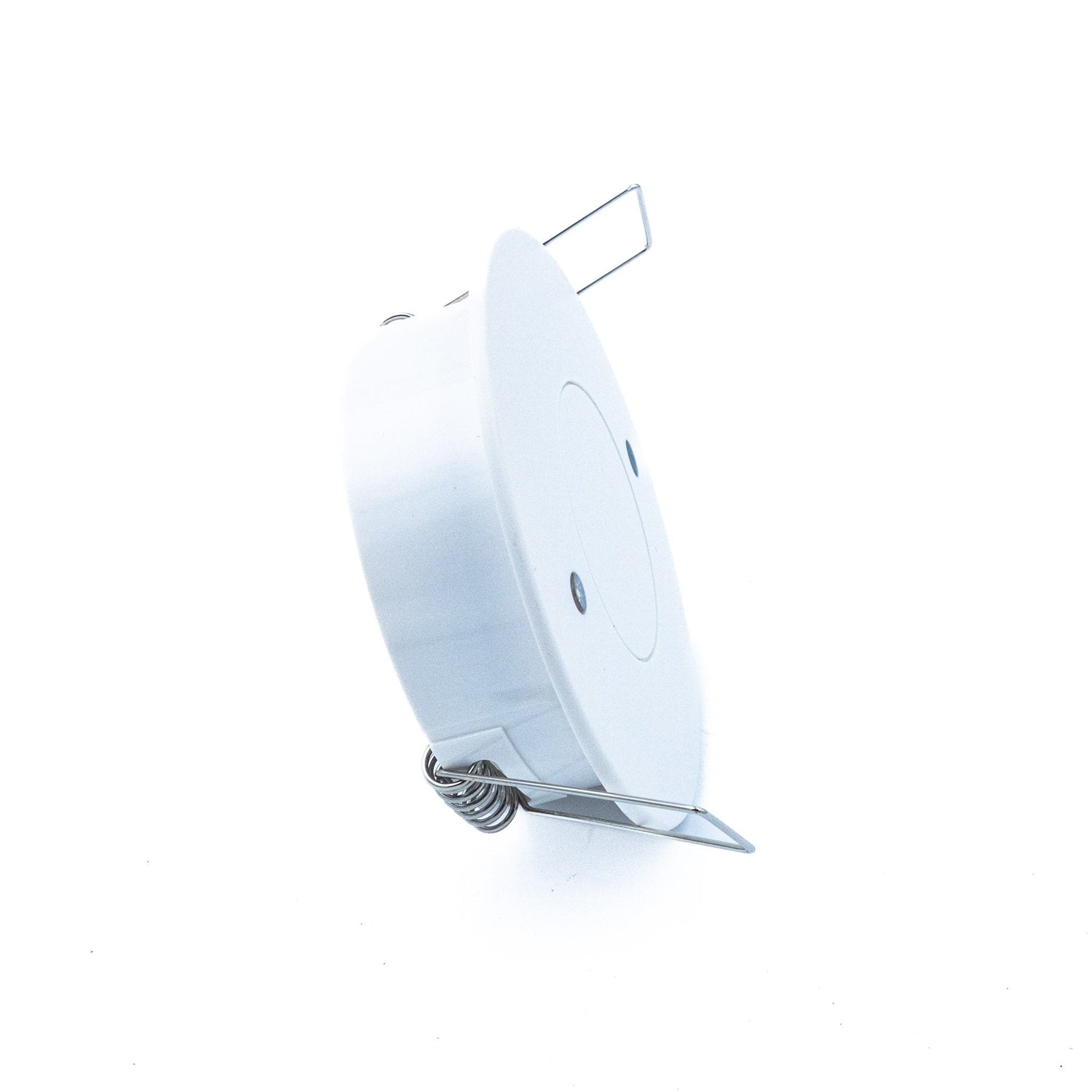

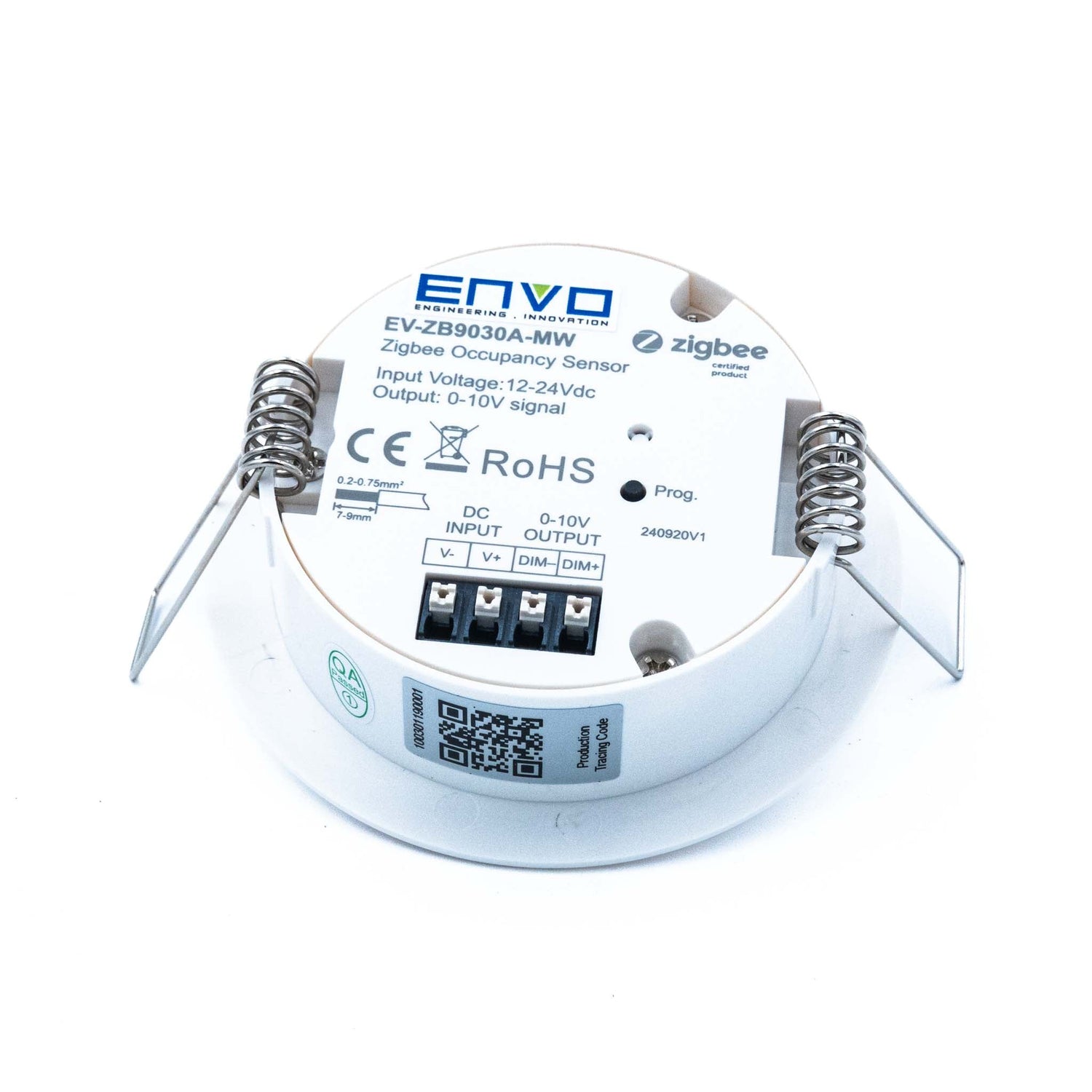

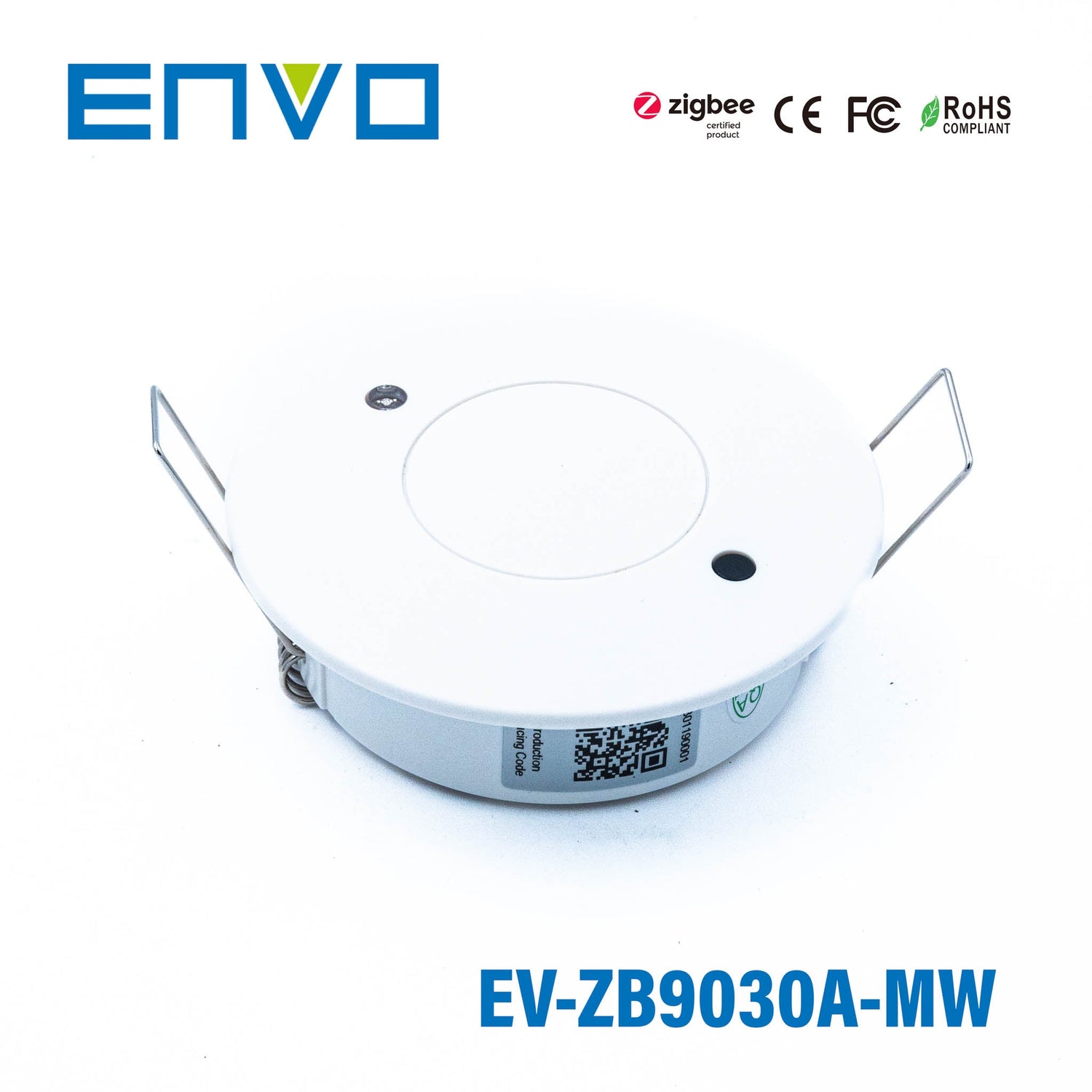

ENVO ZigBee Ceiling Mounted Microwave Sensor, 0-10V Dimming
Overview
The occupancy sensor is a 4 in 1 device that combines occupancy sensing, daylight harvesting, 0-10V dimming and Zigbee radio circuits. When used with 0-10V LED drivers, it enables any lighting manufacturer to deliver wirelessly-controllable and sensor-equipped fixtures. The sensor is suitable for high bay applications which need large detection area and sensor based automation.
Features
- Zigbee 3.0 compliant
- Microwave motion detection, dual antennas, long detection range
- Daylight harvesting
- Works with 0-10V dim-to-off LED drivers
- Autonomous sensor-based control
- OTA firmware upgrade
- Ceiling recessed installation
- Can be use for indoor applications
Specifications
Physical Information
- Cutting Hole
- 70-73mm
- Material / Color
- ABS / White
- Wire Gauge
- 26-16 AWG (0.2-1.3 mm2)
- Strip Length
- 0.28-0.35 in. / 7-9 mm
Electrical Information
- Input Voltage
- 12/24 VDC
- Current Consumption
- < 30mA (when dimming method = sink)
- Dimming Control
- Analog (0-10V)
- Dimming Output
- 4mA (sink) / 20mA (source)
- Status Indicators
- Red (motion detection)
Wireless Communication
- Radio Frequency
- 2.4 GHz
- Wireless Protocol
- Zigbee 3.0
- Wireless Range
- 100 feet (30m) Line of Sight
- Radio Certification
- FCC/IC, CE
Lighting Control
- Features
- Continuous dimming, Individual/group addressing, Scene control, Task tuning (0-100%), Autonomous sensor-based control, Scheduler control
Environment
- Operating Temperature Range
- 32˚F to 104˚F / 0˚C to 40˚C (indoor use only)
- Operating Humidity
- 0-95% (non condensing)
- Safety Certification
- cULus Listed, CE
Sensing
- Occupancy Sensing Type
- Microwave sensor
- Microwave High Frequency
- 5.8 GHz ±75 MHz ISM band
- Detection Sensitivity
- 0-15 (0 is max sensitivity, 15 is min sensitivity)
- Lux Detection Range
- 0-1000 Lux
- Mounting Height
- Recommended height: 10ft (3m)
- Detection Angle
- 150° (wall), 360° (ceiling)
- Sensing Information
- Can be shared within Zigbee mesh network
Typical applications
- Warehouses
- Factories
- Photo Controls
- Central Management System
Downloads
Datasheet1
FAQ
What is the ENVO ZigBee Ceiling Mounted Microwave Sensor, 0-10V Dimming used for?
This sensor is designed for indoor lighting control in commercial or professional settings where motion sensing and dimming are needed. It combines microwave motion detection, daylight harvesting, and autonomous sensor-based control to help reduce energy use while supporting code-compliant lighting strategies.
What lighting control method does this sensor support?
This model is built to work with 0-10V dim-to-off LED drivers. Its dimming output is rated at 4mA in sink mode and 20mA in source mode, making it suitable for low-voltage dimming control applications that use that standard.
Does this sensor use ZigBee, and what version does it support?
Yes. The EV-ZB9030A-MW is Zigbee 3.0 compliant, which helps it fit into Zigbee-based smart lighting and sensor ecosystems that support this type of device. It also supports OTA firmware upgrades and benefits from a robust mesh network architecture.
How does this model detect occupancy?
This sensor uses microwave motion detection and includes dual antennas for longer detection coverage. It also has a red status indicator that flashes when motion is detected.
Is this sensor suitable for indoor environments?
Yes, this model is intended for indoor applications. Its stated operating temperature range is 0°C to 40°C, which makes it appropriate for typical conditioned interior spaces.
What power input does the EV-ZB9030A-MW require?
The sensor operates on 12/24 VDC input voltage. Its current consumption is listed as less than 30mA when the dimming method is set to sink.
How does this model compare with a basic standalone motion sensor?
Compared with a basic motion-only sensor, this model adds Zigbee 3.0 wireless capability, daylight harvesting, and support for 0-10V dim-to-off LED drivers. That makes it a better fit for smart commercial lighting control where energy savings, automation, and platform compatibility matter.
