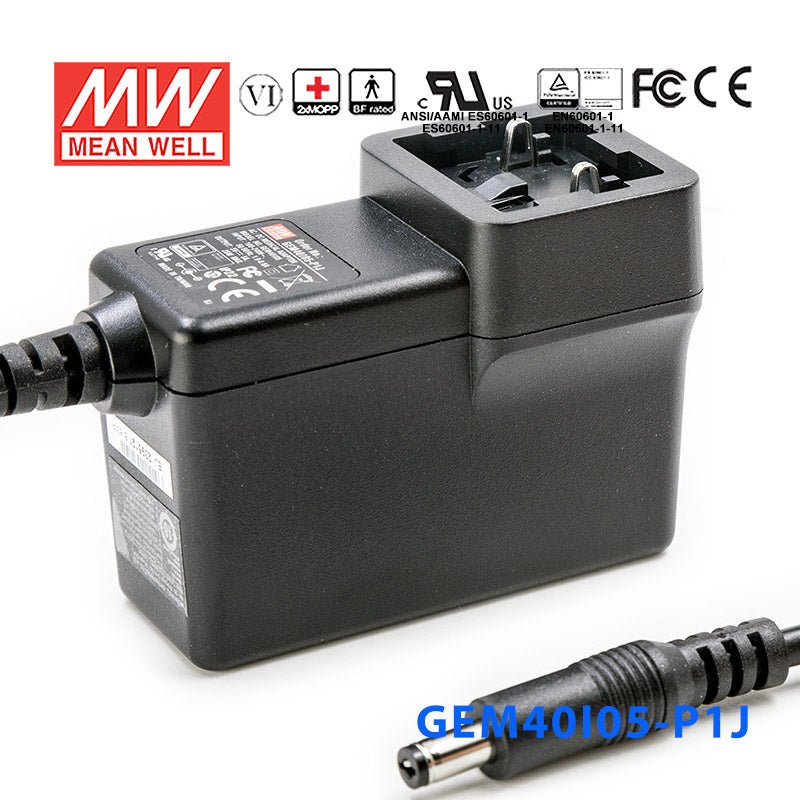

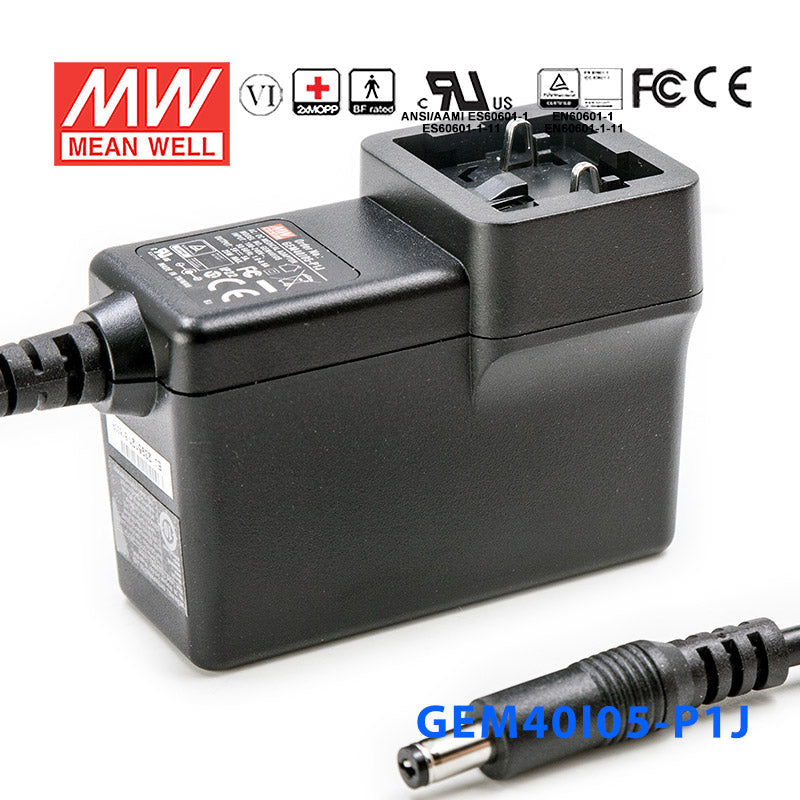

Mean Well GEM40I05-P1J Power Supply 25W 5V

Q: Can I use the GEM40I05-P1J for a 5V embedded controller or single-board computer?

Yes, if the device requires a constant-voltage 5V input and draws no more than 5A. With a 25W output rating, it is a practical fit for 5V embedded electronics that need more current than lower-power adapters provide.

Q: Is this power supply suitable for 5V logic hardware in an industrial cabinet?

It can be used for 5V logic hardware, controller boards, or interface electronics that stay within the 5A limit. The constant-voltage output is appropriate for equipment that expects a fixed 5V DC rail.

Q: Can this model power a 5V automation gateway or IT edge device?

Yes, for compact gateways, edge controllers, or other 5V electronics that consume up to 25W. The 80-264VAC input also supports deployments where AC source conditions vary by region.

Q: Is the GEM40I05-P1J appropriate for indoor cabinets with low or high ambient temperatures?

The specified operating temperature range is -25°C to +70°C, which covers a broad range of indoor equipment environments. The provided specs do not show an IP rating, so suitability for exposed outdoor, wet, or washdown locations is not defined.

Q: How do the GEM40I05-P1J sibling versions differ?

The listed siblings are GEM40I05-P1J-欧套, GEM40I05-P1J-混套, GEM40I05-P1J-澳套, GEM40I05-P1J-美套, and GEM40I05-P1J-英套. The base specs provided here are 25W, 5V, 5A, constant-voltage operation, 80-264VAC input, 75.5 × 56.2 × 39.1 mm dimensions, -25°C to +70°C operation, and a 3-year warranty.

SKU:

GEM40I05-P1J

$29.74 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Interchangeable AC plugs (plug kit sold separately)

Medical safety approved(2 xMOPP) according to 60601-1

Extremely low leakage current

No-load power consumption <0.1W

Energy efficiency Level VI

-25 ~ +70°C wide range working temperature

Class II power (without earth pin)

Protections: Short circuit/ Overload/ Over voltage

Fully enclosed plastic case

3 years warranty

General Specification

AC input voltage range	80~264VAC
AC inrush current (max.)	Cold start, 30A / 115VAC; 65A / 230VAC
Setup, rise, hold up time	500ms, 30ms, 16ms at 230VAC input
Overload protection	105 ~ 160% rated output power; Hiccup mode, auto-recovery
Over-voltage protection	110%~140% rated output voltage
Withstand voltage	I/P-O/P:5656VDC
Working temperature	-25~+70°C (refer to output derating curve)
Safety standards	TUV BS EN/EN60601-1/BS EN/EN60601-1-11,ANSI/ AAMI ES60601-1/ES60601-1-11(3.1 version), CAN/CSA-C22 NO. 60601-1 3 edition, EAC TP TC 004 approved
EMC standards	EN55011 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Length of output cable	UL2468 22AWG 1200mm for 5-9V, UL2468 18AWG 1800mm for 12-24V
Dimension (LxWxH)	75.5x 39.1x 56.2 mm
Standard DC plug	P1J: 2.1ID x 5.5OD x 11L, tuning fork type

Specifications

Brand

Mean Well
Series

GEM Series
Power Rating

25 Watt
Output Voltage

5 Volt
Rated Current

5 Ampere
Input Voltage

80V~264V
No of Output

1
Dimming Control

None
Standards Met

CB,CE,EAC,FCC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-25°C~70°C
Warranty

3 Year
Length

2.97 in
Width

2.21 in
Height

1.54 in
Weight

0.44 lb
