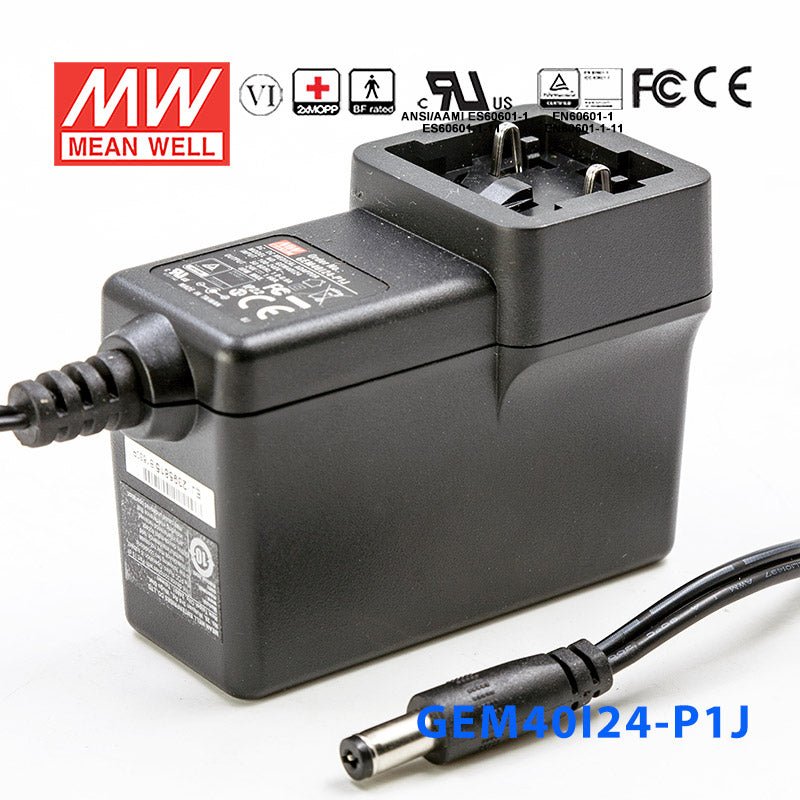

Mean Well GEM40I24-P1J Power Supply 40W 24V

Q: Can I use the GEM40I24-P1J for a 24V PLC, relay, or automation control load?

Yes, if the load is designed for constant 24V DC and stays within 1.66A. With a 40W rating, this model fits lower-power 24V industrial control applications that do not need higher current.

Q: Is this a fit for 24V sensors, industrial gateways, or embedded automation electronics?

It can be a fit for 24V DC electronics when the total current stays at or below 1.66A. The constant voltage output is intended for equipment that expects a fixed 24V supply.

Q: Can the GEM40I24-P1J power a compact 24V HMI or industrial networking device?

It can, provided the device uses 24V DC and the total power stays within 40W. At 24V output and 1.66A maximum current, it is better suited to compact control and communication loads than to heavier 24V equipment.

Q: How should I size a 24V load against this power supply?

Your 24V load should remain within 1.66A maximum output current and 40W total power. If the planned equipment exceeds either of those values, you need a higher-capacity 24V model.

Q: Can this 24V model be used where temperatures vary widely?

The specified operating temperature range is -25°C to +70°C, so it covers a broad temperature window. The provided specs do not state an IP rating, so environmental sealing against water or dust is not defined.

SKU:

GEM40I24-P1J

$29.74 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Interchangeable AC plugs (plug kit sold separately)

Medical safety approved(2 xMOPP) according to 60601-1

Extremely low leakage current

No-load power consumption <0.1W

Energy efficiency Level VI

-25 ~ +70°C wide range working temperature

Class II power (without earth pin)

Protections: Short circuit/ Overload/ Over voltage

Fully enclosed plastic case

3 years warranty

General Specification

AC input voltage range	80~264VAC
AC inrush current (max.)	Cold start, 30A / 115VAC; 65A / 230VAC
Setup, rise, hold up time	500ms, 30ms, 16ms at 230VAC input
Overload protection	105 ~ 160% rated output power; Hiccup mode, auto-recovery
Over-voltage protection	110%~140% rated output voltage
Withstand voltage	I/P-O/P:5656VDC
Working temperature	-25~+70°C (refer to output derating curve)
Safety standards	TUV BS EN/EN60601-1/BS EN/EN60601-1-11,ANSI/ AAMI ES60601-1/ES60601-1-11(3.1 version), CAN/CSA-C22 NO. 60601-1 3 edition, EAC TP TC 004 approved
EMC standards	EN55011 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Length of output cable	UL2468 22AWG 1200mm for 5-9V, UL2468 18AWG 1800mm for 12-24V
Dimension (LxWxH)	75.5x 39.1x 56.2 mm
Standard DC plug	P1J: 2.1ID x 5.5OD x 11L, tuning fork type

Specifications

Brand

Mean Well
Series

GEM Series
Power Rating

40 Watt
Output Voltage

24 Volt
Rated Current

1.66 Ampere
Input Voltage

80V~264V
No of Output

1
Dimming Control

None
Standards Met

CB,CE,EAC,FCC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-25°C~70°C
Warranty

3 Year
Length

2.97 in
Width

2.21 in
Height

1.54 in
Weight

0.44 lb
