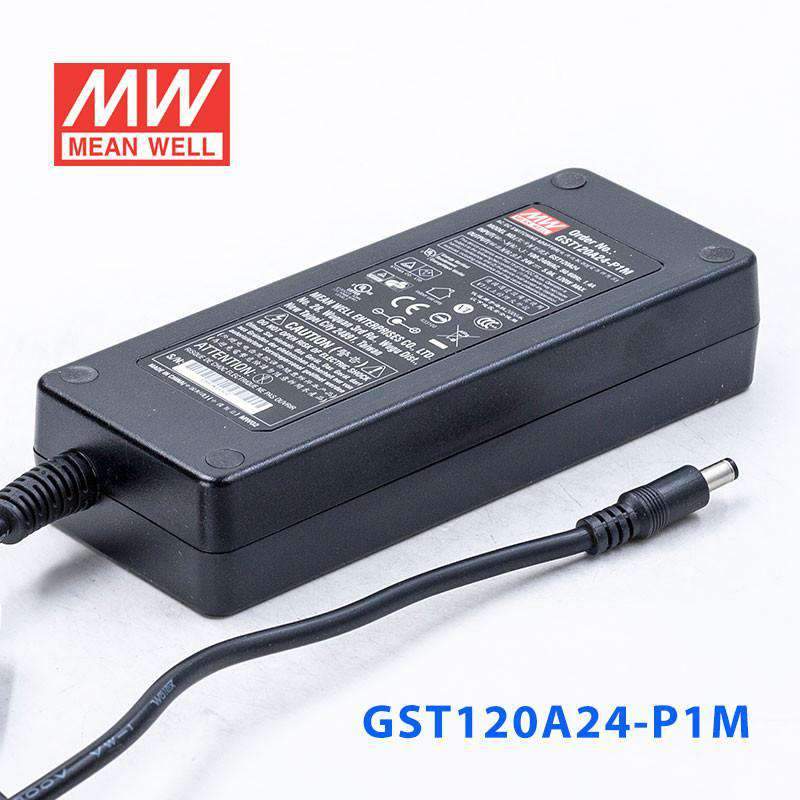

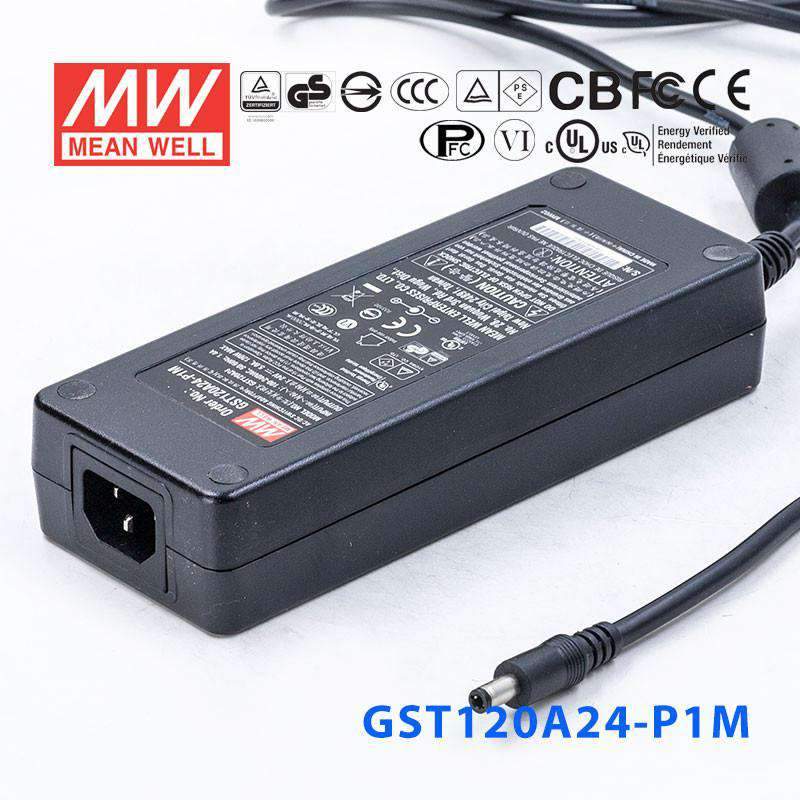

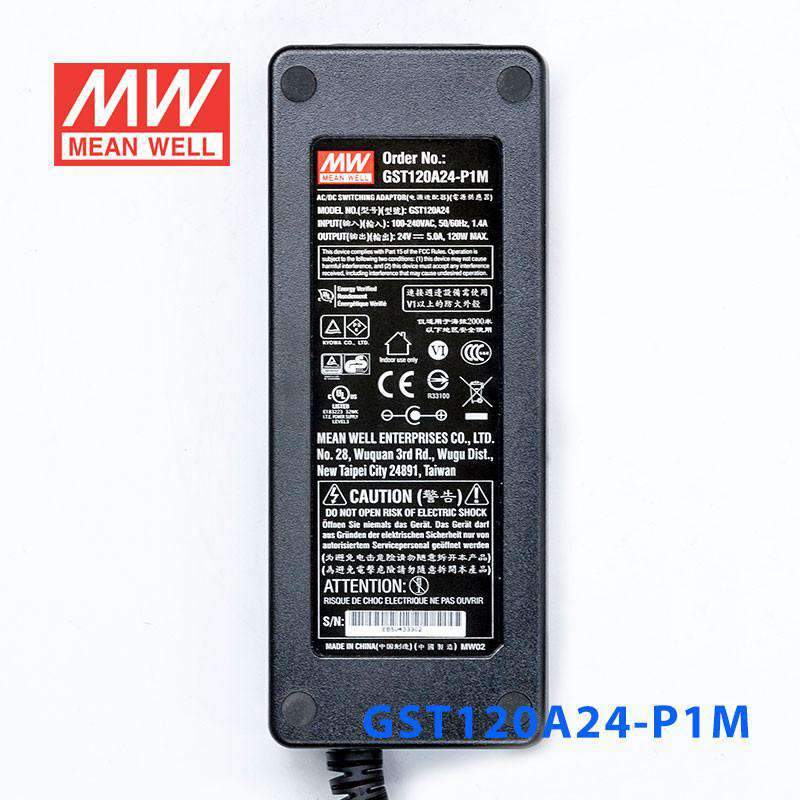

Mean Well GST120A24-P1M AC-DC Single Output Desktop

Q: Can I use the GST120A24-P1M for a 24V PLC, controller, or automation device?

Yes, this unit is a constant voltage 24V model with up to 5A output current. That makes it a reasonable fit for 24V industrial control or automation equipment that stays within a 120W load requirement.

Q: Is this a good power supply for 24V sensors, gateways, or embedded hardware?

It can be used with 24V embedded or automation hardware that is specified for constant voltage DC input. The available output is 24V at up to 5A, with a total power rating of 120W.

Q: Can the GST120A24-P1M power 24V lab or industrial communication equipment?

It is suitable for 24V communication, monitoring, or lab equipment when the device expects a regulated 24V constant voltage source. The 85-264VAC input range is also useful where AC supply conditions vary across sites.

Q: How does the GST120A24-P1M compare with the GST120A24-R7B?

The sibling information provided lists both models at 120W, 24V, and 5A. On the published electrical specifications shown here, they match.

Q: Can I use the GST120A24-P1M in cold rooms, warm plant areas, or other temperature-variable indoor spaces?

The specified operating temperature range is -30°C to +70°C, so the unit is rated for a wide indoor temperature span. The data provided does not include an IP rating, so temperature range alone should not be treated as proof of outdoor or washdown suitability.

SKU:

GST120A24-P1M

$38.35 USD ~~$46.85~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range

No load power consumption < 0.15W

Energy Efficiency Level VI

Meet EISA 2007 (Energy Independence and Security Act)

NRCan compliant

MEPS compliant

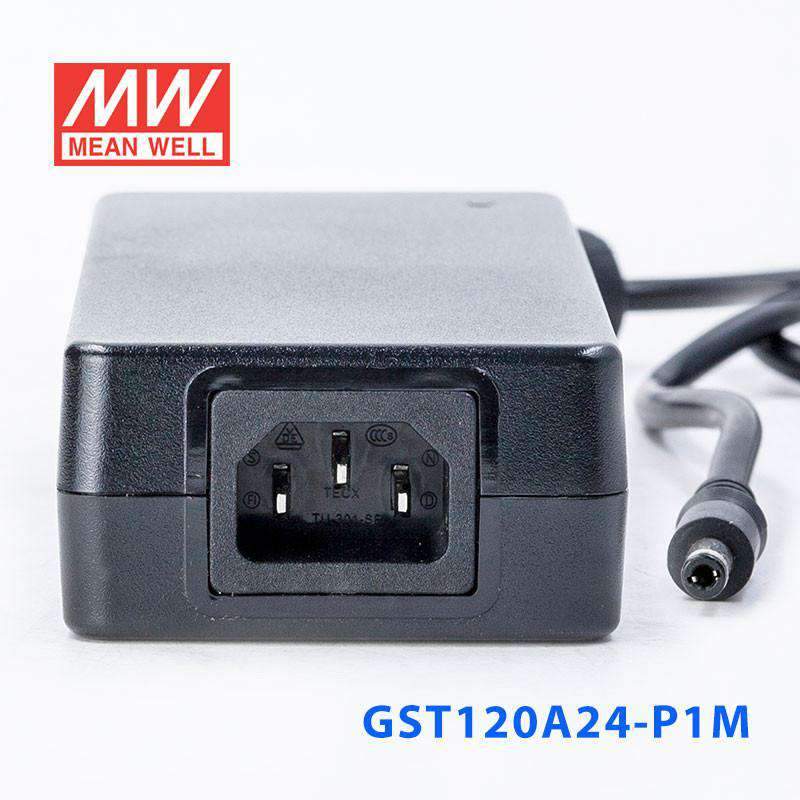

3 pole AC inlet IEC320-C14

Class I power (with earth pin) only

Protections: Short circuit /Overload / Over voltage/Over temperature

Fully enclosed plastic case

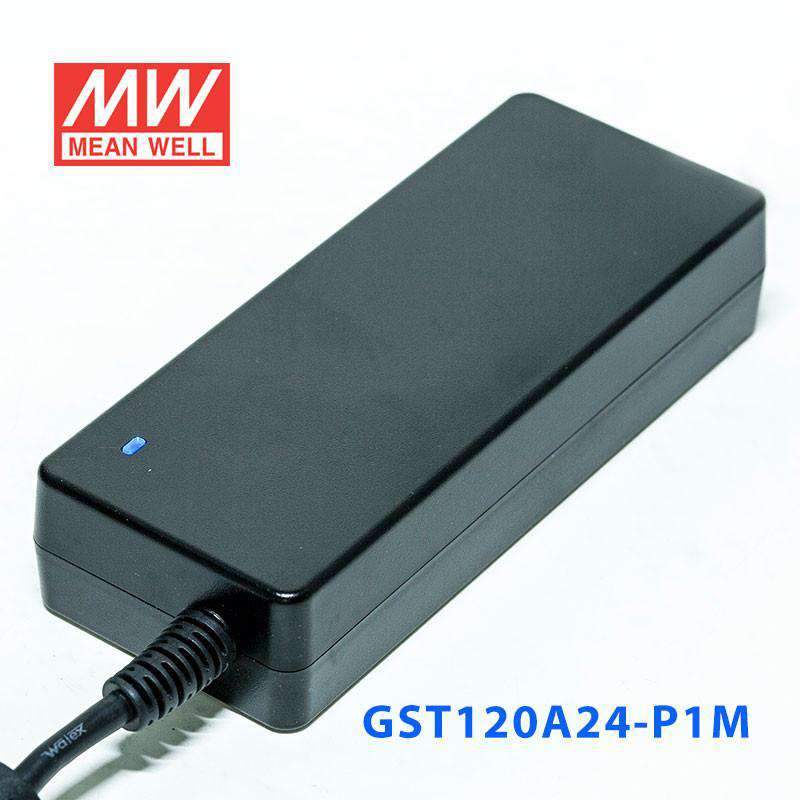

LED indicator for power on

Built-in active PFC function

3 years warranty

General Specification

AC input voltage range	85~264VAC 120~370VDC
AC inrush current (max.)	Cold start, 70A at 230VAC
Overload protection	110%~160% rated output voltage, hiccup mode, auto-recovery
Over voltage protection	105%~135% rated output voltage
Withstand voltage	I/P-O/P: 3kVAC
Working temperature	-40~+85°C (refer to output derating curve )
Safety standards	UL60950-1,TUV EN60950-1, BSMI CNS14336, CCC GB4943,J60950-1 approved
EMC standards	EN55022 class B, EN61000-3-2,3, FCC part 15 /CISPR22 class B, CNS13438 class B,GB9254,GB17625.1
Length of output cable	120cm of UL2464, 18AWGx4C
Dimension (LxWxH)	167x 67x 35mm
Standard DC plug	2.5ID x 5.5OD x 11L, tuning fork type

Specifications

Brand

Mean Well
Series

GST Series
Power Rating

120 Watt
Output Voltage

24 Volt
Rated Current

5 Ampere
Input Voltage

85V~264V
No of Output

1
Dimming Control

None
Standards Met

BSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

6.57 in
Width

2.64 in
Height

1.38 in
Weight

1.37 lb
