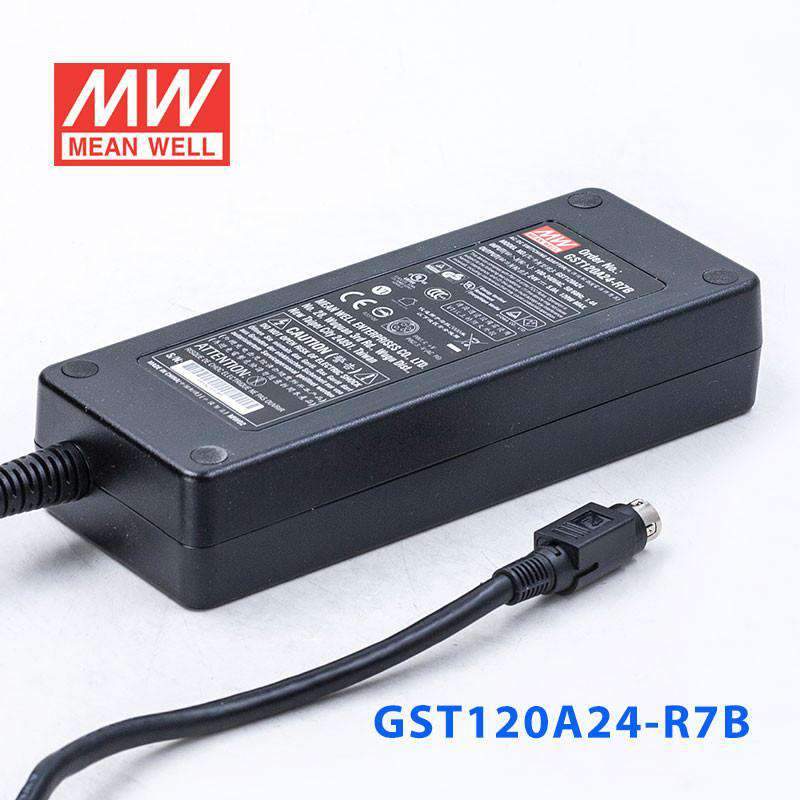

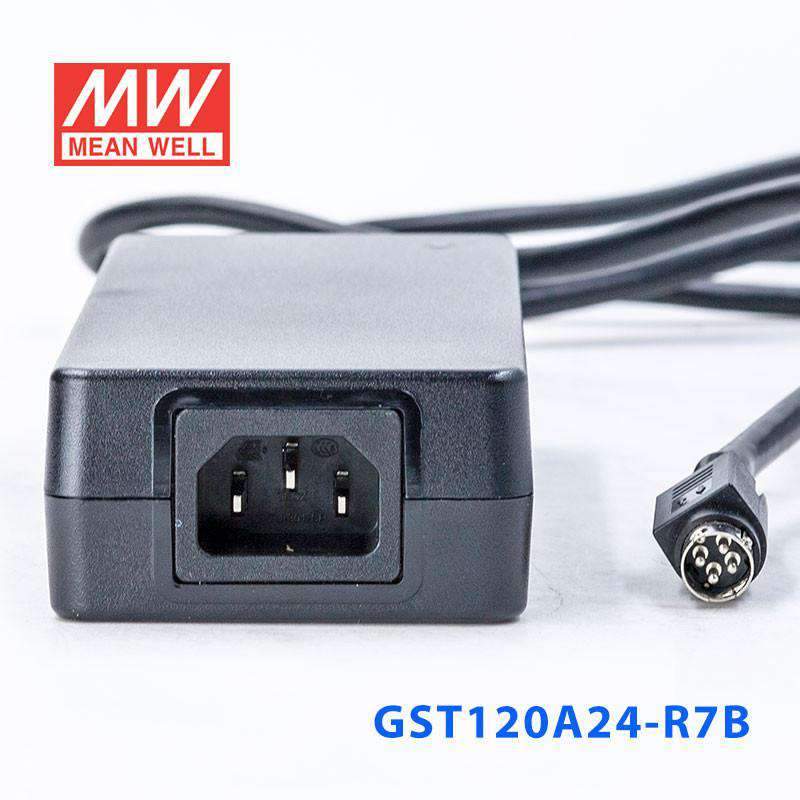

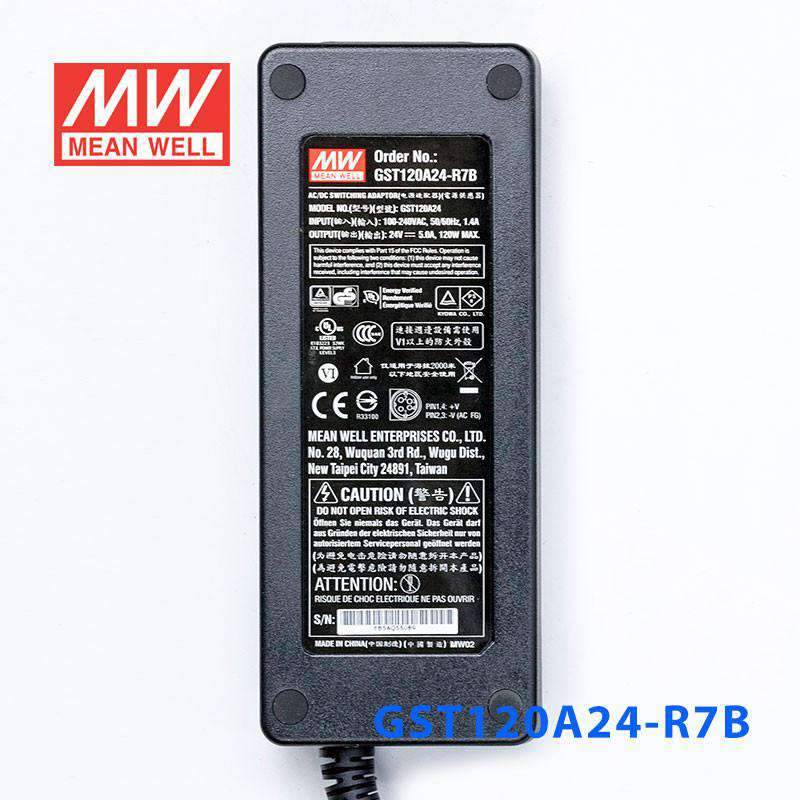

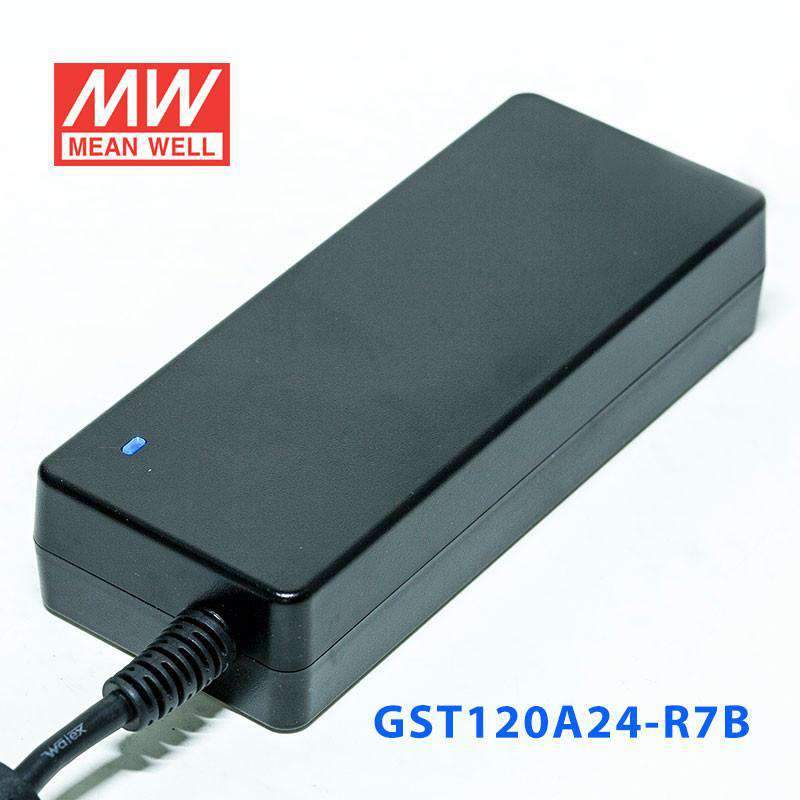

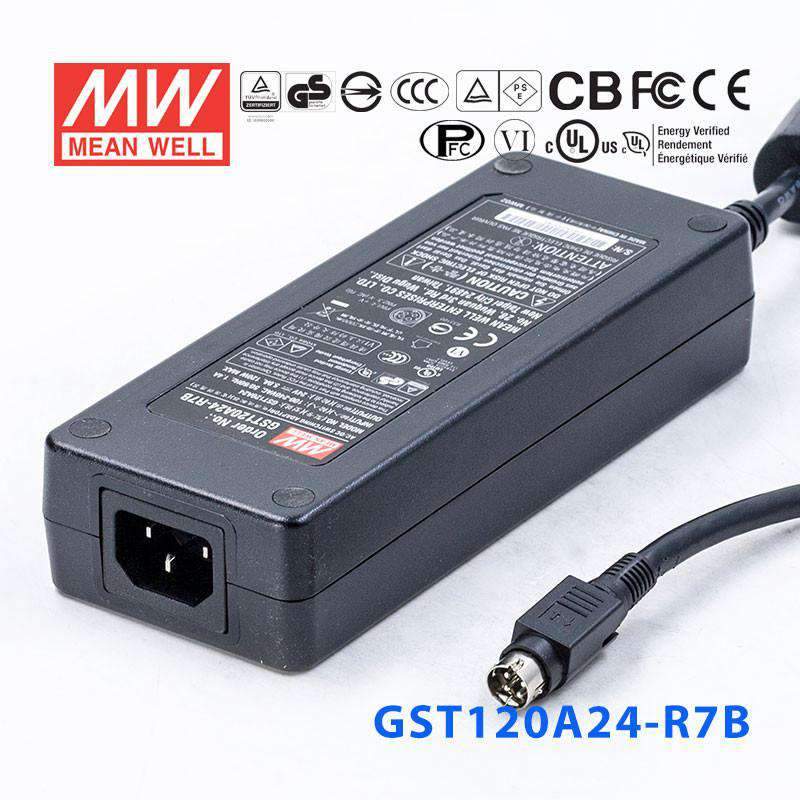

Mean Well GST120A24-R7B Power Supply 120W 24V
Description
Description
The GST120A24 is a 120W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGST Series
-
Power Rating120 Watt
-
Output Voltage24 Volt
-
Rated Current5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length6.57 in
-
Width2.64 in
-
Height1.38 in
-
Weight1.37 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GST120A24-R7B for a 24V industrial control panel or automation system?
Yes, if the load requires constant voltage 24V input, this model is aligned with that requirement. It provides up to 5A at 24V with a total output rating of 120W.
Is the GST120A24-R7B suitable for 24V monitoring, signaling, or embedded control equipment?
It can be a fit for 24V monitoring or embedded control devices that expect a regulated constant voltage supply. The available output is 24V and 5A, so the connected equipment needs to remain within a 120W budget.
Can this model be used for 24V industrial networking or edge devices?
It is appropriate for 24V industrial networking or edge hardware when the product input requirement is 24V constant voltage DC. The 85-264VAC input range also supports use in facilities with different AC mains standards.
What is the difference between the GST120A24-R7B and GST120A24-P1M?
The sibling specs shown for these two models are the same: 120W, 24V, and 5A. Based on the provided series data, there is no published difference in output rating.
Is the GST120A24-R7B suitable for outdoor use?
The product specs list an operating temperature range of -30°C to +70°C, which supports a broad temperature window. No IP rating is included here, so the provided data does not confirm protection for direct outdoor, wet, or dusty exposure.
Other GST120 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well GST120A24-P1M AC-DC Single Output Desktop | 120W | 24V | 5A | Indoor | $45.39 | View |
| Mean Well GST120A48-P1M AC-DC Single Output Desktop | 120W | 24V | 31A | Indoor | $46.85 | View |
| Mean Well GST120A48-R7B Power Supply 120W 48V | 120W | 48V | 2.5A | Indoor | $46.85 | View |
| Mean Well GST120A15-R7BPower Supply 105W 15V | 105W | 15V | 7A | Indoor | $46.85 | View |
| Mean Well GST120A20-P1M Desktop AC Adapters 120W 20V 6A Level VI 2.5x5.5plug | 120W | 20V | 6A | Indoor | $46.85 | View |
