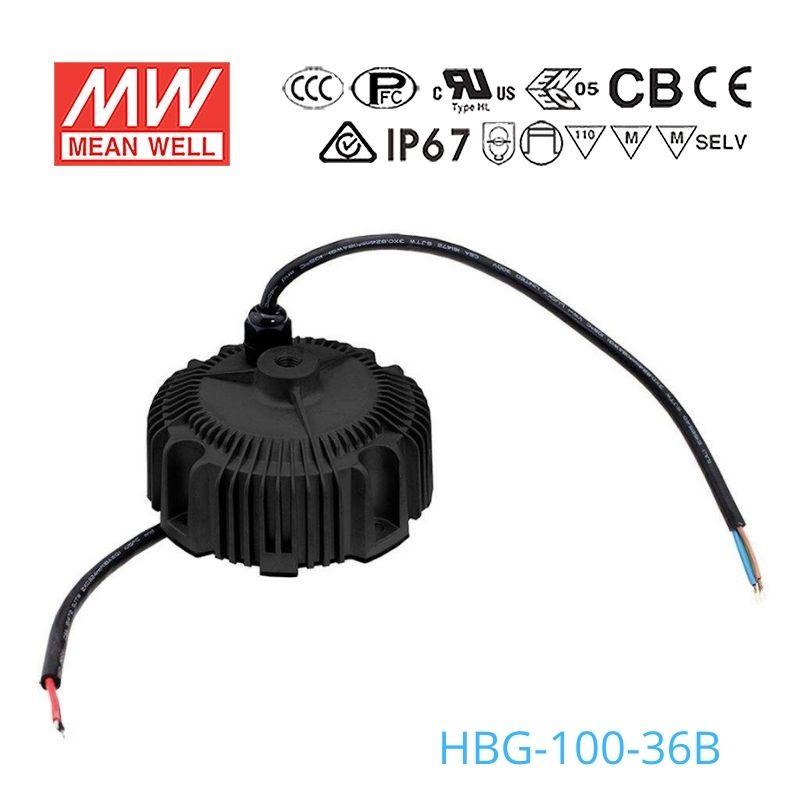

Mean Well HBG-100-36B Power Supply 100W 36V - Dimmable
Description
Description
Features
| Constant current mode output |
| Circular plastic housing with class II design |
| Built-in active PFC function |
| Class 2 power unit |
| Typical lifetime>50000 hours |
| 5 years warranty |
General Specification
| AC input voltage range | 90~305VAC 127~431VDC |
| AC inrush current (max.) | Cold start, 60A at 230VAC |
| DC adjustment range | 65%~100% rated current |
| Over current protection | 95 ~ 108%; Constant current limiting |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
| Working temperature | -40~+85°C |
| Safety standards | UL8750, CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1,BS EN/EN61347-2-13 independent, BS EN/EN62384; GB19510.14, GB19510.1, EAC TP TC 004 approved |
| EMC standards | EN55015, EN61000-3-2 Class C, EN61000-4-2,3,4,5,6,8,11, |
| Connection | SJTW 18AWG/SVT 18AWG |
| Dimension (DxH) | φ130x66.5 |
| Packing | 1.18Kg; 12pcs/15.7Kg/1.43CUFT(Blank/A/B Type),1.89CUFT(E Type) |
Specifications
Specifications
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating97.2 Watt
-
Output Voltage37 Volt
-
Rated Current2.7 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.12 in
-
Width5.12 in
-
Height2.62 in
-
Weight2.6 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HBG-100-36B for LED downlights that need constant current?
Yes, this model is a constant current LED driver with a 21-36V CC output range and 97.2W power. It fits LED downlights designed to run from a constant current source within that voltage window, rather than constant voltage products.
Is the HBG-100-36B suitable for signage modules or small LED arrays?
It can work for signage modules or small LED arrays if the load is built for constant current operation and falls within the 21-36V CC range. The exact number of LEDs depends on the forward voltage of each LED, so the load has to be matched by voltage range, not by a fixed LED count.
Can this driver be used in wet or exposed outdoor lighting locations?
The HBG-100-36B is rated IP67, so it is suited to environments where waterproof protection is needed. It is also specified for -40°C to +85°C operation, which supports use in demanding outdoor conditions within that temperature range.
Is the HBG-100-36B a good fit for round high bay or low bay LED fixtures?
Yes, its circular shape and 97.2W rating align with high bay and low bay fixture designs that use a constant current driver. The LED load still needs to match the 21-36V CC range, since this is not a constant voltage supply.
How does the HBG-100-36B compare with other HBG-100 output options?
Within the HBG-100 family, 24V versions are 96W with 4mA and a 14-24V CC range, 36V versions are 97.2W with 2.7mA and a 21-36V CC range, 48V versions are 96W with 2mA and a 28-48V CC range, and 60V versions are 96W with 1.6mA and a 36-60V CC range. The HBG-100-36B sits in the 36V group, alongside other 36-series variants that share the same electrical class.
