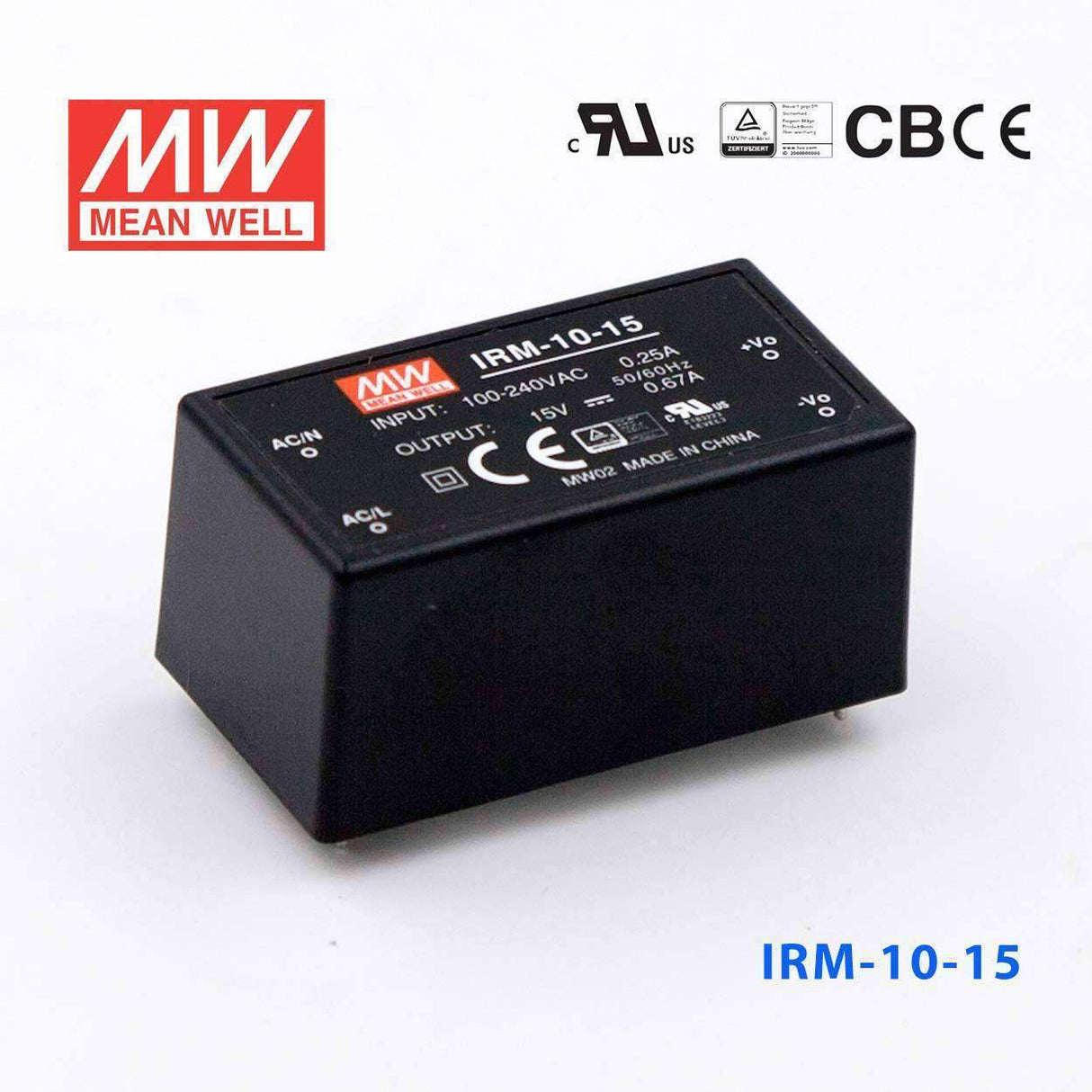

Mean Well IRM-10-15 Switching Power Supply 10.05W 15V 0.67A - Encapsulated
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well IRM-10-15 Switching Power Supply 10.05W 15V 0.67A - Encap...
Description
Description
Features
| Universal AC input / Full range |
| No load power consumption < 0.1W |
| Protections: Short circuit / Overload / Over voltage |
| Miniature size, high power density |
| Cooling by free air convection |
| Isolation class II |
| Fully isolated plastic case |
| Withstand 5G vibration test |
| Low cost, high reliability |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC; 120~370VDC |
| AC inrush current (max.) | Cold start, 20A at 115VAC, 40A at 230VAC |
| Setup, rise, hold up time | 600ms, 30ms, 30ms |
| Overload protection | 115%~190% |
| Over voltage protection | 115%~135% rated output voltage |
| Withstand voltage | I/P-O/P: 3kVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Leakage current | Less than 0.75mA at 240VAC |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Connection | 4 industrial pins |
| Dimension (LxWxH) | 45.7x 25.4x 21.5 |
| Vibration | 10~500Hz, 5G 10min./1 cycle, period for 60 min. each along X, Y, Z axes |
Specifications
Specifications
-
BrandMean Well
-
SeriesIRM Series
-
Power Rating10.05 Watt
-
Output Voltage15 Volt
-
Rated Current0.67 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSMI,CB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1.8 in
-
Width1 in
-
Height0.85 in
-
Weight0.07 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the IRM-10-15 for a 15V HMI, controller, or industrial interface board?
Yes, if the load requires a constant 15V output and remains within 10.05W and 0.67A. That makes it suitable for higher-demand 15V control electronics than the smaller IRM-05-15.
Is the IRM-10-15 suitable for a compact automation subsystem that needs more 15V capacity?
It can be a fit when a compact PCB-mounted supply is needed but the load is above 4.95W. This model provides 15V at up to 0.67A in the same 45.7 × 25.4 × 21.5 mm encapsulated package format.
Can this power supply run a low-power 15V measurement or communications module?
Yes, as long as the module uses constant-voltage 15V DC and does not exceed 0.67A or 10.05W. The 85-305VAC input range also supports use in equipment intended for multiple AC mains environments.
What is the difference between the IRM-10-15 and the other IRM-10 models?
The IRM-10 family includes IRM-10-3.3 at 8.25W, 3.3V, 2.5A; IRM-10-5 at 10W, 5V, 2A; IRM-10-12 at 10.2W, 12V, 0.85A; IRM-10-15 at 10.05W, 15V, 0.67A; and IRM-10-24 at 10.08W, 24V, 0.42A. The IRM-10-15 is the 15V option in that series, trading voltage against available current within roughly the same power class.
Is the IRM-10-15 suitable for outdoor use or hot and cold environments?
Its operating temperature range is -40°C to +85°C, so it is specified for a wide temperature span in protected equipment. No IP rating is listed, so it should not be treated as an exposed outdoor supply and is better suited to enclosed installations.
