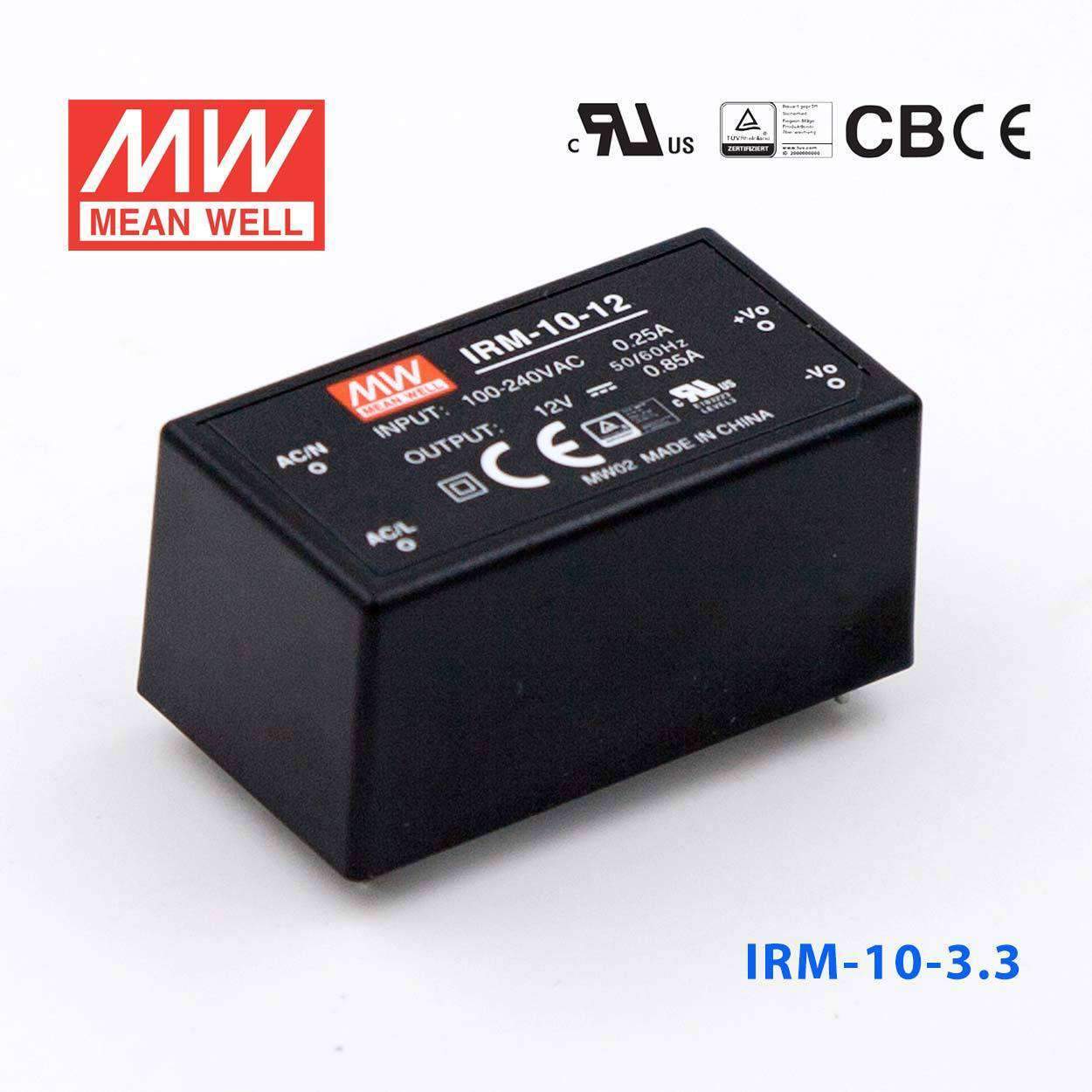

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well IRM-10-3.3 Switching Power Supply 8.25W 3.3V 2.5A - Encap...
The IRM-10 is a 10W Mean Well power converter (input range: 85~305VAC).
Key Features
- ✓ Input voltage range: 85~305VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: WITHSTAND VOLTAGE IEC62368-1, UL62368-1, TUV EN62368-1, EAC TP TC 004, BSMI CNS14336 -1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesIRM Series
-
Power Rating8.25 Watt
-
Output Voltage3.3 Volt
-
Rated Current2.5 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSMI,CB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1.8 in
-
Width1 in
-
Height0.85 in
-
Weight0.07 lb
::specification::
Frequently Asked Questions
What output does the Mean Well IRM-10-3.3 provide?
The IRM-10-3.3 is a 3.3V AC/DC switching power supply rated for 2.5A output current. Its maximum power rating is 8.25W, making it suitable for low-power embedded and PCB-based equipment that requires a regulated 3.3V supply.
What input voltage range does the IRM-10-3.3 support?
This model accepts a universal AC input range of 85 to 264VAC and also supports 120 to 370VDC input. That wide range helps it fit equipment intended for different regional mains standards without needing a separate input-specific version.
What kinds of applications is the IRM-10-3.3 best suited for?
The IRM-10-3.3 is designed for compact, board-level AC/DC power conversion in space-constrained equipment. Its encapsulated construction, miniature size, and 3.3V output make it a practical option for industrial electronics, control boards, and other low-power OEM applications.
What protection features are included in the Mean Well IRM-10-3.3?
This power supply includes short circuit, overload, and over voltage protection. The listed overload protection range is 115% to 190%, and over voltage protection is specified at 115% to 135% of rated output voltage.
How does the IRM-10-3.3 compare with larger open frame power supplies?
The IRM-10-3.3 is intended for lower-power applications where compact size and PCB integration matter more than higher wattage. Compared with larger open frame supplies, it offers a much smaller 45.7 x 25.4 x 21.5 mm form factor and 8.25W output, which is better suited to compact embedded designs.
Is the IRM-10-3.3 designed for low standby power and passive cooling?
Yes. Mean Well specifies no-load power consumption below 0.1W, and the unit is cooled by free air convection, so it does not require active fan cooling under normal operating conditions.
