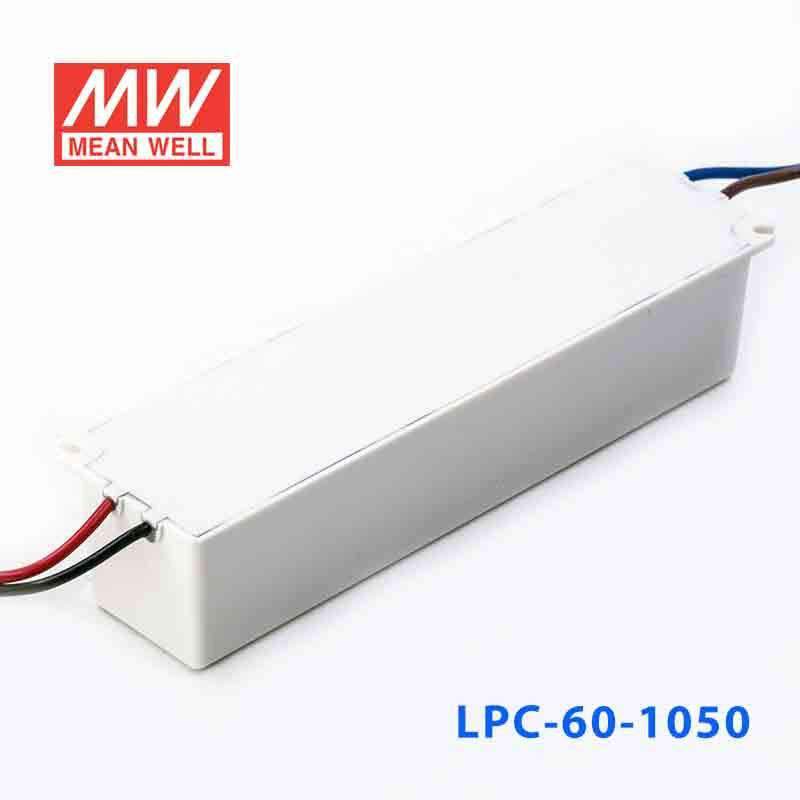

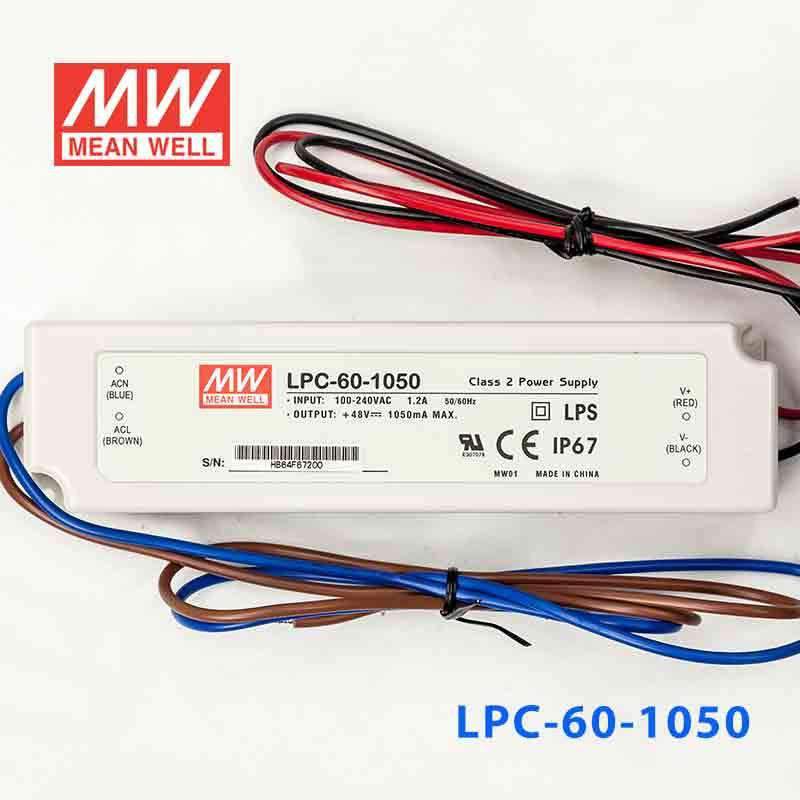

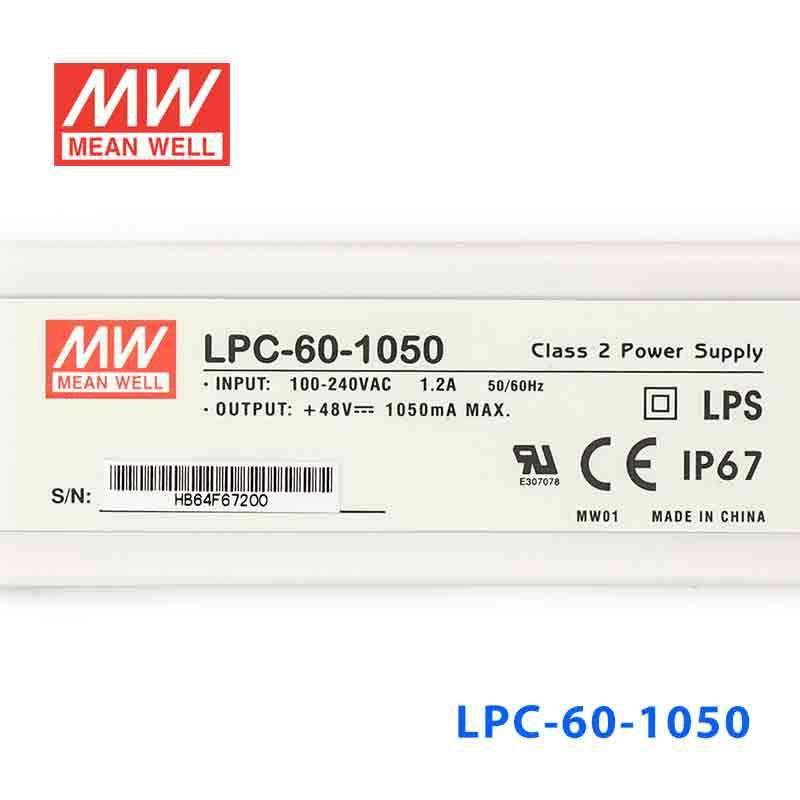

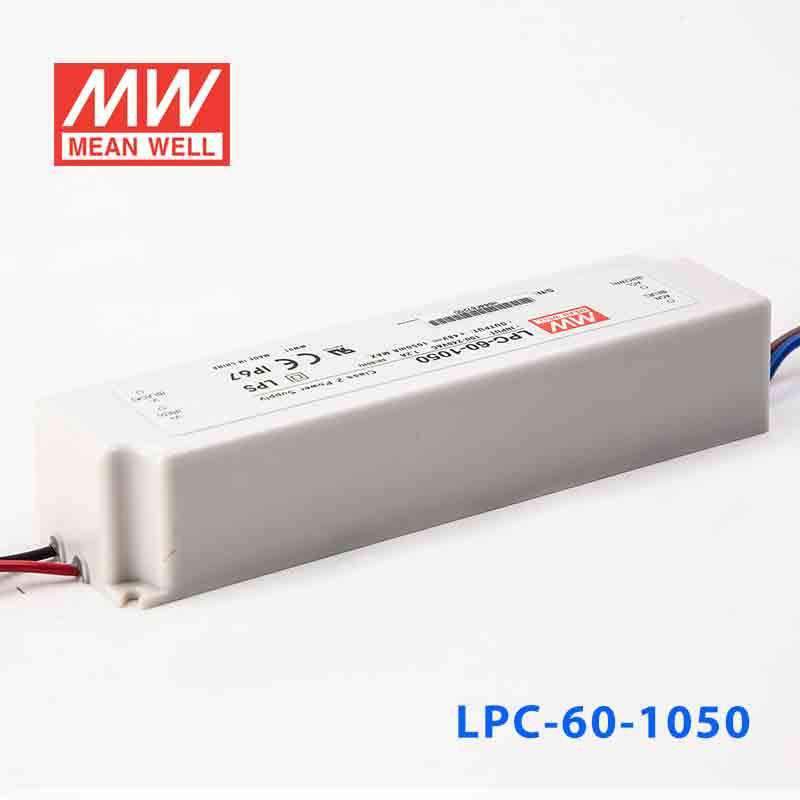

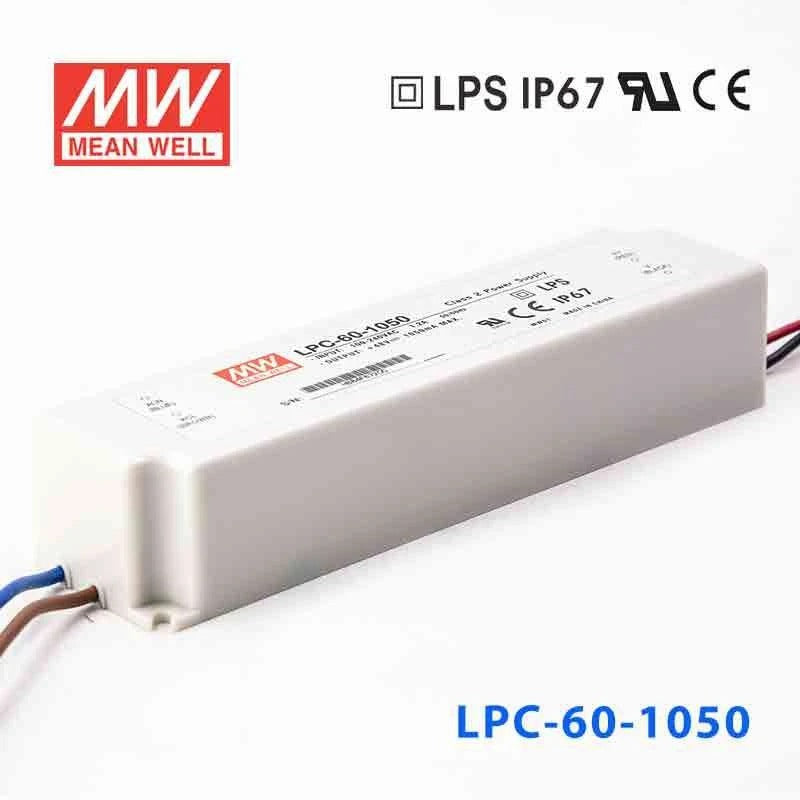

Mean Well LPC-60-1050 Power Supply 60W 1050mA
Description
Description
Features
| 90~264VAC input |
| Fully encapsulated with IP67 level |
| Protections: Short circuit / Over voltage |
| Constant current design (C.C. mode) |
| Withstand 300VAC surge input for 5 seconds |
| Class 2 power unit / Pass LPS |
| Isolation class II, no F.G. |
| Cooling by free air convection |
| 100% full load burn-in test |
| Low cost, high reliability |
| Suitable for LED-based decorative/architectural lighting, LED stage and theater lighting, and LED electronic displays |
| 2 years warranty |
General Specification
| AC input voltage range | 90~264VAC |
| AC inrush current | Cold start, 60A at 230VAC |
| Over voltage protection | 105%~135% rated output voltage |
| Withstand voltage | I/P-O/P: 3kVAC |
| Working temperature | -30~+70°C |
| Vibration | 10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes |
| Safety standards | LPC-20: UL1310, UL879, TUV EN60950-1 approved, LPC-35/60: UL1310 approved, LPC-150: Design refer to IEC60950-1 |
| EMC standards | EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 |
| Connection Input | UL rated, 18AWGx2C (60cm) |
| Connection Output | UL rated, 16AWGx2C (60cm) |
| Dimension (LxWxH)(mm) | 162x 42x 30 |
Specifications
Specifications
-
BrandMean Well
-
SeriesLPC Series
-
Power Rating50.4 Watt
-
Output Voltage48 Volt
-
Rated Current1.05 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,CSA,EAC,UL
-
Operation ModeConstant Current
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length6.4 in
-
Width1.67 in
-
Height1.26 in
-
Weight0.88 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LPC-60-1050 for a higher-output LED downlight?
Yes, if the downlight is a constant current design that requires 1050mA. This model covers a 9-48V CC range and up to 50.4W, so it fits higher-output downlights that need more power than a 31.5W or 33.6W driver.
Is the LPC-60-1050 a good match for compact LED signage assemblies?
It can be, provided the signage assembly is built for constant current operation at 1050mA. The load must stay within the 9-48V output range and 50.4W maximum, and the IP67 housing supports use in signage exposed to weather.
Can the LPC-60-1050 power a small LED array with more output than a 700mA driver?
Yes, this model delivers 1050mA constant current, which is higher than a 700mA driver. It is suitable for small LED arrays that are specified for 1050mA and stay within 9-48V and 50.4W.
How do I know if the LPC-60-1050 is compatible with my LED string?
Compatibility depends on the LED string being a constant current 1050mA load with a total forward voltage inside the 9-48V CC range. The actual number of LEDs depends on each LED's forward voltage, so this should not be matched by LED count alone, and it is not a constant voltage driver.
Can the LPC-60-1050 be used in wet or cold locations?
The driver is IP67 rated and specified for -30°C to +70°C operation. That makes it suitable for demanding indoor or outdoor environments where moisture and temperature range matter.
