Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

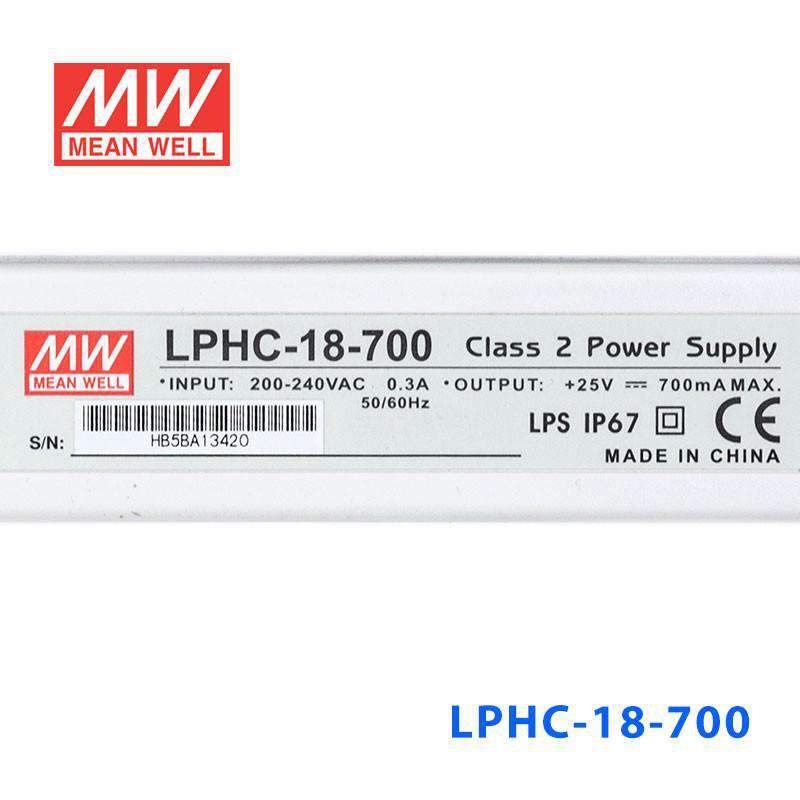

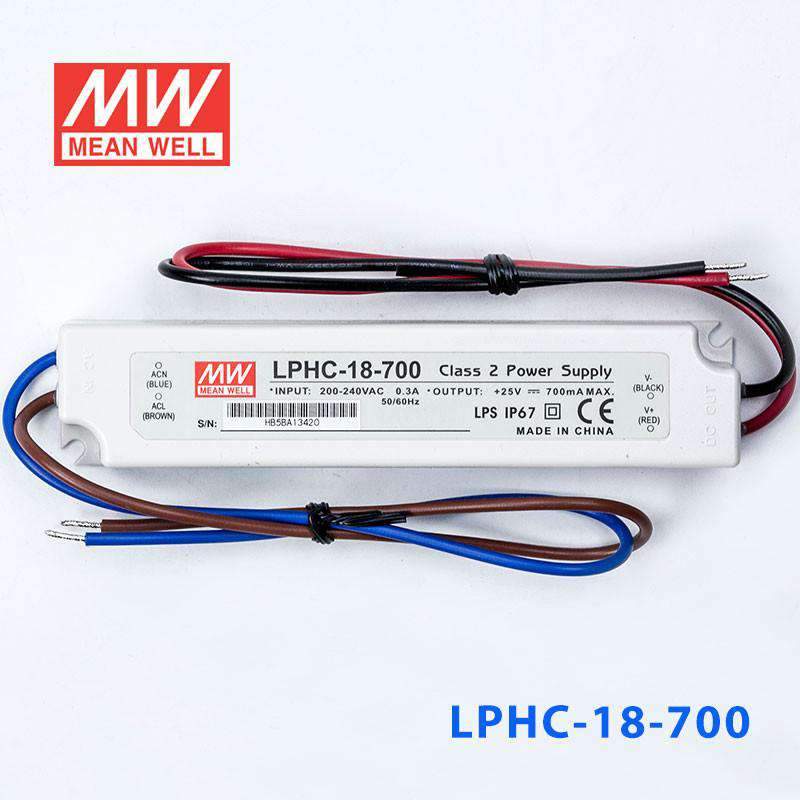

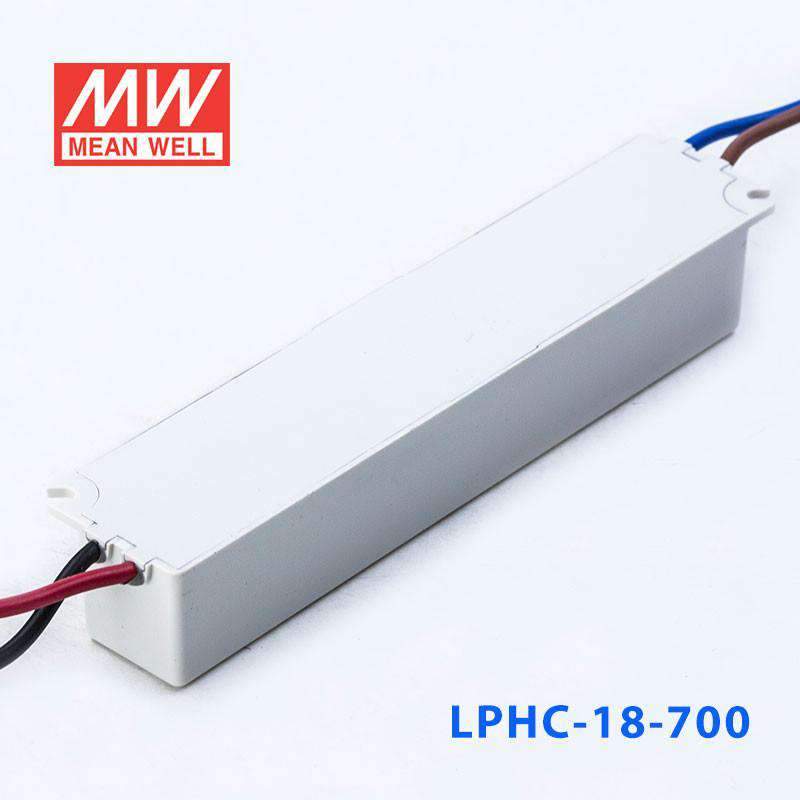

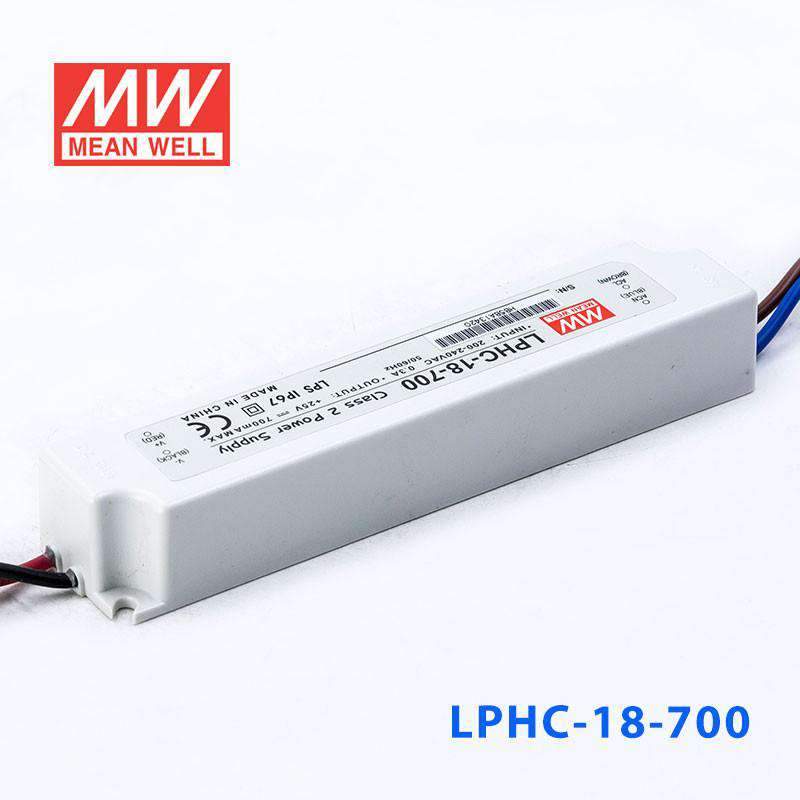

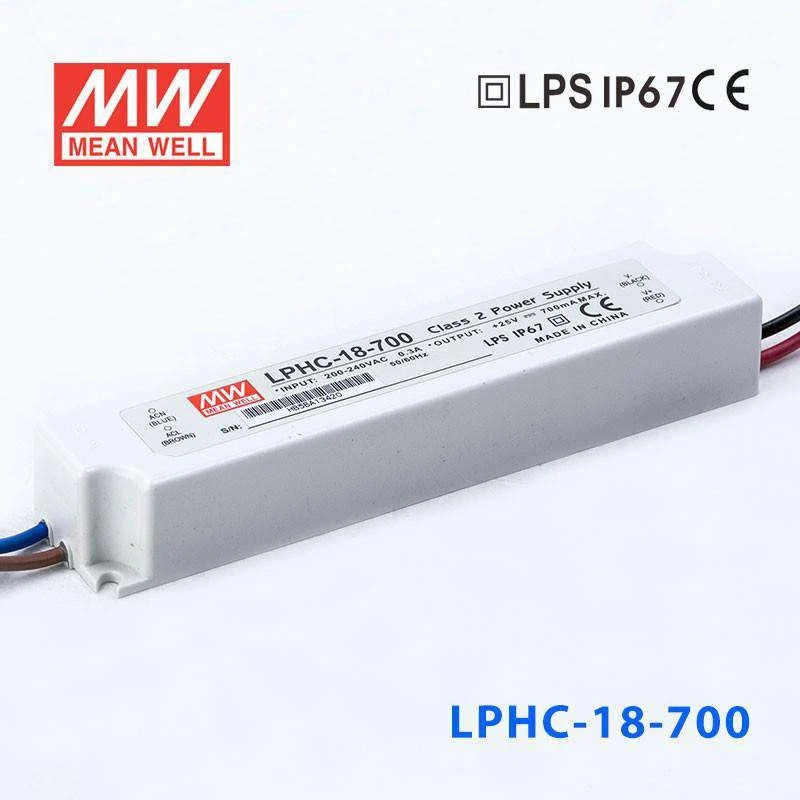

Mean Well LPHC-18-700 AC-DC Single output LED driver Constant Current

slim plastic case, economical, IP67

SKU:

LPHC-18-700

$8.26 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

180~264VAC input only

Fully encapsulated with IP67 level

Protections: Short circuit / Over voltage / Over temp.

Constant current design (C.C. mode)

Class 2 power unit / Pass LPS

Isolation class II, no F.G.

Cooling by free air convection

100% full load burn-in test

Low cost, high reliability

Suitable for LED-based decorative/architectural lighting, LED stage and theater lighting, and LED electronic displays

2 years warranty

General Specification

AC input voltage range	180~264VAC
AC inrush current	Cold start, 50A at 230VAC
Over voltage protection	105%~135% rated output voltage
Withstand voltage	I/P-O/P: 3kVAC
Working temperature	-30~+70°C
Vibration	10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes
Safety standards	Design refer to UL1310, EN60950-1
EMC standards	FCC part 15 class A (LPLC-18), EN55022 class A, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
Connection Input	UL rated, 18AWGx2C (30cm)
Connection Output	UL rated, 18AWGx2C (30cm)
Dimension (LxWxH)(mm)	140x 30x 22

Specifications

Brand

Mean Well
Series

LPHC Series
Power Rating

17.5 Watt
Output Voltage

25 Volt
Rated Current

0.7 Ampere
Input Voltage

180V~264V
No of Output

1
Dimming Control

None
Standards Met

CE,EAC
Operation Mode

Constant Current
Operating Temperature

-30°C~70°C
Warranty

2 Year
Length

5.51 in
Width

1.18 in
Height

0.87 in
Weight

0.39 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can the LPHC-18-700 run a 700mA LED downlight?

Yes, this driver is intended for constant current LED loads that require 700mA. It is suitable when the LED downlight's total forward voltage falls within the 6-25V constant current range.

Is this a good choice for signage modules or compact LED arrays that need higher current?

It can be used for signage modules or compact LED arrays that are specified for constant current operation at 700mA. The load must stay within the 6-25V constant current range, and the exact number of LEDs depends on the forward voltage of each LED.

Can I use the LPHC-18-700 with LEDs that are designed for constant voltage power?

No, this is a constant current LED driver rather than a constant voltage power supply. It should be matched only with LED loads that are rated for 700mA constant current and operate within the 6-25V constant current range.

What should I check to confirm LED compatibility with the LPHC-18-700?

First, confirm the LEDs are designed for constant current operation at 700mA. Then verify that the total forward voltage of the LED load is within 6-25V, keeping in mind that the number of LEDs depends on each LED forward voltage.

Is the LPHC-18-700 appropriate for outdoor or exposed environments?

It has an IP67 waterproof rating, so it is built for use where dust and water resistance are needed. Its operating temperature range is -30°C to +70°C, which also supports use in hot or cold environments within that range.

How does the LPHC-18-700 compare with the LPHC-18-350?

The LPHC-18-700 provides 700mA output, a 6-25V constant current range, and 17.5W power, while the LPHC-18-350 provides 350mA output, a 6-48V constant current range, and 16.8W power. Both models use 180-264VAC input, are rated IP67, and have the same 140.0 × 30.0 × 22.0 mm size and 0.175 kg weight.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well LPHC-18-350 AC-DC Single output LED driver Constant Current	16.8W	48V	0.35A	IP67	$8.42	View
