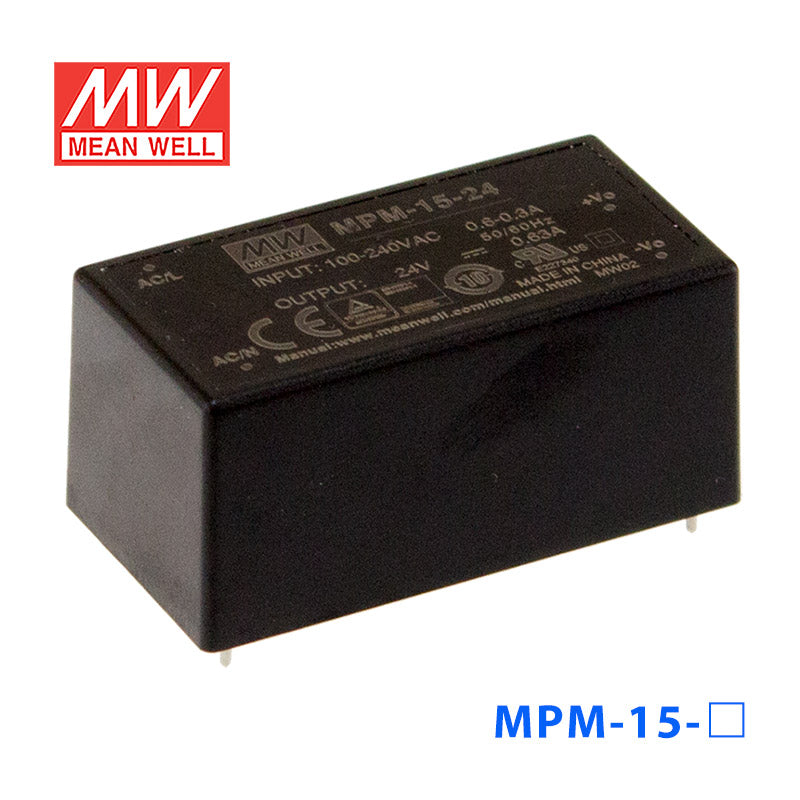

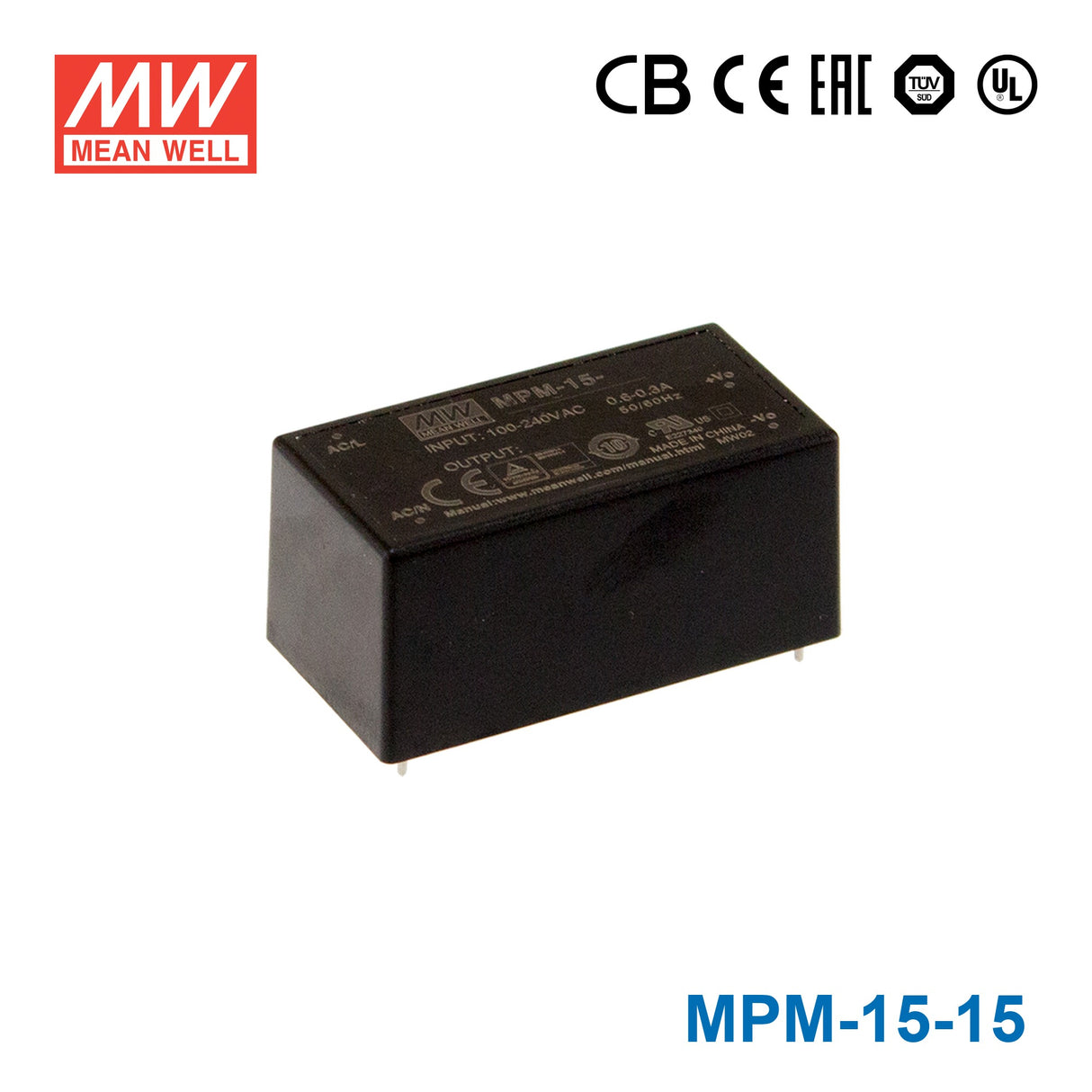

Mean Well MPM-15-15 Power Supply 15W 15V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MPM-15-15 Power Supply 15W 15V
Description
Description
Features
| 2.06"x1.07" compact size |
| Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1 |
| Suitable for BF application with appropriate system consideration |
| No-load power consumption<0.1W |
| Extremely low leakage current |
| Wide operating temp. range -40~+85°C |
| EMI Class B for class II configuration |
| Protections: Short circuit/ Overload/ Over voltage/Over temperature |
| No minimum load required |
| 3 years warranty |
General Specification
| AC input voltage range | 80~264VAC; 113~370VDC |
| AC inrush current | Cold start 20A/115VAC |
| Leakage current | Touch current <80 μA/264VAC |
| Overload protection | 110 ~ 150% rated output power |
| Over-voltage protection | 115%~150% rated output voltage |
| Setup, rise, hold up time | 1500ms, 30ms, 40ms |
| Withstand voltage | I/P-O/P:4KVAC |
| Working temperature | -40~+85°C |
| Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min. Each along X, Y, Z axes |
| Safety standards | IEC60601-1, BS EN/EN60601-1, IEC60335-1, BS EN/EN60335-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1(3.1 version), rd CAN/CSA-C22 3 Edition approved |
| EMC standards | EN55011 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Case No | 291A |
| Dimension (LxWxH) | 52.4x27.2x24 |
| Packing | 240pcs / 14.4kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesMPM Series
-
Power Rating15 Watt
-
Output Voltage15 Volt
-
Rated Current1 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length2.06 in
-
Width1.07 in
-
Height0.94 in
-
Weight0.12 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the MPM-15-15 for a 15V industrial control or analog circuit?
Yes, if the load needs a constant 15V output and stays within 15W and 1A. It is better suited to low-power 15V control and analog electronics than to heavier 15V loads that require more than 1A.
Is this power supply suitable for 15V instrumentation or signal-conditioning electronics?
It can be used for 15V instrumentation or signal-conditioning sections when total demand does not exceed 1A and 15W. The constant voltage output is intended for electronics that expect a fixed 15V DC supply.
Can the MPM-15-15 be used inside compact OEM equipment or medical-related devices?
Yes, its 52.4 × 27.2 × 24.0 mm package and 0.056 kg weight support compact internal designs. The listed medical safety approval, encapsulated construction, and low-leakage feature set make it suitable for low-power 15V internal equipment use.
Would this work for a 15V communications, test, or embedded subsystem?
It can work for low-power 15V subsystems as long as the total load remains within 15W and 1A. For 15V applications that need more current headroom, a higher-wattage 15V model in the same series would be more appropriate.
Is the MPM-15-15 appropriate for outdoor applications or wide-temperature installations?
The operating temperature range is -40°C to +85°C, so it supports broad internal temperature conditions. No IP rating is given in the provided specs, so it should be selected for protected indoor or enclosure-mounted use rather than direct outdoor exposure.
