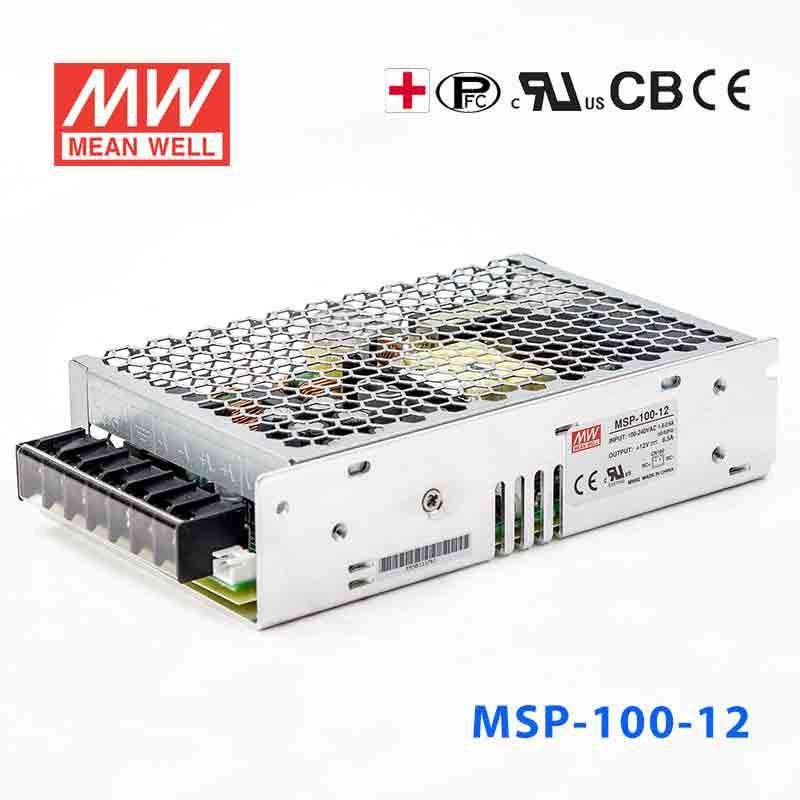

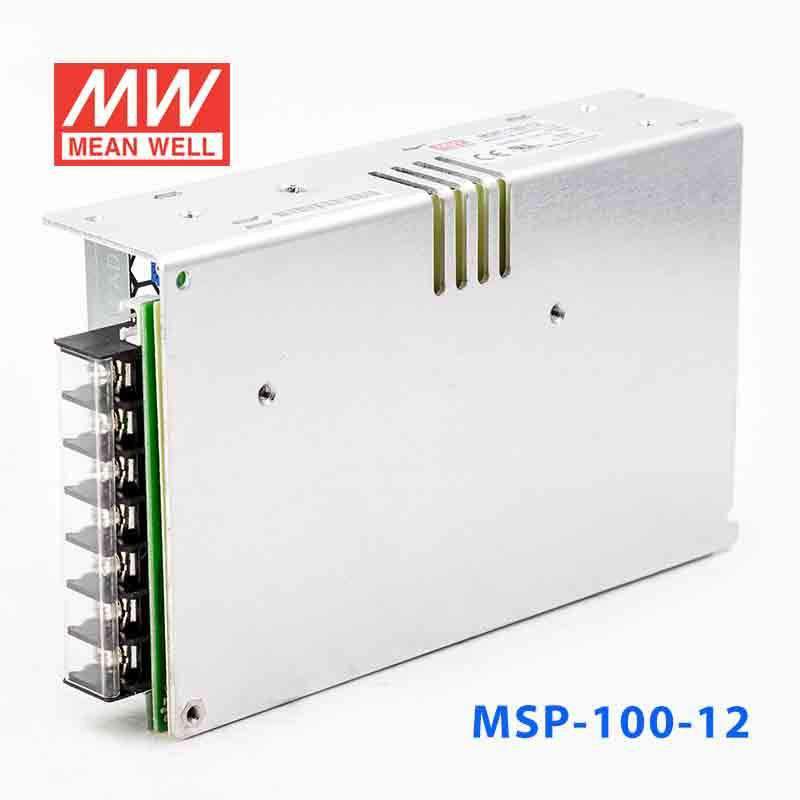

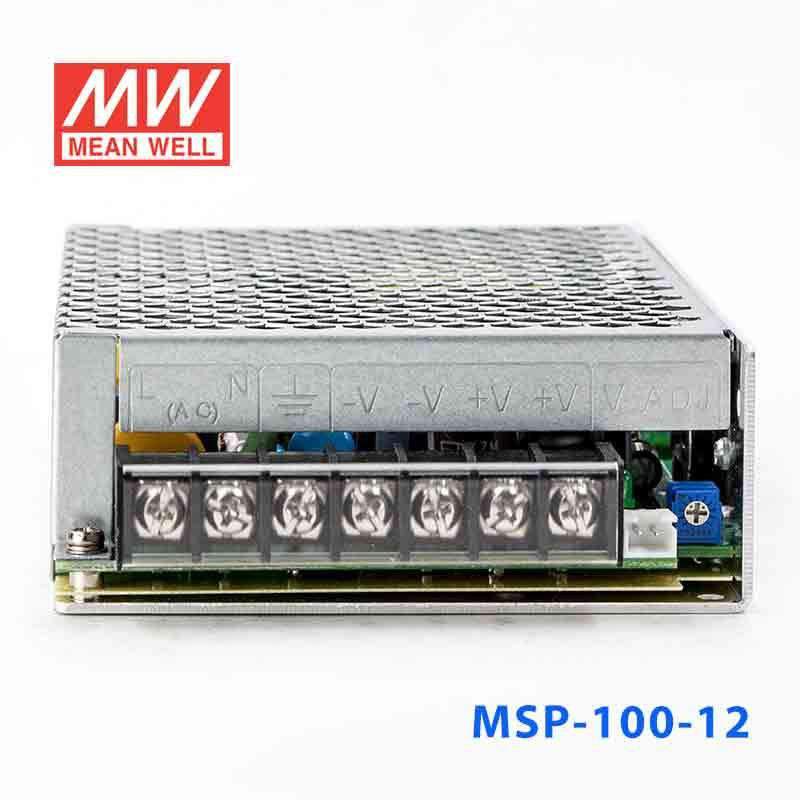

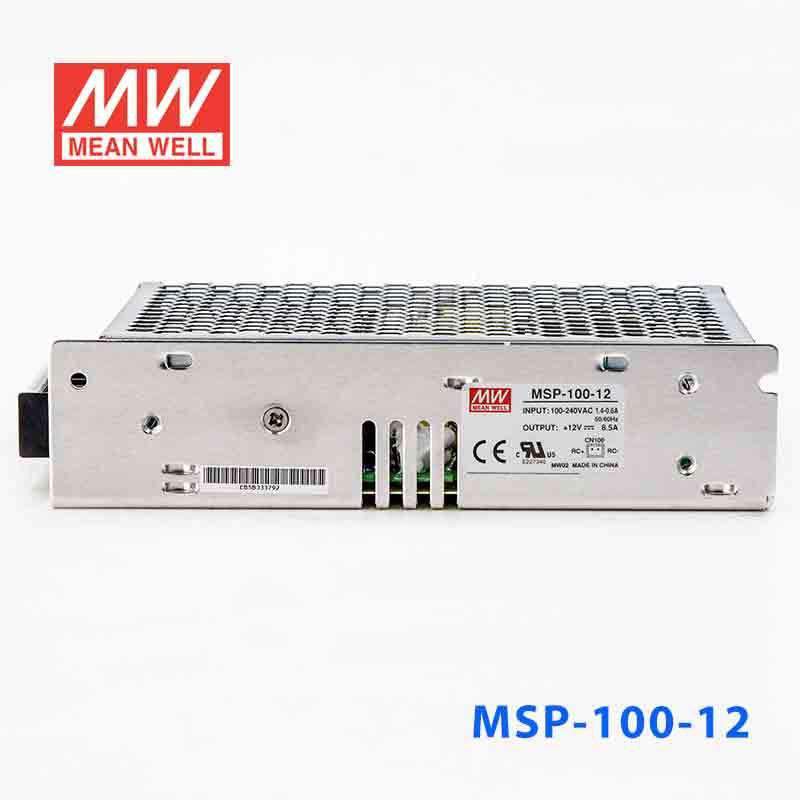

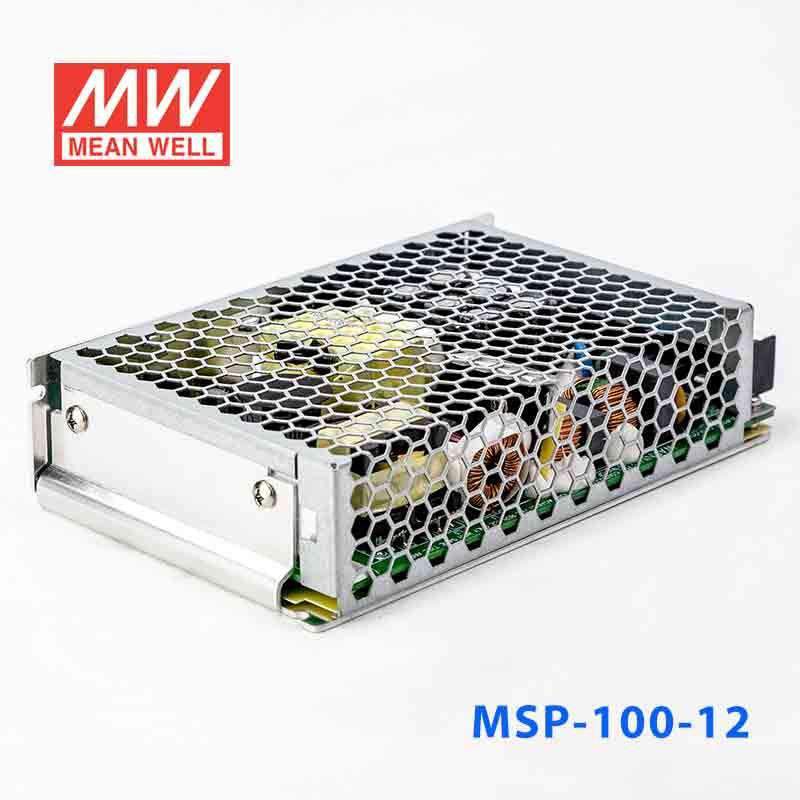

Mean Well MSP-100-12 Power Supply 102W 12V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MSP-100-12 Power Supply 102W 12V
Description
Description
Features
| Universal AC input / Full range |
| Built-in active PFC function |
| High efficiency up to 90% |
| Withstand 300VAC surge input for 5 seconds |
| Protections: Short circuit / Overload / Over voltage |
| Protections: Over temperature (optional) |
| Cooling by free air convection |
| 1U low profile 38mm |
| Medical safety approved (MOOP level) |
| Built-in remote ON-OFF control |
| No load power consumption<0.5W |
| All using 105 long life electrolytic capacitors |
| 5 years warranty |
General Specification
| AC input voltage range | 85~264VAC ; 120~370VDC |
| AC inrush current (max.) | 35A/115VAC 65A/230VAC |
| Over current protection | 105% ~135% rated output power;Protection type : Constant current limiting for Vo=50 ~ 100% of rated voltage, recovers automatically after fault condition is removed |
| Over voltage protection | 110%~140% Protection type : Shut down o/p voltage, re-power on to recover |
| Withstand voltage | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
| Working temperature | -40~+60ºC (refer to output derating curve) |
| Safety standards | ANSI/AAMI ES60601-1, IEC60601-1 approved |
| EMC standards | Compliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3 |
| Dimension (LxWxH)(mm) | 159x 97x 38 mm |
Specifications
Specifications
-
BrandMean Well
-
SeriesMSP Series
-
Power Rating102 Watt
-
Output Voltage12 Volt
-
Rated Current8.5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~60°C
-
Warranty5 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.5 in
-
Weight0.84 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the MSP-100-12 for a 12V industrial control or automation system?
Yes. It provides constant-voltage 12V output up to 8.5A with 102W total power, which suits 12V control electronics and automation assemblies designed for regulated DC input. The wide 85-264VAC input also supports use across different AC mains conditions.
Is the MSP-100-12 suitable for 12V embedded or IT equipment that runs continuously?
It can be a good match for 12V embedded and IT hardware that needs a stable constant-voltage source within 8.5A and 102W. The spec list also includes active PFC and no-load power consumption below 0.5~0.8W, which is relevant for efficient always-on systems.
Can this power supply be used in medical or medical-adjacent equipment designs?
The provided features state that it is medical safety approved. For 12V equipment that fits within 8.5A and 102W, that makes it more appropriate for medical-oriented designs than a general-purpose supply without that approval note.
Would the MSP-100-12 work for a 12V industrial communications or network appliance?
Yes, if the equipment is designed for constant-voltage 12V input and stays within the 8.5A and 102W rating. Its 159.0 × 97.0 × 38.0 mm size can also help in compact equipment layouts where internal space is controlled.
Can the MSP-100-12 handle colder or hotter environments than a typical indoor-only supply?
Its operating temperature range is -40°C to +60°C, which is broader than the -10°C to +55°C or -10°C to +60°C ranges shown on the MPT models here. No IP rating is listed, so that temperature capability still points to protected installation rather than exposed outdoor use.
What makes the MSP-100-12 different from other MSP-100 voltage options?
Within the MSP-100 group shown, the 12V model is 102W at 8.5A, while MSP-100-15 is 105W at 15V and 7A, MSP-100-24 is 108W at 24V and 4.5A, MSP-100-36 is 104.4W at 36V and 2.9A, and MSP-100-48 is 105.6W at 48V and 2.2A. Lower-voltage versions include MSP-100-3.3 at 66W and 20A, MSP-100-5 at 85W and 17A, and MSP-100-7.5 at 101.3W and 13.5A.
