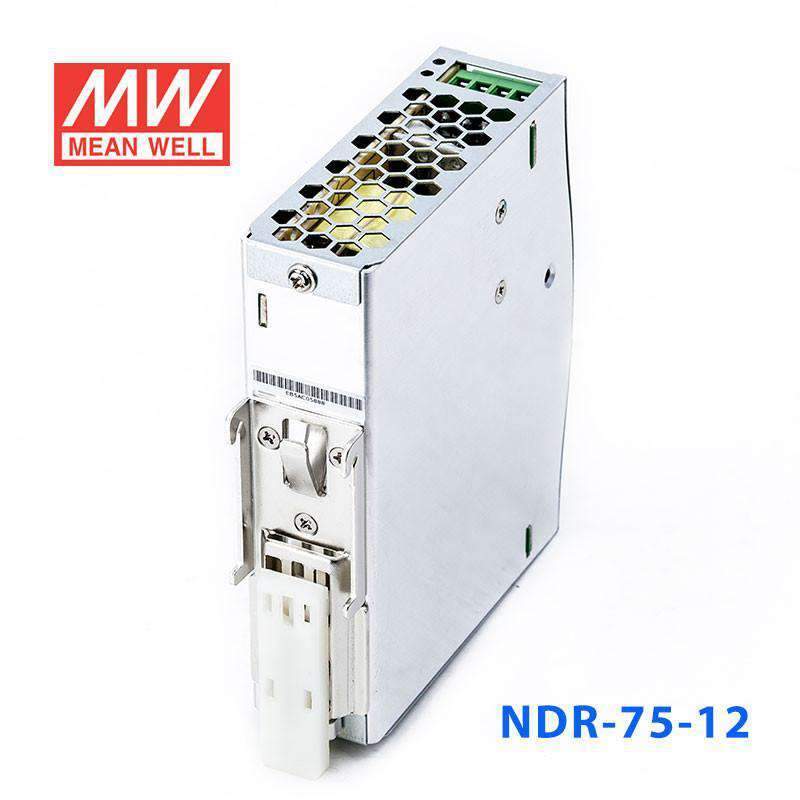

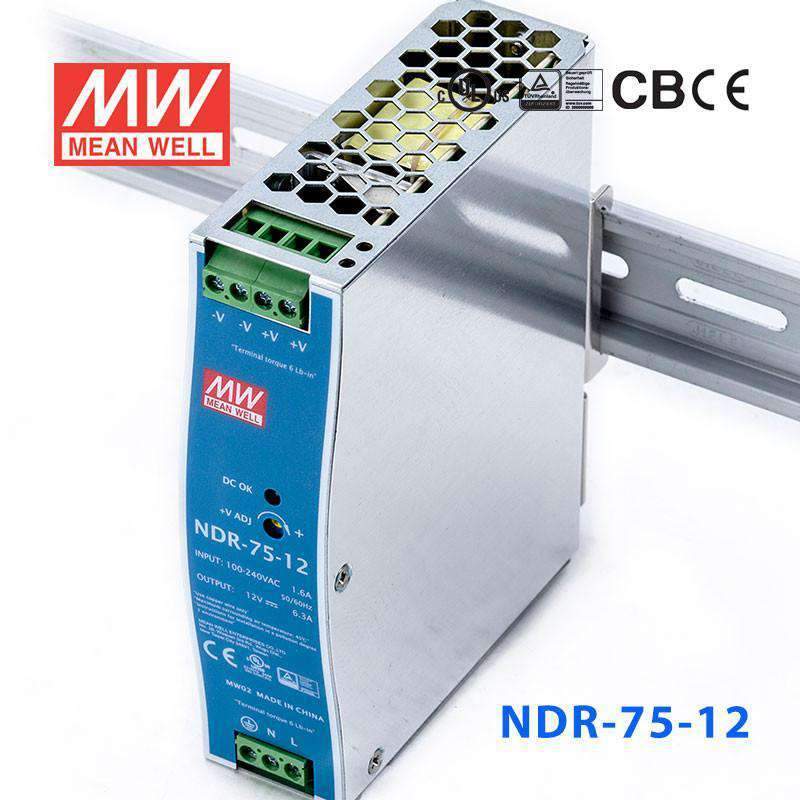

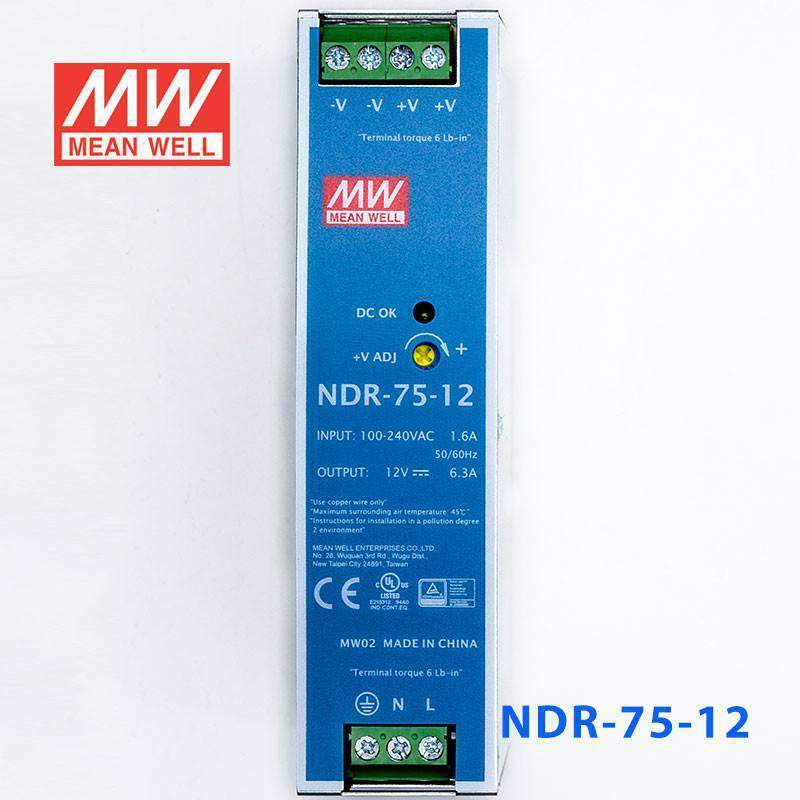

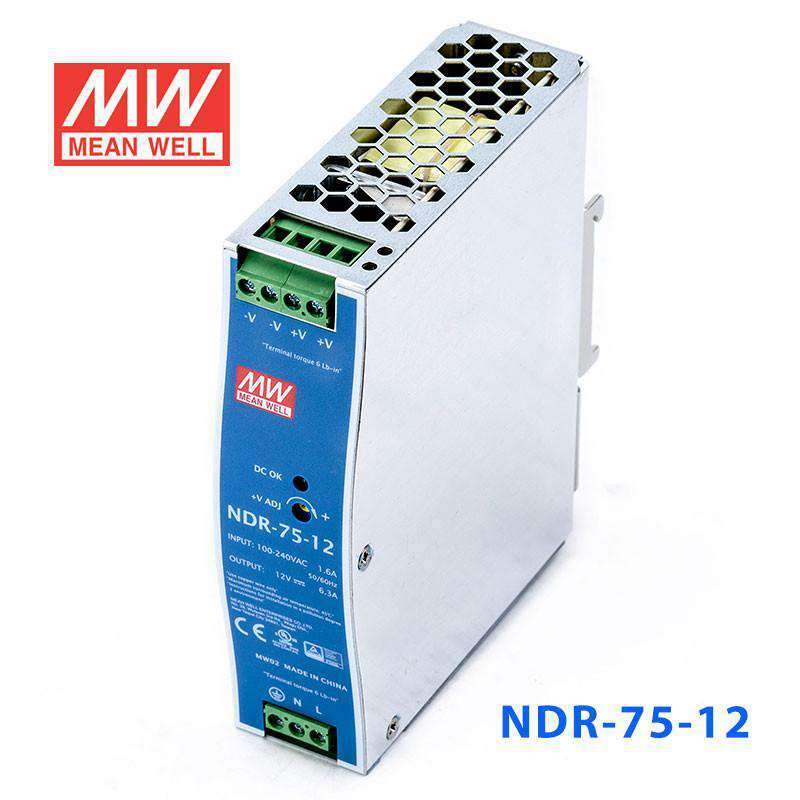

Mean Well NDR-75-12 Single Output Industrial Power Supply 75W 12V - DIN Rail

metal case, economical model, slim size, EMC EN55022 class B

SKU:

NDR-75-12

Model

75W 12V

$30.01 USD

SKU: NDR-75-12

120W 12V

$35.00 USD

SKU: NDR-120-12

Product variants

$30.01 USD ~~$31.27~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range

Protections: Short circuit / Overload / Over voltage / Over temperature

Cooling by free air convection

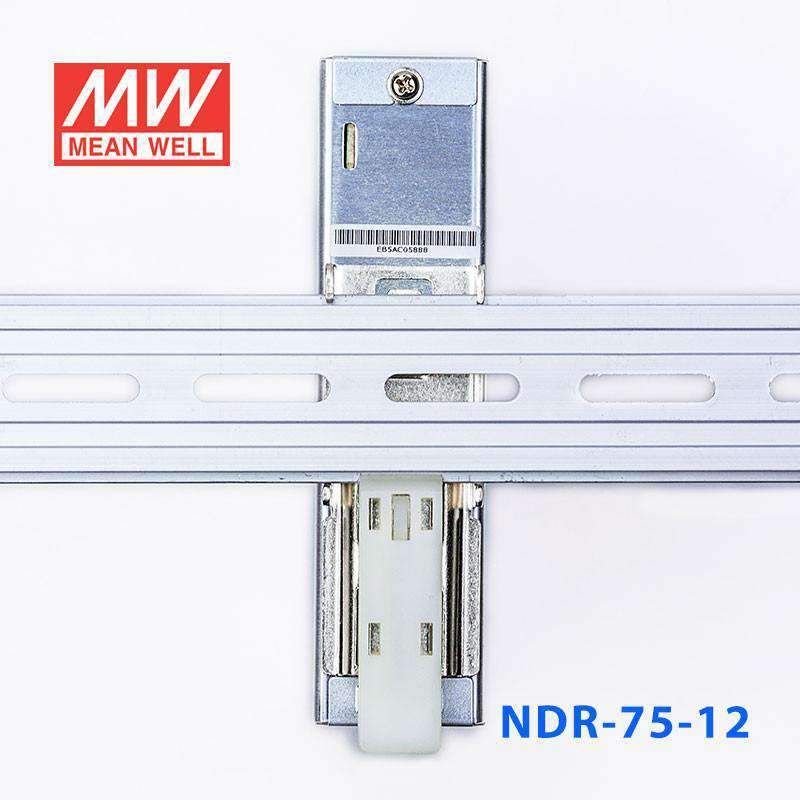

Can be installed on DIN rail TS35 / 7.5 or 15

UL508 (industrial control equipment) approved

EN61000-6-2 (EN50082-2) industrial immunity level

100% full load burn-in test

Low cost

3 years warranty

General Specification

AC input voltage range	90~264VAC; 127~370VDC
AC inrush current (max.)	Cold start, 35A at 230VAC
DC adjustment range	12V: 12~14V, 24V: 24~28V, 48V: 48~55V
Overload protection	105%~130% Constant current limiting, auto-recovery
Over voltage protection	14V: 14~17V, 24V: 29~33V, 48V: 56~65V
Over temperature protection	Shut down o/p voltage, re-power on to recover
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-20~+70°C(refer to output derating curve)
Safety standards	UL508, TUV EN60950-1 approved
EMC standards	EN55022(CISPR22), EN61204-3 Class B,EN61000-3-2,-3 , EN61000-4-2,3,4,5,6,8,11,EN55024, EN61000-6-2(EN50082-2), EN61204-3
Connection (screw DIN terminal)	I/P: 3 poles, O/P: 4 poles
Dimension (LxWxH) (mm)	32x 125.2x 102
Packing	28pcs / 15.3kg

Specifications

Brand

Mean Well
Series

NDR Series
Power Rating

75.6 Watt
Output Voltage

12 Volt
Rated Current

6.3 Ampere
Input Voltage

90V~264V
No of Output

1
Standards Met

CB,CE,cUL,EAC,RCM,TUV
Operating Temperature

-20°C~70°C
Warranty

3 Year
Length

4.93 in
Width

4.02 in
Height

1.26 in
Weight

1.12 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the NDR-75-12 for a 12V PLC or control panel load?

Yes, this model is suited to 12V control panel and PLC-related loads that require 12VDC and stay within 6.3A and 75.6W. It is a DIN rail power supply with a slim 32.0 mm width, which helps in space-limited control cabinets. The input range is 90-264VAC.

Is the NDR-75-12 a good fit for 12V industrial automation devices inside a cabinet?

It can be used for 12V industrial automation equipment when the total DC demand does not exceed 6.3A or 75.6W. The DIN rail format, metal case, and slim size support use in compact industrial control enclosures. Its operating temperature range is -20°C to +70°C.

Can this 12V DIN rail power supply be used for building management or access control panels?

It can fit 12V building management or access control panels if the connected 12V load stays within 6.3A and 75.6W. The NDR-75-12 is built as a DIN rail power supply and measures 125.2 × 102.0 × 32.0 mm, which is useful where panel space is limited. The published certifications include CB, CE, cUL, EAC, c_rcm, and TÜV.

What is the difference between the NDR-75-12 and other NDR DIN rail models?

The NDR-75-12 is the 12V, 6.3A, 75.6W option in this group. Related models are NDR-75-24 at 24V, 3.2A, 76.8W; NDR-75-48 at 48V, 1.6A, 76.8W; NDR-120-12 at 12V, 10A, 120W; NDR-120-24 at 24V, 5A, 120W; NDR-120-48 at 48V, 2.5A, 120W; NDR-240-24 at 24V, 10A, 240W; NDR-240-48 at 48V, 5A, 240W; NDR-480-24 at 24V, 20A, 480W; and NDR-480-48 at 48V, 10A, 480W.

Is the NDR-75-12 suitable for use inside a control cabinet or enclosure?

This model is designed as a DIN rail power supply with a metal case and a slim 32.0 mm profile, so it fits well in control cabinets and enclosures. Its operating temperature range is -20°C to +70°C. The specs provided here do not list an external IP rating, so enclosure protection depends on the cabinet design rather than this product listing.
