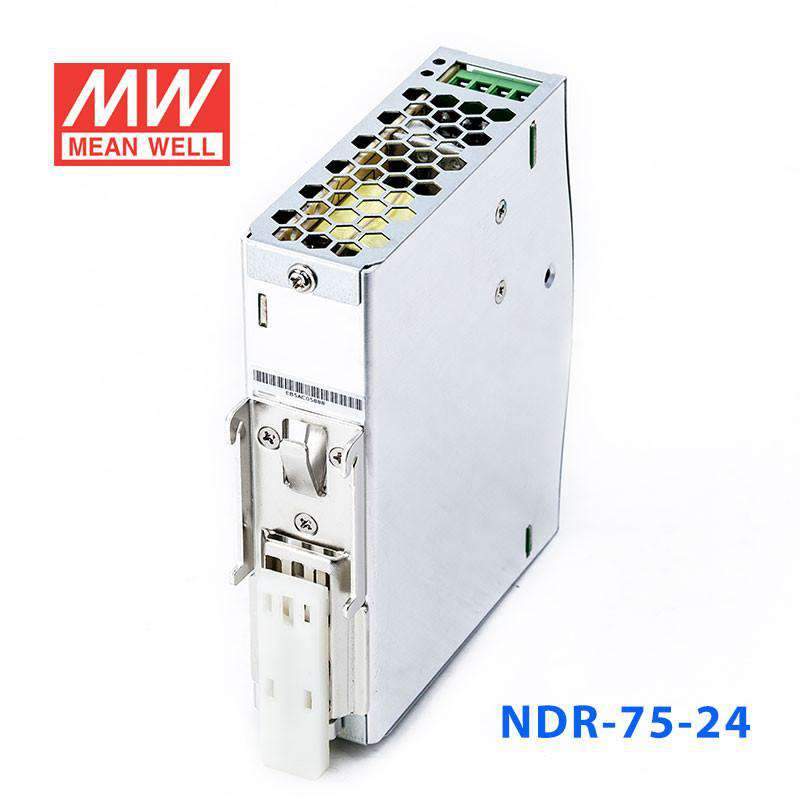

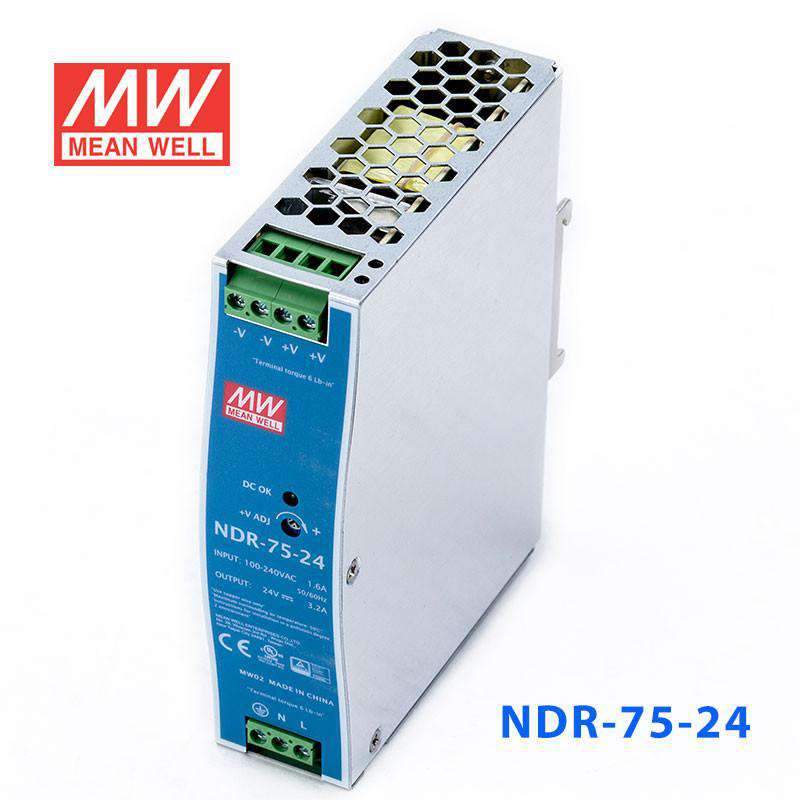

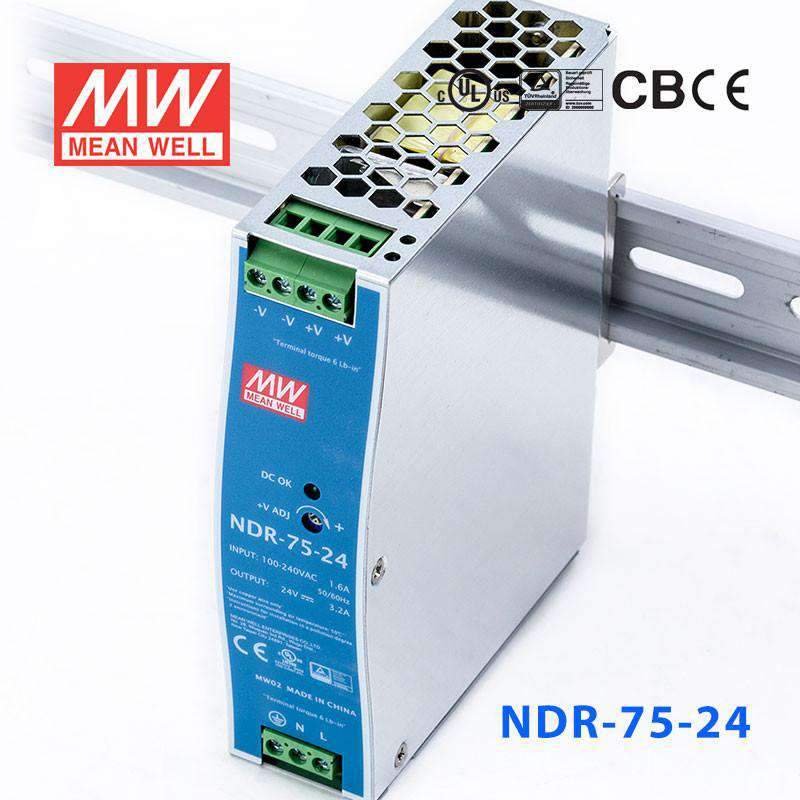

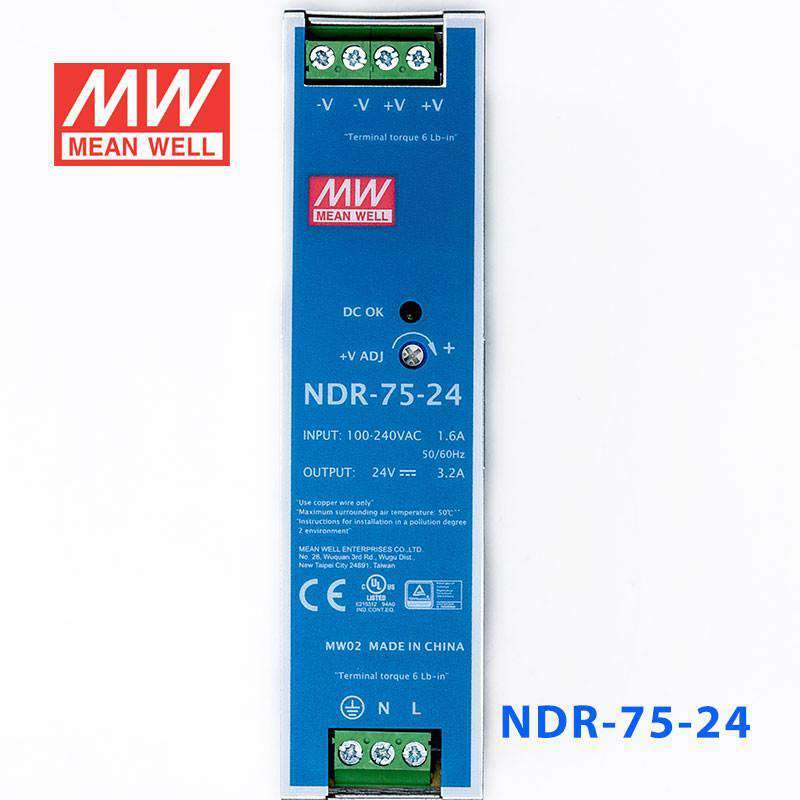

Mean Well NDR-75-24 Single Output Industrial Power Supply 75W 24V - DIN Rail

metal case, economical model, slim size, EMC EN55022 class B

SKU:

NDR-75-24

Model

75W 24V

$31.27 USD

SKU: NDR-75-24

120W 24V

$27.91 USD

SKU: NDR-120-24

240W 24V

$55.43 USD

SKU: NDR-240-24

480W 24V

$90.04 USD

SKU: NDR-480-24

Product variants

$31.27 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range

Protections: Short circuit / Overload / Over voltage / Over temperature

Cooling by free air convection

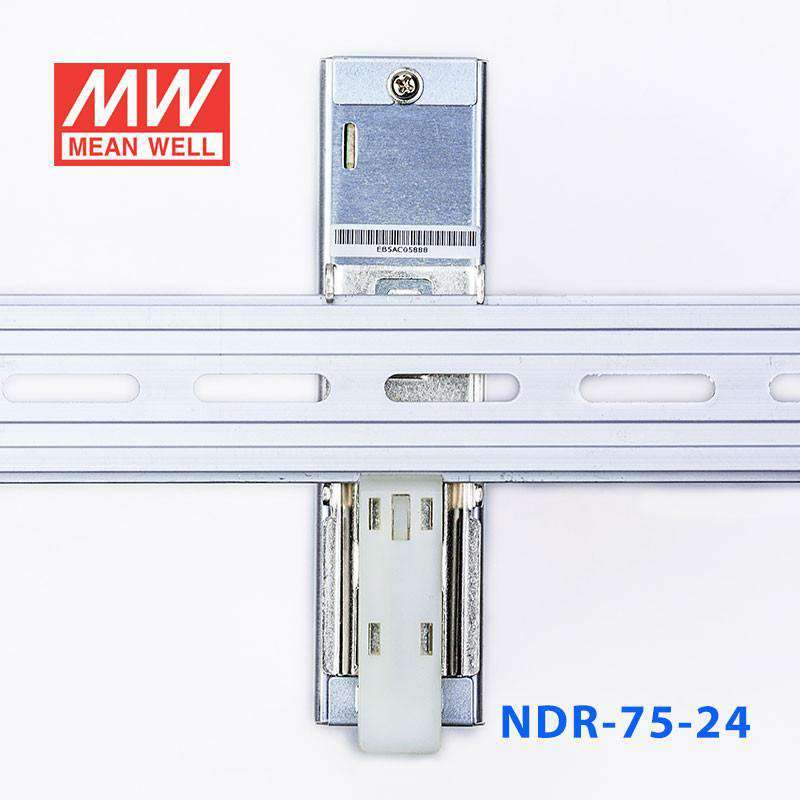

Can be installed on DIN rail TS35 / 7.5 or 15

UL508 (industrial control equipment) approved

EN61000-6-2 (EN50082-2) industrial immunity level

100% full load burn-in test

Low cost

3 years warranty

General Specification

AC input voltage range	90~264VAC; 127~370VDC
AC inrush current (max.)	Cold start, 35A at 230VAC
DC adjustment range	12V: 12~14V, 24V: 24~28V, 48V: 48~55V
Overload protection	105%~130% Constant current limiting, auto-recovery
Over voltage protection	14V: 14~17V, 24V: 29~33V, 48V: 56~65V
Over temperature protection	Shut down o/p voltage, re-power on to recover
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-20~+70°C(refer to output derating curve)
Safety standards	UL508, TUV EN60950-1 approved
EMC standards	EN55022(CISPR22), EN61204-3 Class B,EN61000-3-2,-3 , EN61000-4-2,3,4,5,6,8,11,EN55024, EN61000-6-2(EN50082-2), EN61204-3
Connection (screw DIN terminal)	I/P: 3 poles, O/P: 4 poles
Dimension (LxWxH) (mm)	32x 125.2x 102
Packing	28pcs / 15.3kg

Specifications

Brand

Mean Well
Series

NDR Series
Power Rating

76.8 Watt
Output Voltage

24 Volt
Rated Current

3.2 Ampere
Input Voltage

90V~264V
No of Output

1
Standards Met

CB,CE,cUL,EAC,RCM,TUV
Operating Temperature

-20°C~70°C
Warranty

3 Year
Length

4.93 in
Width

4.02 in
Height

1.26 in
Weight

1.12 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the NDR-75-24 for a 24V PLC cabinet power supply?

Yes, it is appropriate for 24V PLC cabinet loads that require 24VDC and remain within 3.2A and 76.8W. The DIN rail form factor and 32.0 mm slim width help when cabinet space is limited. It accepts 90-264VAC input.

Is the NDR-75-24 suitable for 24V industrial automation and control equipment?

It is a fit for 24V industrial automation and control devices when the combined load does not exceed 3.2A or 76.8W. The unit is built as a DIN rail power supply with a metal case and compact 125.2 × 102.0 × 32.0 mm dimensions. That makes it practical for organized cabinet layouts.

Can this model power 24V building management panel devices?

It can be used for 24V building management panel equipment if the total 24V demand stays within 3.2A and 76.8W. The NDR-75-24 is a DIN rail unit, which aligns with control cabinet installations. Its listed certifications are CB, CE, cUL, EAC, c_rcm, and TÜV.

How does the NDR-75-24 compare with other NDR series options?

The NDR-75-24 provides 24V at 3.2A for 76.8W. Other siblings are NDR-75-12 at 12V, 6.3A, 75.6W; NDR-75-48 at 48V, 1.6A, 76.8W; NDR-120-12 at 12V, 10A, 120W; NDR-120-24 at 24V, 5A, 120W; NDR-120-48 at 48V, 2.5A, 120W; NDR-240-24 at 24V, 10A, 240W; NDR-240-48 at 48V, 5A, 240W; NDR-480-24 at 24V, 20A, 480W; and NDR-480-48 at 48V, 10A, 480W.

Is the NDR-75-24 meant for open-area use or enclosed cabinet use?

Its DIN rail format, metal case, and slim profile point to control cabinet or enclosure use rather than exposed placement. The operating temperature range is -20°C to +70°C. This listing does not provide an external IP rating, so cabinet protection should be handled by the enclosure.
