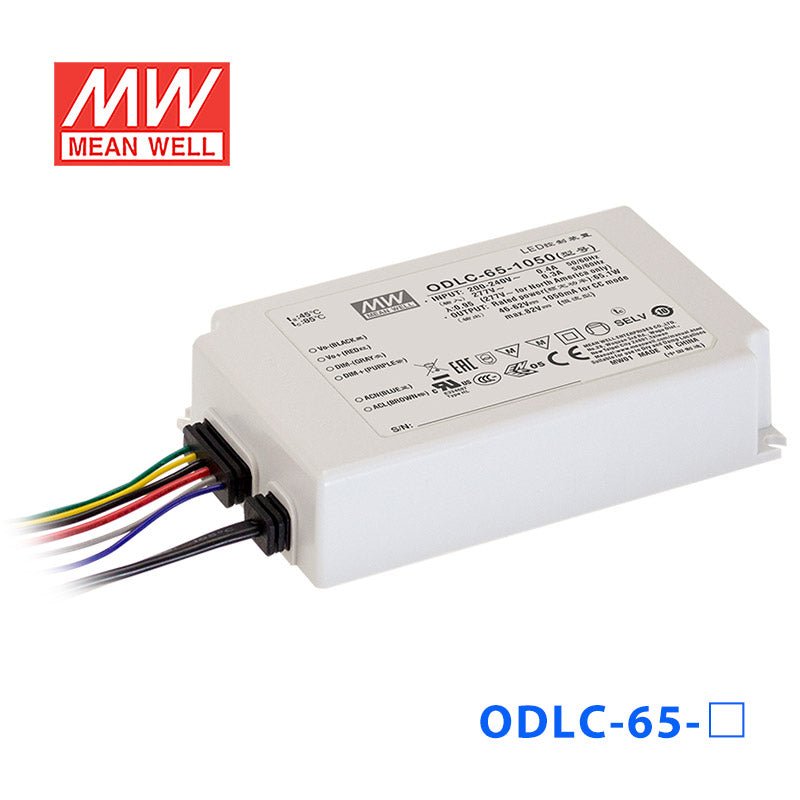

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

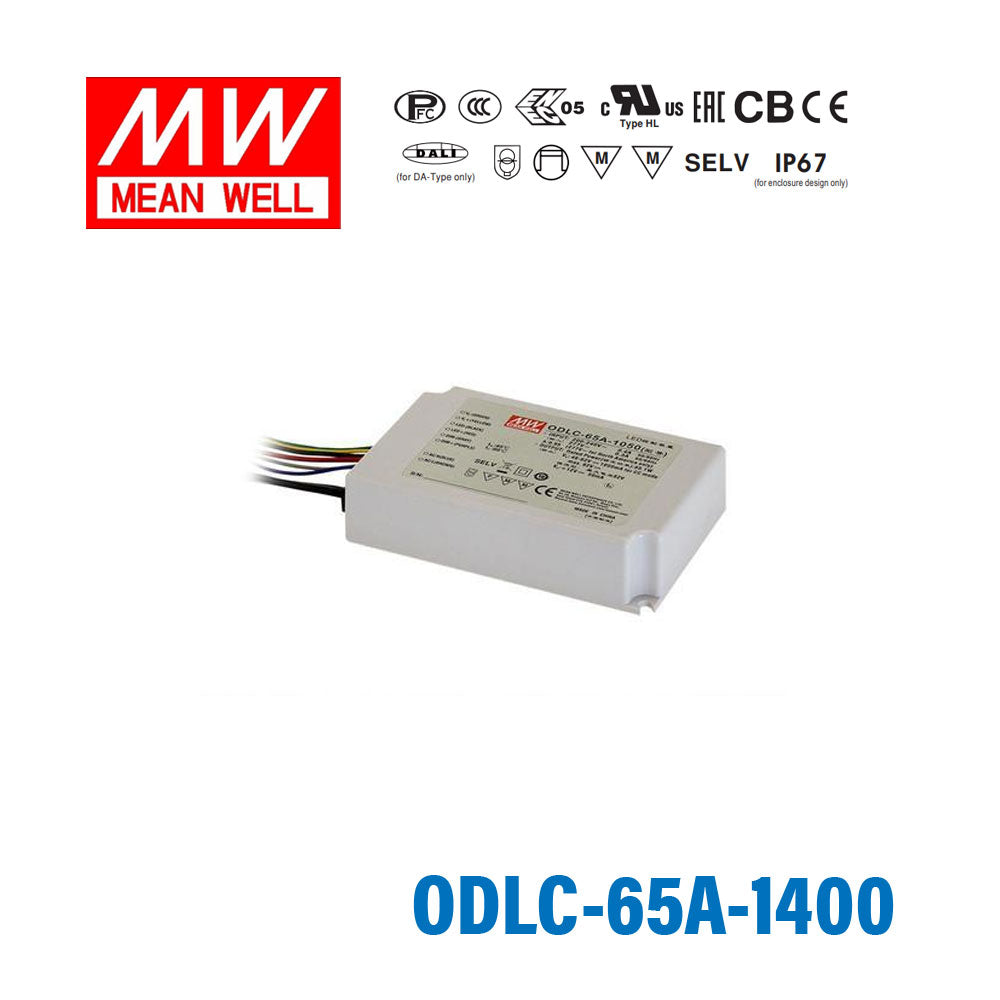

Mean Well ODLC-65A-1400 Power Supply 65W 1400mA (Auxiliary DC output)

Q: Can I use the ODLC-65A-1400 for LED downlights that need 1400mA constant current?

Yes, this driver is built for constant current LED loads at 1400mA. It is suited to LED downlights when the fixture's required current is 1400mA and the total LED forward voltage falls within the 34-46V constant current range. It is not intended for constant voltage LED products.

Q: Is the ODLC-65A-1400 a good fit for signage modules or small LED arrays?

It can be used for signage modules or small LED arrays only when the LED assembly is designed for 1400mA constant current operation. The total forward voltage of the connected LEDs must stay within 34-46V during constant current operation. The number of LEDs depends on the forward voltage of each LED, not a fixed LED count.

Q: Can this driver power a compact high-power LED array in a sealed outdoor housing?

It is suitable for compact high-power LED arrays that require 1400mA constant current and operate within the 34-46V range. The IP67 rating supports wet or dusty environments, and the operating temperature range is -20°C to +85°C. That makes it appropriate for enclosed outdoor or industrial LED applications when the LED load matches the electrical specs.

Q: How do I know if my LED load is compatible with the ODLC-65A-1400?

Check that your LED load requires constant current, not constant voltage, and that the required drive current is 1400mA. The driver's constant current output range is 34-46V, so the total LED forward voltage must stay within that window. The number of LEDs that can be driven depends on each LED's forward voltage.

Q: How does the ODLC-65A-1400 compare with other 65W ODLC models?

Within the 65W ODLC family, the ODLC-65A-1050 is 1050mA with a 46-62V CC range and 65.1W, the ODLC-65A-1400 is 1400mA with a 34-46V CC range and 64.4W, the ODLC-65A-1750 is 1750mA with a 27-36V CC range and 63W, and the ODLC-65A-700 is 700mA with a 69-93V CC range and 65.1W. The matching non-A versions and DA versions follow the same current, voltage range, and wattage groupings listed for their model numbers. The main selection differences are rated current and constant current voltage window.

SKU:

ODLC-65A-1400

$27.07 USD ~~$91.50~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Constant current mode output

Flicker-free design

Plastic housing with class II design

Built-in active PFC function

No load power consumption<0.5W(Blank-Type)

IP67 rating for indoor or outdoor installations

Function options: 2 in 1 dimming(dim-to-off); Auxiliary DC output; DALI

3 years warranty

General Specification

AC input voltage range	90~295VAC
AC inrush current (Typ.)	COLD START 30A(twidth=100μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
Short circuit protection	Hiccup mode, auto-recovery/re-power
No load power consumption	consumption<0.5W for Blank-Type,<1.2W for ODLC-45A
Setup time	500ms/230VAC
Withstand voltage	I/P-O/P: 3.75kVAC
Working temperature	-20~+85ºC
Safety standards	UL8750, ENEC EN61347-1, EN61347-2-13
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EAC TP TC 020
Dimension (LxWxH)(mm)	1217728.5mm
Packing	24pcs/11.3Kg

Specifications

Brand

Mean Well
Series

ODLC Series
Power Rating

64.4 Watt
Output Voltage

46 Volt
Rated Current

1.4 Ampere
Input Voltage

180V~295V
No of Output

1
Dimming Control

0-10V,10V PWM
Standards Met

CB,CCC,CE,EAC,ENEC,UL
Operation Mode

Constant Current
Operating Temperature

-20°C~85°C
Warranty

3 Year
Length

4.76 in
Width

3.03 in
Height

1.12 in
Weight

0.95 lb

File Downloads

::specification::
