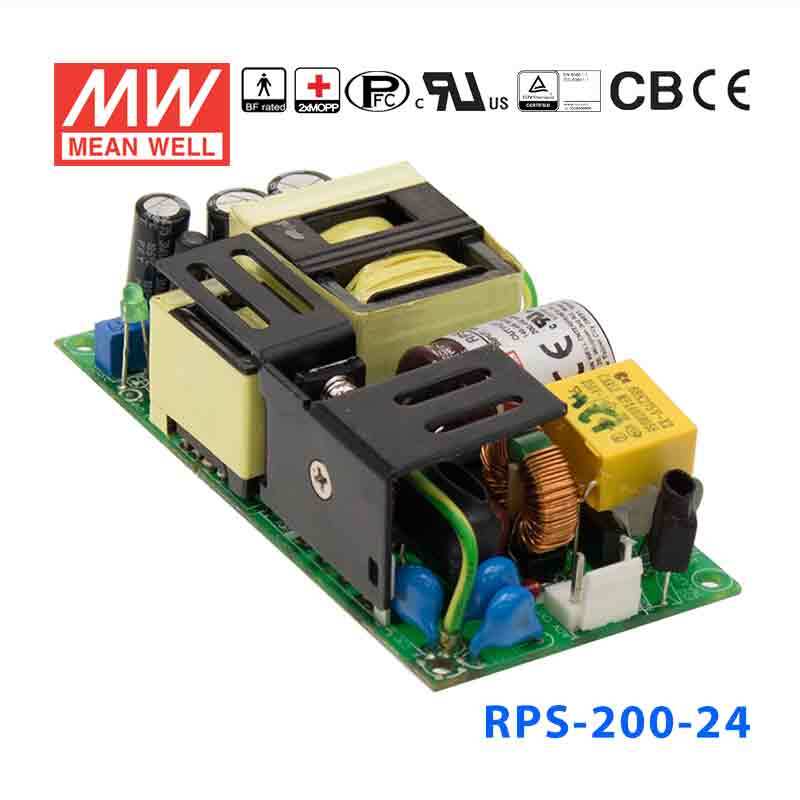

Mean Well RPS-200-24 Green Power Supply W 24V 5.9A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-200-24 Green Power Supply W 24V 5.9A - Medical Power ...
Description
Description
Features
| 5"x3" compact size |
| 320W convection, 500W force air |
| 550W peak power (3 sec.)/td> |
| Medical safety approved (2xMOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1 |
| MEMI for both Class I & Class II configuration |
| -30~+70°C wide range operating temperature |
| No load power consumption under 0.5W by PS-ON control |
| High efficiency up to 94% |
| Protections: Short circuit / Overload / Over voltage / Over Temp. |
| 5Vdc standby output, 12Vdc fan supply, Power Good, Power Fail, and remote sense |
| Operating altitude up to 4000 meters (Note.5) |
| LED indicator for power on |
| 3 years warranty |
General Specification
| AC input voltage range | 80 ~ 264VAC | 113 ~ 370VDC |
| AC inrush current | COLD START 40A/115VAC 80A/230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection | 105%~135% hiccup mode, auto-recovery |
| Over-voltage protection | CH1: 115%~135% shut off, re-power on to recovery |
| Withstand voltage | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Leakage current | Earth leakage current <220 A/264VAC 50Hz, Touch current < 100 A/264VAC |
| Safety standards | ANSI/AAMI ES60601-1, TUV EN60601-1 approved |
| EMC standards | EN55011/EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3, EN60601-1-2, EN61000-6-2 (RPS(G)-160) |
| Connection | 3+8+2(4)P/3.96mm pitch JST B3P / B8P-VH, B2B (B4B)-XH |
| Setup, rise, hold up time | 1000ms, 30ms, 10ms at full load and 230VAC |
| Dimension (LxWxH) | 127 x 76.2 x 41mm | 5 x 3 x 1.61 inch |
Specifications
Specifications
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating141.6 Watt
-
Output Voltage24 Volt
-
Rated Current5.9 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4 in
-
Width2 in
-
Height1.14 in
-
Weight0.42 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the RPS-200-24 for a 24V PLC, controller, or industrial I/O system?
Yes, if the system needs constant 24V DC and its total demand stays within 5.9A and 141.6W. Those values are in the range commonly used by PLCs, industrial controllers, and I/O hardware built around 24V control power. The 80-264VAC input also supports use across different AC supply standards.
Is the RPS-200-24 a fit for 24V automation sensors, relays, and control accessories?
It can be, as long as the combined load is a 24V constant-voltage load and does not exceed 5.9A or 141.6W. That makes it relevant for grouped automation accessories and control assemblies that share a 24V DC rail. It is not the right choice for systems that require 12V, 15V, 27V, or 48V output.
Can this model power a 24V medical or lab device?
This unit is sold as a medical power supply and lists medical safety approval plus extreme low leakage current among its features. For equipment designed for 24V constant voltage, it can supply up to 5.9A and 141.6W. That makes it relevant for medical or laboratory devices whose DC input stays within those limits.
Is the RPS-200-24 suitable for outdoor use or unprotected locations?
No IP rating is shown in the provided specs, so it should not be assumed to be outdoor-rated or sealed for exposed use. Its operating temperature range is -30C to +70C, which covers a broad temperature span, but temperature capability does not replace ingress protection. Based on the listed data, it is better matched to indoor equipment or a protected enclosure.
How does the RPS-200-24 compare with other 24V models in the RPS series?
The 24V siblings listed are RPS-30-24 at 30W and 1.25A, RPS-45-24 at 45.6W and 1.9A, RPS-60-24 at 60W and 2.5A, RPS-65-24 at 65W and 2.71A, RPS-75-24 at 76.8W and 3.2A, RPS-120-24 and RPS-120-24-C at 84W and 5A, RPS-120S-24 at 120W and 5A, RPS-160-24 at 113.4W and 4.6A, RPS-200-24 and RPS-200-24-C at 141.6W and 5.9A, RPS-300-24 variants at 200W and 8.33A, RPS-400-24 variants at 252W and 10.5A, and RPS-500-24 variants from 309.6W to 499.2W with 12.9A to 20.8A. The RPS-200-24 sits above the 120W and 160W class and below the 200W, 252W, and 500W-class 24V models.
