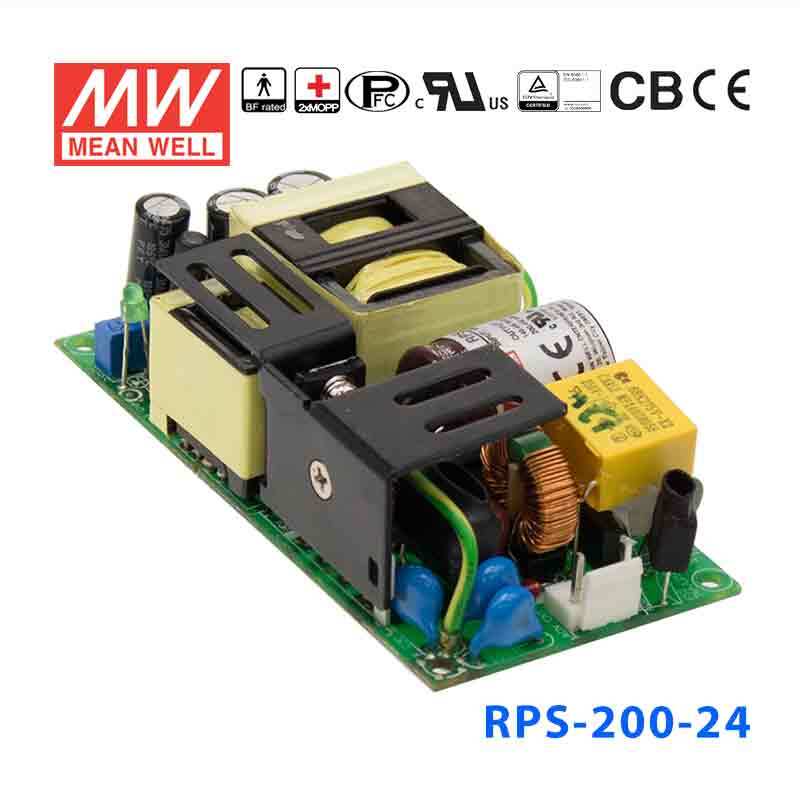

Mean Well RPS-200-24 Green Power Supply W 24V 5.9A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-200-24 Green Power Supply W 24V 5.9A - Medical Power ...
The RPS-200 is a 200W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Safety approvals: IEC60601-1, TUV EN60601-1, CAN/CSA-C22.2 No. 60601-1:14 - Edition 3
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating141.6 Watt
-
Output Voltage24 Volt
-
Rated Current5.9 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4 in
-
Width2 in
-
Height1.14 in
-
Weight0.42 lb
::specification::
Frequently Asked Questions
Can I use the RPS-200-24 for a 24V PLC, controller, or industrial I/O system?
Yes, if the system needs constant 24V DC and its total demand stays within 5.9A and 141.6W. Those values are in the range commonly used by PLCs, industrial controllers, and I/O hardware built around 24V control power. The 80-264VAC input also supports use across different AC supply standards.
Is the RPS-200-24 a fit for 24V automation sensors, relays, and control accessories?
It can be, as long as the combined load is a 24V constant-voltage load and does not exceed 5.9A or 141.6W. That makes it relevant for grouped automation accessories and control assemblies that share a 24V DC rail. It is not the right choice for systems that require 12V, 15V, 27V, or 48V output.
Can this model power a 24V medical or lab device?
This unit is sold as a medical power supply and lists medical safety approval plus extreme low leakage current among its features. For equipment designed for 24V constant voltage, it can supply up to 5.9A and 141.6W. That makes it relevant for medical or laboratory devices whose DC input stays within those limits.
Is the RPS-200-24 suitable for outdoor use or unprotected locations?
No IP rating is shown in the provided specs, so it should not be assumed to be outdoor-rated or sealed for exposed use. Its operating temperature range is -30C to +70C, which covers a broad temperature span, but temperature capability does not replace ingress protection. Based on the listed data, it is better matched to indoor equipment or a protected enclosure.
How does the RPS-200-24 compare with other 24V models in the RPS series?
The 24V siblings listed are RPS-30-24 at 30W and 1.25A, RPS-45-24 at 45.6W and 1.9A, RPS-60-24 at 60W and 2.5A, RPS-65-24 at 65W and 2.71A, RPS-75-24 at 76.8W and 3.2A, RPS-120-24 and RPS-120-24-C at 84W and 5A, RPS-120S-24 at 120W and 5A, RPS-160-24 at 113.4W and 4.6A, RPS-200-24 and RPS-200-24-C at 141.6W and 5.9A, RPS-300-24 variants at 200W and 8.33A, RPS-400-24 variants at 252W and 10.5A, and RPS-500-24 variants from 309.6W to 499.2W with 12.9A to 20.8A. The RPS-200-24 sits above the 120W and 160W class and below the 200W, 252W, and 500W-class 24V models.
