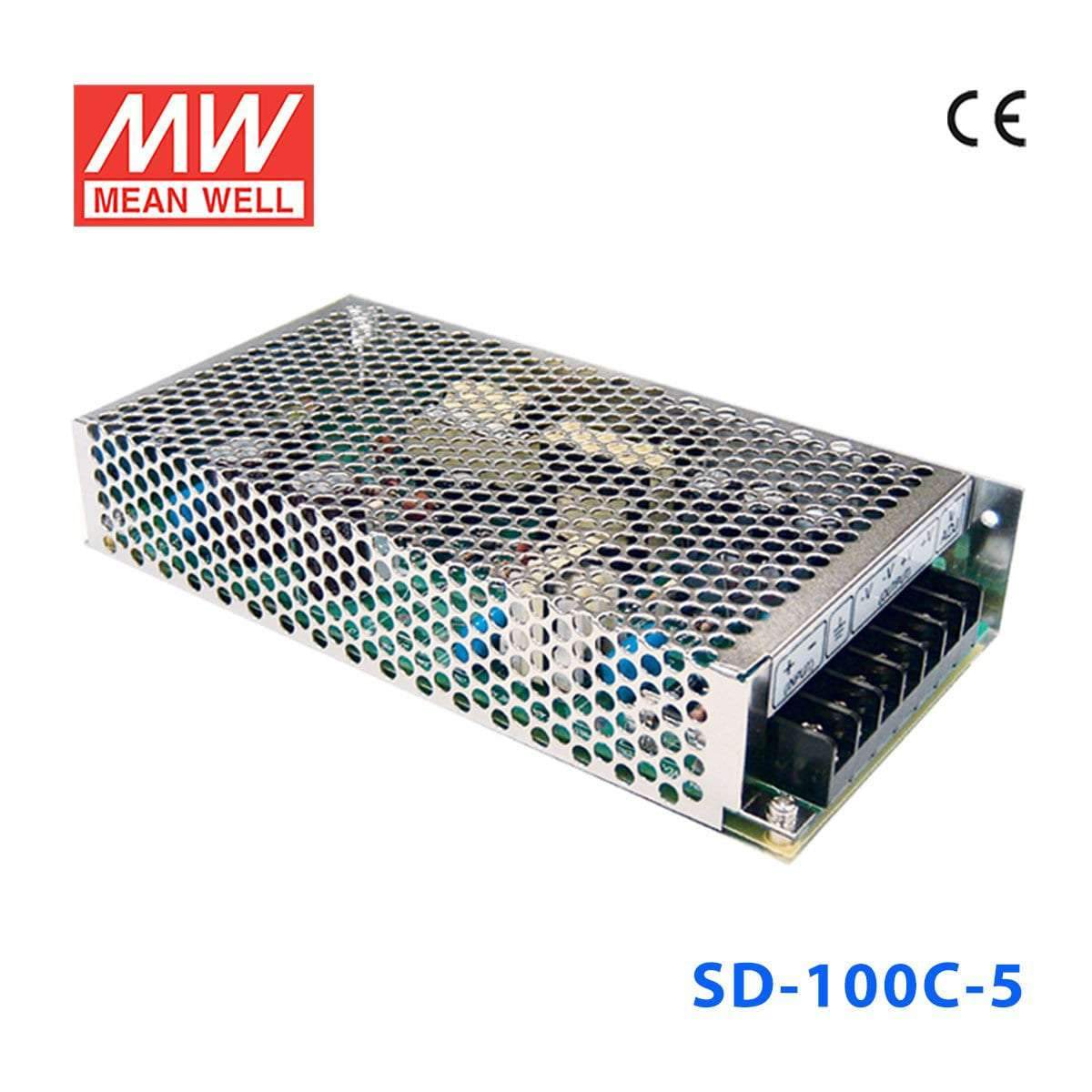

Mean Well SD-100C-5 DC-DC Converter - 100W - 36~72V in 5V out
2:1 wide input range, 1.5~2KVAC isolation by models
13% off
SKU:
SD-100C-5
$33.04 USD
$38.15
Unit price /
Unavailable
Shipping calculated at checkout.
|
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SD-100C-5 DC-DC Converter - 100W - 36~72V in 5V out
$33.04 USD
$38.15
Unit price /
Unavailable
Description
Description
Features
- Compliance to EN50155 and EN45545-2 railway standard
- 2:1 wide input range
- Protections: Short circuit / Overload / Over voltage / Input reverse polarity
- 4000VDC I/O isolation
- Cooling by free air convection
- Half encapsulated
- Built-in constant current limiting circuit
- 1U low profile 36mm
- All using 105℃ long life electrolytic capacitors
- LED indicator for power on
- 100% full load burn-in test
- 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSD Series
-
Power Rating100 Watt
-
Output Voltage5 Volt
-
Rated Current18 Ampere
-
Input Voltage36V~72V
-
No of Output1
-
Dimming ControlNone
-
Standards MetEAC
-
Operation ModeConstant Voltage
-
Operating Temperature-15°C~60°C
-
Warranty3 Year
-
Length7.83 in
-
Width3.86 in
-
Height1.5 in
-
Weight1.43 lb
