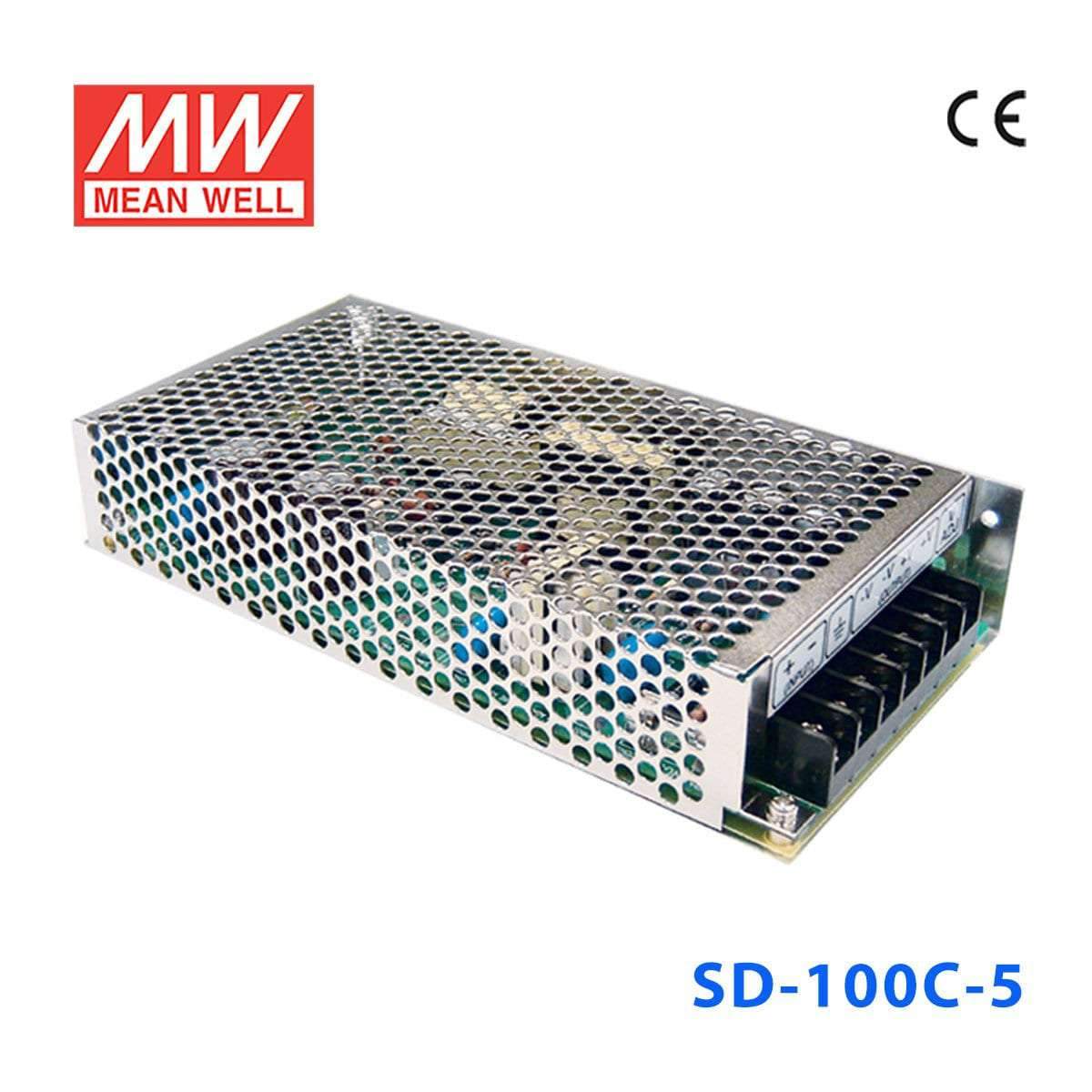

Mean Well SD-100C-5 DC-DC Converter - 100W - 36~72V in 5V out

2:1 wide input range, 1.5~2KVAC isolation by models
SKU:
SD-100C-5

$38.15 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

Features

  • Compliance to EN50155 and EN45545-2 railway standard
  • 2:1 wide input range
  • Protections: Short circuit / Overload / Over voltage / Input reverse polarity
  • 4000VDC I/O isolation
  • Cooling by free air convection
  • Half encapsulated
  • Built-in constant current limiting circuit
  • 1U low profile 36mm
  • All using 105℃ long life electrolytic capacitors
  • LED indicator for power on
  • 100% full load burn-in test
  • 3 years warranty

Specifications

  • Brand
    Mean Well
  • Series
    SD Series
  • Power Rating
    100 Watt
  • Output Voltage
    5 Volt
  • Rated Current
    18 Ampere
  • Input Voltage
    36V~72V
  • No of Output
    1
  • Dimming Control
    None
  • Standards Met
    EAC
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -15°C~60°C
  • Warranty
    3 Year
  • Length
    7.83 in
  • Width
    3.86 in
  • Height
    1.5 in
  • Weight
    1.43 lb
