Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

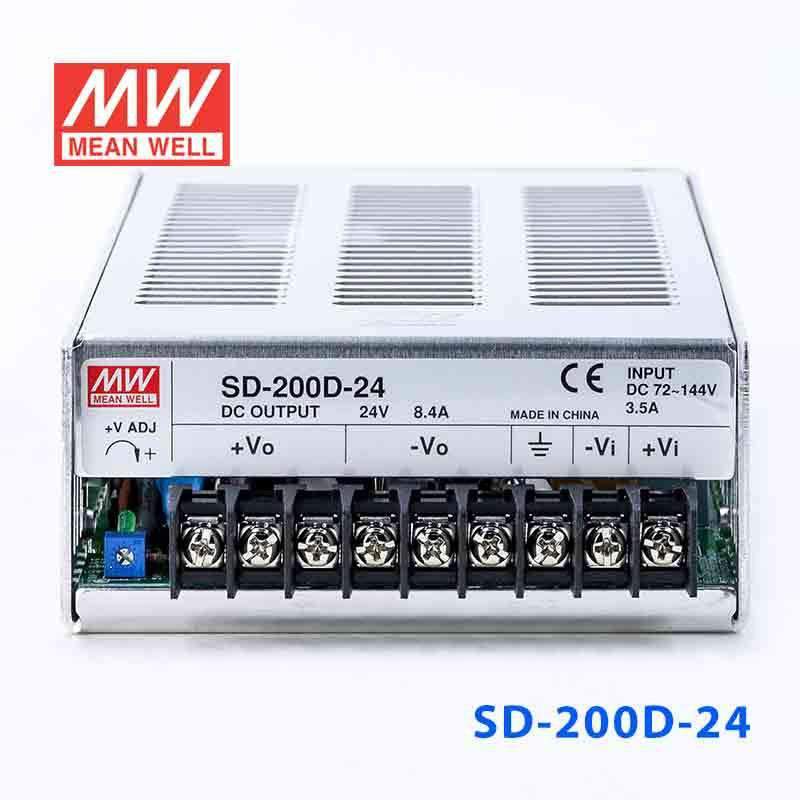

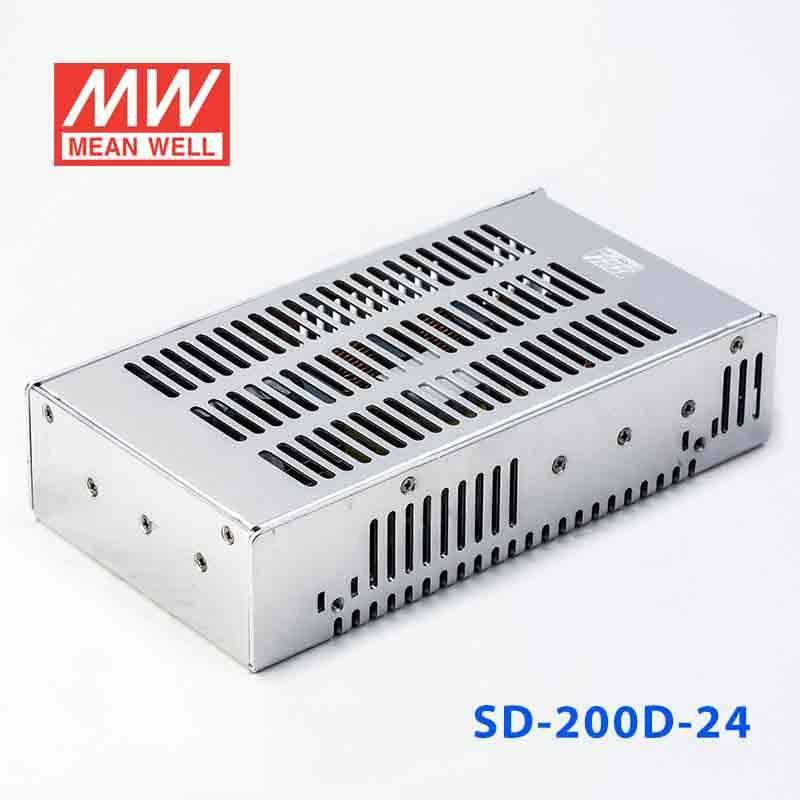

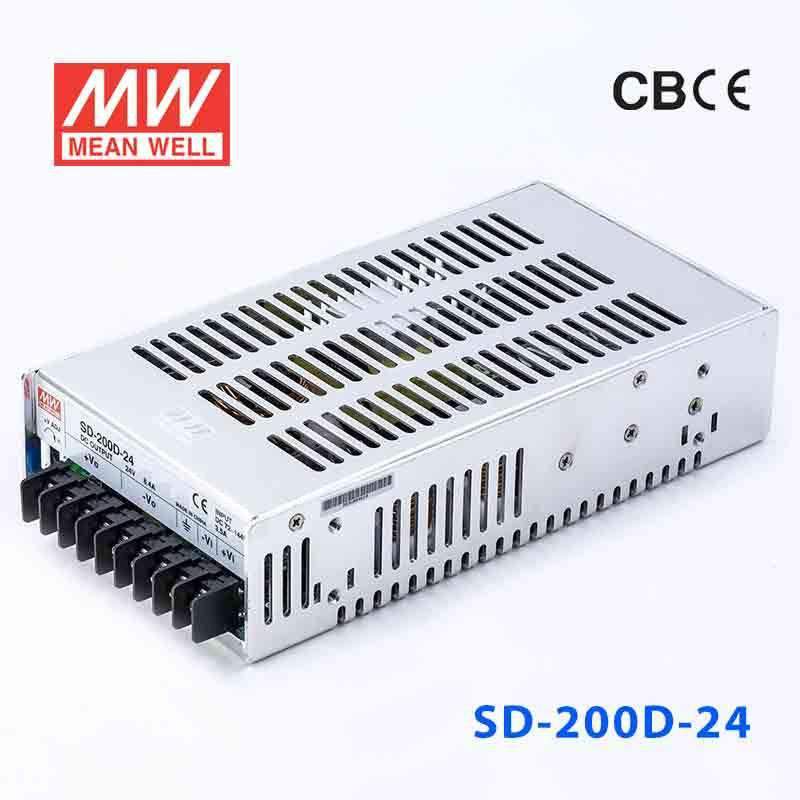

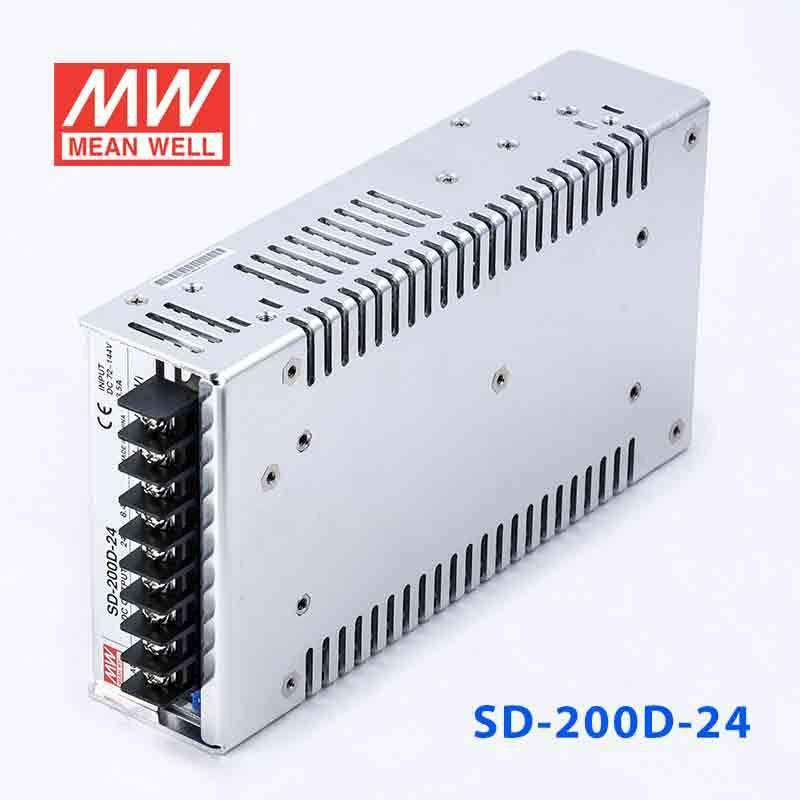

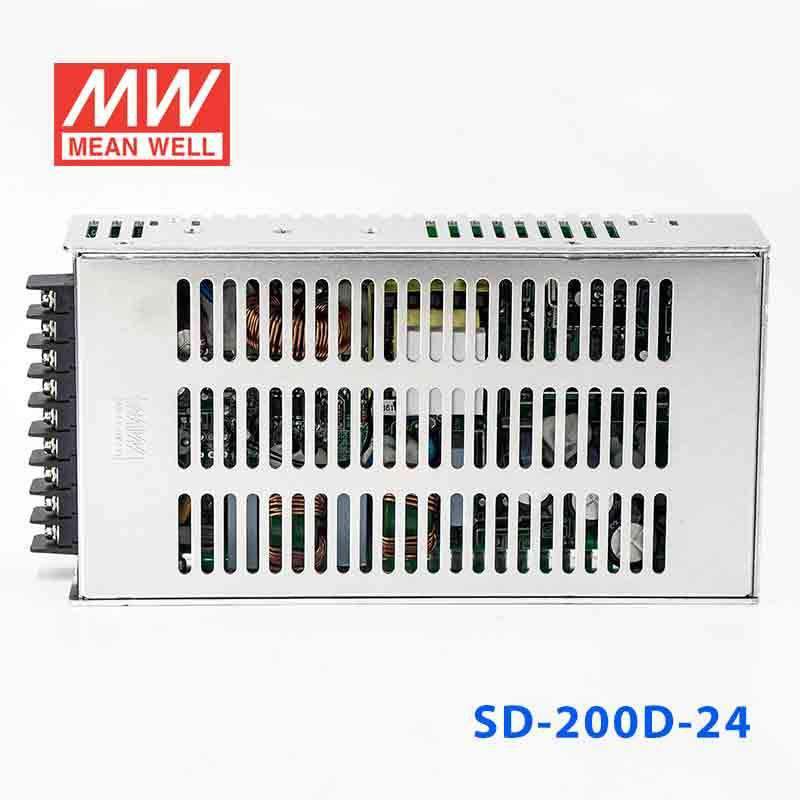

Mean Well SD-200D-24 DC-DC Converter - 200W - 72~144V in 24V out
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SD-200D-24 DC-DC Converter - 200W - 72~144V in 24V out
Description
Description
Specifications
Specifications
-
BrandMean Well
-
SeriesSD Series
-
Power Rating200.4 Watt
-
Output Voltage12 Volt
-
Rated Current16.7 Ampere
-
Input Voltage72V~144V
-
No of Output1
-
Dimming ControlNone
-
Standards MetUL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty2 Year
-
Length8.46 in
-
Width4.53 in
-
Height1.97 in
-
Weight2.43 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SD-200D-24 for 12V automation equipment on a 72-144VAC power system?
Yes, the listed output is constant-voltage 12V at up to 16.7A, with a 72-144VAC input range. It fits 12V automation loads when the total demand stays within 200.4W.
Is this converter suitable for 12V industrial displays, relays, or control accessories?
It can support 12V industrial electronics that require stable constant-voltage power rather than current regulation. The available output is 12V and 16.7A, so the combined load should remain at or below 200.4W.
Would the SD-200D-24 work in a vehicle, rail, or embedded system with a higher-voltage input bus?
It is designed for a 72-144VAC input range, which suits higher-voltage source systems within that window. On the output side it provides 12V constant voltage, making it appropriate for 12V embedded or control loads up to 16.7A.
Can the SD-200D-24 be used in harsh temperature conditions?
The specified operating temperature range is -20°C to +60°C, so it is intended for industrial environments within those limits. Since no IP rating is listed, temperature capability does not imply exposed outdoor or washdown use.
What is the difference between the SD-200D-24 and the other SD-200D versions?
The series listing shows SD-200D-12 at 200W, 5V, 40A; SD-200D-24 at 200.4W, 12V, 16.7A; SD-200D-48 at 201.6W, 24V, 8.4A; and SD-200D-5 at 201.6W, 48V, 4.2A. The output voltage and current change across the range, while all remain in the same general 200W class.
Other SD-200D Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well SD-200D-5 DC-DC Converter - 200W - 72~144V in 5V out | 201.6W | 48V | 4.2A | Indoor | $79.59 | View |
| Mean Well SD-200D-48 DC-DC Converter - 200W - 72~144V in 48V out | 201.6W | 24V | 8.4A | Indoor | $78.83 | View |
| Mean Well SD-200D-12 DC-DC Converter - 200W - 72~144V in 12V out | 200W | 5V | 40A | Indoor | $82.90 | View |
