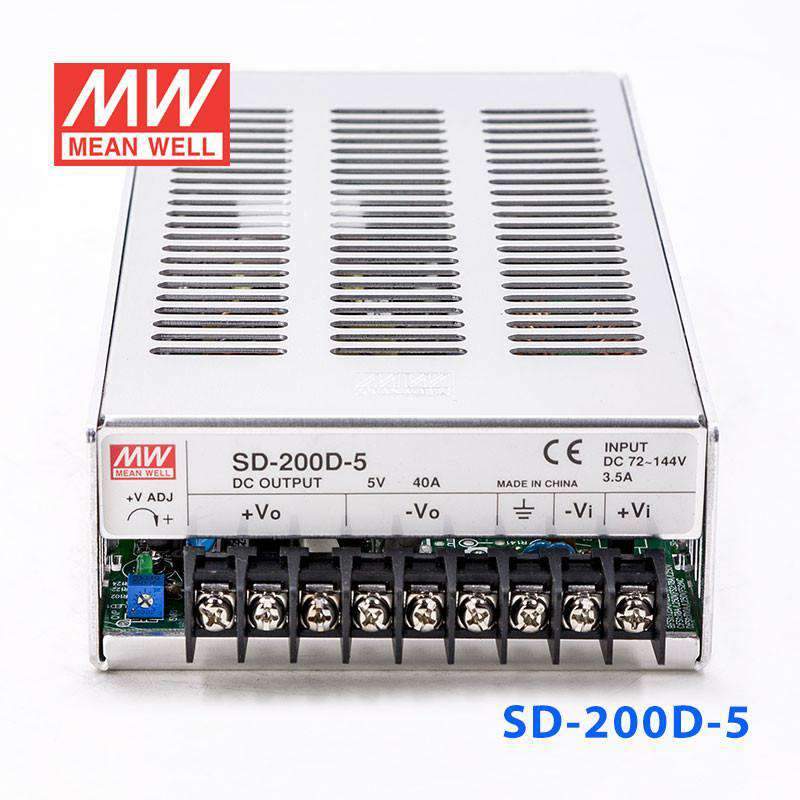

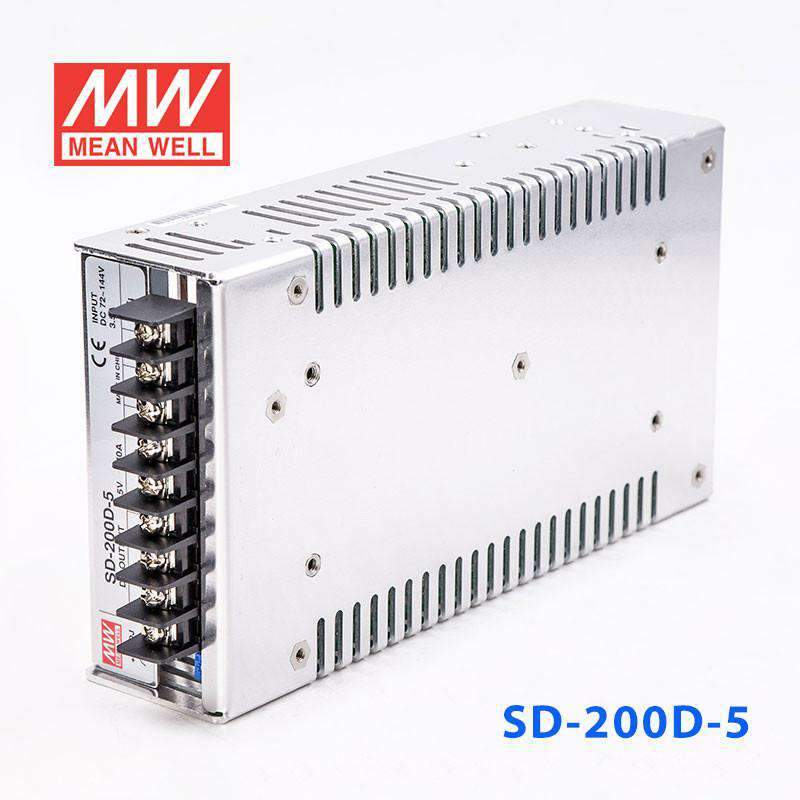

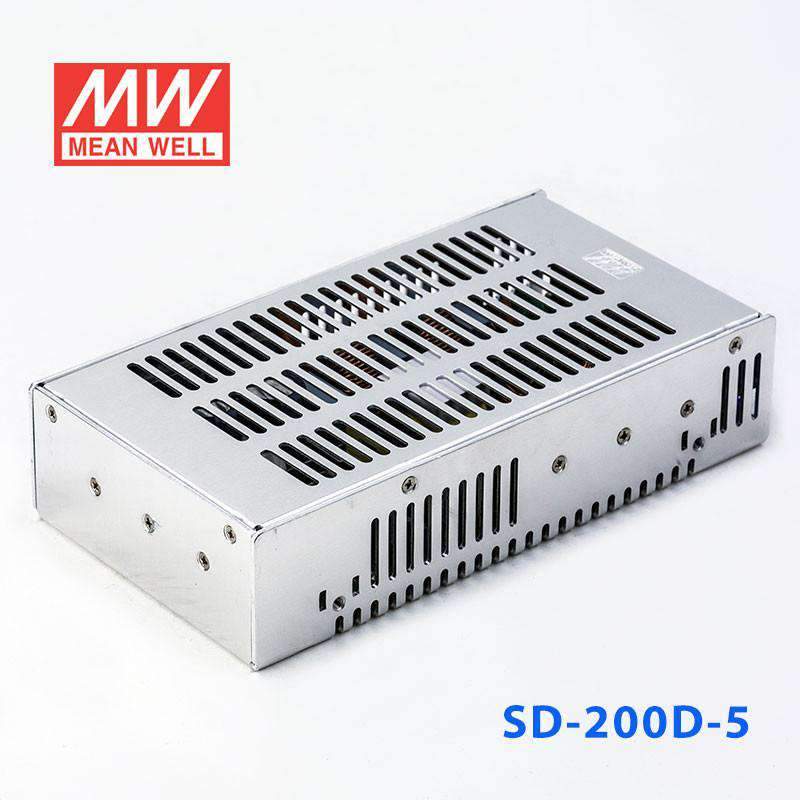

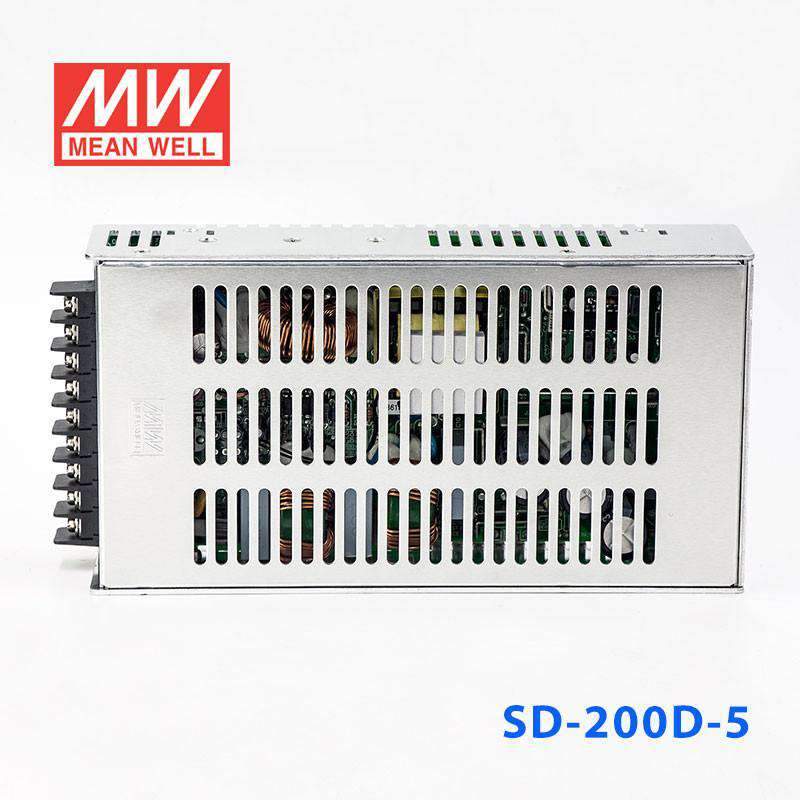

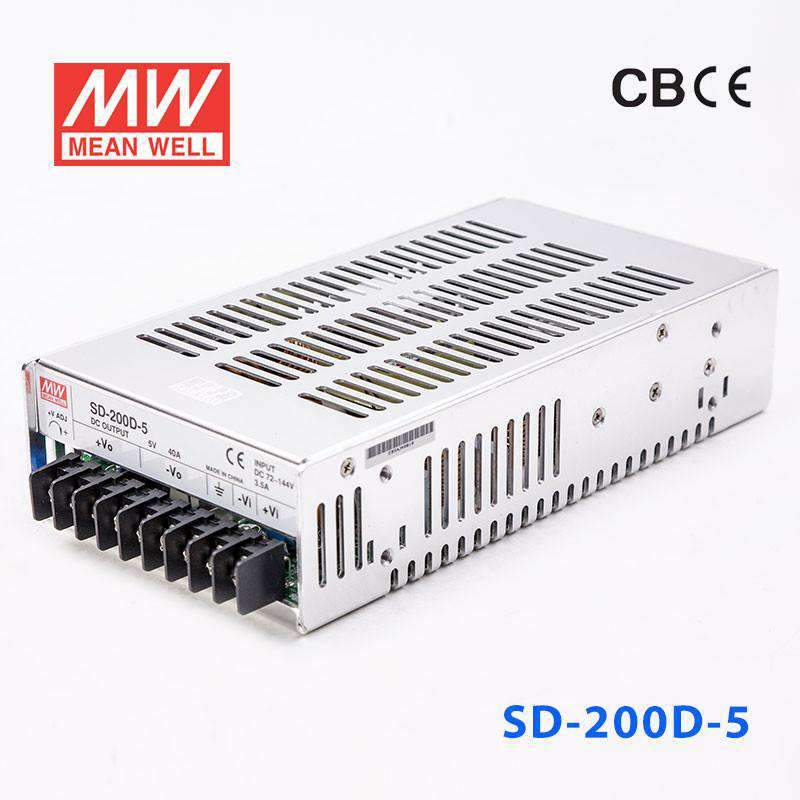

Mean Well SD-200D-5 DC-DC Converter - 200W - 72~144V in 5V out 40A
1.0 (1 review)Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SD-200D-5 DC-DC Converter - 200W - 72~144V in 5V out 40A
The SD-200D is a 200W Mean Well power converter (input range: 72~144VDC).
Key Features
- ✓ Input voltage range: 72~144VDC
- ✓ DC output voltage adjustable ±10%
- ✓ 1.5KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Safety approvals: IEC62368-1 CB
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSD Series
-
Power Rating201.6 Watt
-
Output Voltage48 Volt
-
Rated Current4.2 Ampere
-
Input Voltage72V~144V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetUL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty2 Year
-
Length8.46 in
-
Width4.53 in
-
Height1.97 in
-
Weight2.43 lb
::specification::
Frequently Asked Questions
Can I use the SD-200D-5 to power a 48V industrial controller or automation panel?
It can fit a 48V control or automation load when the system needs constant-voltage output and stays within 4.2A and 201.6W. It is intended for applications with a listed 72-144VAC input range.
Is the SD-200D-5 suitable for 48V embedded or communications equipment?
It can be used for 48V embedded or communications equipment that requires constant-voltage power up to 4.2A. The unit provides 201.6W output capacity and lists 1.5~2KVAC isolation by model.
Can this converter support a 48V monitoring or remote I/O system?
Yes, if the monitoring or remote I/O system is designed for 48V constant-voltage input and draws no more than 4.2A. The available output power is 201.6W.
How does the SD-200D-5 compare with other SD-200D models?
In the listed SD-200D group, SD-200D-12 is shown at 200W, 5V, 40A; SD-200D-24 at 200.4W, 12V, 16.7A; SD-200D-48 at 201.6W, 24V, 8.4A; and SD-200D-5 at 201.6W, 48V, 4.2A. The main differences are the output voltage, output current, and rated wattage shown for each model.
Is the SD-200D-5 suitable for outdoor or harsh-environment use?
The provided specs list an operating temperature range of -20°C to +60°C, but no IP rating is given. That means the temperature range is defined, but the product data does not state outdoor or water-exposure protection.
